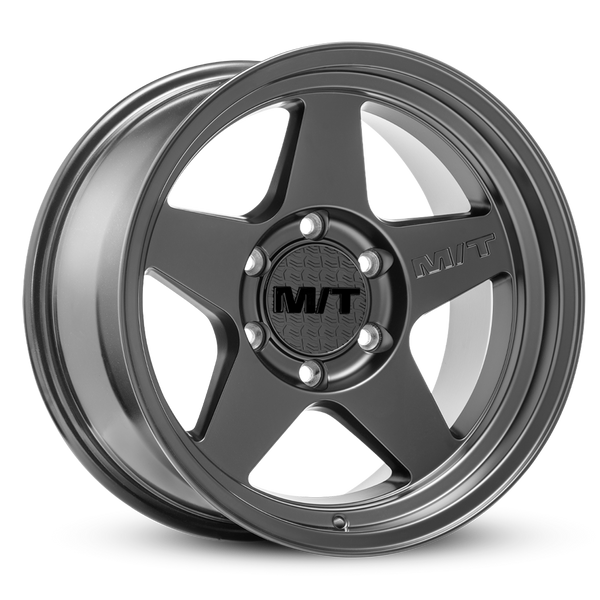

Mickey Thompson Open 5 Wheel (MPN: 274547)

Durable 20 Inch Wheel for Trucks and SUVs with Modern Design

The Mickey Thompson Open 5 Wheel is engineered for trucks and SUVs, offering a robust 20 inch diameter and 9 inch width. This wheel features a 5 spoke design with a satin black finish, providing a bold aesthetic that enhances the vehicle's appearance. Constructed from one piece cast aluminum, it ensures durability and a load capacity of 2500 pounds, making it suitable for various driving conditions.

With a 6 x 139.7 millimeter bolt pattern and a 60 degree conical seat lug nut design, the Open 5 Wheel is compatible with Tire Pressure Monitoring Systems (TPMS). The wheel's center bore measures 108.10 millimeters, allowing for a secure fit on compatible vehicles. Additionally, it accommodates a maximum tire diameter of 40 inches, making it versatile for different tire options.

The embossed M/T logo center cap adds a distinctive touch, while the structural warranty ensures long-lasting performance. The Mickey Thompson Open 5 Wheel is an excellent choice for those seeking a combination of style and functionality in their vehicle's wheels.

Features

• 2-Step Lip Design
• Sharp, Bold, And Modern 5-Spoke Design
• Modern M/T Tread Press-In Cap
• For Trucks And SUVs, Perfect For Adventurers

Specifications

• Manufacturer: Mickey Thompson Wheel
• Manufacturer Part Number: 274547
• Bolt Pattern Inch: Not Applicable
• Bolt Pattern Millimeter: Not Applicable
• Diameter: 20
• Width: 9
• Offset: 0
• Backspacing: 5.00
• Finish: Painted Satin
• Color: Black
• Material: Aluminum
• Bolt Pattern Inch: 6x5.50
• Bolt Pattern Inch: Not Applicable
• Bolt Pattern Millimeter: 6x139.7
• Bolt Pattern Millimeter: Not Applicable
• Lug Nut Seat Type: 60 Degree Conical
• Center Caps Included: Yes
• Center Bore: 108.10
• Lug Nut Design: Acorn
• Compatible With TPMS (Tire Pressure Monitoring Sys: Yes
• Basic Design: 5 Spoke
• With Inserts: No
• Load Capacity: 2500
• Size: 20x9
• Max Tire Diameter: 40
• Center Cap Design: Embossed M/T Logo
• Finish Warranty: 1 Year
• Structural Warranty: Lifetime
• Quantity: Single
• Construction: One Piece Cast
• With Hub Centric Ring: No
• Estimated Install Time (Hours): 0.5

Compatibility / Fit

• 1996-1999 Acura SLX
• 1999-2000 Cadillac Escalade
• 2002-2006 Cadillac Escalade
• 2003-2006 Cadillac Escalade ESV
• 2002-2006 Cadillac Escalade EXT
• 2002-2006 Chevrolet Avalanche 1500
• 1987-1988 Chevrolet Blazer
• 2004-2012 Chevrolet Colorado
• 2023-2026 Chevrolet Colorado
• 2003-2014 Chevrolet Express 1500
• 1975-1986 Chevrolet K10
• 1967-1974 Chevrolet K10 Pickup
• 1970-1977 Chevrolet K10 Suburban
• 1979-1986 Chevrolet K10 Suburban
• 1988-1999 Chevrolet K1500
• 1992-1999 Chevrolet K1500 Suburban
• 1975-1986 Chevrolet K5 Blazer
• 1975-1982 Chevrolet LUV
• 1999-2018 Chevrolet Silverado 1500
• 2020-2021 Chevrolet Silverado 1500
• 2023-2026 Chevrolet Silverado 1500
• 2007-2007 Chevrolet Silverado 1500 Classic
• 2019-2019 Chevrolet Silverado 1500 LD- Old Model
• 2022-2022 Chevrolet Silverado 1500 LTD- Old Model
• 2019-2019 Chevrolet Silverado 1500- New Model
• 2022-2022 Chevrolet Silverado 1500- New Model
• 2000-2006 Chevrolet Suburban 1500
• 1996-2007 Chevrolet Tahoe
• 1987-1988 Chevrolet V10 Suburban
• 2022-2026 Ford Bronco
• 1999-1999 GMC C1500
• 1993-1993 GMC C1500 Suburban
• 1975-1978 GMC C25
• 1982-1986 GMC C2500
• 1988-1999 GMC C2500
• 2004-2012 GMC Canyon
• 1976-1991 GMC Jimmy
• 1975-1978 GMC K15
• 1975-1978 GMC K15 Suburban
• 1970-1974 GMC K15/K1500 Pickup
• 1979-1986 GMC K1500
• 1988-1999 GMC K1500
• 1979-1986 GMC K1500 Suburban
• 1992-1999 GMC K1500 Suburban
• 1982-1986 GMC K2500
• 2000-2002 GMC Savana 1500
• 1999-2018 GMC Sierra 1500
• 2020-2021 GMC Sierra 1500
• 2023-2026 GMC Sierra 1500
• 2007-2007 GMC Sierra 1500 Classic
• 2019-2019 GMC Sierra 1500 Limited- Old Model
• 2022-2022 GMC Sierra 1500 Limited- Old Model
• 2019-2019 GMC Sierra 1500- New Model
• 2022-2022 GMC Sierra 1500- New Model
• 1987-1987 GMC V1500
• 1987-1991 GMC V1500 Suburban
• 1987-1987 GMC V2500
• 1992-2015 GMC Yukon
• 2021-2026 GMC Yukon
• 2015-2015 GMC Yukon XL
• 2021-2026 GMC Yukon XL
• 2000-2014 GMC Yukon XL 1500
• 1997-2003 Infiniti QX4
• 2004-2011 Infiniti QX56
• 1994-1994 Isuzu Amigo
• 2000-2000 Isuzu Amigo
• 2002-2004 Isuzu Axiom
• 1998-2004 Isuzu Rodeo
• 2001-2003 Isuzu Rodeo Sport
• 1984-2002 Isuzu Trooper
• 1999-2001 Isuzu VehiCROSS
• 2022-2025 Jeep Grand Wagoneer
• 2023-2025 Jeep Grand Wagoneer L
• 2022-2025 Jeep Wagoneer
• 2023-2025 Jeep Wagoneer L
• 1992-1999 Mitsubishi Montero
• 1997-2004 Mitsubishi Montero Sport
• 2017-2026 Nissan Armada
• 1998-1999 Nissan Frontier
• 1987-1995 Nissan Pathfinder
• 2017-2024 Nissan Titan
• 2016-2024 Nissan Titan XD
• 2024-2026 Ram 1500
• 2019-2023 Ram 1500- New Model
• 2000-2024 Toyota 4Runner
• 2007-2014 Toyota FJ Cruiser
• 1994-1998 Toyota Land Cruiser
• 2001-2007 Toyota Sequoia
• 1995-1999 Toyota Tacoma
• 2001-2026 Toyota Tacoma
• 2000-2006 Toyota Tundra
• 2022-2026 Toyota Tundra

Technical Documents

• Mickey_Thompson___Warranty_Info.pdf
