Mickey Thompson Classic Pro Wheel (MPN: 274705)

Timeless design meets modern performance for versatile applications.

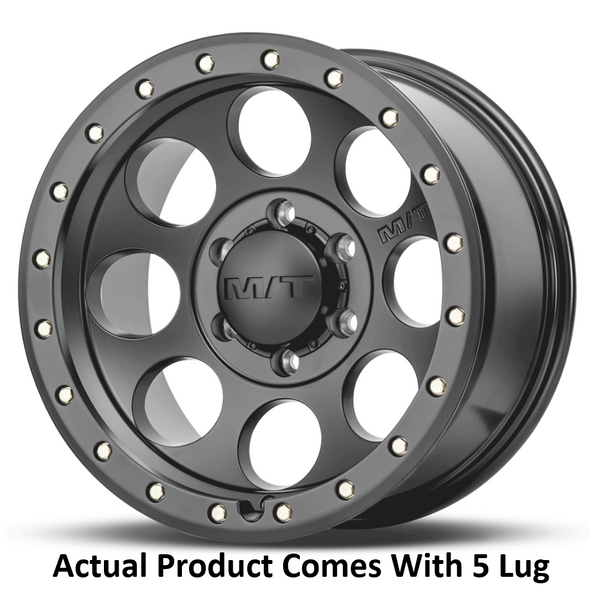

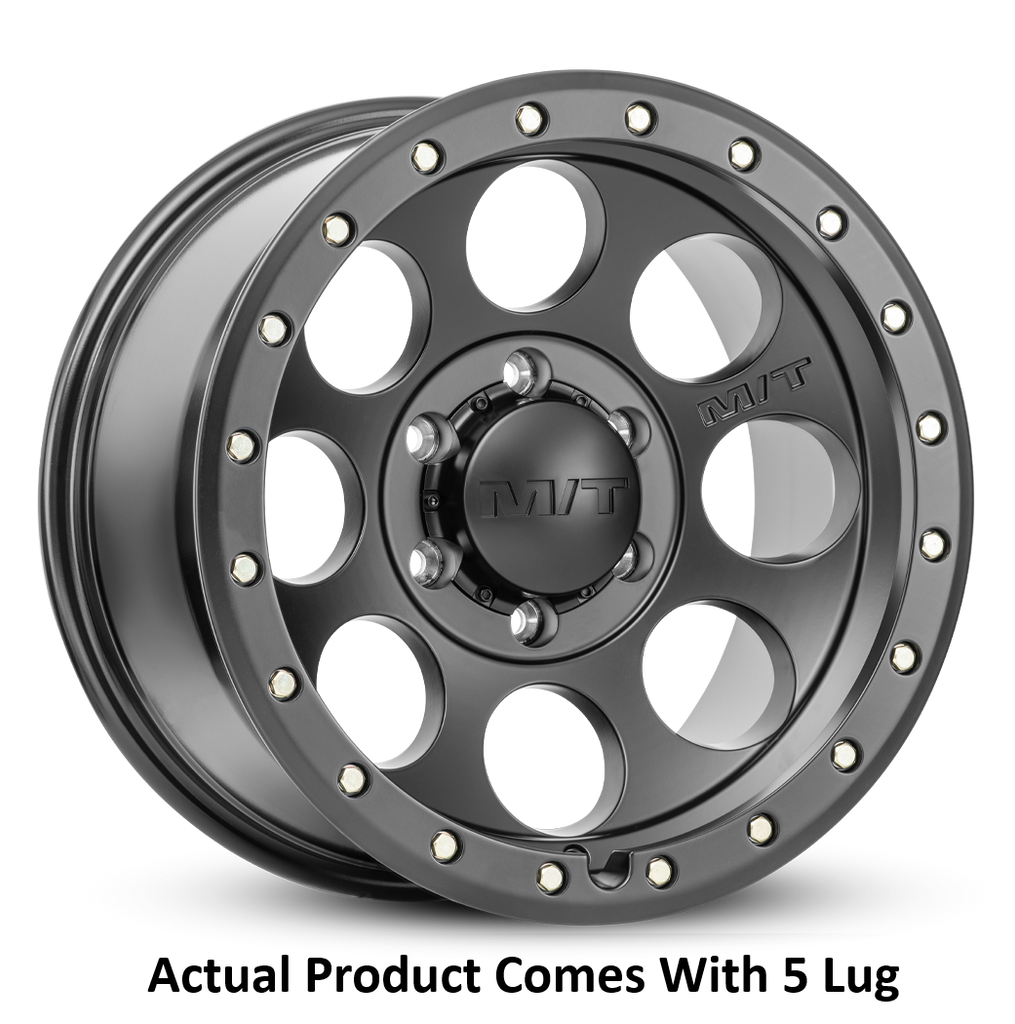

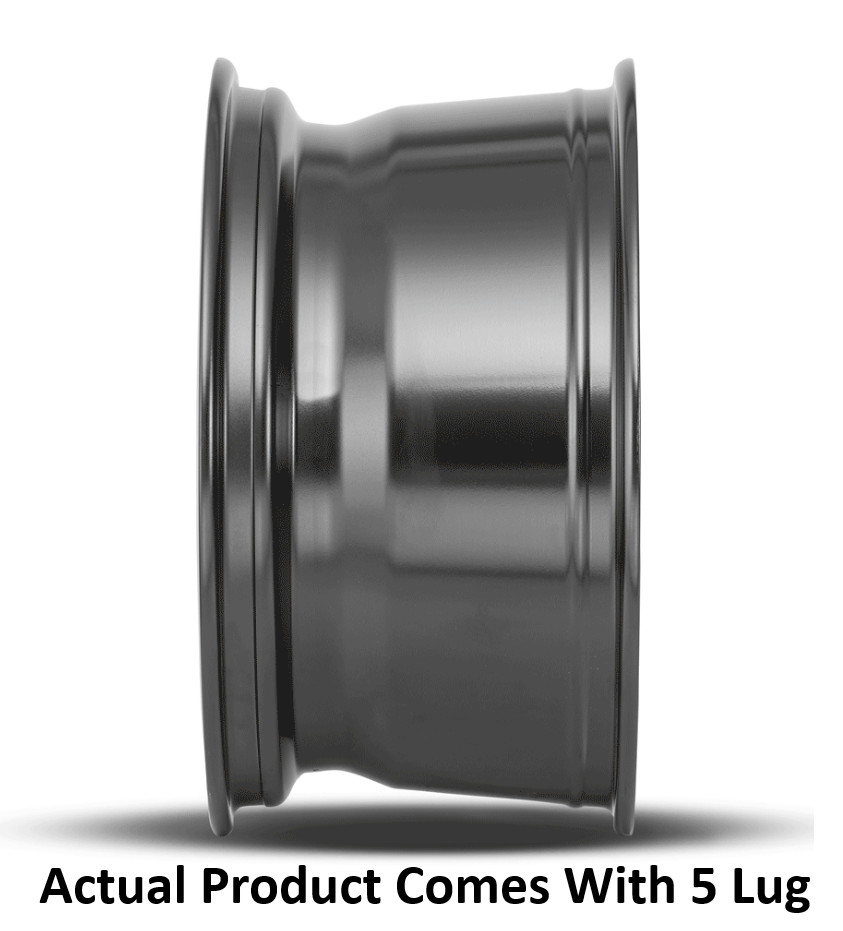

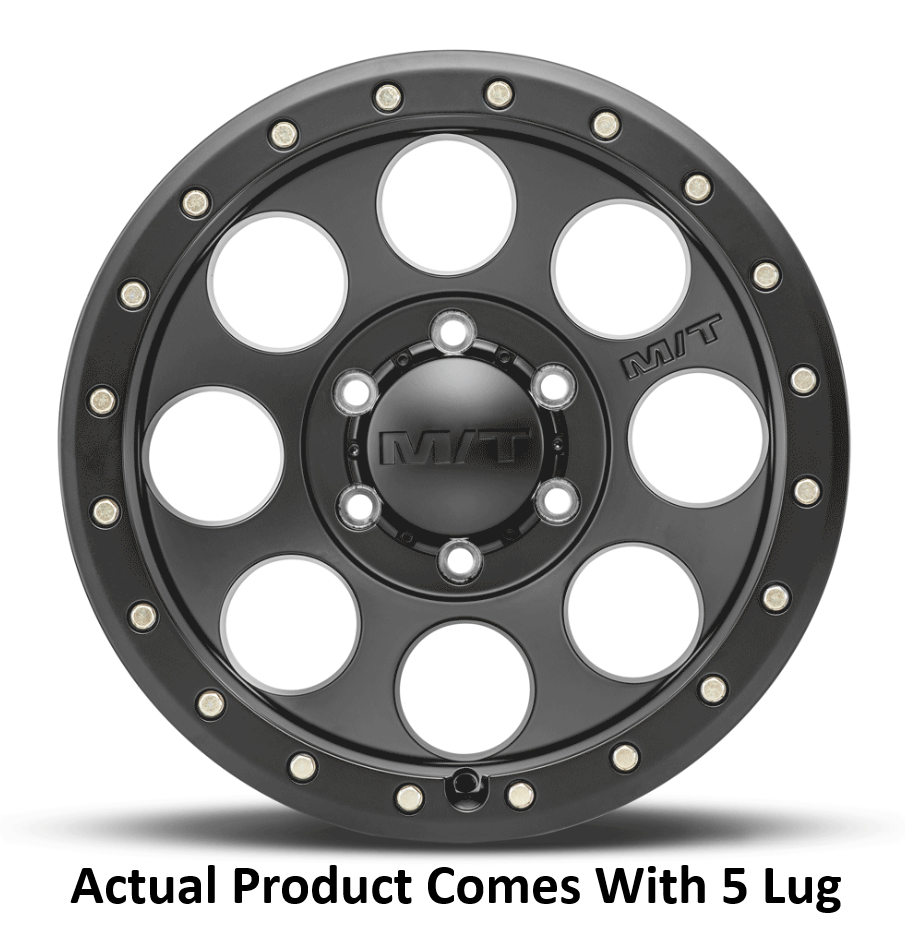

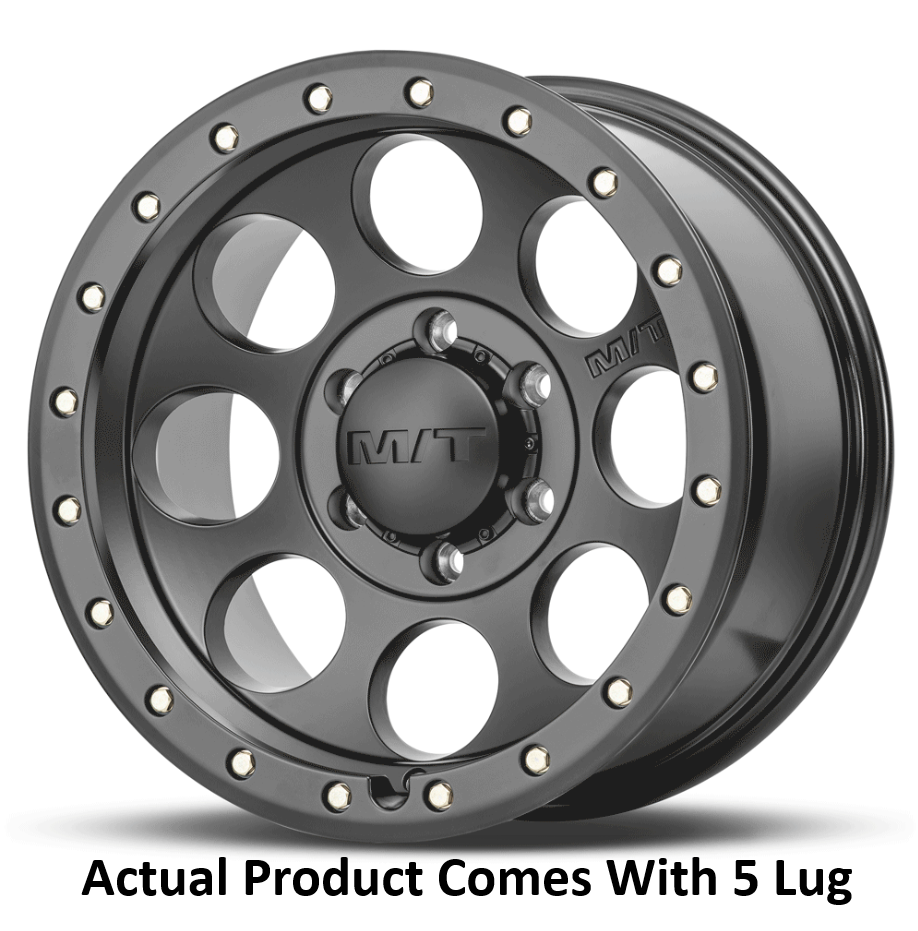

The Mickey Thompson Classic Pro Wheel features a 20 inch diameter and 9 inch width, designed for a variety of modern vehicles. Its 8-hole configuration is inspired by the Classic III design, providing a classic aesthetic with a simulated beadlock appearance. Constructed from one-piece cast aluminum, this wheel is both durable and lightweight, supporting a load capacity of 2500 pounds.

With a 5 x 139.7 millimeter bolt pattern and a 60 degree conical seat lug nut design, the Classic Pro Wheel ensures a secure fitment. The satin black finish, complemented by a simulated beadlock ring, enhances its visual appeal while maintaining functionality. Additionally, the wheel is compatible with Tire Pressure Monitoring Systems (TPMS), making it a practical choice for contemporary drivers.

The wheel's center bore measures 108.10 millimeters, and it features a modern low profile cap design with an embossed M/T logo. Designed for tires with a maximum diameter of 40 inches, this wheel is suitable for various applications, providing both style and performance on the road.

Features

• Simulated Beadlock Style With Genuine 5/8 Inch Zinc Bolts For A Classic And Commanding Look
• Valve Stem Niche Cut Out For Easy Access
• Modern Low Profile Cap Design
• Vast Fitments For Most Modern Vehicles

Specifications

• Manufacturer: Mickey Thompson Wheel
• Manufacturer Part Number: 274705
• Bolt Pattern Inch: Not Applicable
• Bolt Pattern Millimeter: Not Applicable
• Diameter: 20
• Width: 9
• Offset: 0
• Backspacing: 5.00
• Finish: Painted Satin
• Color: Black With Simulated Beadlock Ring
• Material: Aluminum
• Bolt Pattern Inch: 5x5.50
• Bolt Pattern Inch: Not Applicable
• Bolt Pattern Millimeter: 5x139.7
• Bolt Pattern Millimeter: Not Applicable
• Lug Nut Seat Type: 60 Degree Conical
• Center Caps Included: Yes
• Center Bore: 108.10
• Lug Nut Design: Acorn
• Compatible With TPMS (Tire Pressure Monitoring Sys: Yes
• Basic Design: 8 Hole
• With Inserts: No
• Load Capacity: 2500
• Size: 20x9
• Max Tire Diameter: 40
• Center Cap Design: Embossed M/T Logo
• Finish Warranty: 1 Year
• Structural Warranty: Lifetime
• Quantity: Single
• Construction: One Piece Cast
• With Hub Centric Ring: No
• Estimated Install Time (Hours): 0.5

Compatibility / Fit

• 1986-1989 Dodge D100
• 1981-1993 Dodge D150
• 1994-2010 Dodge Ram 1500
• 1977-1980 Dodge W150
• 1982-1984 Dodge W150
• 1986-1993 Dodge W150
• 1987-1996 Ford Bronco
• 1975-1983 Ford E-100 Econoline
• 1975-1983 Ford E-100 Econoline Club Wagon
• 2003-2006 Ford E-150
• 2011-2012 Ford E-150
• 2003-2005 Ford E-150 Club Wagon
• 1992-2002 Ford E-150 Econoline
• 1991-2002 Ford E-150 Econoline Club Wagon
• 1980-1983 Ford F-100
• 1980-1996 Ford F-150
• 1970-1983 Jeep CJ5
• 1976-1986 Jeep CJ7
• 2011-2018 Ram 1500
• 2024-2024 Ram 1500 Classic
• 2019-2023 Ram 1500 Classic- Old Model
• 2022-2024 Rivian R1S
• 2022-2024 Rivian R1T
• 2002-2006 Suzuki XL-7
