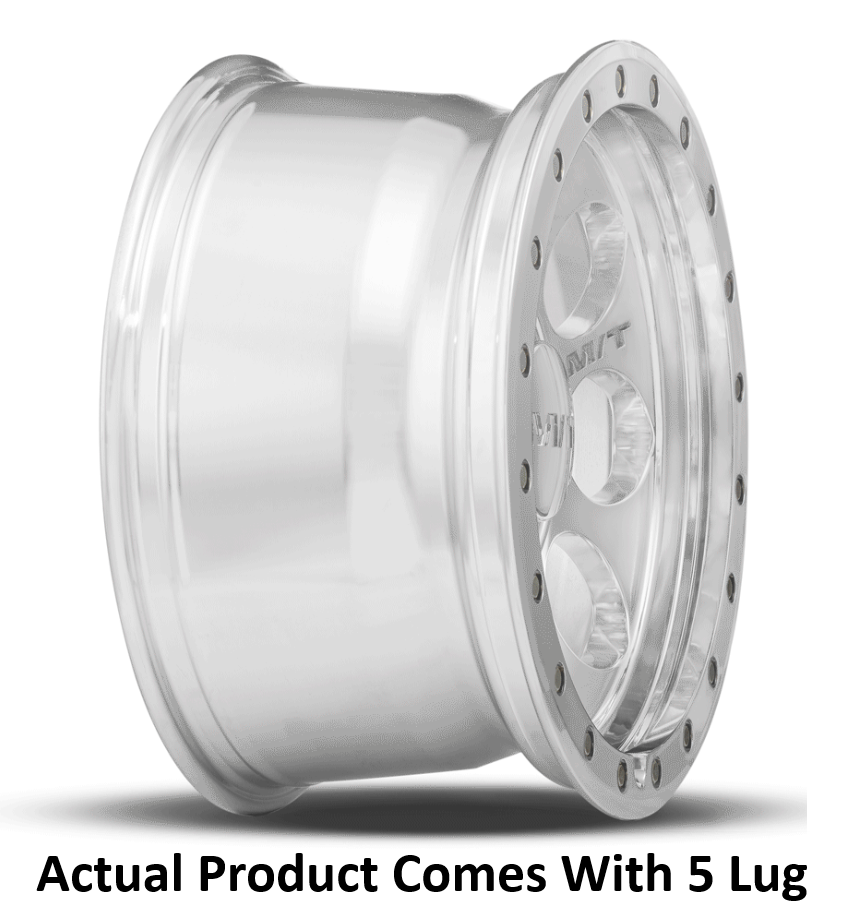

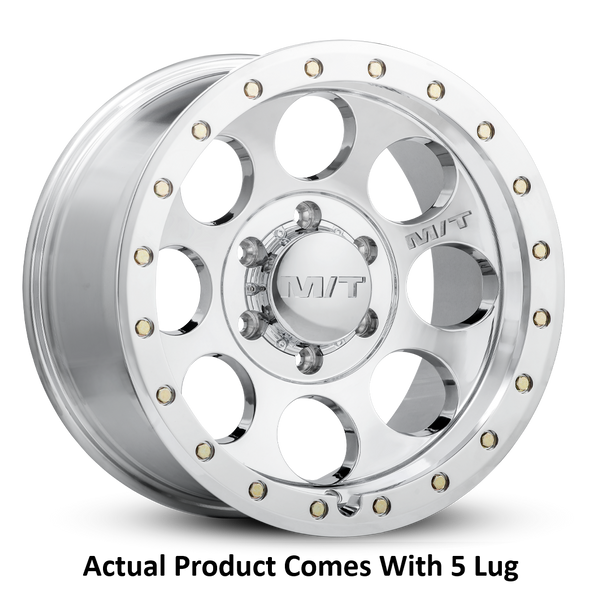

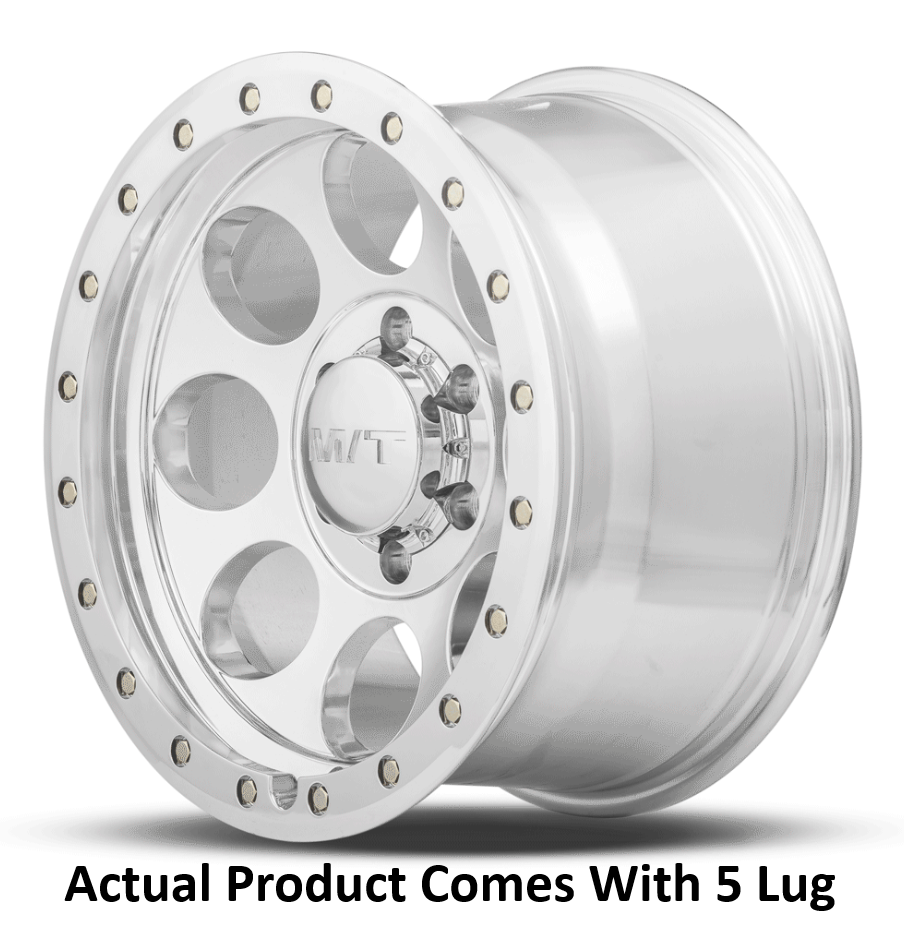

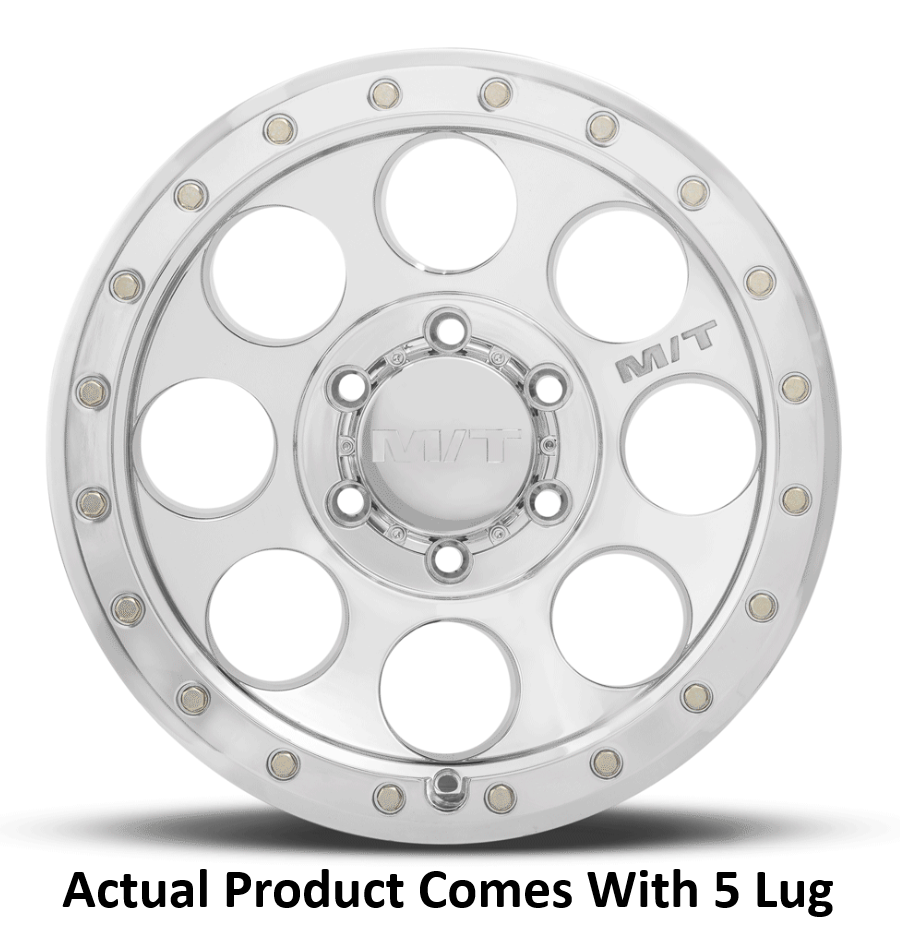

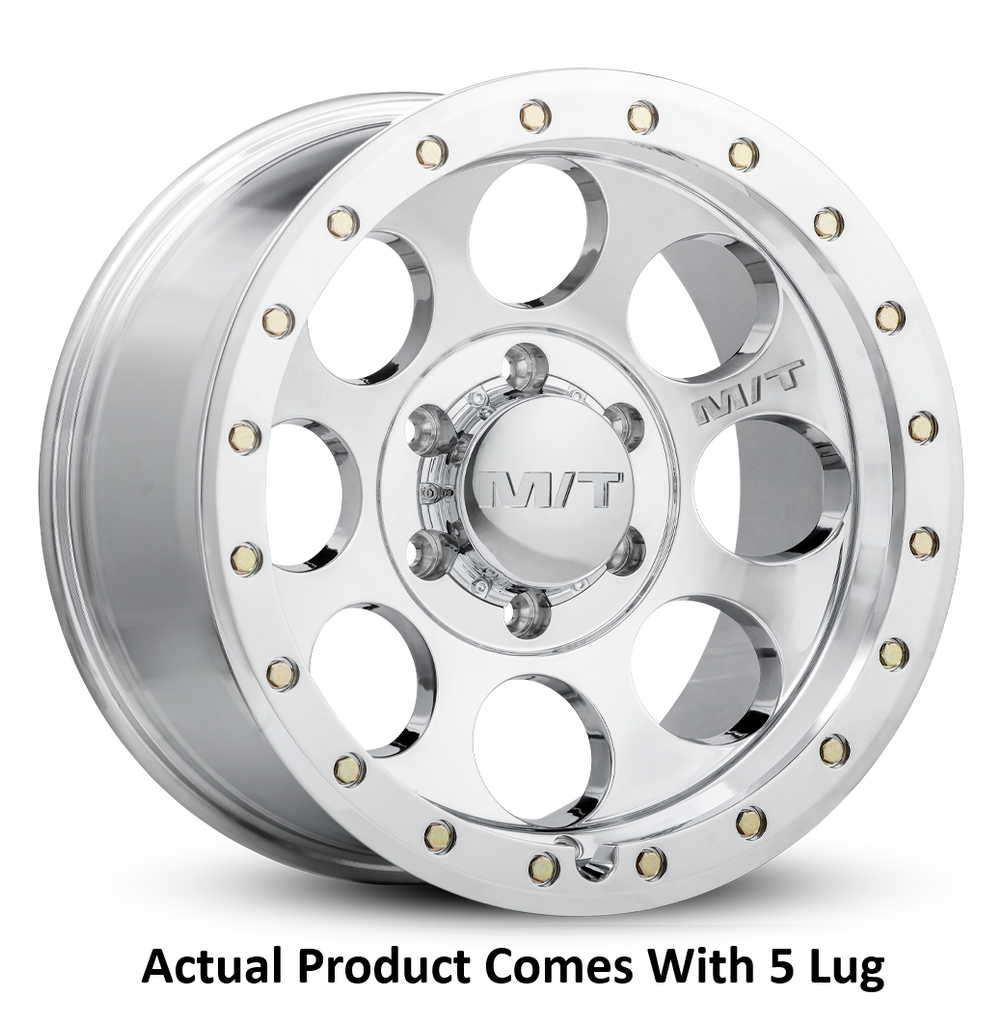

Mickey Thompson Classic Pro Wheel (MPN: 274589)

Timeless design meets modern performance for versatile fitment.

The Mickey Thompson Classic Pro Wheel features a 20 inch diameter and 9 inch width, designed for a variety of modern vehicles. Its 8-hole design is inspired by the Mickey Thompson Classic III, offering a street-style simulated beadlock that enhances both aesthetics and functionality. Constructed from one piece cast aluminum, this wheel is polished to a high shine and includes a simulated beadlock ring for a commanding look.

With a load capacity of 2500 pounds, the Classic Pro Wheel is engineered to support heavy-duty applications while maintaining compatibility with Tire Pressure Monitoring Systems (TPMS). The wheel has a 5 x 150 millimeter bolt pattern and a 110.10 millimeter center bore, ensuring a secure fit for a wide range of vehicles. The 60 degree conical seat lug nut design and modern low profile cap contribute to its robust performance.

This wheel accommodates a maximum tire diameter of 40 inches, making it suitable for various tire sizes. The valve stem niche cut out allows for easy access, enhancing the user experience. The Classic Pro Wheel is available in multiple finishes, including polished, satin black, and satin bronze, catering to diverse aesthetic preferences.

Features

• Simulated Beadlock Style With Genuine 5/8 Inch Zinc Bolts For A Classic And Commanding Look
• Valve Stem Niche Cut Out For Easy Access
• Modern Low Profile Cap Design
• Vast Fitments For Most Modern Vehicles

Specifications

• Manufacturer: Mickey Thompson Wheel
• Manufacturer Part Number: 274589
• Bolt Pattern Inch: Not Applicable
• Bolt Pattern Millimeter: Not Applicable
• Diameter: 20
• Width: 9
• Offset: 0
• Backspacing: 5.00
• Finish: Polished
• Color: Natural With Simulated Beadlock Ring
• Material: Aluminum
• Bolt Pattern Inch: 5x5.90
• Bolt Pattern Inch: Not Applicable
• Bolt Pattern Millimeter: 5x150
• Bolt Pattern Millimeter: Not Applicable
• Lug Nut Seat Type: 60 Degree Conical
• Center Caps Included: Yes
• Center Bore: 110.10
• Lug Nut Design: Acorn
• Compatible With TPMS (Tire Pressure Monitoring Sys: Yes
• Basic Design: 8 Hole
• With Inserts: No
• Load Capacity: 2500
• Size: 20x9
• Max Tire Diameter: 40
• Center Cap Design: Embossed M/T Logo
• Finish Warranty: 1 Year
• Structural Warranty: Lifetime
• Quantity: Single
• Construction: One Piece Cast
• With Hub Centric Ring: No
• Estimated Install Time (Hours): 0.5

Compatibility / Fit

• 2007-2021 Toyota Tundra

Technical Documents

• Mickey_Thompson___Warranty_Info.pdf
