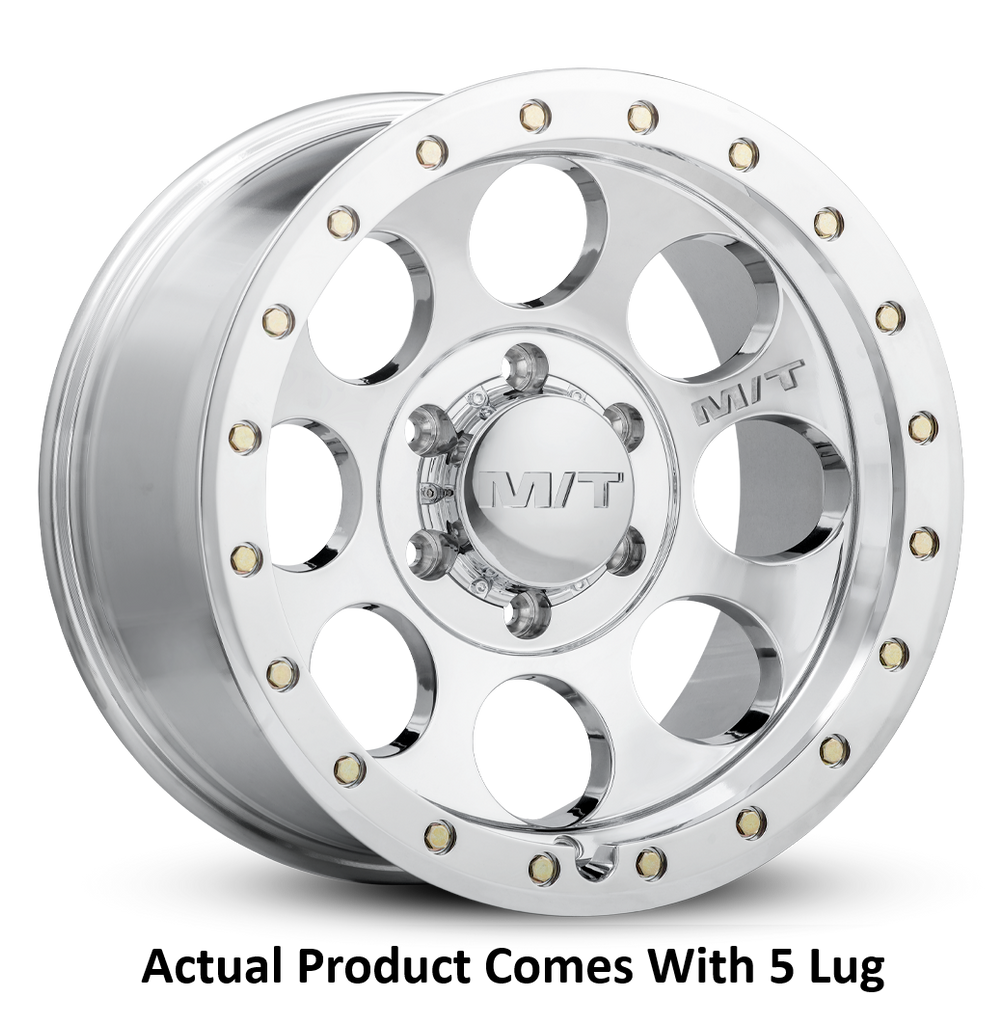

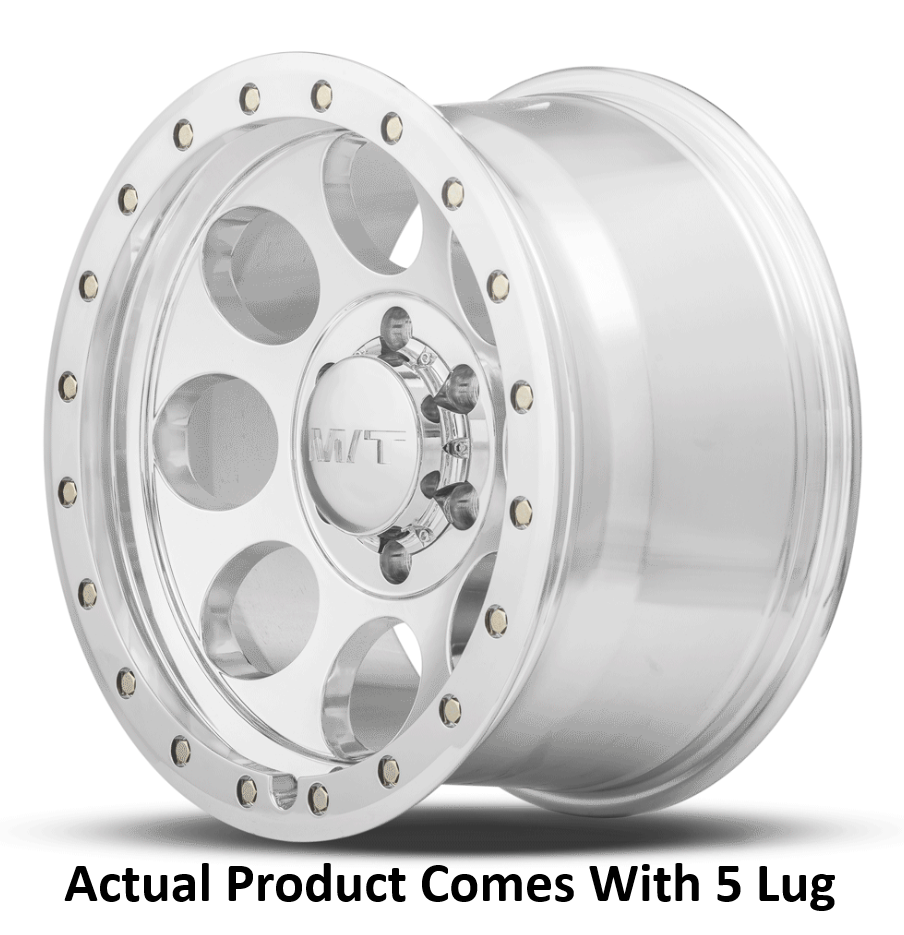

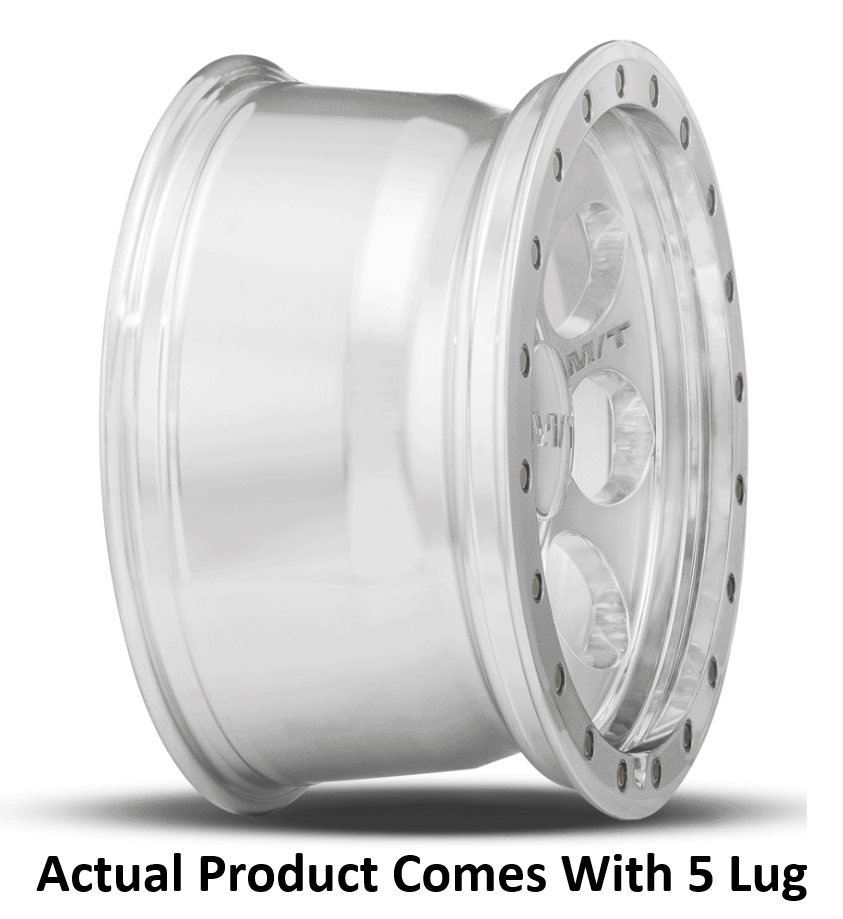

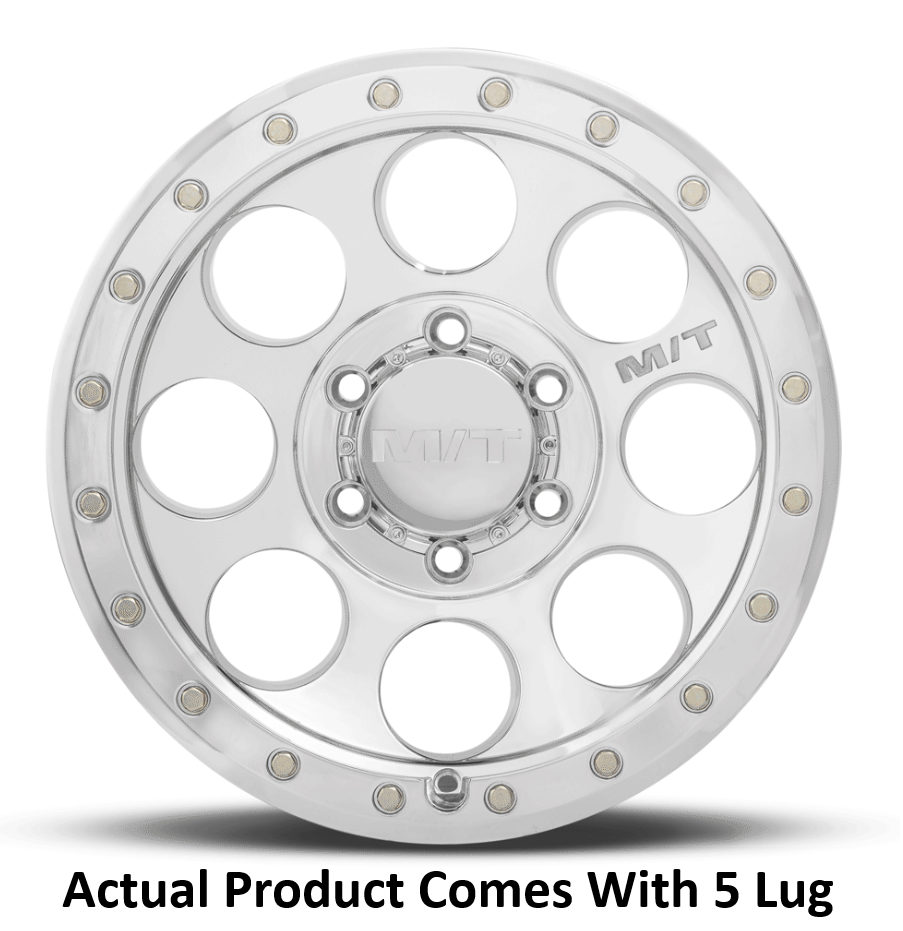

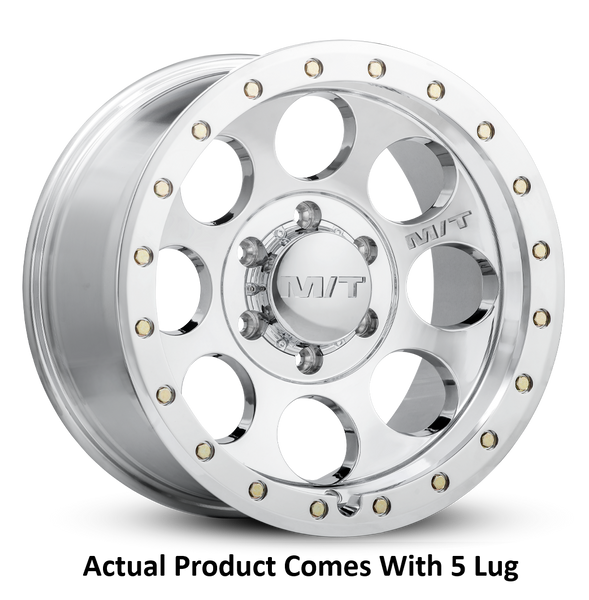

Mickey Thompson Classic Pro Wheel (MPN: 274588)

Timeless design meets modern performance for versatile applications.

The Mickey Thompson Classic Pro Wheel features a 20 inch diameter and 9 inch width, designed for durability and style. Constructed from one piece cast aluminum, this wheel is polished and includes a simulated beadlock ring, providing a classic aesthetic with modern functionality. With a load capacity of 2500 pounds and compatibility with TPMS, it is engineered to support a wide range of vehicles while ensuring optimal performance.

This wheel boasts an 8-hole design inspired by the Mickey Thompson Classic III, making it a standout choice for those seeking both form and function. The 60 degree conical seat lug nut design and 108.10 millimeter center bore ensure a secure fit, while the valve stem niche cut out allows for easy access. The modern low profile cap design enhances the overall look, making it suitable for various applications.

Available in multiple finishes including polished, satin black, and satin bronze, the Classic Pro Wheel is versatile enough to complement any vehicle style. With a maximum tire diameter of 40 inches, it accommodates a wide range of tire options, making it a practical choice for off-road and street use alike.

Features

• Simulated Beadlock Style With Genuine 5/8 Inch Zinc Bolts For A Classic And Commanding Look
• Valve Stem Niche Cut Out For Easy Access
• Modern Low Profile Cap Design
• Vast Fitments For Most Modern Vehicles

Specifications

• Manufacturer: Mickey Thompson Wheel
• Manufacturer Part Number: 274588
• Bolt Pattern Inch: Not Applicable
• Bolt Pattern Millimeter: Not Applicable
• Diameter: 20
• Width: 9
• Offset: 0
• Backspacing: 5.00
• Finish: Polished
• Color: Natural With Simulated Beadlock Ring
• Material: Aluminum
• Bolt Pattern Inch: 5x5.50
• Bolt Pattern Inch: Not Applicable
• Bolt Pattern Millimeter: 5x139.7
• Bolt Pattern Millimeter: Not Applicable
• Lug Nut Seat Type: 60 Degree Conical
• Center Caps Included: Yes
• Center Bore: 108.10
• Lug Nut Design: Acorn
• Compatible With TPMS (Tire Pressure Monitoring Sys: Yes
• Basic Design: 8 Hole
• With Inserts: No
• Load Capacity: 2500
• Size: 20x9
• Max Tire Diameter: 40
• Center Cap Design: Embossed M/T Logo
• Finish Warranty: 1 Year
• Structural Warranty: Lifetime
• Quantity: Single
• Construction: One Piece Cast
• With Hub Centric Ring: No
• Estimated Install Time (Hours): 0.5

Compatibility / Fit

• 1986-1989 Dodge D100
• 1981-1993 Dodge D150
• 1994-2010 Dodge Ram 1500
• 1977-1980 Dodge W150
• 1982-1984 Dodge W150
• 1986-1993 Dodge W150
• 1987-1996 Ford Bronco
• 1975-1983 Ford E-100 Econoline
• 1975-1983 Ford E-100 Econoline Club Wagon
• 2003-2006 Ford E-150
• 2011-2012 Ford E-150
• 2003-2005 Ford E-150 Club Wagon
• 1992-2002 Ford E-150 Econoline
• 1991-2002 Ford E-150 Econoline Club Wagon
• 1980-1983 Ford F-100
• 1980-1996 Ford F-150
• 1970-1983 Jeep CJ5
• 1976-1986 Jeep CJ7
• 2011-2018 Ram 1500
• 2024-2024 Ram 1500 Classic
• 2019-2023 Ram 1500 Classic- Old Model
• 2022-2024 Rivian R1S
• 2022-2024 Rivian R1T
• 2002-2006 Suzuki XL-7
