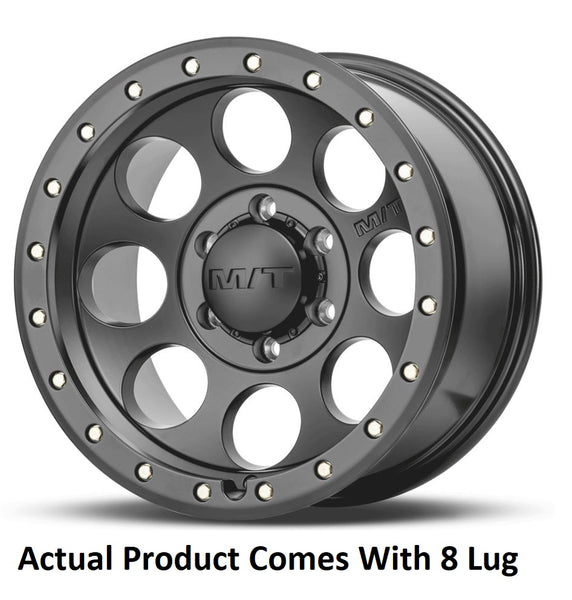

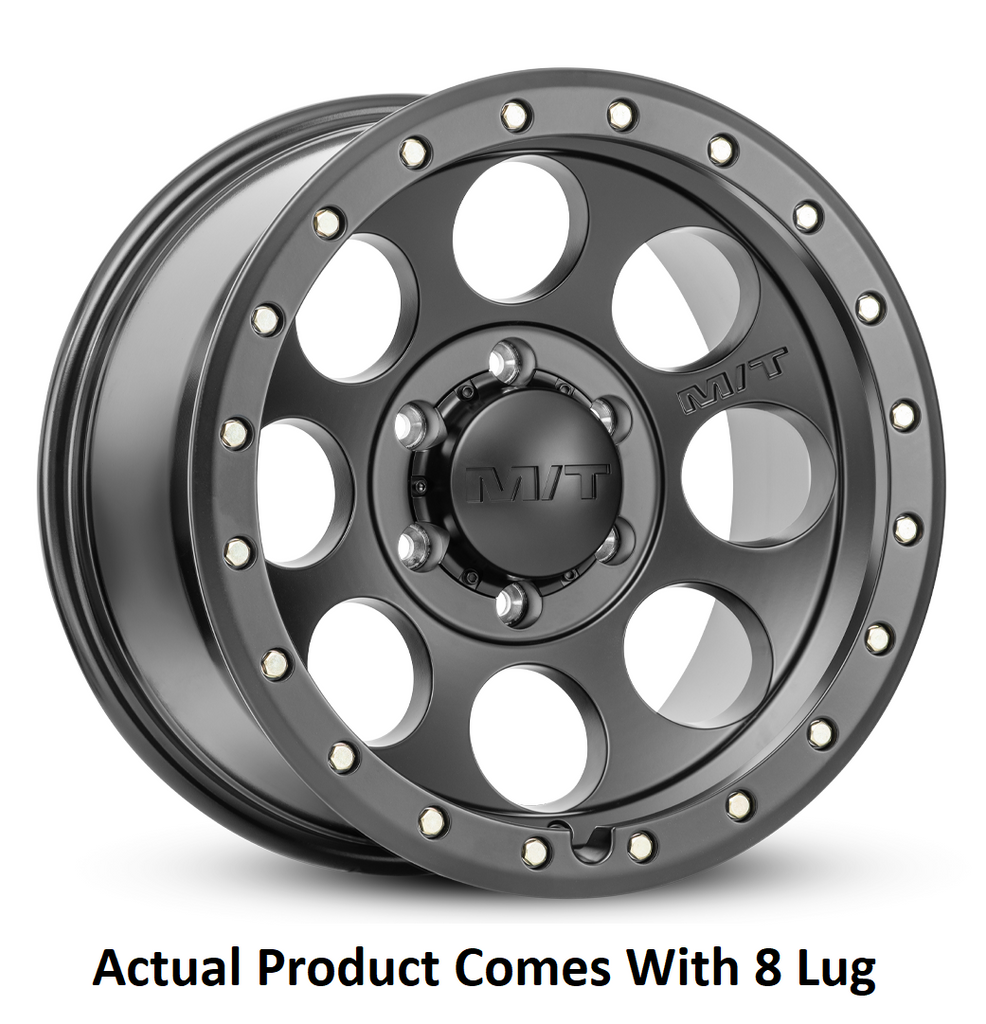

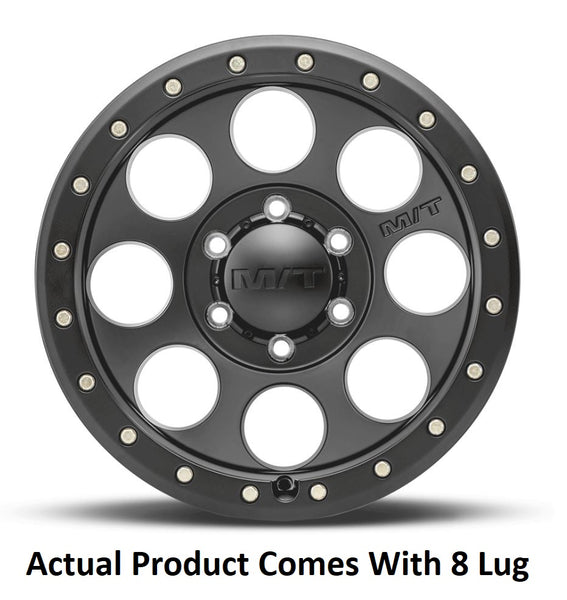

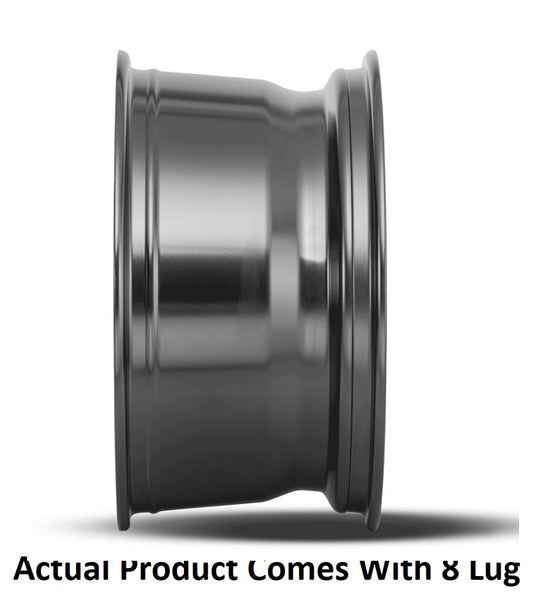

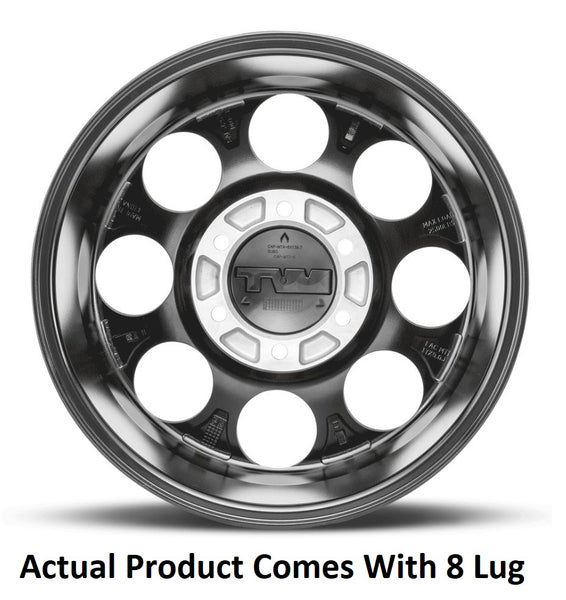

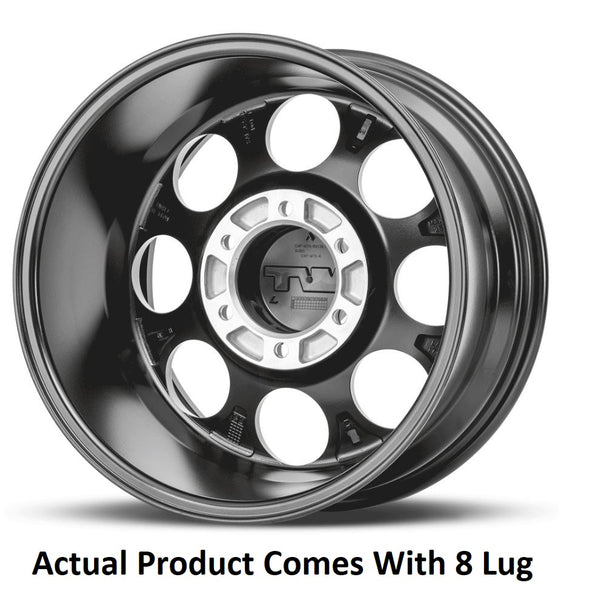

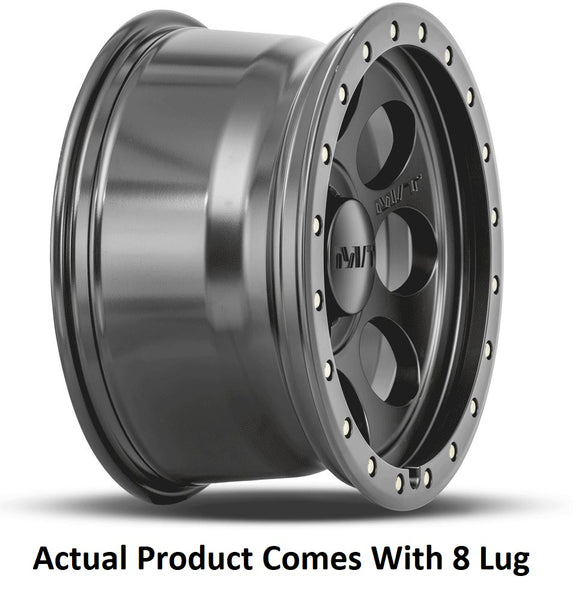

Mickey Thompson Classic Pro Wheel (MPN: 274469)

Timeless design meets modern performance for enhanced vehicle capability.

The Mickey Thompson Classic Pro Wheel features a robust 17-inch diameter and 9-inch width, designed to accommodate a variety of modern vehicles. Its 8-hole configuration, inspired by the Classic III, offers a commanding aesthetic while ensuring compatibility with a wide range of applications. Constructed from one-piece cast aluminum, this wheel provides a high load capacity of 3500 pounds, making it suitable for demanding driving conditions.

The satin black finish, complemented by a simulated beadlock ring, enhances the wheel's visual appeal while maintaining durability. The design includes a valve stem niche cut out for easy access and a modern low profile cap that adds to its sleek look. With a 60-degree conical seat lug nut design and a center bore of 125.20 millimeters, this wheel is engineered for optimal performance and fitment.

Compatible with Tire Pressure Monitoring Systems (TPMS), the Classic Pro Wheel supports tires with a maximum diameter of 40 inches, ensuring versatility for various tire options. Backed by a lifetime structural warranty and a one-year finish warranty, this wheel is built to last, making it a reliable choice for automotive enthusiasts seeking both style and functionality.

Features

• Simulated Beadlock Style With Genuine 5/8 Inch Zinc Bolts For A Classic And Commanding Look
• Valve Stem Niche Cut Out For Easy Access
• Modern Low Profile Cap Design
• Vast Fitments For Most Modern Vehicles
• High Load Rating For Strength And Durability

Specifications

• Manufacturer: Mickey Thompson Wheel
• Manufacturer Part Number: 274469
• Bolt Pattern Inch: Not Applicable
• Bolt Pattern Millimeter: Not Applicable
• Diameter: 17
• Width: 9
• Offset: 0
• Backspacing: 5.00
• Finish: Painted Satin
• Color: Black With Simulated Beadlock Ring
• Material: Aluminum
• Bolt Pattern Inch: 8x6.50
• Bolt Pattern Inch: Not Applicable
• Bolt Pattern Millimeter: 8x165.1
• Bolt Pattern Millimeter: Not Applicable
• Lug Nut Seat Type: 60 Degree Conical
• Center Caps Included: Yes
• Center Bore: 125.20
• Lug Nut Design: Acorn
• Compatible With TPMS (Tire Pressure Monitoring Sys: Yes
• Basic Design: 8 Hole
• With Inserts: No
• Load Capacity: 3500
• Size: 17x9
• Max Tire Diameter: 40
• Center Cap Design: Embossed M/T Logo
• Finish Warranty: 1 Year
• Structural Warranty: Lifetime
• Quantity: Single
• Construction: One Piece Cast
• With Hub Centric Ring: No
• Estimated Install Time (Hours): 0.5

Technical Documents

• Mickey_Thompson___Warranty_Info.pdf
