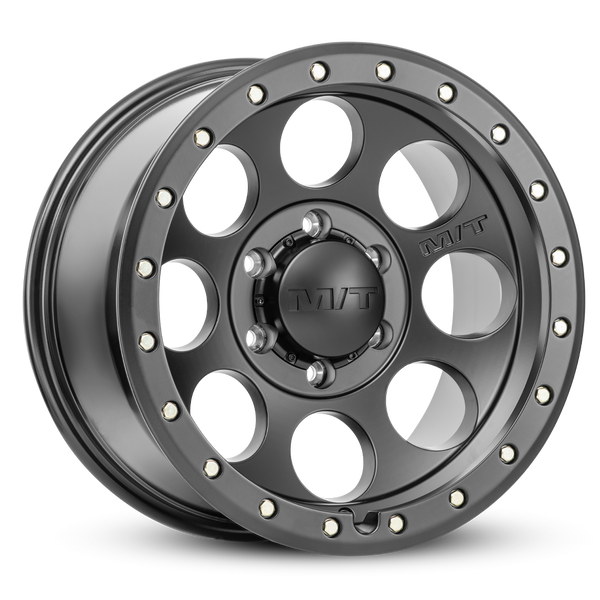

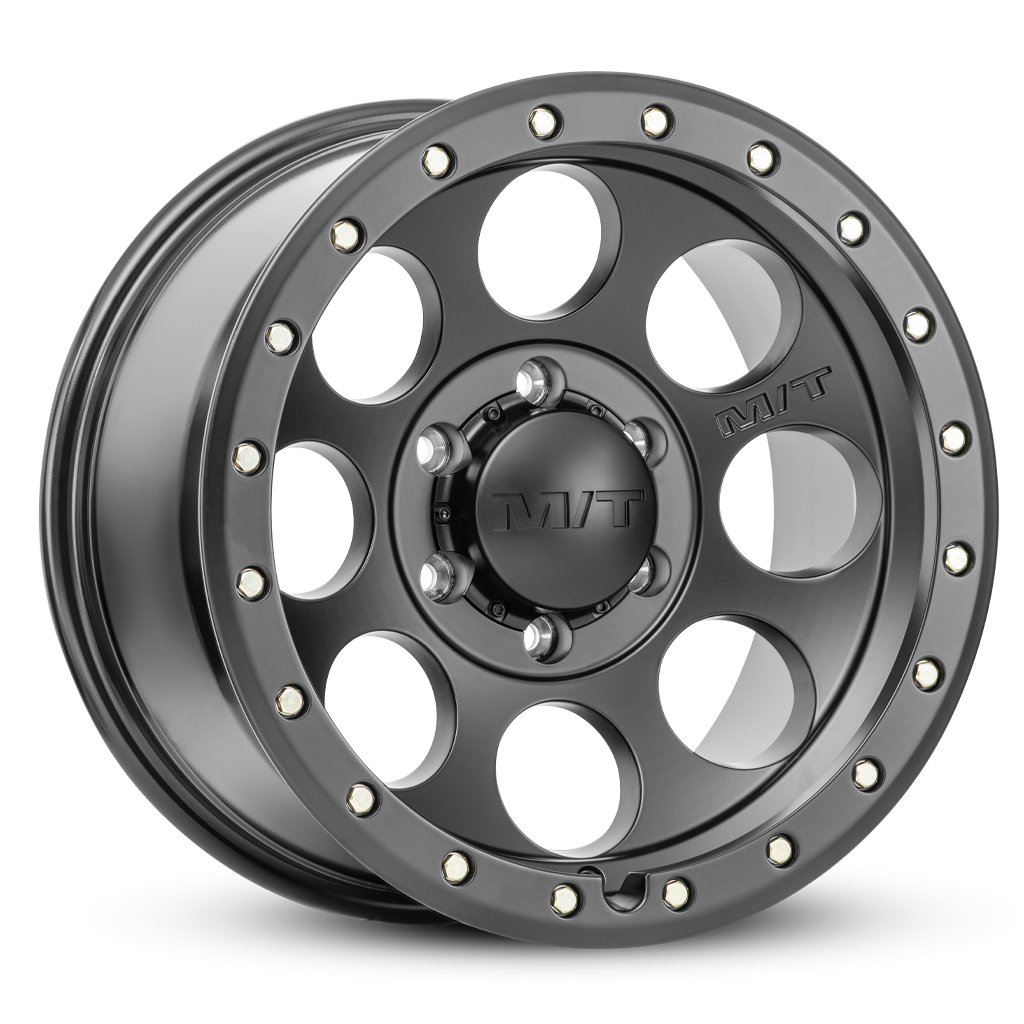

Mickey Thompson Classic Pro Wheel (MPN: 274466)

Timeless design meets modern performance for versatile applications.

The Mickey Thompson Classic Pro Wheel features a 17 inch diameter and 9 inch width, designed to accommodate a 6 x 135 millimeter bolt pattern. This wheel is constructed from one piece cast aluminum, ensuring durability and strength with a load capacity of 2500 pounds. The satin black finish, complemented by a simulated beadlock ring, provides a classic aesthetic while maintaining modern functionality.

This wheel is engineered with a -12 millimeter offset and 4.53 inch backspacing, making it suitable for a wide range of vehicles. The 60 degree conical seat lug nut design and 87.10 millimeter center bore enhance compatibility with various tire pressure monitoring systems. Additionally, the embossed M/T logo center cap adds a distinctive touch to the overall design.

With a maximum tire diameter of 40 inches, the Classic Pro Wheel is versatile enough for both on-road and off-road applications. The valve stem niche cut out allows for easy access, while the modern low profile cap design ensures a sleek appearance. This wheel is an excellent choice for those seeking a blend of style and performance.

Features

• Simulated Beadlock Style With Genuine 5/8 Inch Zinc Bolts For A Classic And Commanding Look
• Valve Stem Niche Cut Out For Easy Access
• Modern Low Profile Cap Design
• Vast Fitments For Most Modern Vehicles
• High Load Rating For Strength And Durability

Specifications

• Manufacturer: Mickey Thompson Wheel
• Manufacturer Part Number: 274466
• Bolt Pattern Inch: Not Applicable
• Bolt Pattern Millimeter: Not Applicable
• Diameter: 17
• Width: 9
• Offset: -12
• Backspacing: 4.53
• Finish: Painted Satin
• Color: Black With Simulated Beadlock Ring
• Material: Aluminum
• Bolt Pattern Inch: 6x5.31
• Bolt Pattern Inch: Not Applicable
• Bolt Pattern Millimeter: 6x135
• Bolt Pattern Millimeter: Not Applicable
• Lug Nut Seat Type: 60 Degree Conical
• Center Caps Included: Yes
• Center Bore: 87.10
• Lug Nut Design: Acorn
• Compatible With TPMS (Tire Pressure Monitoring Sys: Yes
• Basic Design: 8 Hole
• With Inserts: No
• Load Capacity: 2500
• Size: 17x9
• Max Tire Diameter: 40
• Center Cap Design: Embossed M/T Logo
• Finish Warranty: 1 Year
• Structural Warranty: Lifetime
• Quantity: Single
• Construction: One Piece Cast
• With Hub Centric Ring: No
• Estimated Install Time (Hours): 0.5

Compatibility / Fit

• 2022-2026 Ford Bronco
• 2004-2026 Ford F-150

Technical Documents

• Mickey_Thompson___Warranty_Info.pdf
