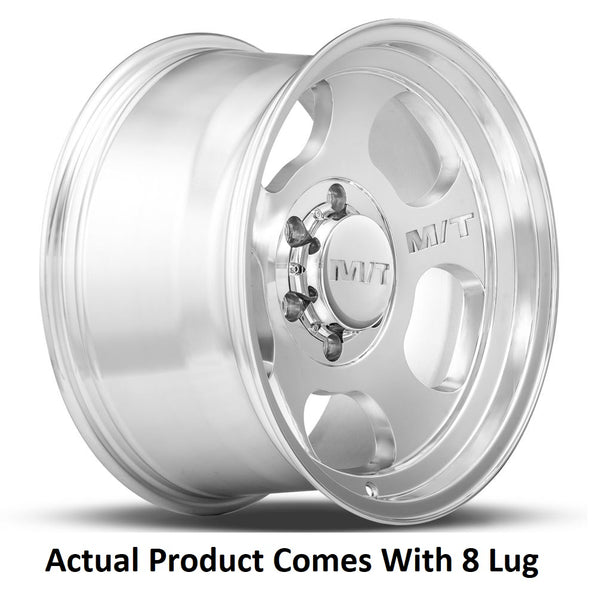

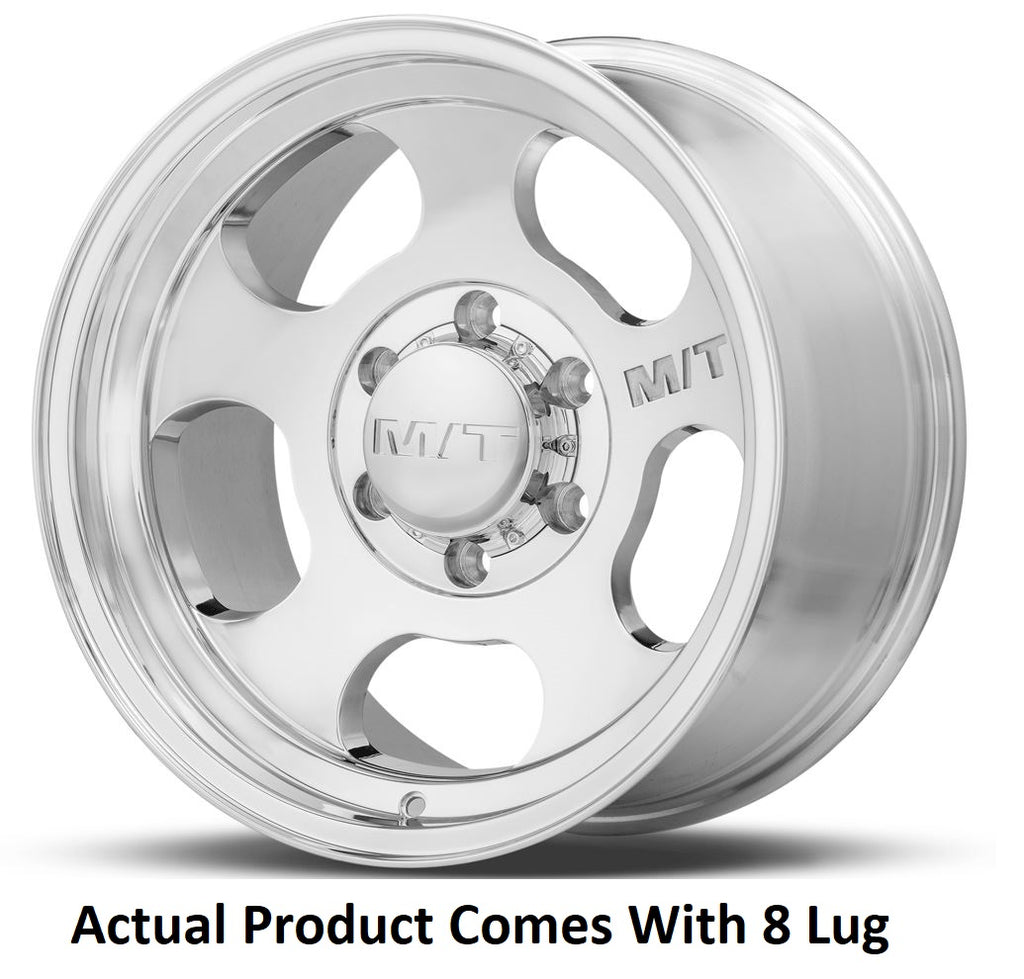

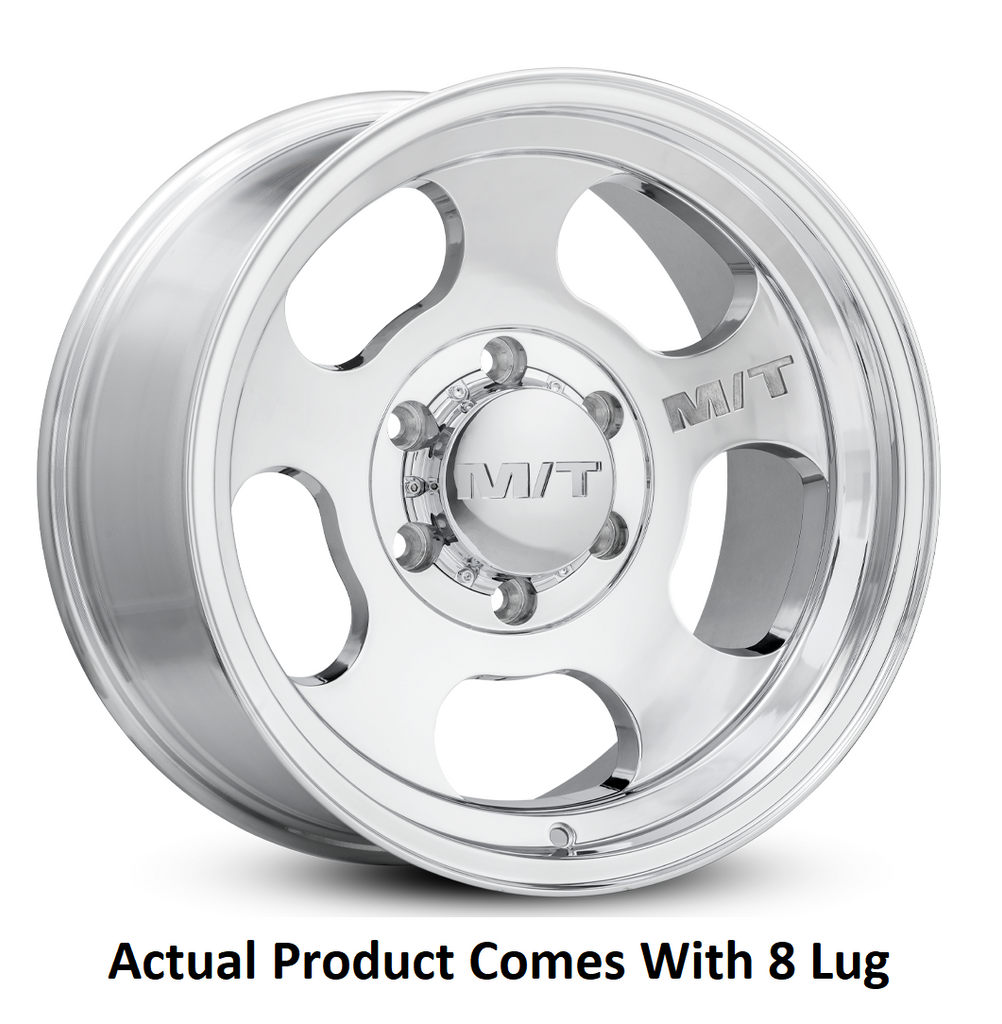

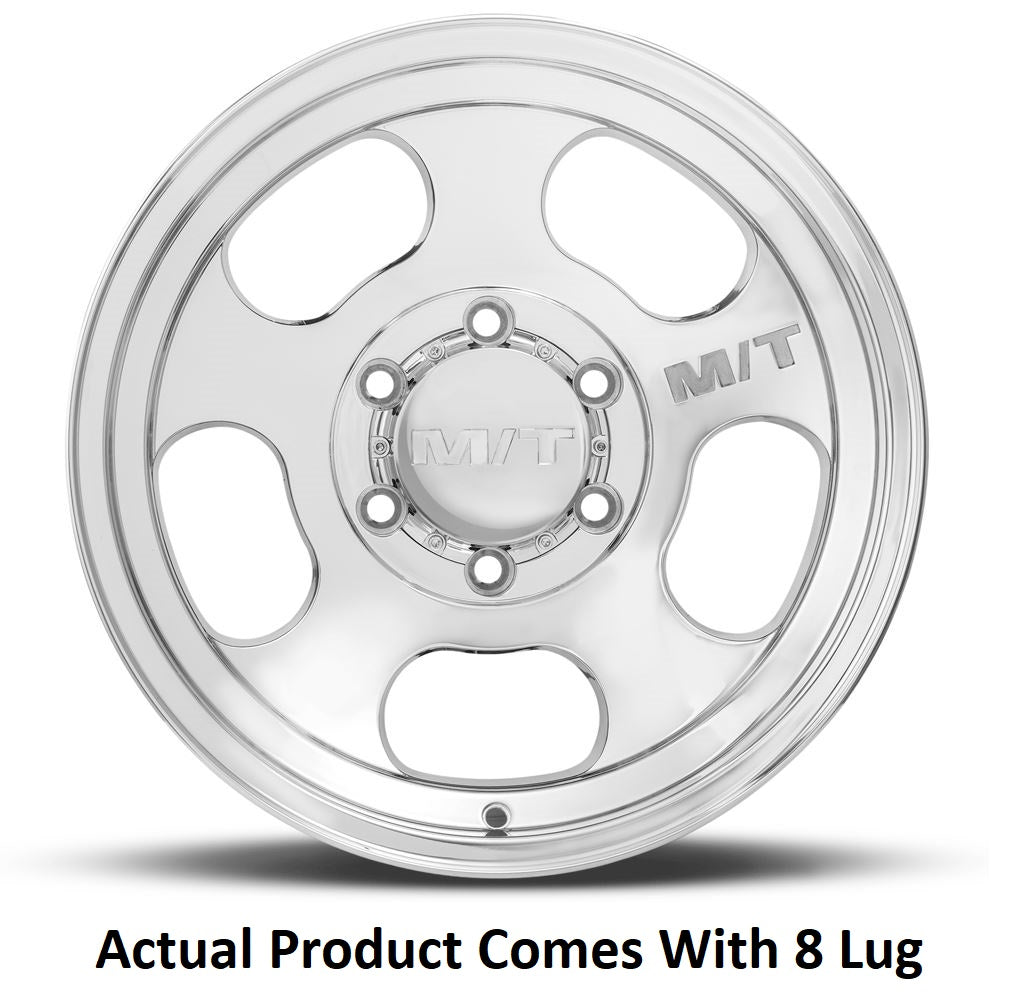

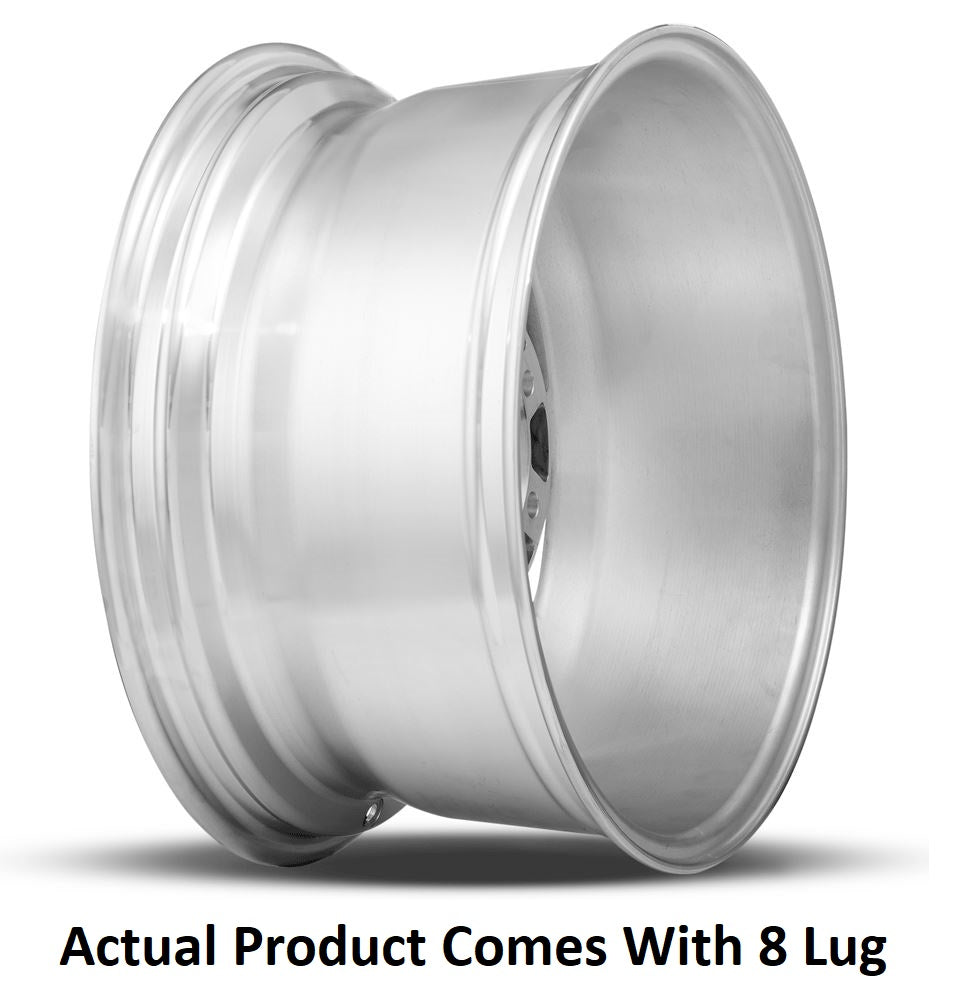

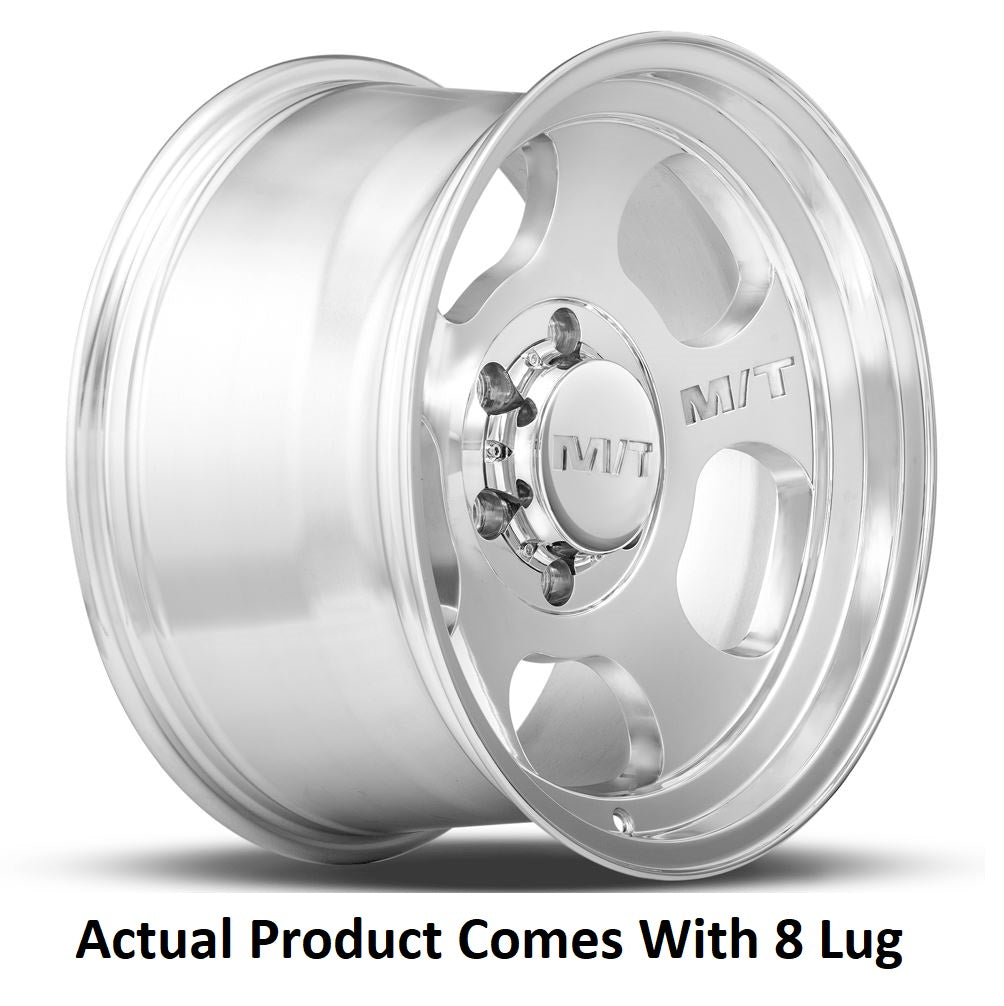

Mickey Thompson Canyon Wheel (MPN: 274630)

Combining vintage design with modern engineering for trucks and SUVs.

The Mickey Thompson Canyon Wheel features a unique 16 inch diameter and 10 inch width, designed to enhance both classic and modern trucks and SUVs. Its 5-hole slot design and polished finish provide a tough, aggressive look while maintaining a vintage Medallion-inspired aesthetic. Engineered with a -25 millimeter offset and 4.52 inch backspacing, this wheel supports a maximum tire diameter of 38 inches, making it versatile for various applications.

Constructed from one piece cast aluminum, the Canyon Wheel boasts a load capacity of 3500 pounds, ensuring durability and reliability under heavy loads. The 60 degree conical seat lug nut design and 125.20 millimeter center bore facilitate easy installation and compatibility with Tire Pressure Monitoring Systems (TPMS). With an embossed M/T logo center cap, this wheel not only performs well but also adds a distinctive touch to your vehicle's appearance.

Features

• Classic 2-Step Lip Design
• Reimagined 1960’s Mickey Thompson Wheel Style For Today’s Modern Rigs
• 5-Hole Slot For A Tough, Aggressive Look
• For Classic And Modern Trucks And SUVs

Specifications

• Manufacturer: Mickey Thompson Wheel
• Manufacturer Part Number: 274630
• Bolt Pattern Inch: Not Applicable
• Bolt Pattern Millimeter: Not Applicable
• Diameter: 16
• Width: 10
• Offset: -25
• Backspacing: 4.52
• Finish: Polished
• Color: Natural
• Material: Aluminum
• Bolt Pattern Inch: 8x6.50
• Bolt Pattern Inch: Not Applicable
• Bolt Pattern Millimeter: 8x165.1
• Bolt Pattern Millimeter: Not Applicable
• Lug Nut Seat Type: 60 Degree Conical
• Center Caps Included: Yes
• Center Bore: 125.20
• Lug Nut Design: Acorn
• Compatible With TPMS (Tire Pressure Monitoring Sys: Yes
• Basic Design: 5 Hole
• With Inserts: No
• Load Capacity: 3500
• Size: 16x10
• Max Tire Diameter: 38
• Center Cap Design: Embossed M/T Logo
• Finish Warranty: 1 Year
• Structural Warranty: Lifetime
• Quantity: Single
• Construction: One Piece Cast
• With Hub Centric Ring: No
• Estimated Install Time (Hours): 0.5

Compatibility / Fit

• 2007-2010 Chevrolet Silverado 2500 HD
• 2007-2007 Chevrolet Silverado 2500 HD Classic
• 2007-2007 Chevrolet Silverado 3500 Classic
• 2000-2006 Chevrolet Suburban 2500
• 2000-2002 Dodge Ram 2500
• 2000-2002 Dodge Ram 3500
• 2001-2003 GMC Sierra 1500 HD
• 2005-2006 GMC Sierra 1500 HD
• 2007-2007 GMC Sierra 1500 HD Classic
• 2000-2004 GMC Sierra 2500
• 2001-2010 GMC Sierra 2500 HD
• 2007-2007 GMC Sierra 2500 HD Classic
• 2007-2007 GMC Sierra 3500 Classic
• 2000-2011 GMC Yukon XL 2500

Technical Documents

• Mickey_Thompson___Warranty_Info.pdf
