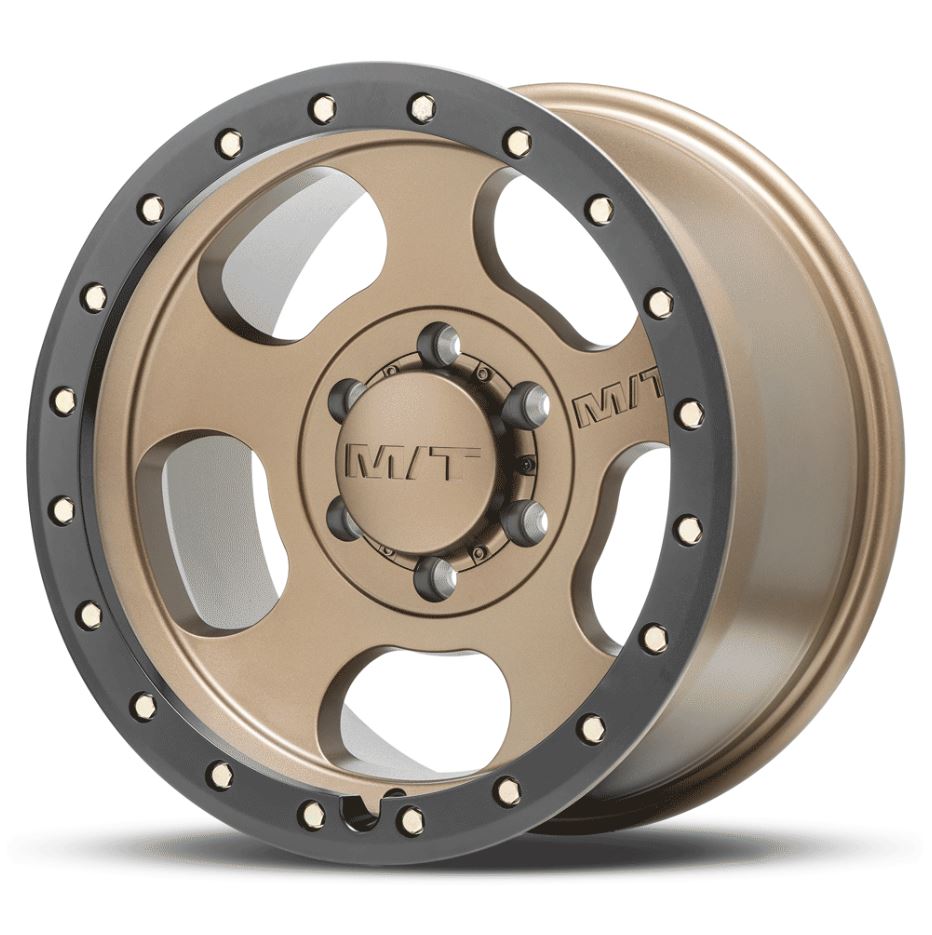

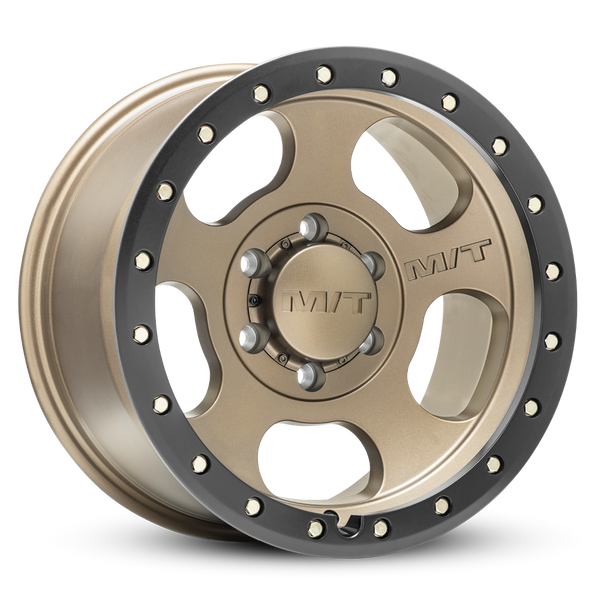

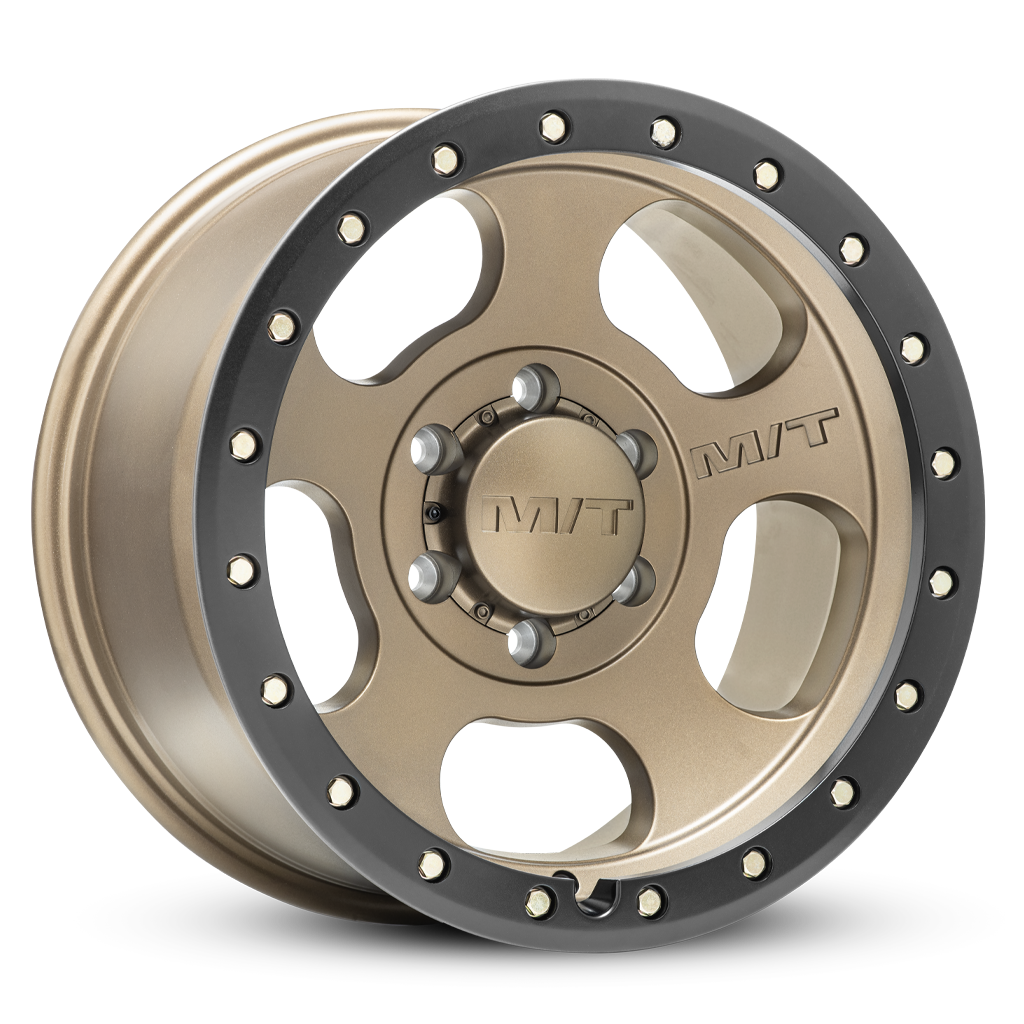

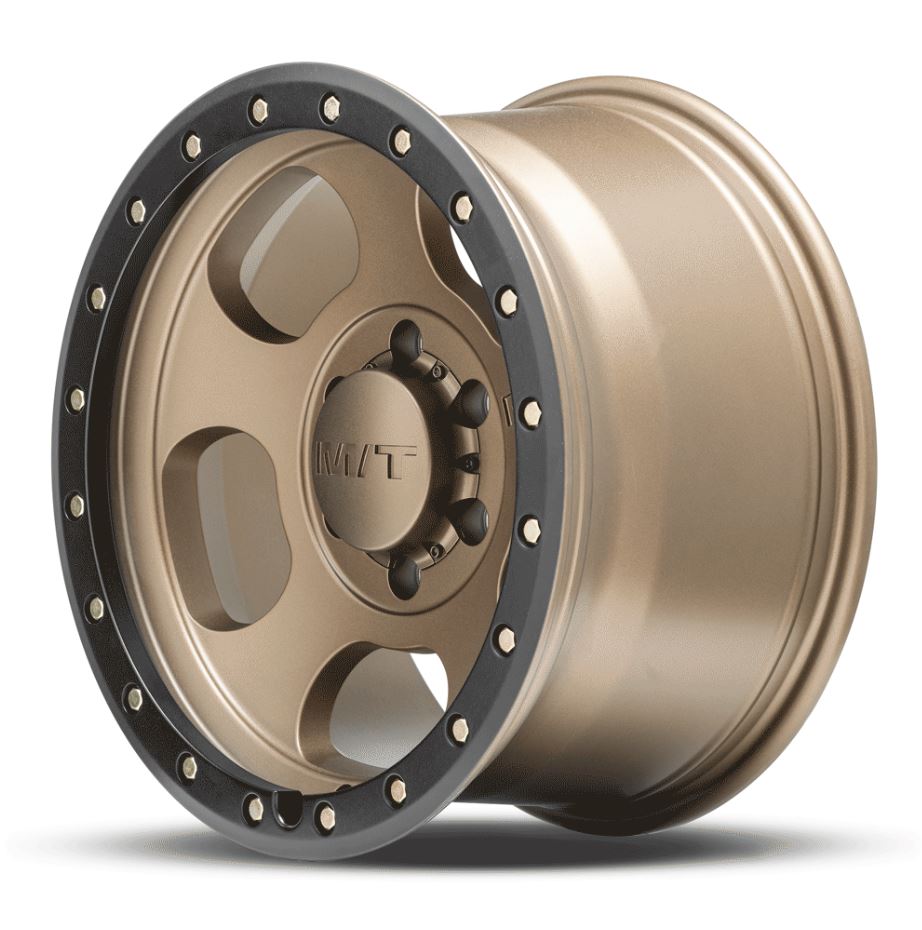

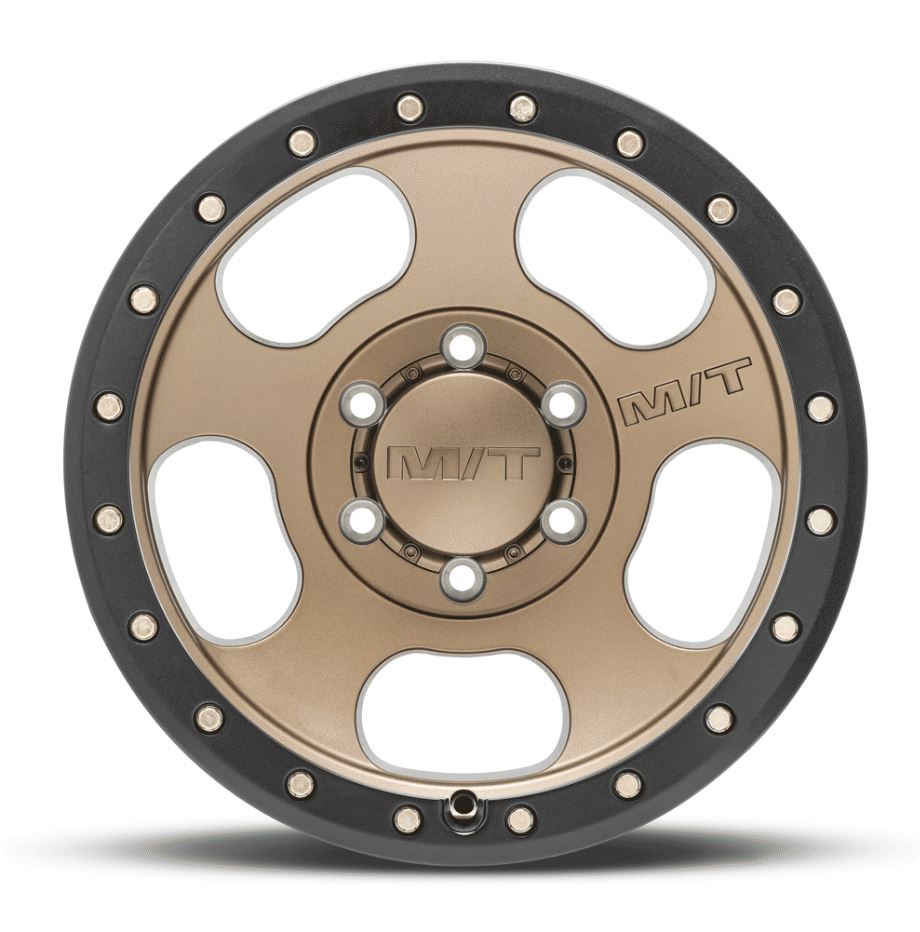

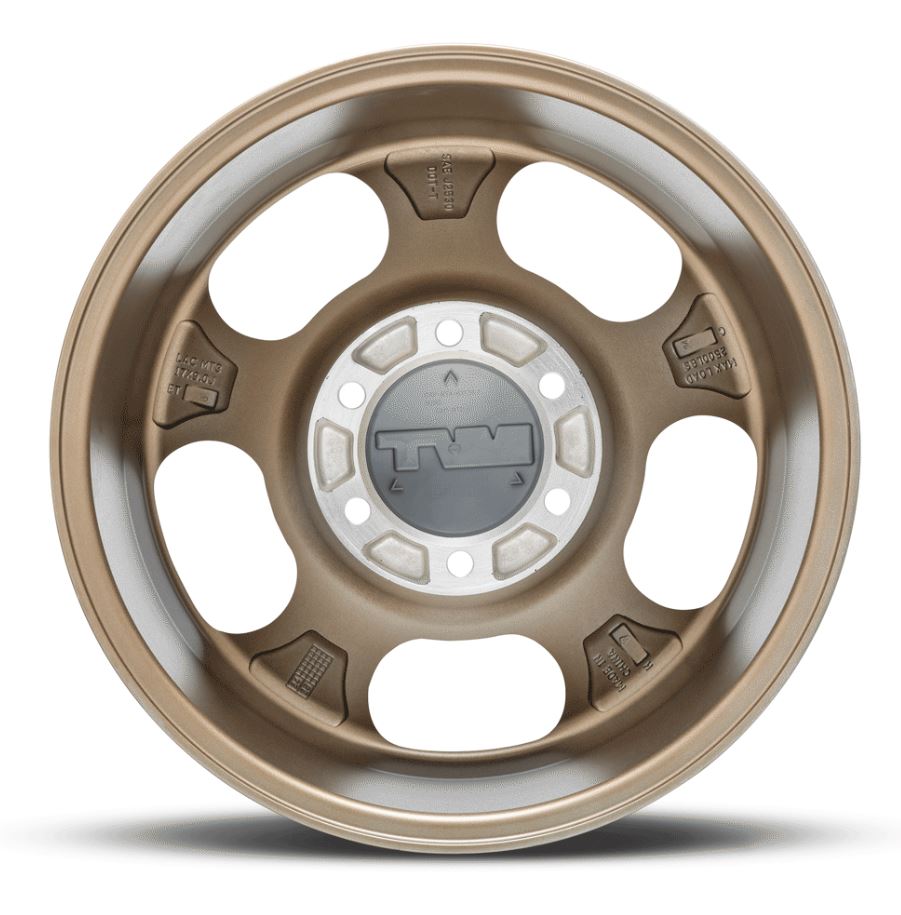

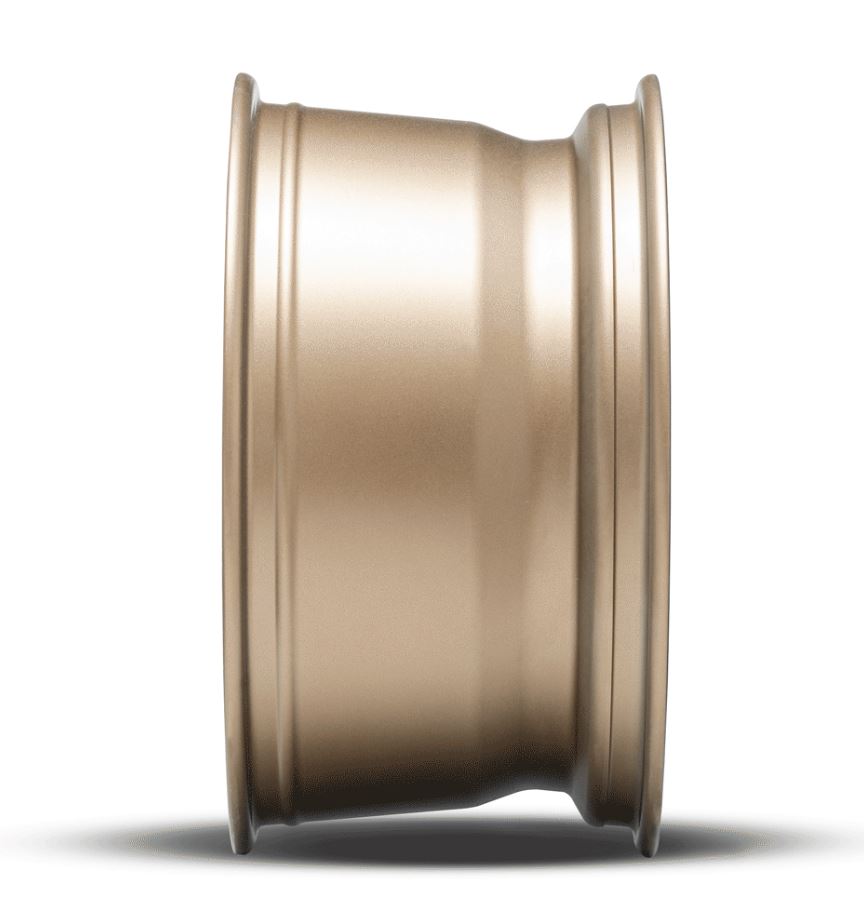

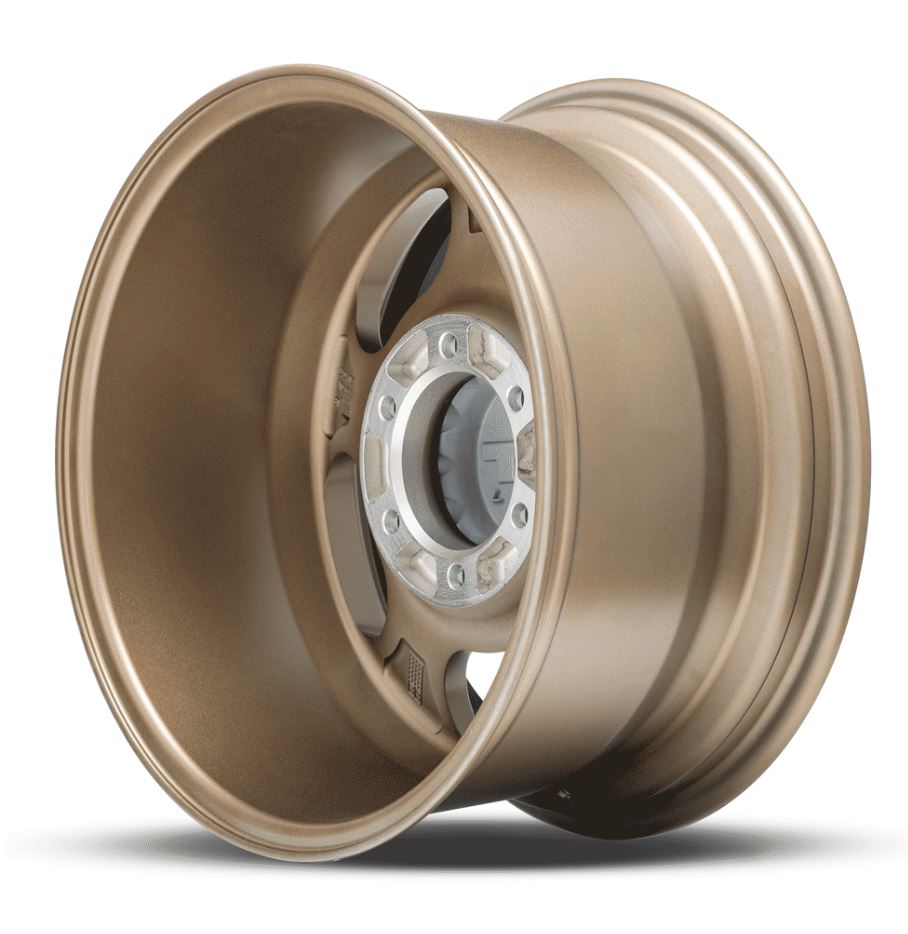

Mickey Thompson Canyon Pro Wheel (MPN: 274685)

Durable 20 Inch Wheel with Modern Race-Inspired Design

The Mickey Thompson Canyon Pro Wheel is engineered for trucks and SUVs, offering a blend of modern aesthetics and robust functionality. With a diameter of 20 inches and a width of 9 inches, this wheel features a 5-hole slot design complemented by a satin bronze finish and a black simulated beadlock ring. The one-piece cast aluminum construction ensures high strength and durability, making it suitable for demanding applications.

Designed with a 6 x 139.7 millimeter bolt pattern and a load capacity of 2500 pounds, the Canyon Pro Wheel is compatible with a variety of modern vehicles. It includes a valve stem niche cut out for easy access and a low profile cap design that enhances its sleek appearance. The wheel is also compatible with Tire Pressure Monitoring Systems (TPMS), ensuring optimal performance and safety.

With a maximum tire diameter of 40 inches and a center bore of 108.10 millimeters, this wheel is versatile and practical for various off-road and on-road conditions. The 60-degree conical seat lug nut design provides a secure fit, while the embossed M/T logo center cap adds a touch of style. The Canyon Pro Wheel is backed by a lifetime structural warranty, reflecting its quality and reliability.

Features

• Simulated Beadlock Style With Genuine 5/8 Inch Zinc Bolts For A Classic And Commanding Look
• Valve Stem Niche Cut Out For Easy Access
• Modern Low Profile Cap Design
• Vast Fitments For Most Modern Vehicles
• High Load Rating For Strength And Durability

Specifications

• Manufacturer: Mickey Thompson Wheel
• Manufacturer Part Number: 274685
• Bolt Pattern Inch: Not Applicable
• Bolt Pattern Millimeter: Not Applicable
• Diameter: 20
• Width: 9
• Offset: 0
• Backspacing: 5.00
• Finish: Painted Satin
• Color: Bronze With Black Simulated Beadlock Ring
• Material: Aluminum
• Bolt Pattern Inch: 6x5.50
• Bolt Pattern Inch: Not Applicable
• Bolt Pattern Millimeter: 6x139.7
• Bolt Pattern Millimeter: Not Applicable
• Lug Nut Seat Type: 60 Degree Conical
• Center Caps Included: Yes
• Center Bore: 108.10
• Lug Nut Design: Acorn
• Compatible With TPMS (Tire Pressure Monitoring Sys: Yes
• Basic Design: 5 Hole
• With Inserts: No
• Load Capacity: 2500
• Size: 20x9
• Max Tire Diameter: 40
• Center Cap Design: Embossed M/T Logo
• Finish Warranty: 1 Year
• Structural Warranty: Lifetime
• Quantity: Single
• Construction: One Piece Cast
• With Hub Centric Ring: No
• Estimated Install Time (Hours): 0.5

Technical Documents

• Mickey_Thompson___Warranty_Info.pdf
