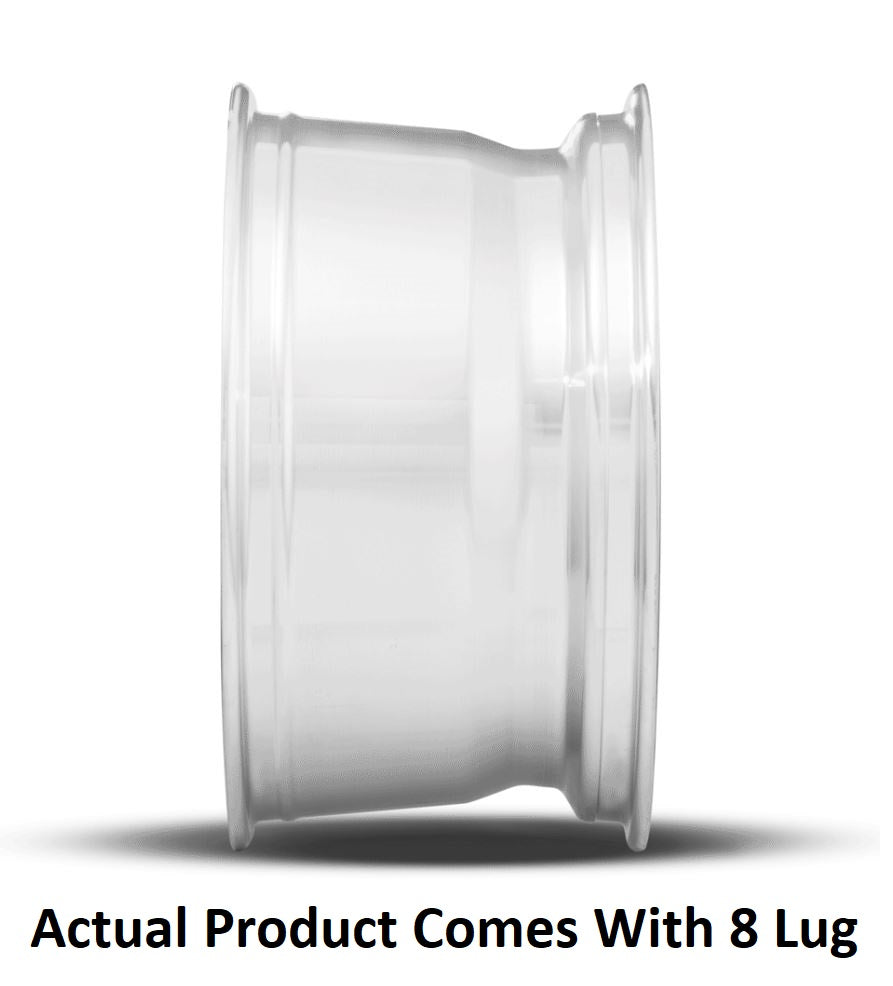

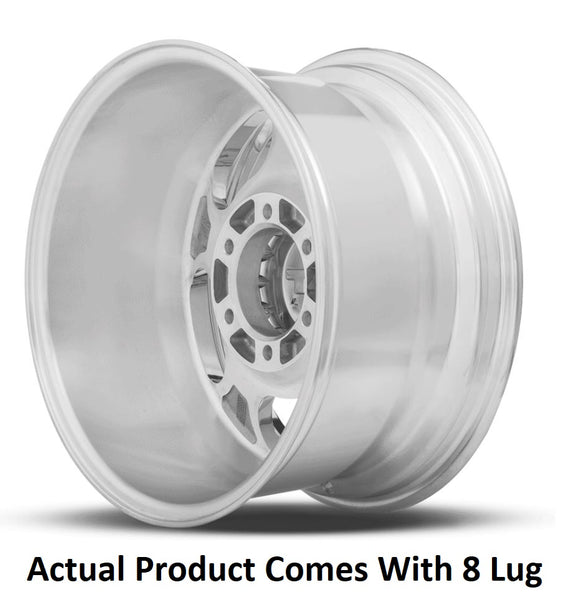

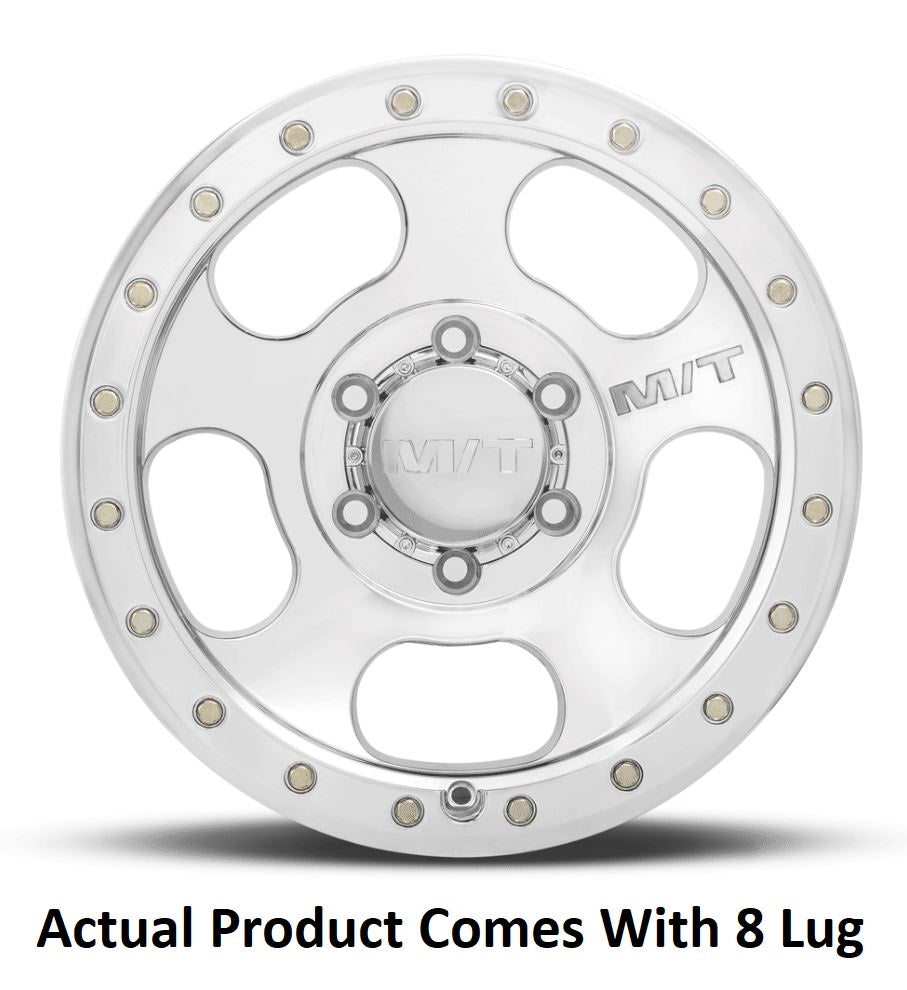

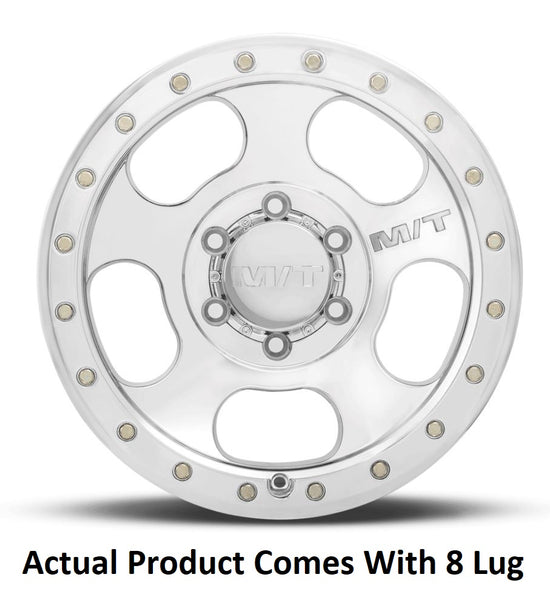

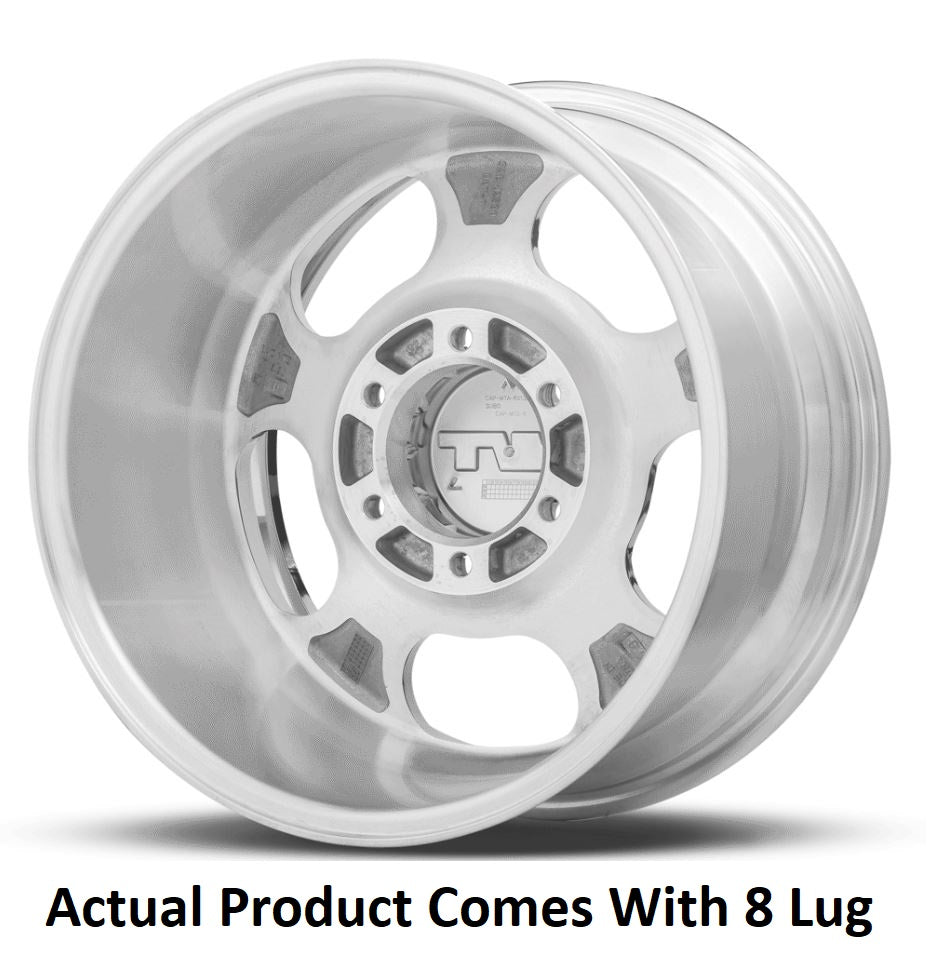

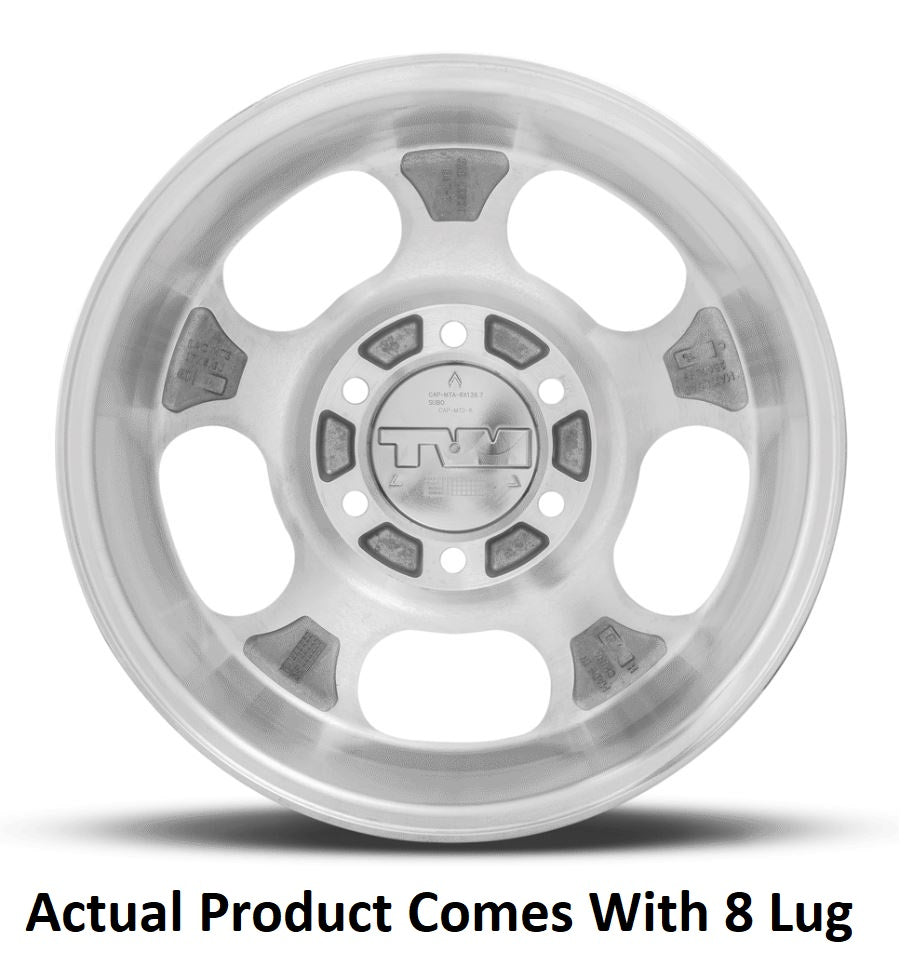

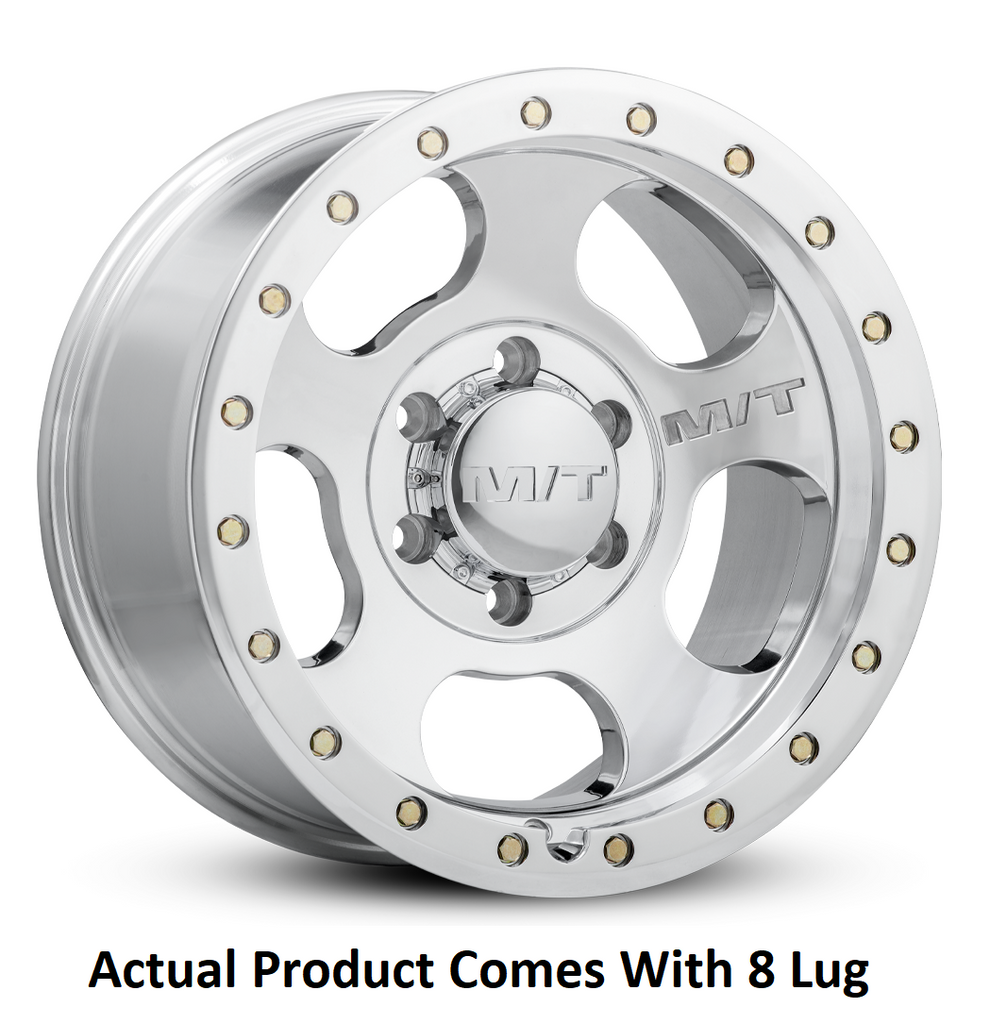

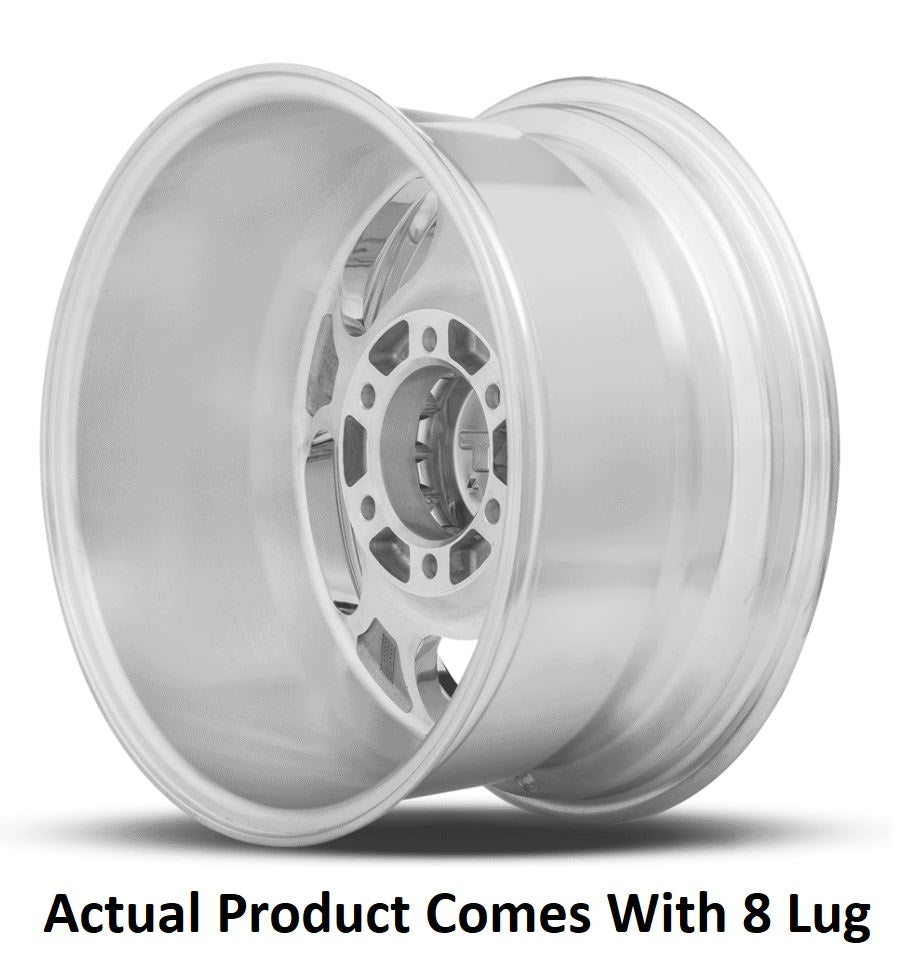

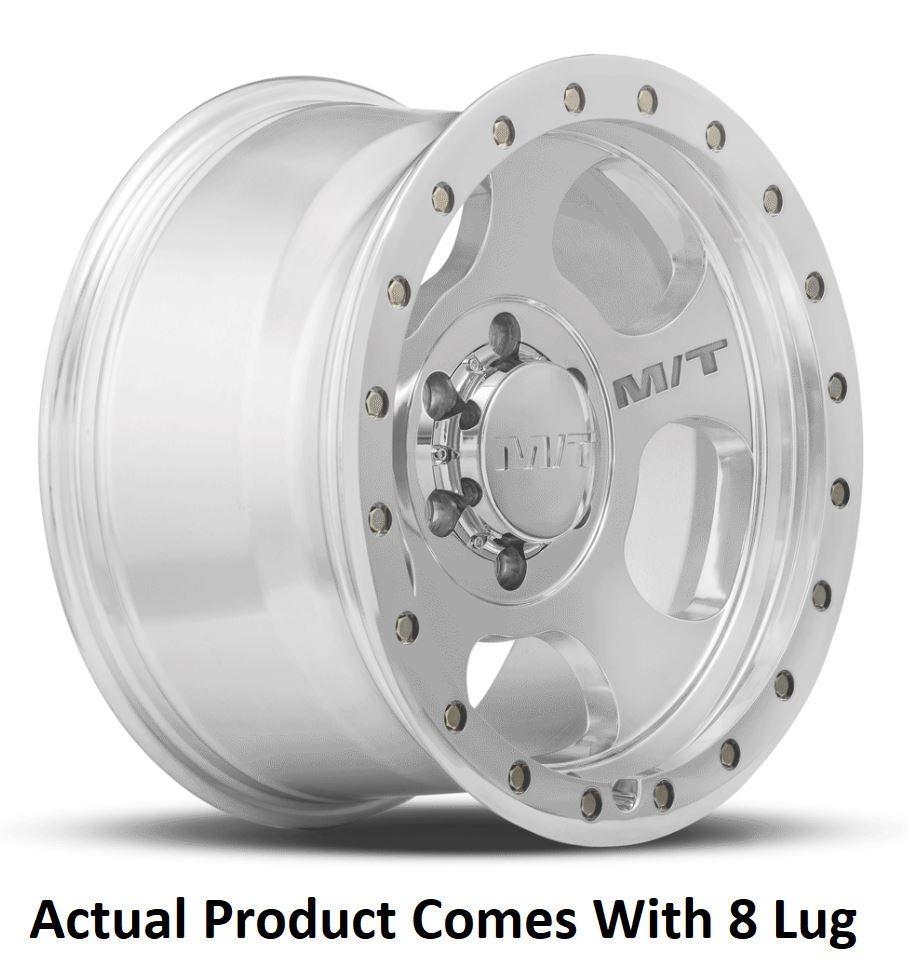

Mickey Thompson Canyon Pro Wheel (MPN: 274667)

Durable 20 Inch Wheel with Simulated Beadlock Design

The Mickey Thompson Canyon Pro Wheel is engineered for trucks and SUVs, offering a blend of modern aesthetics and robust functionality. With a diameter of 20 inches and a width of 9 inches, this wheel features a classic 5-hole slot design complemented by a polished finish and a simulated beadlock ring, enhancing both style and performance. Constructed from one-piece cast aluminum, it provides a high load capacity of 3750 pounds, ensuring strength and durability for demanding applications.

Designed with versatility in mind, the Canyon Pro Wheel is compatible with a wide range of modern vehicles and includes a valve stem niche cut out for easy access. The 60-degree conical seat lug nut design and a center bore of 125.20 millimeters further enhance its compatibility and ease of installation. Additionally, this wheel supports TPMS, allowing for real-time tire pressure monitoring, which is crucial for maintaining optimal performance and safety.

With a maximum tire diameter of 40 inches, the Canyon Pro Wheel is suitable for various tire sizes, making it a practical choice for off-road enthusiasts and everyday drivers alike. The embossed M/T logo center cap adds a touch of branding, while the modern low-profile cap design contributes to its sleek appearance. This wheel is backed by a lifetime structural warranty, ensuring long-lasting reliability.

Features

• Simulated Beadlock Style With Genuine 5/8 Inch Zinc Bolts For A Classic And Commanding Look
• Valve Stem Niche Cut Out For Easy Access
• Modern Low Profile Cap Design
• Vast Fitments For Most Modern Vehicles
• High Load Rating For Strength And Durability

Specifications

• Manufacturer: Mickey Thompson Wheel
• Manufacturer Part Number: 274667
• Bolt Pattern Inch: Not Applicable
• Bolt Pattern Millimeter: Not Applicable
• Diameter: 20
• Width: 9
• Offset: 0
• Backspacing: 5.00
• Finish: Polished
• Color: Natural With Simulated Beadlock Ring
• Material: Aluminum
• Bolt Pattern Inch: 8x7.09
• Bolt Pattern Inch: Not Applicable
• Bolt Pattern Millimeter: 8x180
• Bolt Pattern Millimeter: Not Applicable
• Lug Nut Seat Type: 60 Degree Conical
• Center Caps Included: Yes
• Center Bore: 125.20
• Lug Nut Design: Acorn
• Compatible With TPMS (Tire Pressure Monitoring Sys: Yes
• Basic Design: 5 Hole
• With Inserts: No
• Load Capacity: 3750
• Size: 20x9
• Max Tire Diameter: 40
• Center Cap Design: Embossed M/T Logo
• Finish Warranty: 1 Year
• Structural Warranty: Lifetime
• Quantity: Single
• Construction: One Piece Cast
• With Hub Centric Ring: No
• Estimated Install Time (Hours): 0.5

Compatibility / Fit

• 2011-2026 Chevrolet Silverado 2500 HD
• 2011-2026 Chevrolet Silverado 3500 HD
• 2016-2019 Chevrolet Suburban 3500 HD
• 2011-2026 GMC Sierra 2500 HD
• 2011-2026 GMC Sierra 3500 HD

Technical Documents

• Mickey_Thompson___Warranty_Info.pdf
