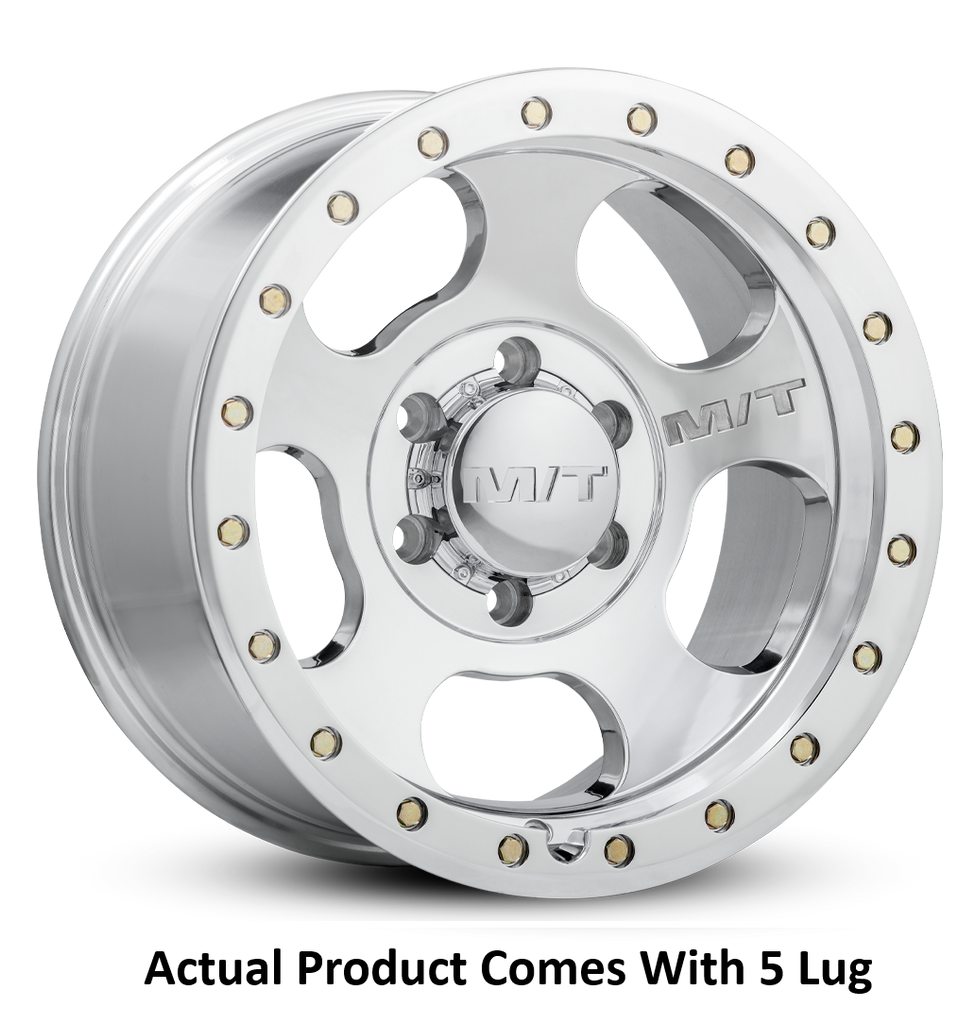

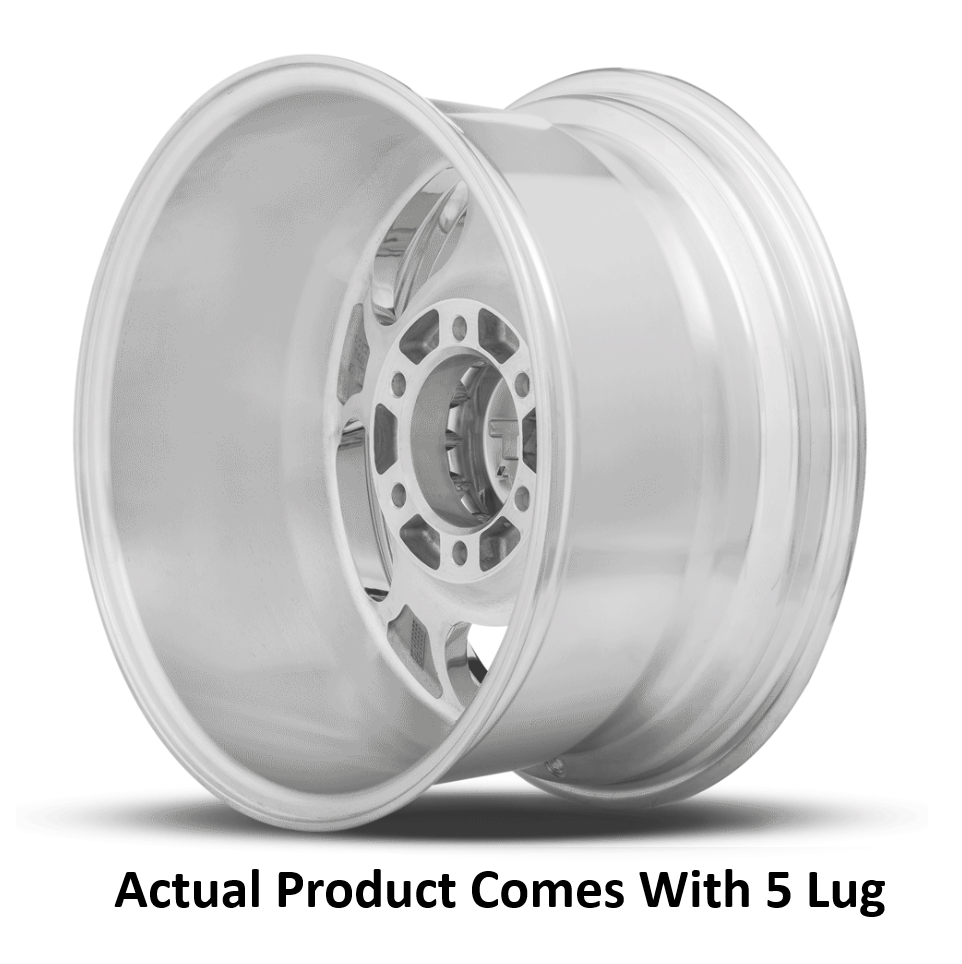

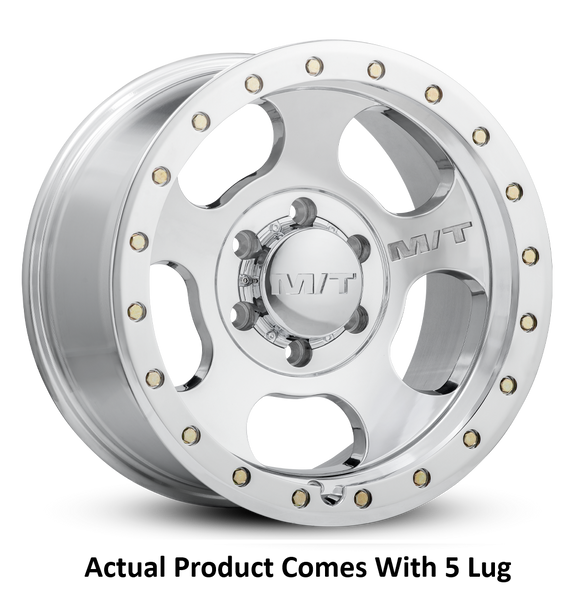

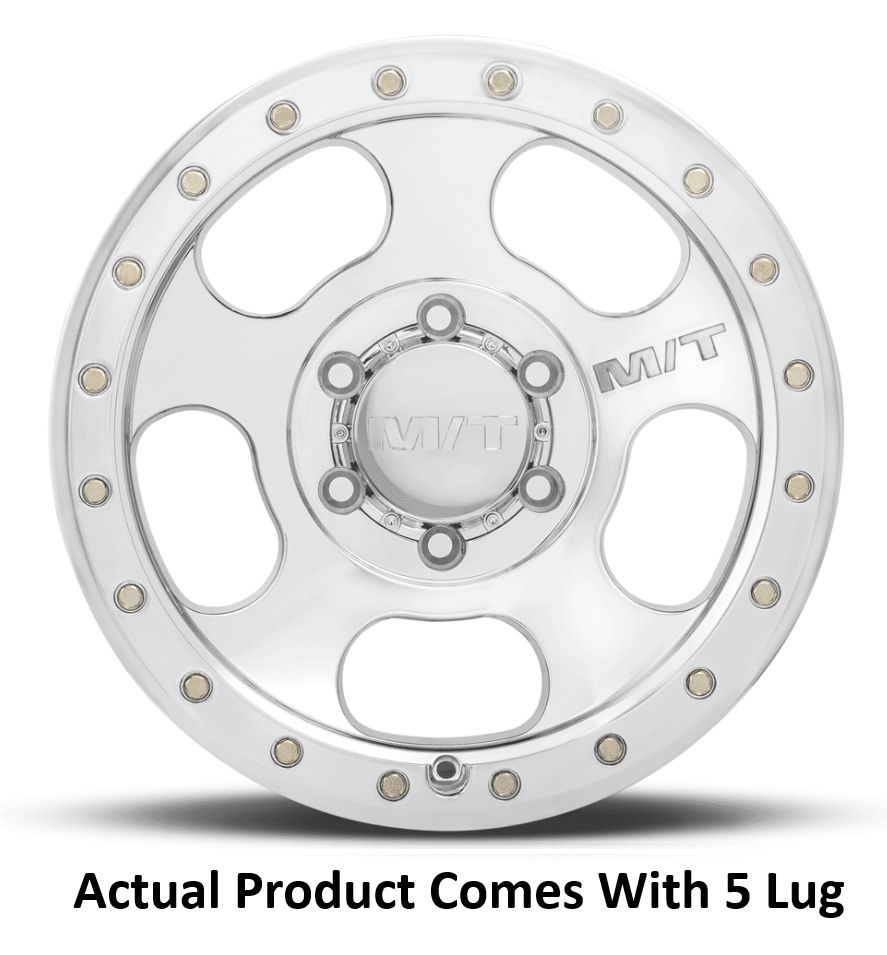

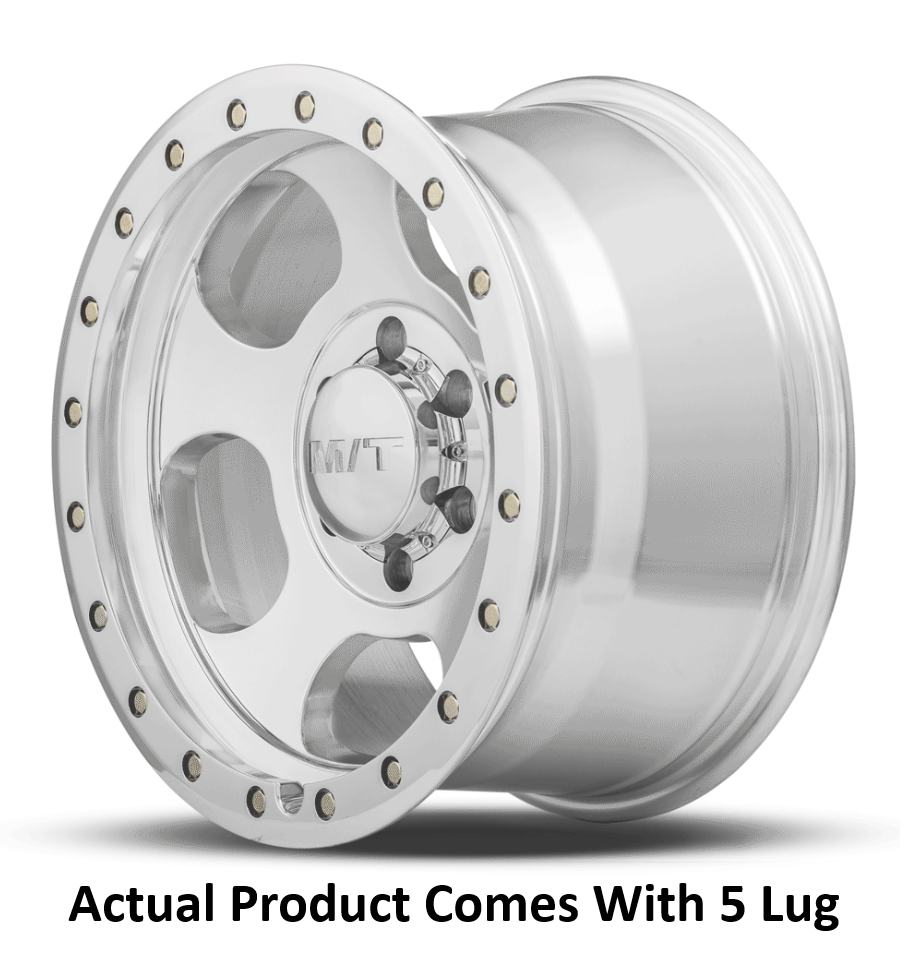

Mickey Thompson Canyon Pro Wheel (MPN: 274662)

Durable 20 Inch Wheel with Simulated Beadlock Design

The Mickey Thompson Canyon Pro Wheel is engineered for trucks and SUVs, offering a blend of modern aesthetics and robust functionality. With a diameter of 20 inches and a width of 9 inches, this wheel features a 5 x 150 millimeter bolt pattern and a load capacity of 2500 pounds, ensuring it can handle demanding conditions. The polished finish and simulated beadlock ring provide a striking appearance while maintaining structural integrity.

Constructed from one-piece cast aluminum, the Canyon Pro Wheel is designed for strength and durability. It includes a 60-degree conical seat lug nut design and a center bore of 110.10 millimeters, making it compatible with a wide range of vehicles. The modern low profile cap design enhances its aggressive look, while the embossed M/T logo center cap adds a touch of branding.

This wheel is also compatible with Tire Pressure Monitoring Systems (TPMS), ensuring that tire pressure can be monitored effectively. With a maximum tire diameter of 40 inches, the Canyon Pro Wheel is suitable for various tire sizes, making it a versatile choice for off-road and street applications.

Features

• Simulated Beadlock Style With Genuine 5/8 Inch Zinc Bolts Delivers A Bold, Aggressive Look
• Modern Low Profile Cap Design
• Vast Fitments For Most Modern Vehicles
• High Load Rating For Strength And Durability

Specifications

• Manufacturer: Mickey Thompson Wheel
• Manufacturer Part Number: 274662
• Bolt Pattern Inch: Not Applicable
• Bolt Pattern Millimeter: Not Applicable
• Diameter: 20
• Width: 9
• Offset: 0
• Backspacing: 5.00
• Finish: Polished
• Color: Natural With Simulated Beadlock Ring
• Material: Aluminum
• Bolt Pattern Inch: 5x5.90
• Bolt Pattern Inch: Not Applicable
• Bolt Pattern Millimeter: 5x150
• Bolt Pattern Millimeter: Not Applicable
• Lug Nut Seat Type: 60 Degree Conical
• Center Caps Included: Yes
• Center Bore: 110.10
• Lug Nut Design: Acorn
• Compatible With TPMS (Tire Pressure Monitoring Sys: Yes
• Basic Design: 5 Hole
• With Inserts: No
• Load Capacity: 2500
• Size: 20x9
• Max Tire Diameter: 40
• Center Cap Design: Embossed M/T Logo
• Finish Warranty: 1 Year
• Structural Warranty: Lifetime
• Quantity: Single
• Construction: One Piece Cast
• With Hub Centric Ring: No
• Estimated Install Time (Hours): 0.5

Compatibility / Fit

• 2007-2021 Toyota Tundra

Technical Documents

• Mickey_Thompson___Warranty_Info.pdf
