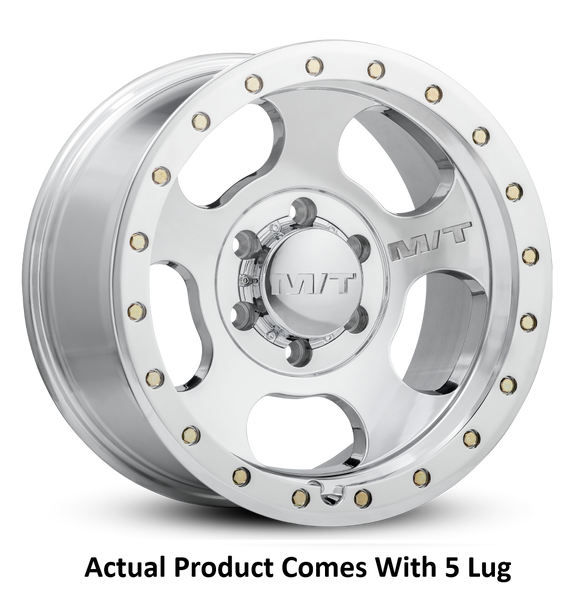

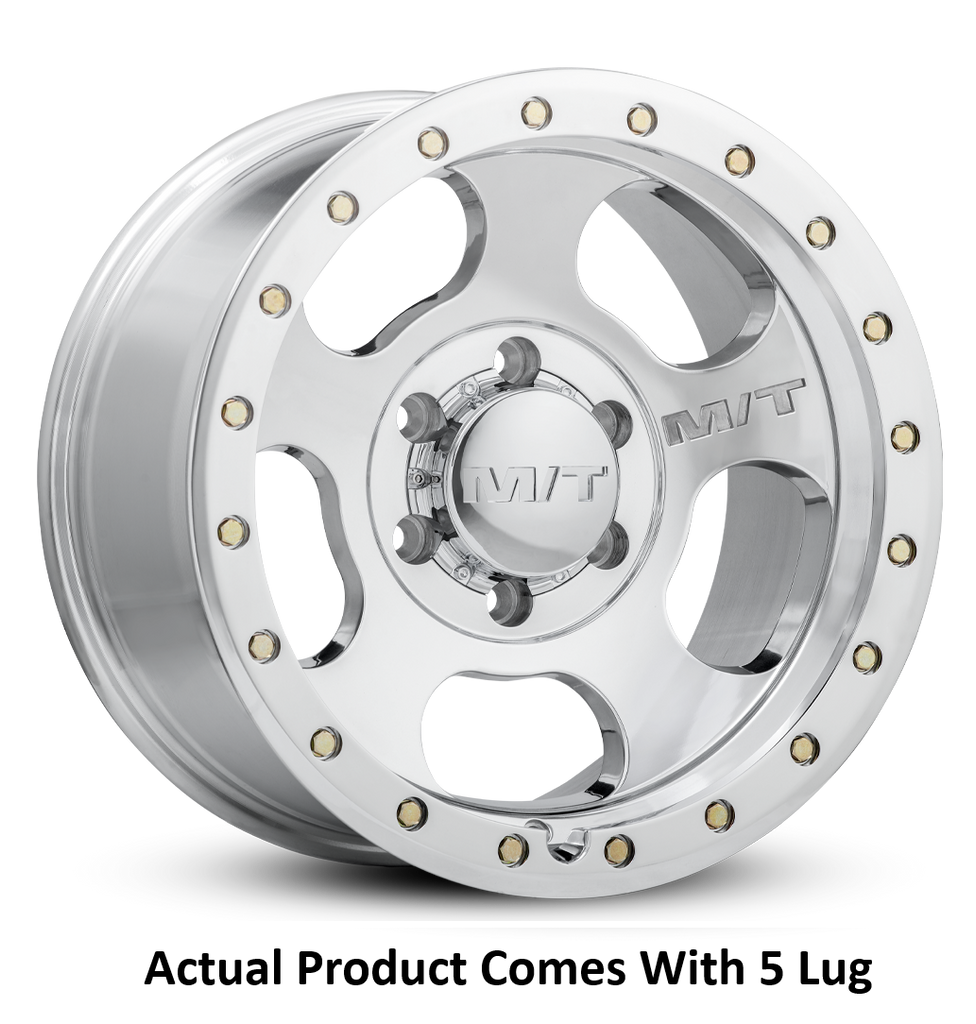

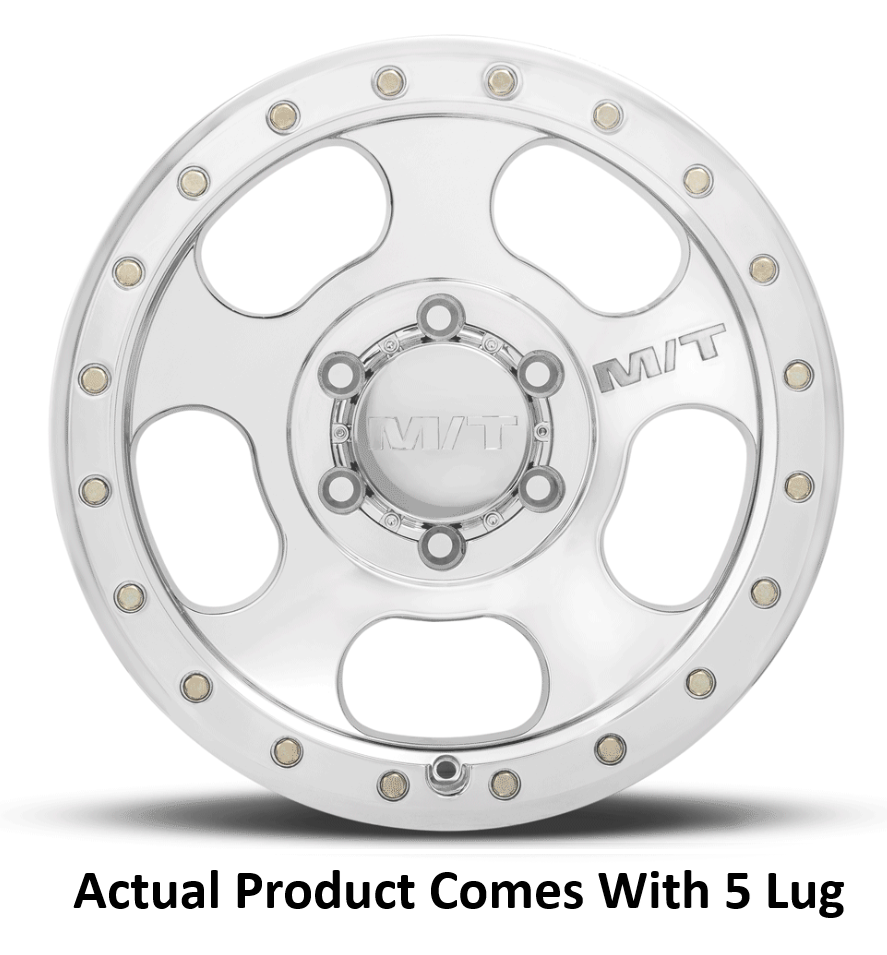

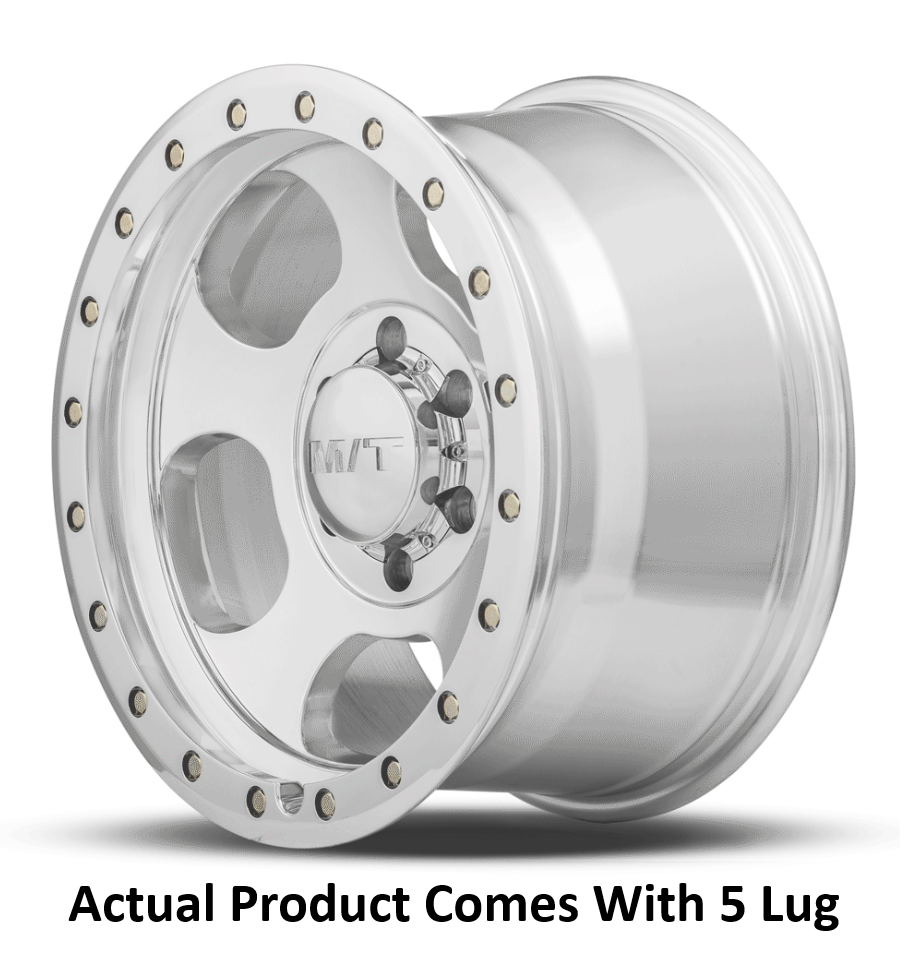

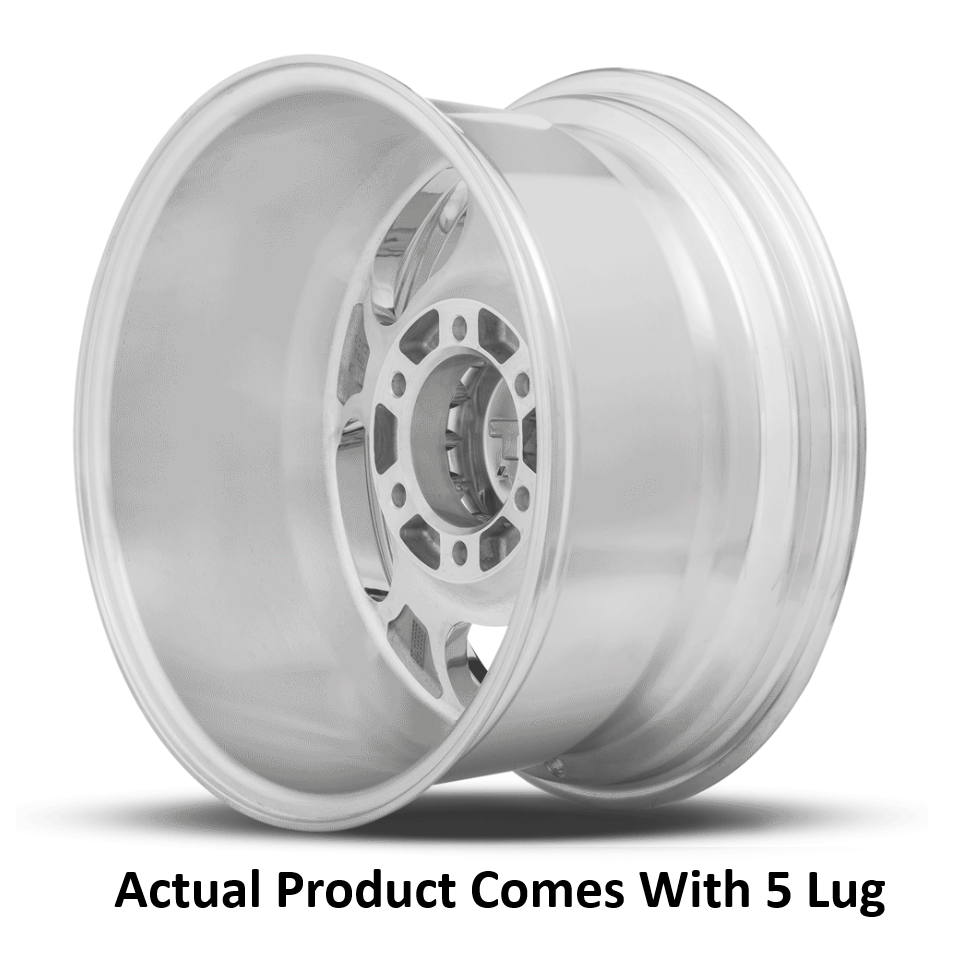

Mickey Thompson Canyon Pro Wheel (MPN: 274653)

Durable 18 Inch Wheel with Simulated Beadlock Design

The Mickey Thompson Canyon Pro Wheel is engineered for trucks and SUVs, offering a blend of modern aesthetics and robust functionality. With an 18 inch diameter and 9 inch width, this wheel features a 5 x 150 millimeter bolt pattern and a polished finish that enhances its aggressive look. The simulated beadlock design, complemented by genuine zinc bolts, provides a bold appearance while ensuring high load capacity of 2500 pounds for strength and durability.

Constructed from one-piece cast aluminum, the Canyon Pro Wheel is designed to withstand the demands of off-road and street driving. It includes a 60 degree conical seat lug nut design and a center bore of 110.10 millimeters, making it compatible with a wide range of modern vehicles. The wheel also supports TPMS, allowing for easy monitoring of tire pressure, which is essential for maintaining optimal performance.

With a maximum tire diameter of 38 inches, this wheel is versatile enough to accommodate various tire sizes. The embossed M/T logo center cap adds a touch of branding while the modern low profile cap design enhances its sleek appearance. The Canyon Pro Wheel is available in multiple finishes, including polished, satin black, and satin bronze, catering to different aesthetic preferences.

Features

• Simulated Beadlock Style With Genuine 5/8 Inch Zinc Bolts Delivers A Bold, Aggressive Look
• Modern Low Profile Cap Design
• Vast Fitments For Most Modern Vehicles
• High Load Rating For Strength And Durability

Specifications

• Manufacturer: Mickey Thompson Wheel
• Manufacturer Part Number: 274653
• Bolt Pattern Inch: Not Applicable
• Bolt Pattern Millimeter: Not Applicable
• Diameter: 18
• Width: 9
• Offset: 0
• Backspacing: 5.00
• Finish: Polished
• Color: Natural With Simulated Beadlock Ring
• Material: Aluminum
• Bolt Pattern Inch: 5x5.90
• Bolt Pattern Inch: Not Applicable
• Bolt Pattern Millimeter: 5x150
• Bolt Pattern Millimeter: Not Applicable
• Lug Nut Seat Type: 60 Degree Conical
• Center Caps Included: Yes
• Center Bore: 110.10
• Lug Nut Design: Acorn
• Compatible With TPMS (Tire Pressure Monitoring Sys: Yes
• Basic Design: 5 Hole
• With Inserts: No
• Load Capacity: 2500
• Size: 18x9
• Max Tire Diameter: 38
• Center Cap Design: Embossed M/T Logo
• Finish Warranty: 1 Year
• Structural Warranty: Lifetime
• Quantity: Single
• Construction: One Piece Cast
• With Hub Centric Ring: No
• Estimated Install Time (Hours): 0.5

Technical Documents

• Mickey_Thompson___Warranty_Info.pdf
