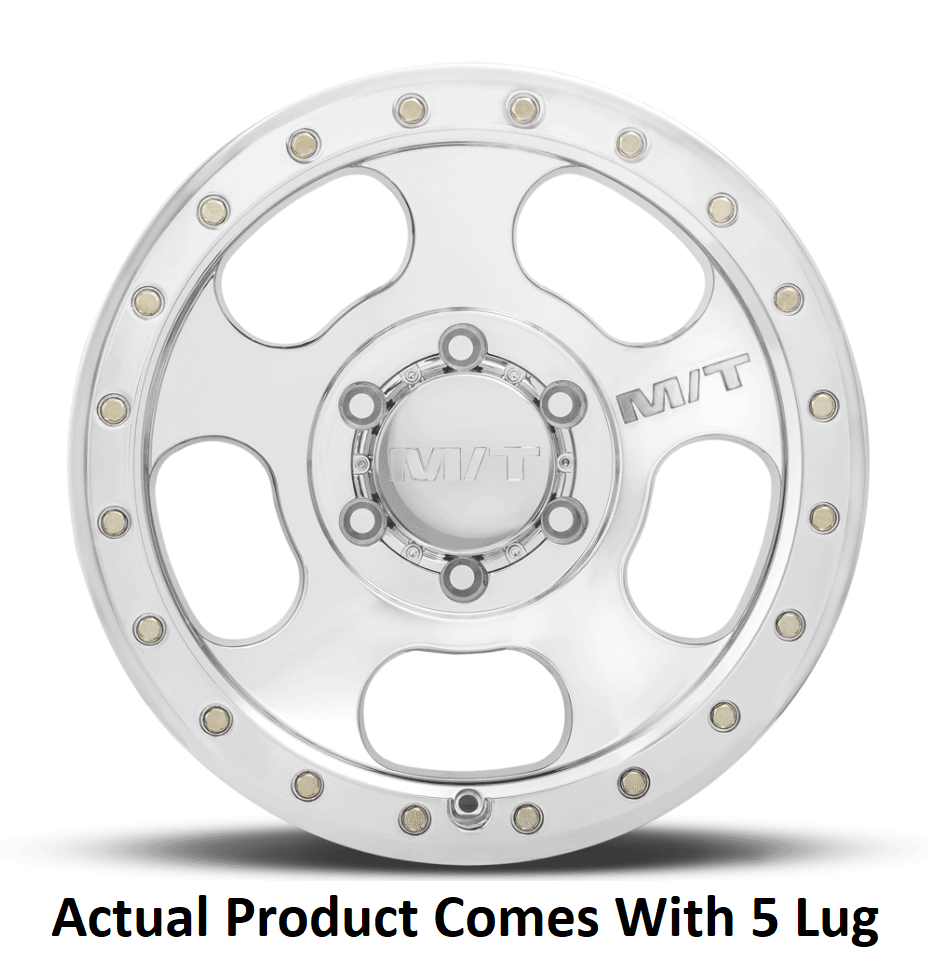

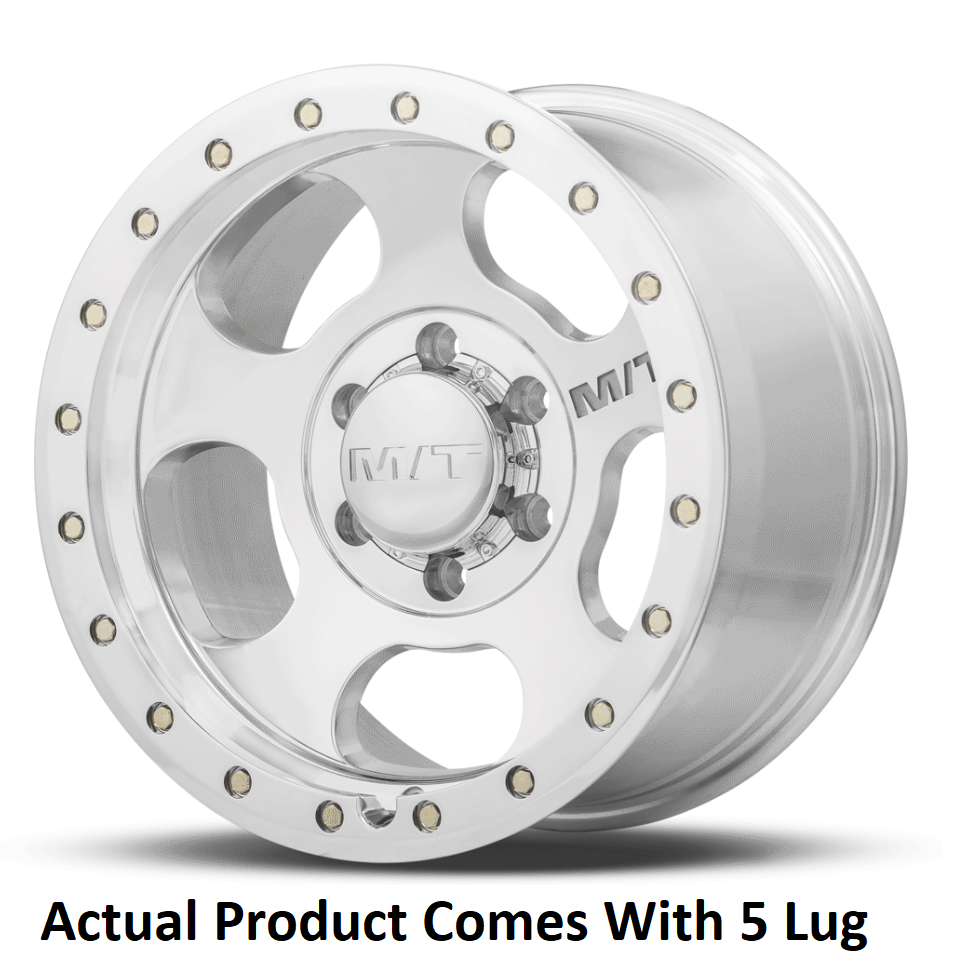

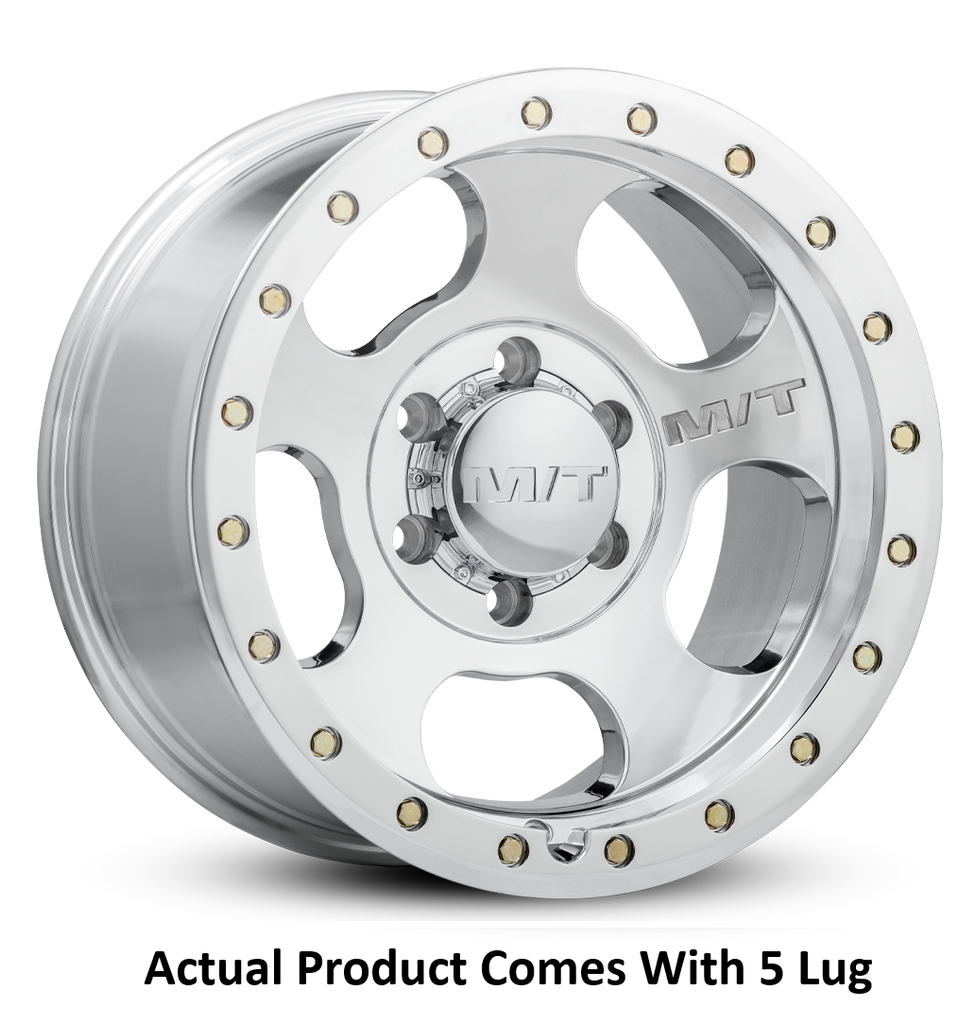

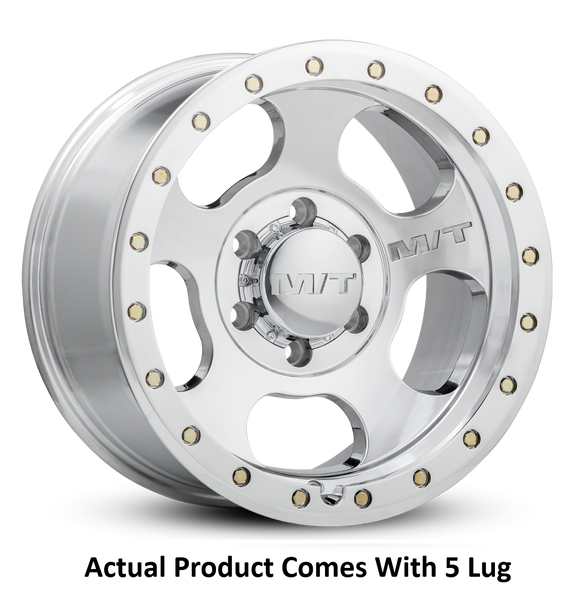

Mickey Thompson Canyon Pro Wheel (MPN: 274643)

Durable 17 Inch Wheel with Simulated Beadlock Design

The Mickey Thompson Canyon Pro Wheel is engineered for trucks and SUVs, offering a blend of modern aesthetics and robust functionality. With a diameter of 17 inches and a width of 9 inches, this wheel features a 5 x 139.7 millimeter bolt pattern and a -12 millimeter offset, ensuring compatibility with a wide range of vehicles. The polished finish and simulated beadlock ring provide a striking appearance while enhancing durability.

Constructed from one-piece cast aluminum, the Canyon Pro Wheel boasts a load capacity of 2500 pounds, making it suitable for heavy-duty applications. The design includes a 60-degree conical seat lug nut configuration and a center bore of 108.10 millimeters, facilitating a secure fit. Additionally, the wheel incorporates a valve stem niche cut-out for easy access and a modern low-profile cap design, further enhancing its utility.

This wheel is compatible with tire pressure monitoring systems and supports a maximum tire diameter of 40 inches. The embossed M/T logo center cap adds a distinctive touch, while the structural warranty ensures long-lasting performance. The Canyon Pro Wheel is an excellent choice for those seeking a reliable and stylish upgrade for their vehicle.

Features

• Simulated Beadlock Style With Genuine 5/8 Inch Zinc Bolts For A Classic And Commanding Look
• Valve Stem Niche Cut Out For Easy Access
• Modern Low Profile Cap Design
• Vast Fitments For Most Modern Vehicles
• High Load Rating For Strength And Durability

Specifications

• Manufacturer: Mickey Thompson Wheel
• Manufacturer Part Number: 274643
• Bolt Pattern Inch: Not Applicable
• Bolt Pattern Millimeter: Not Applicable
• Diameter: 17
• Width: 9
• Offset: -12
• Backspacing: 4.5
• Finish: Polished
• Color: Natural With Simulated Beadlock Ring
• Material: Aluminum
• Bolt Pattern Inch: 5x5.50
• Bolt Pattern Inch: Not Applicable
• Bolt Pattern Millimeter: 5x139.7
• Bolt Pattern Millimeter: Not Applicable
• Lug Nut Seat Type: 60 Degree Conical
• Center Caps Included: Yes
• Center Bore: 108.10
• Lug Nut Design: Acorn
• Compatible With TPMS (Tire Pressure Monitoring Sys: Yes
• Basic Design: 5 Hole
• With Inserts: No
• Load Capacity: 2500
• Size: 17x9
• Max Tire Diameter: 40
• Center Cap Design: Embossed M/T Logo
• Finish Warranty: 1 Year
• Structural Warranty: Lifetime
• Quantity: Single
• Construction: One Piece Cast
• With Hub Centric Ring: No
• Estimated Install Time (Hours): 0.5
