Mickey Thompson Canyon Pro Wheel (MPN: 274614)

Durable 17 Inch Wheel with Aggressive Style and High Load Capacity

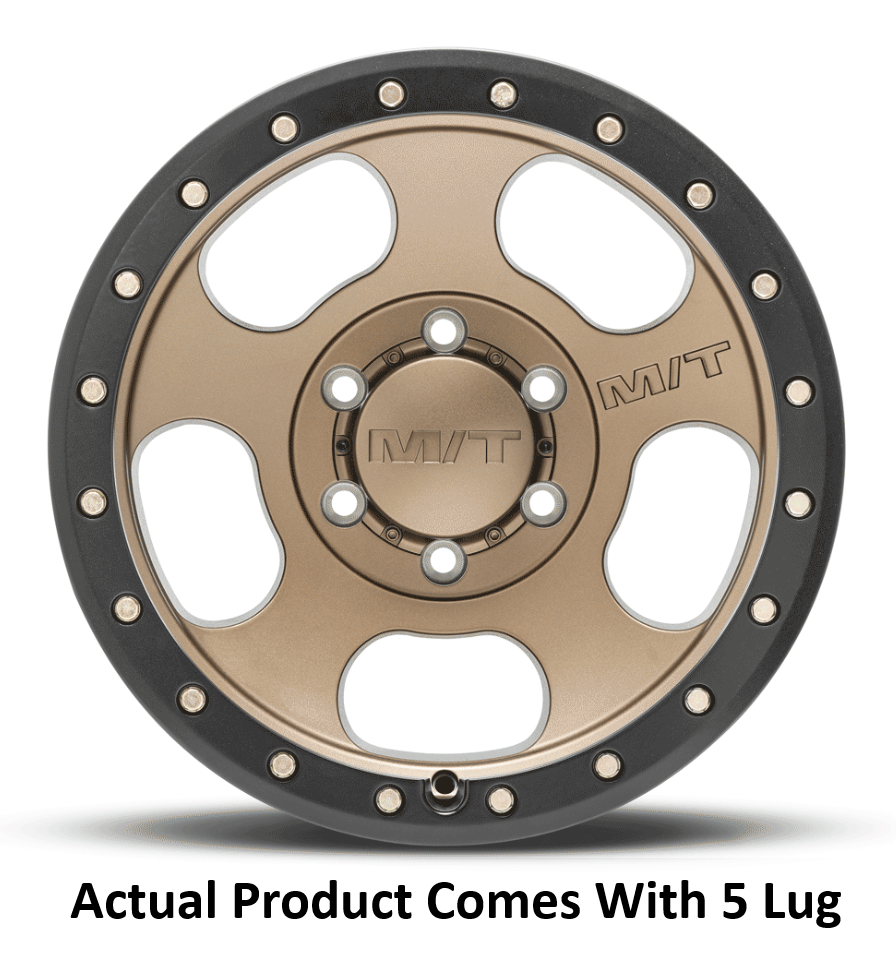

The Mickey Thompson Canyon Pro Wheel is designed for trucks and SUVs, offering a blend of modern aesthetics and robust functionality. With a diameter of 17 inches and a width of 9 inches, this wheel features a 5-hole design and a simulated beadlock that enhances its aggressive appearance. The satin bronze finish, complemented by a black simulated beadlock ring, provides a striking visual appeal while maintaining durability through its one-piece cast aluminum construction.

This wheel is engineered to support a load capacity of 2500 pounds, making it suitable for a variety of applications. It is compatible with Tire Pressure Monitoring Systems (TPMS) and accommodates a maximum tire diameter of 40 inches. The 60-degree conical seat lug nut design ensures a secure fit, while the 4.53-inch backspacing and -12 millimeter offset contribute to improved vehicle handling and stability.

The Canyon Pro Wheel is available in multiple finishes, including polished and satin black, allowing for customization to match individual vehicle styles. Its modern low-profile cap design and embossed M/T logo center cap add to its overall appeal, making it a practical choice for those seeking both performance and style in their wheel selection.

Features

• Simulated Beadlock Style With Genuine 5/8 Inch Zinc Bolts Delivers A Bold, Aggressive Look
• Modern Low Profile Cap Design
• Vast Fitments For Most Modern Vehicles
• High Load Rating For Strength And Durability

Specifications

• Manufacturer: Mickey Thompson Wheel
• Manufacturer Part Number: 274614
• Bolt Pattern Inch: Not Applicable
• Bolt Pattern Millimeter: Not Applicable
• Diameter: 17
• Width: 9
• Offset: -12
• Backspacing: 4.53
• Finish: Painted Satin
• Color: Bronze With Black Simulated Beadlock Ring
• Material: Aluminum
• Bolt Pattern Inch: 5x5.50
• Bolt Pattern Inch: Not Applicable
• Bolt Pattern Millimeter: 5x139.7
• Bolt Pattern Millimeter: Not Applicable
• Lug Nut Seat Type: 60 Degree Conical
• Center Caps Included: Yes
• Center Bore: 108.10
• Lug Nut Design: Acorn
• Compatible With TPMS (Tire Pressure Monitoring Sys: Yes
• Basic Design: 5 Hole
• With Inserts: No
• Load Capacity: 2500
• Size: 17x9
• Max Tire Diameter: 40
• Center Cap Design: Embossed M/T Logo
• Finish Warranty: 1 Year
• Structural Warranty: Lifetime
• Quantity: Single
• Construction: One Piece Cast
• With Hub Centric Ring: No
• Estimated Install Time (Hours): 0.5

Compatibility / Fit

• 1986-1989 Dodge D100
• 1981-1993 Dodge D150
• 1994-2008 Dodge Ram 1500
• 1999-1999 Dodge Ram 1500 Van
• 1974-1993 Dodge Ramcharger
• 1975-1977 Dodge W100
• 1986-1989 Dodge W100
• 1977-1980 Dodge W150
• 1985-1985 Dodge W150
• 1966-1996 Ford Bronco
• 1975-1983 Ford E-100 Econoline
• 1975-1983 Ford E-100 Econoline Club Wagon
• 2003-2006 Ford E-150
• 2011-2012 Ford E-150
• 1975-1999 Ford E-150 Econoline
• 1975-1999 Ford E-150 Econoline Club Wagon
• 1975-1983 Ford F-100
• 1975-1996 Ford F-150
• 1994-1997 Honda Passport
• 1970-1983 Jeep CJ5
• 1976-1986 Jeep CJ7
• 2011-2018 Ram 1500
• 2024-2024 Ram 1500 Classic
• 2019-2023 Ram 1500 Classic- Old Model
• 2000-2002 Suzuki Grand Vitara
• 1986-1995 Suzuki Samurai
• 1989-1998 Suzuki Sidekick
• 1985-1985 Suzuki SJ410
• 1999-2004 Suzuki Vitara
• 2002-2006 Suzuki XL-7

Technical Documents

• Mickey_Thompson___Warranty_Info.pdf
