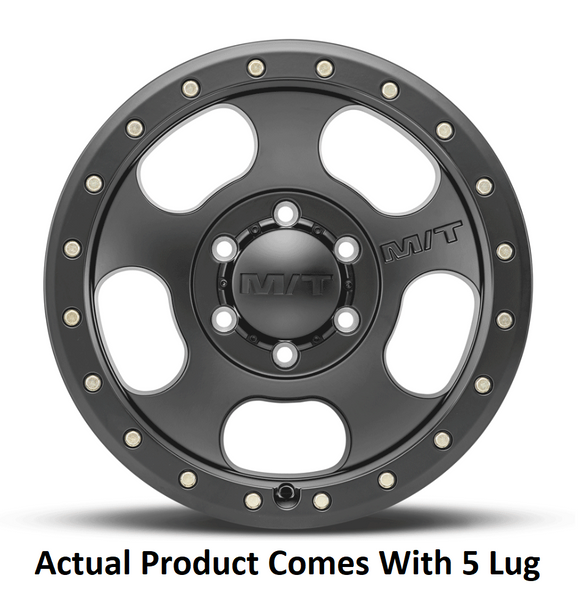

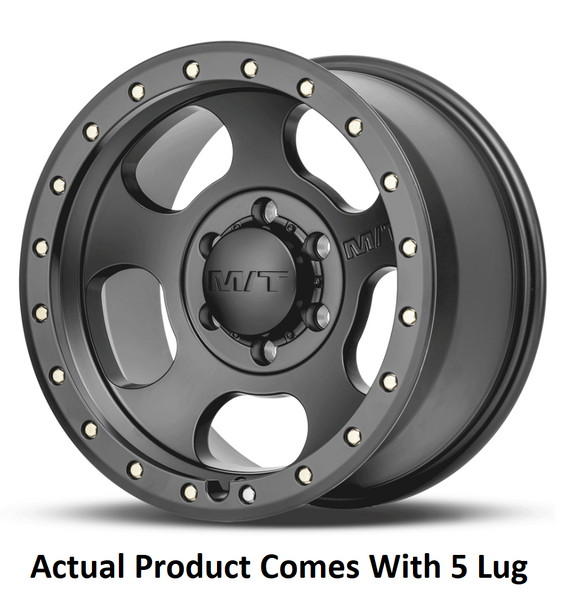

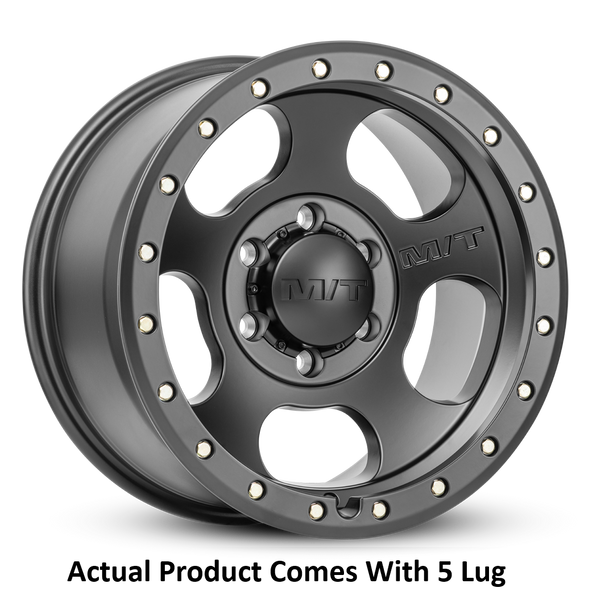

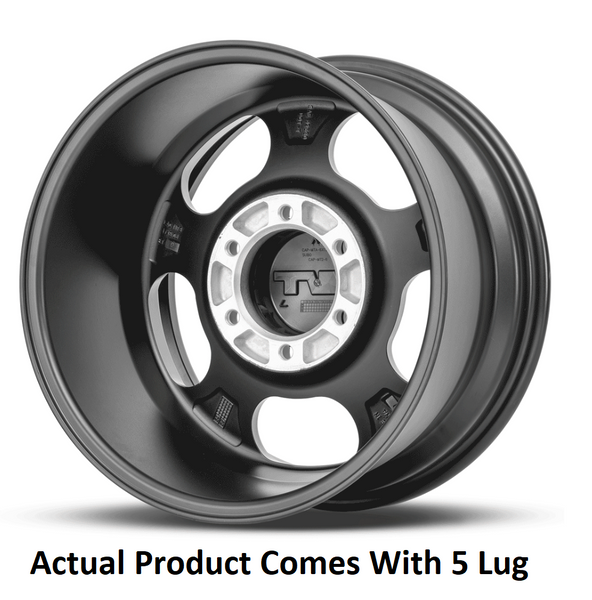

Mickey Thompson Canyon Pro Wheel (MPN: 274571)

Durable 20 Inch Wheel with Simulated Beadlock Design

The Mickey Thompson Canyon Pro Wheel is engineered for trucks and SUVs, offering a blend of modern aesthetics and robust functionality. With a diameter of 20 inches and a width of 9 inches, this wheel features a 5-hole design and a simulated beadlock ring, enhancing both style and performance. Constructed from one-piece cast aluminum, it provides a high load capacity of 2500 pounds, ensuring durability under demanding conditions.

This wheel is designed with a 0 millimeter offset and 5 inches of backspacing, making it compatible with a wide range of modern vehicles. The satin black finish not only adds to its visual appeal but also contributes to its resistance against wear and tear. The 60 degree conical seat lug nut design ensures a secure fit, while the valve stem niche cut out allows for easy access.

The Canyon Pro Wheel accommodates a maximum tire diameter of 40 inches, making it suitable for various tire options. Additionally, it includes an embossed M/T logo center cap, further enhancing its distinctive look. With a lifetime structural warranty and a one-year finish warranty, this wheel is built to last, providing both style and reliability for your vehicle.

Features

• Simulated Beadlock Style With Genuine 5/8 Inch Zinc Bolts For A Classic And Commanding Look
• Valve Stem Niche Cut Out For Easy Access
• Modern Low Profile Cap Design
• Vast Fitments For Most Modern Vehicles
• High Load Rating For Strength And Durability

Specifications

• Manufacturer: Mickey Thompson Wheel
• Manufacturer Part Number: 274571
• Bolt Pattern Inch: Not Applicable
• Bolt Pattern Millimeter: Not Applicable
• Diameter: 20
• Width: 9
• Offset: 0
• Backspacing: 5
• Finish: Painted Satin
• Color: Black With Simulated Beadlock Ring
• Material: Aluminum
• Bolt Pattern Inch: 5x5.50
• Bolt Pattern Inch: Not Applicable
• Bolt Pattern Millimeter: 5x139.7
• Bolt Pattern Millimeter: Not Applicable
• Lug Nut Seat Type: 60 Degree Conical
• Center Caps Included: Yes
• Center Bore: 108.10
• Lug Nut Design: Acorn
• Compatible With TPMS (Tire Pressure Monitoring Sys: Yes
• Basic Design: 5 Hole
• With Inserts: No
• Load Capacity: 2500
• Size: 20x9
• Max Tire Diameter: 40
• Center Cap Design: Embossed M/T Logo
• Finish Warranty: 1 Year
• Structural Warranty: Lifetime
• Quantity: Single
• Construction: One Piece Cast
• With Hub Centric Ring: No
• Estimated Install Time (Hours): 0.5

Compatibility / Fit

• 1986-1989 Dodge D100
• 1981-1993 Dodge D150
• 1994-2010 Dodge Ram 1500
• 1977-1980 Dodge W150
• 1982-1984 Dodge W150
• 1986-1993 Dodge W150
• 1987-1996 Ford Bronco
• 1975-1983 Ford E-100 Econoline
• 1975-1983 Ford E-100 Econoline Club Wagon
• 2003-2006 Ford E-150
• 2011-2012 Ford E-150
• 2003-2005 Ford E-150 Club Wagon
• 1992-2002 Ford E-150 Econoline
• 1991-2002 Ford E-150 Econoline Club Wagon
• 1980-1983 Ford F-100
• 1980-1996 Ford F-150
• 1970-1983 Jeep CJ5
• 1976-1986 Jeep CJ7
• 2011-2018 Ram 1500
• 2024-2024 Ram 1500 Classic
• 2019-2023 Ram 1500 Classic- Old Model
• 2022-2024 Rivian R1S
• 2022-2024 Rivian R1T
• 2002-2006 Suzuki XL-7
