Mickey Thompson Canyon Pro Wheel (MPN: 274570)

Durable 20 Inch Wheel with Simulated Beadlock Design

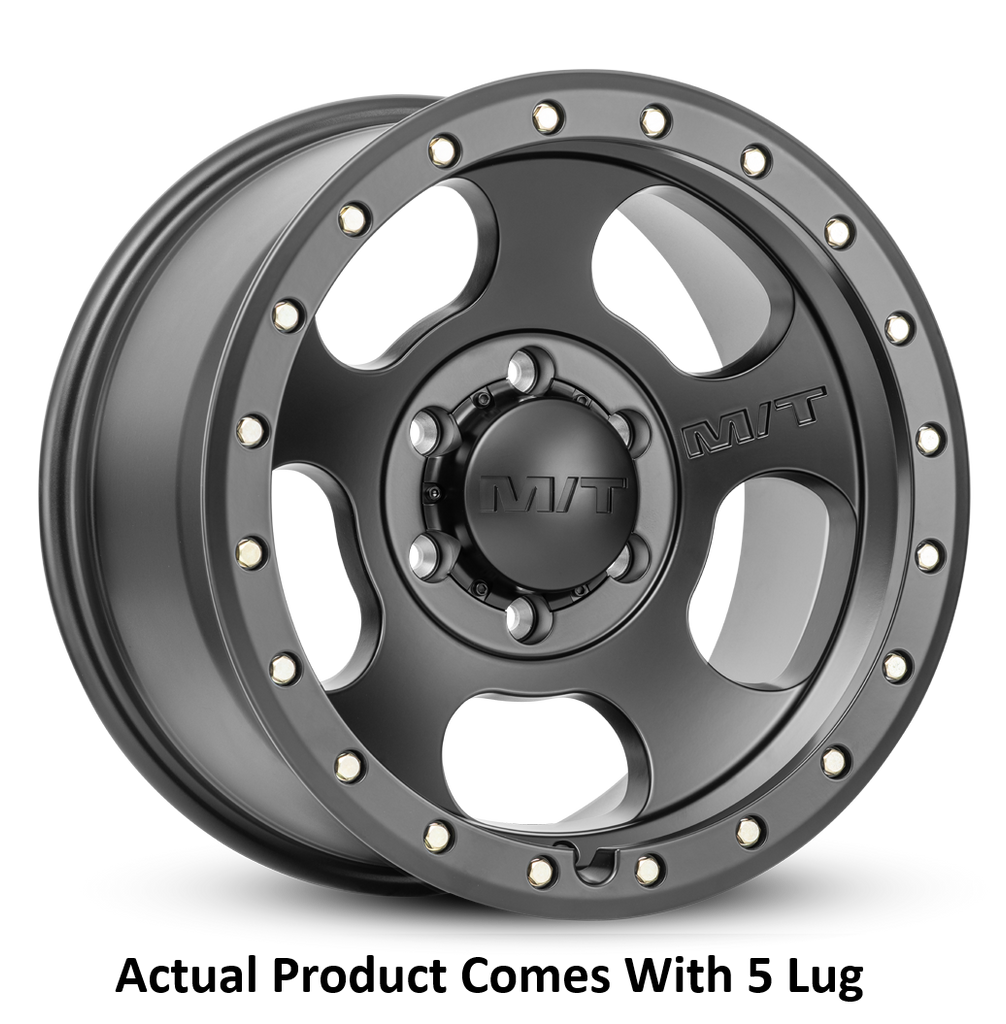

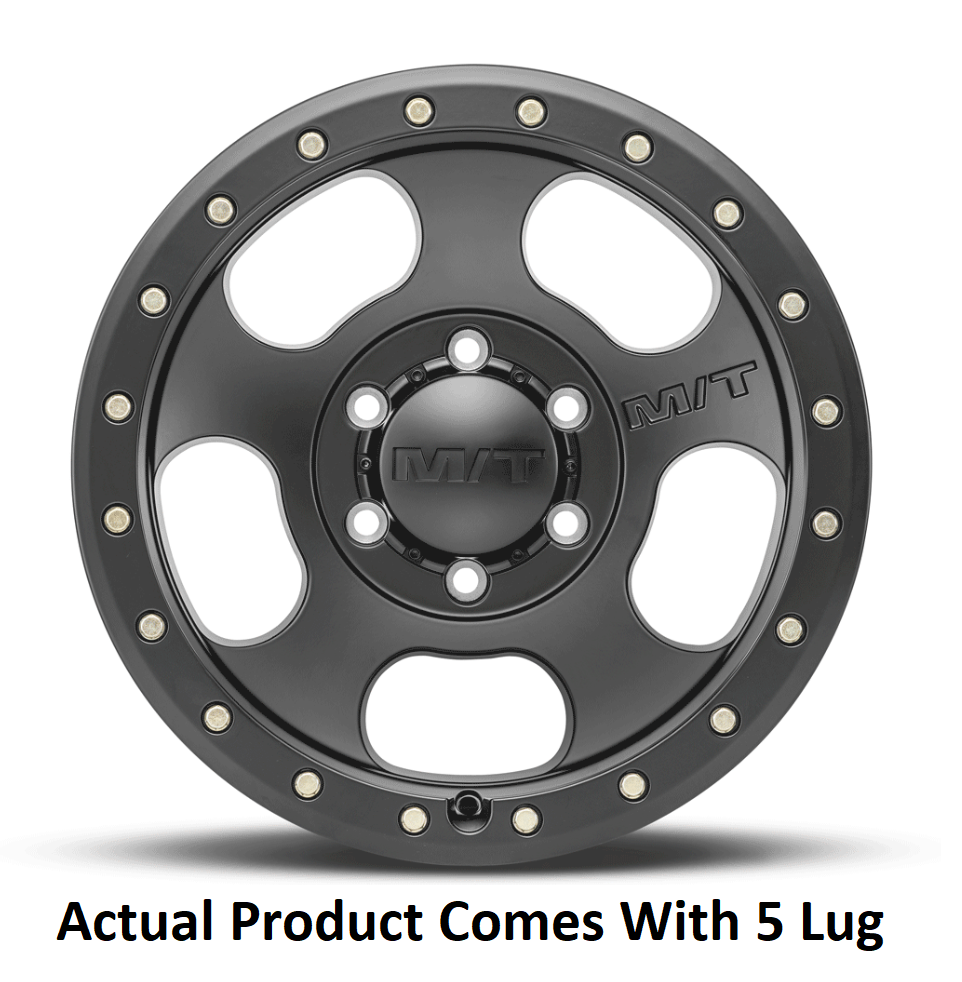

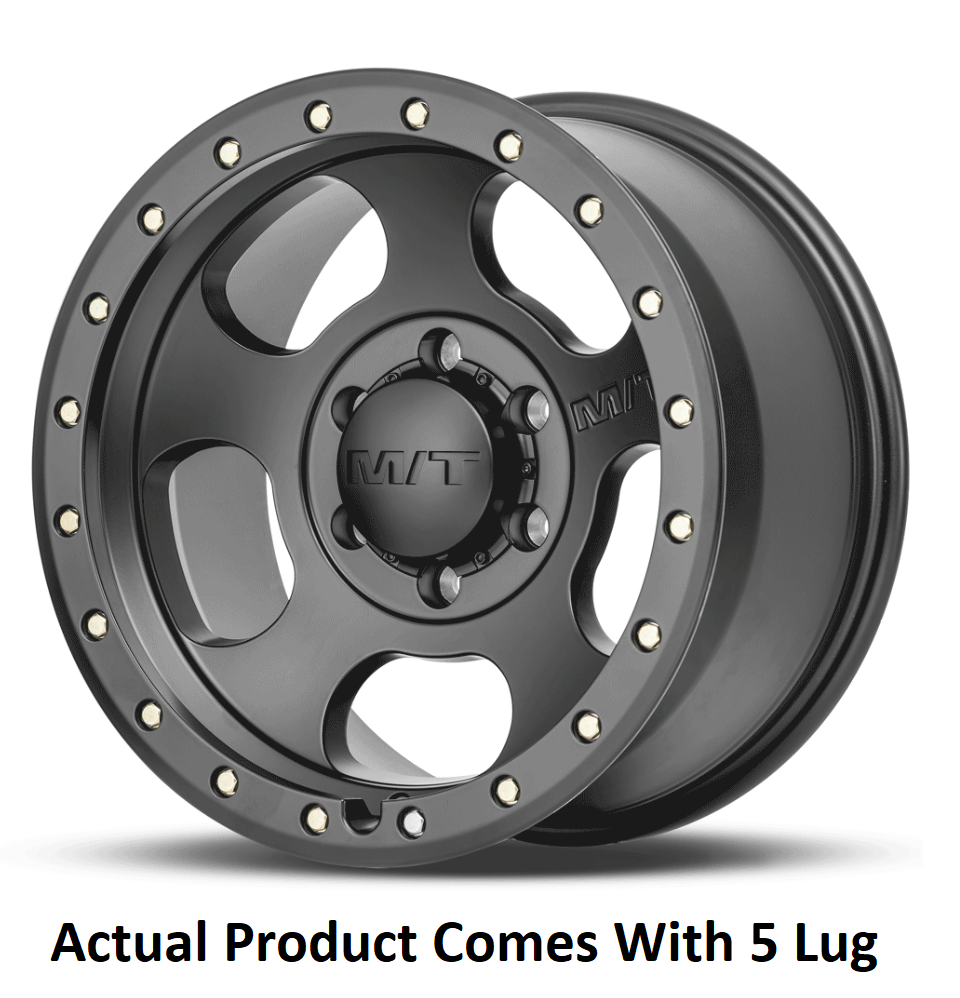

The Mickey Thompson Canyon Pro Wheel is engineered for trucks and SUVs, offering a blend of modern aesthetics and robust functionality. With a diameter of 20 inches and a width of 9 inches, this wheel features a 5-hole design and a simulated beadlock ring that enhances its aggressive appearance while maintaining street-ready versatility. Constructed from one-piece cast aluminum, it provides a high load capacity of 2500 pounds, ensuring strength and durability for demanding applications.

This wheel is designed with a 5 x 127 millimeter bolt pattern and a 60 degree conical seat lug nut design, making it compatible with a wide range of modern vehicles. The satin black finish not only adds to its visual appeal but also offers resistance to wear and tear. Additionally, the valve stem niche cut out allows for easy access, and the modern low profile cap design complements the overall look of the wheel.

With a maximum tire diameter of 40 inches, the Canyon Pro Wheel is suitable for various tire sizes, making it a versatile choice for off-road and on-road driving. The embossed M/T logo center cap adds a touch of branding while ensuring a secure fit. Backed by a lifetime structural warranty, this wheel is built to withstand the rigors of both everyday use and off-road adventures.

Features

• Simulated Beadlock Style With Genuine 5/8 Inch Zinc Bolts For A Classic And Commanding Look
• Valve Stem Niche Cut Out For Easy Access
• Modern Low Profile Cap Design
• Vast Fitments For Most Modern Vehicles
• High Load Rating For Strength And Durability

Specifications

• Manufacturer: Mickey Thompson Wheel
• Manufacturer Part Number: 274570
• Bolt Pattern Inch: Not Applicable
• Bolt Pattern Millimeter: Not Applicable
• Diameter: 20
• Width: 9
• Offset: 0
• Backspacing: 5
• Finish: Painted Satin
• Color: Black With Simulated Beadlock Ring
• Material: Aluminum
• Bolt Pattern Inch: 5x5.00
• Bolt Pattern Inch: Not Applicable
• Bolt Pattern Millimeter: 5x127
• Bolt Pattern Millimeter: Not Applicable
• Lug Nut Seat Type: 60 Degree Conical
• Center Caps Included: Yes
• Center Bore: 71.60
• Lug Nut Design: Acorn
• Compatible With TPMS (Tire Pressure Monitoring Sys: Yes
• Basic Design: 5 Hole
• With Inserts: No
• Load Capacity: 2500
• Size: 20x9
• Max Tire Diameter: 40
• Center Cap Design: Embossed M/T Logo
• Finish Warranty: 1 Year
• Structural Warranty: Lifetime
• Quantity: Single
• Construction: One Piece Cast
• With Hub Centric Ring: No
• Estimated Install Time (Hours): 0.5

Compatibility / Fit

• 1959-1978 Buick Electra
• 1965-1970 Buick Wildcat
• 1988-1992 Cadillac Brougham
• 1970-1974 Cadillac DeVille
• 1970-1972 Chevrolet Brookwood
• 1987-1987 GMC R1500
• 2020-2025 Jeep Gladiator JT
• 2026-2026 Jeep Wrangler
• 2007-2018 Jeep Wrangler JK
• 2018-2025 Jeep Wrangler JL
