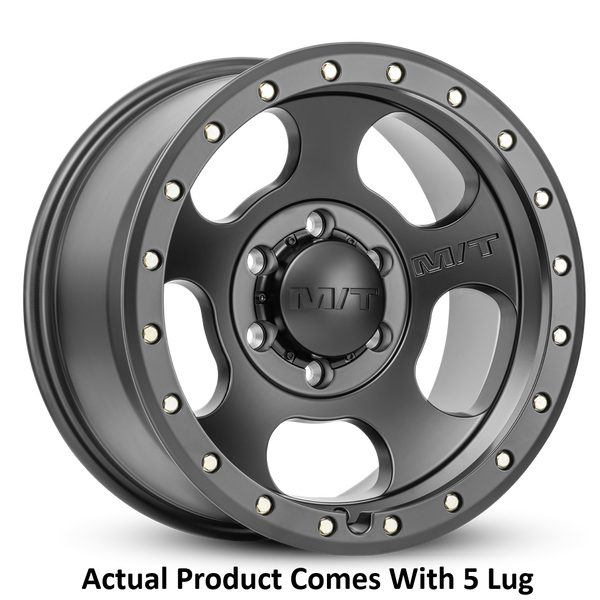

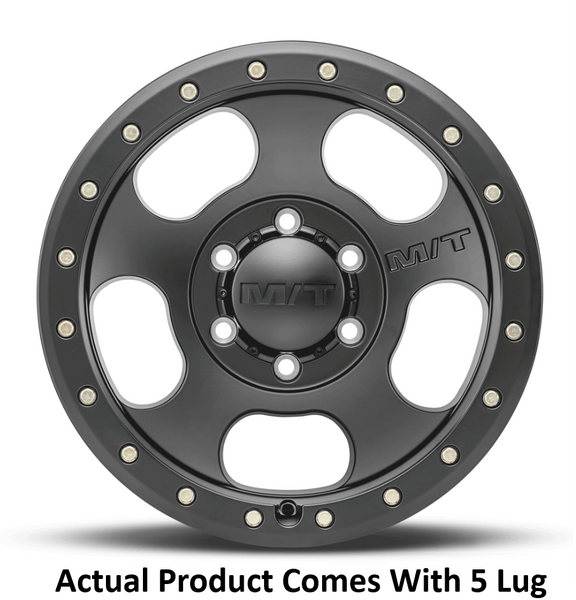

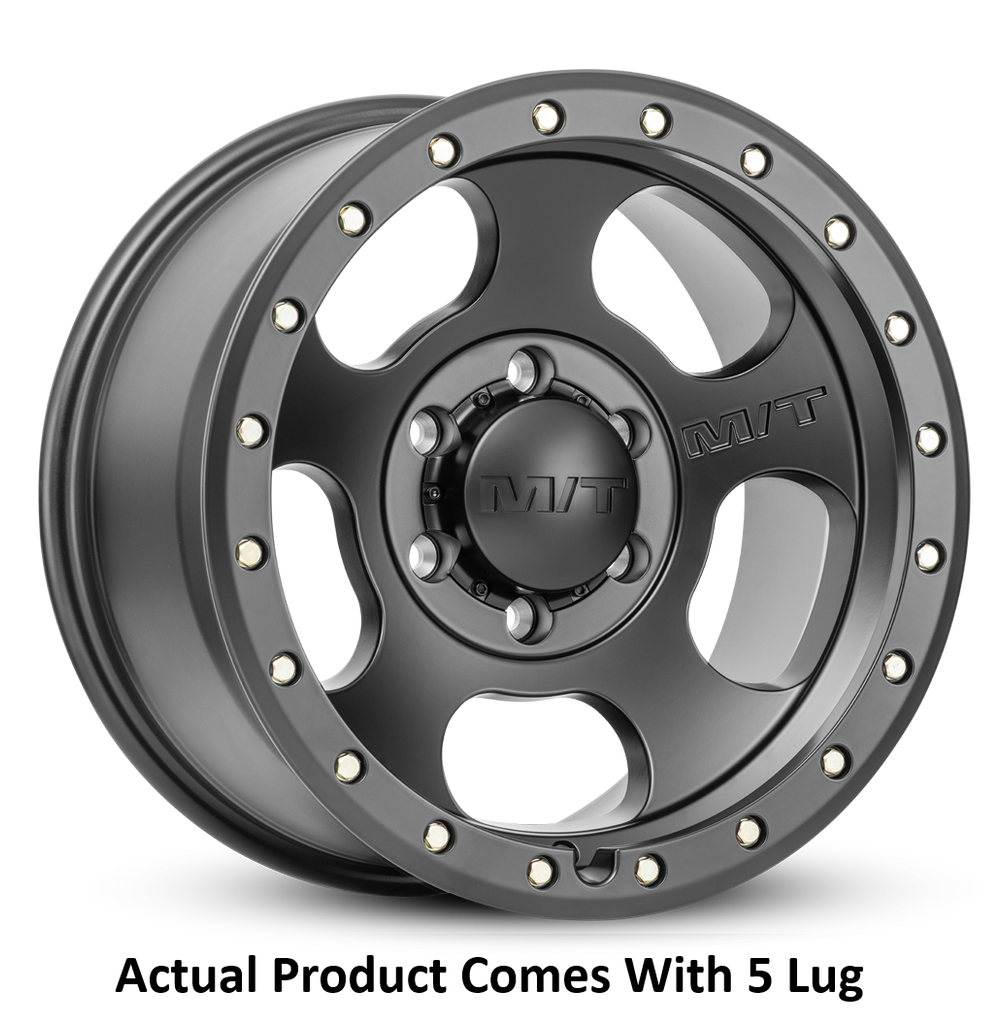

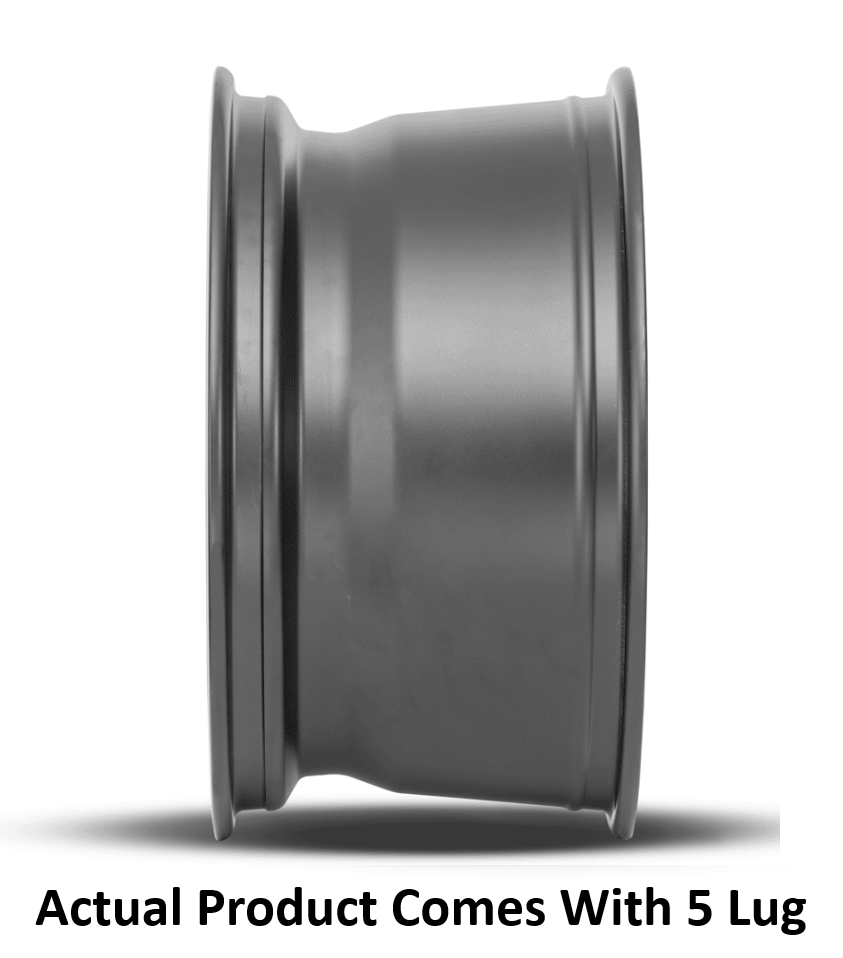

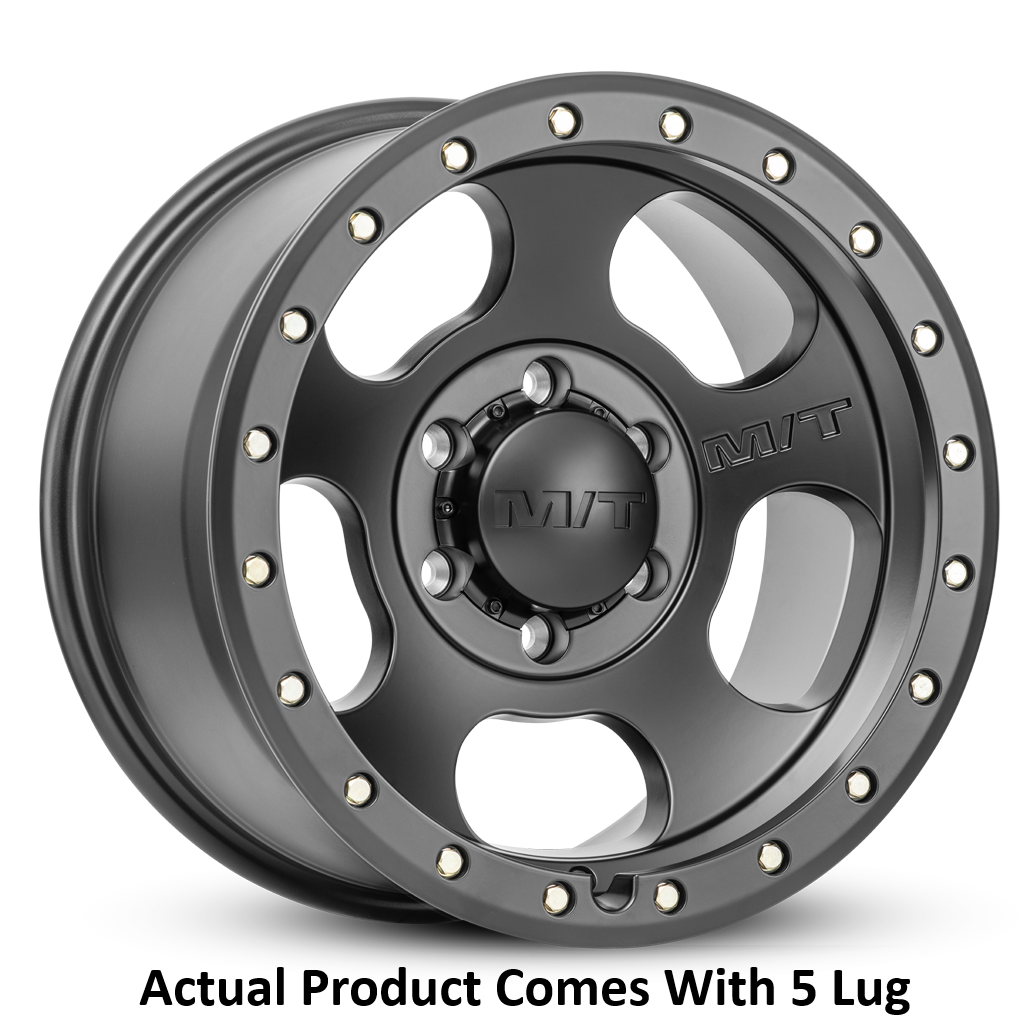

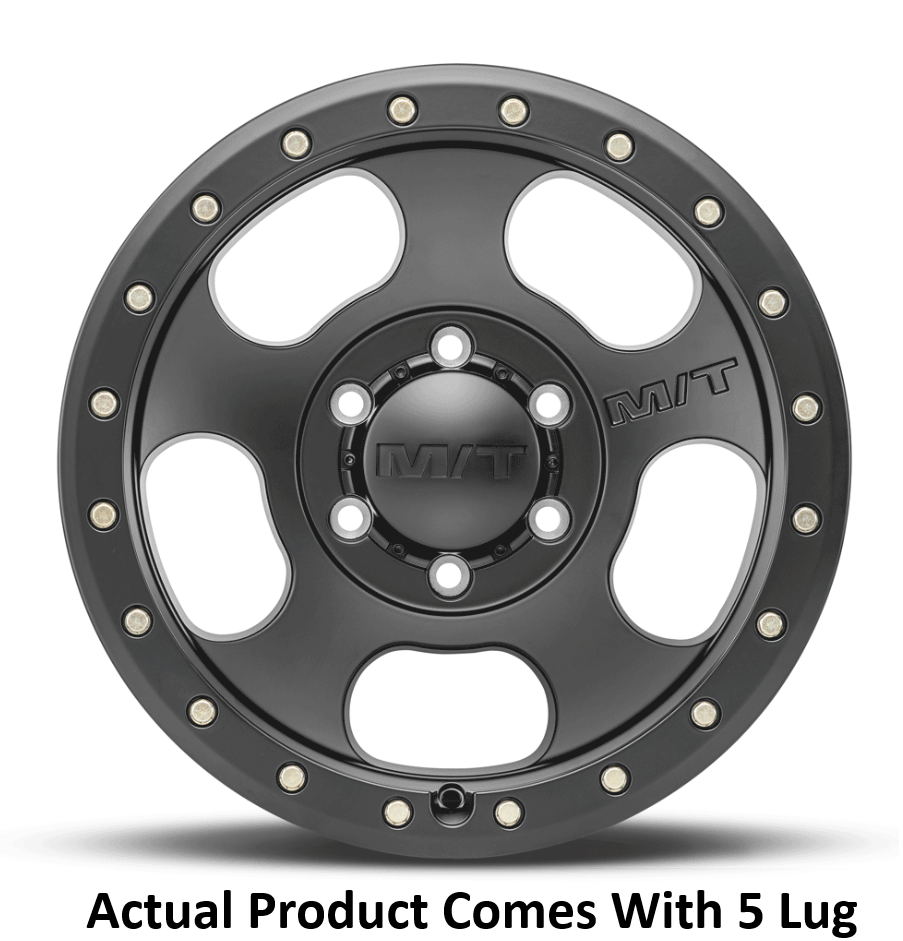

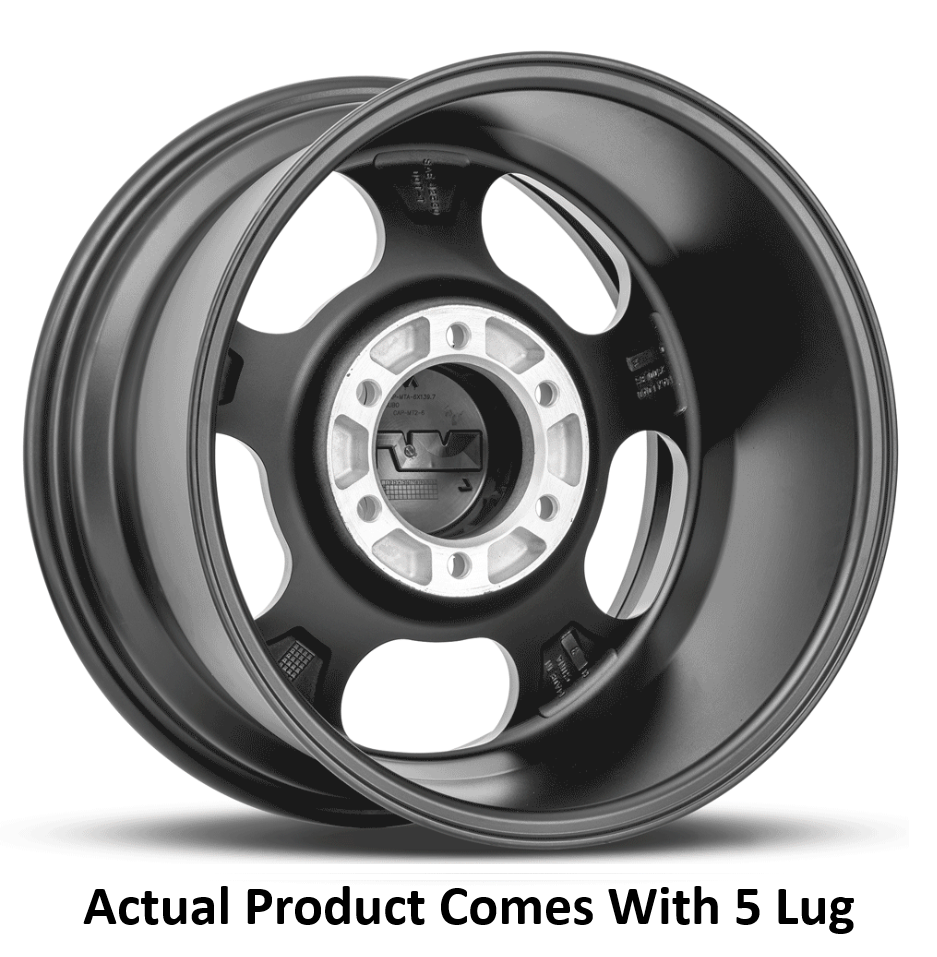

Mickey Thompson Canyon Pro Wheel (MPN: 274563)

Durable 18 Inch Wheel with Aggressive Style and High Load Capacity

The Mickey Thompson Canyon Pro Wheel is designed for trucks and SUVs, offering a blend of modern aesthetics and robust functionality. With an 18 inch diameter and 9 inch width, this wheel features a 5 x 150 millimeter bolt pattern and a 0 millimeter offset, ensuring compatibility with a wide range of vehicles. The satin black finish, complemented by a simulated beadlock ring, provides a bold appearance while maintaining a lightweight aluminum construction.

This wheel is engineered to support a load capacity of 2500 pounds, making it suitable for heavy-duty applications. The 60 degree conical seat lug nut design enhances the wheel's stability and performance. Additionally, the Canyon Pro Wheel is compatible with Tire Pressure Monitoring Systems (TPMS), allowing for easy monitoring of tire conditions.

The embossed M/T logo center cap adds a touch of branding, while the modern low profile cap design contributes to its sleek look. With a maximum tire diameter of 38 inches, this wheel is versatile enough to accommodate various tire sizes, making it a practical choice for off-road enthusiasts and daily drivers alike.

Features

• Simulated Beadlock Style With Genuine 5/8 Inch Zinc Bolts Delivers A Bold, Aggressive Look
• Modern Low Profile Cap Design
• Vast Fitments For Most Modern Vehicles
• High Load Rating For Strength And Durability

Specifications

• Manufacturer: Mickey Thompson Wheel
• Manufacturer Part Number: 274563
• Bolt Pattern Inch: Not Applicable
• Bolt Pattern Millimeter: Not Applicable
• Diameter: 18
• Width: 9
• Offset: 0
• Backspacing: 5.00
• Finish: Painted Satin
• Color: Black With Simulated Beadlock Ring
• Material: Aluminum
• Bolt Pattern Inch: 5x5.90
• Bolt Pattern Inch: Not Applicable
• Bolt Pattern Millimeter: 5x150
• Bolt Pattern Millimeter: Not Applicable
• Lug Nut Seat Type: 60 Degree Conical
• Center Caps Included: Yes
• Center Bore: 110.10
• Lug Nut Design: Acorn
• Compatible With TPMS (Tire Pressure Monitoring Sys: Yes
• Basic Design: 5 Hole
• With Inserts: No
• Load Capacity: 2500
• Size: 18x9
• Max Tire Diameter: 38
• Center Cap Design: Embossed M/T Logo
• Finish Warranty: 1 Year
• Structural Warranty: Lifetime
• Quantity: Single
• Construction: One Piece Cast
• With Hub Centric Ring: No
• Estimated Install Time (Hours): 0.5

Compatibility / Fit

• 2007-2021 Toyota Tundra

Technical Documents

• Mickey_Thompson___Warranty_Info.pdf
