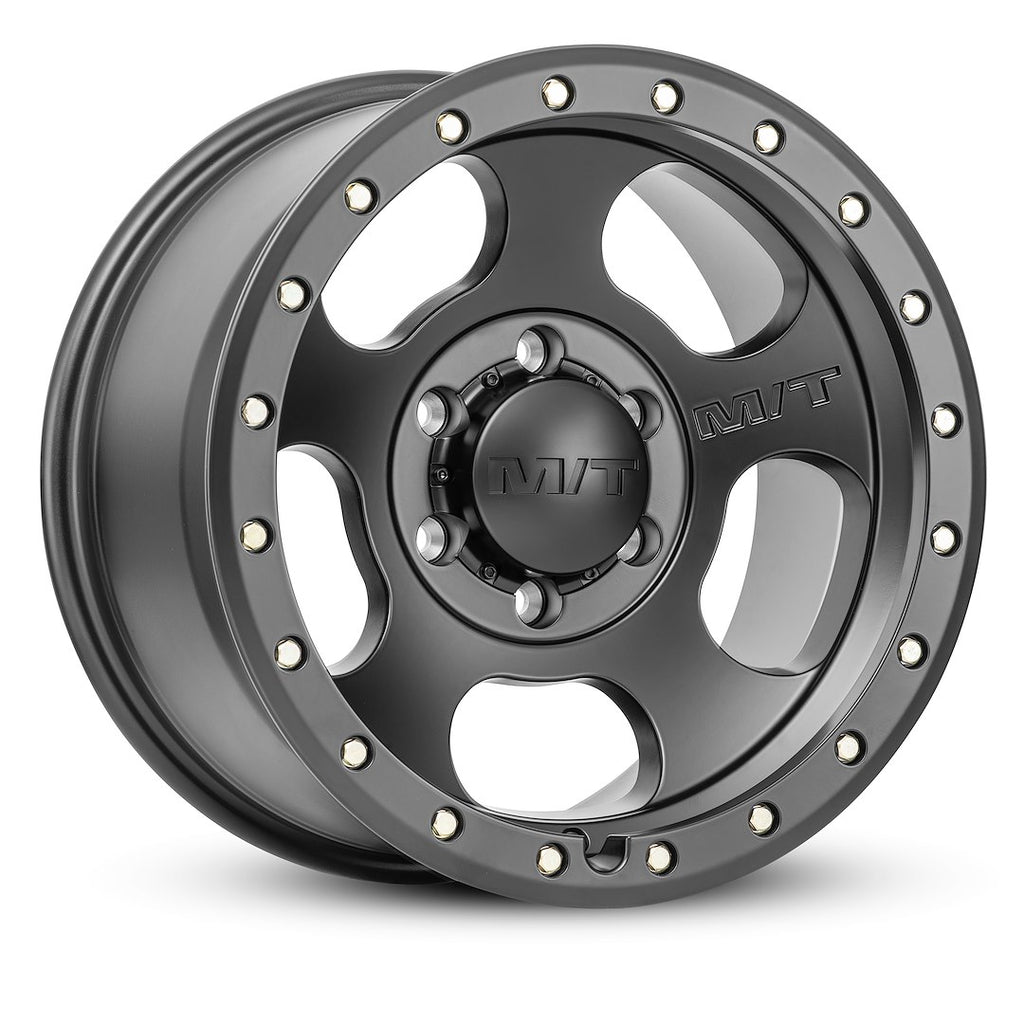

Mickey Thompson Canyon Pro Wheel (MPN: 274524)

Durable 17 Inch Wheel with Simulated Beadlock Design

The Mickey Thompson Canyon Pro Wheel is engineered for trucks and SUVs, offering a blend of modern aesthetics and robust functionality. With a diameter of 17 inches and a width of 9 inches, this wheel features a 6 x 120 millimeter bolt pattern and a -5 millimeter offset, ensuring compatibility with a wide range of vehicles. The satin black finish, complemented by a simulated beadlock ring, provides a striking appearance while maintaining durability through its one-piece cast aluminum construction.

Designed for high performance, the Canyon Pro Wheel supports a load capacity of 2500 pounds, making it suitable for demanding applications. The 60-degree conical seat lug nut design ensures secure fitment, while the valve stem niche cut-out allows for easy access. This wheel is compatible with tire pressure monitoring systems, enhancing safety and convenience for the user.

The Canyon Pro Wheel is not only visually appealing but also practical, accommodating a maximum tire diameter of 40 inches. Its modern low-profile cap design and embossed M/T logo center cap add to its distinctive look. With a lifetime structural warranty and a one-year finish warranty, this wheel is built to withstand the rigors of both on-road and off-road driving.

Features

• Simulated Beadlock Style With Genuine 5/8 Inch Zinc Bolts For A Classic And Commanding Look
• Valve Stem Niche Cut Out For Easy Access
• Modern Low Profile Cap Design
• Vast Fitments For Most Modern Vehicles
• High Load Rating For Strength And Durability

Specifications

• Manufacturer: Mickey Thompson Wheel
• Manufacturer Part Number: 274524
• Bolt Pattern Inch: Not Applicable
• Bolt Pattern Millimeter: Not Applicable
• Diameter: 17
• Width: 9
• Offset: -5
• Backspacing: 4.8
• Finish: Painted Satin
• Color: Black With Simulated Beadlock Ring
• Material: Aluminum
• Bolt Pattern Inch: 6x4.72
• Bolt Pattern Inch: Not Applicable
• Bolt Pattern Millimeter: 6x120
• Bolt Pattern Millimeter: Not Applicable
• Lug Nut Seat Type: 60 Degree Conical
• Center Caps Included: Yes
• Center Bore: 67.00
• Lug Nut Design: Acorn
• Compatible With TPMS (Tire Pressure Monitoring Sys: Yes
• Basic Design: 5 Hole
• With Inserts: No
• Load Capacity: 2500
• Size: 17x9
• Max Tire Diameter: 40
• Center Cap Design: Embossed M/T Logo
• Finish Warranty: 1 Year
• Structural Warranty: Lifetime
• Quantity: Single
• Construction: One Piece Cast
• With Hub Centric Ring: No
• Estimated Install Time (Hours): 0.5
