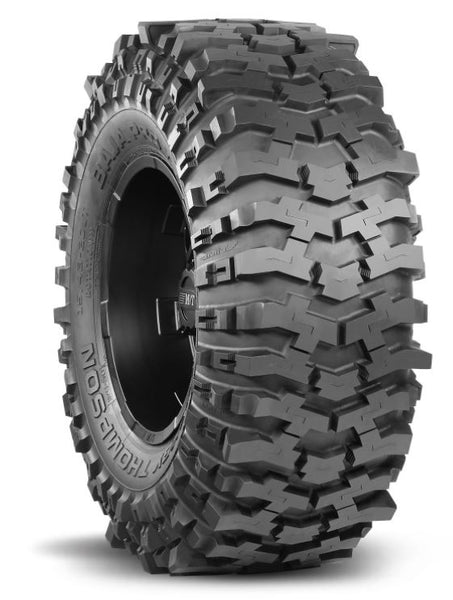

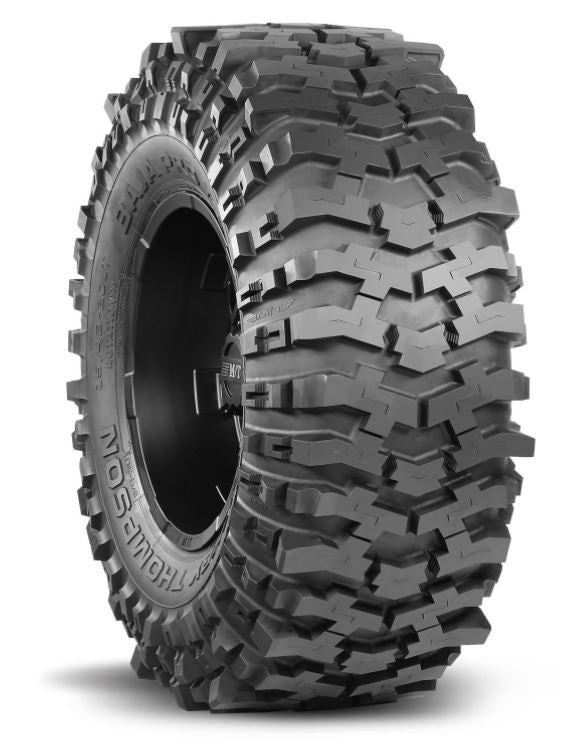

Mickey Thompson Baja Pro XS Tire (MPN: 250102)

Durable all terrain tire designed for light trucks and SUVs.

The Mickey Thompson Baja Pro XS tire is engineered for both on-road and off-road performance, making it a versatile choice for light trucks and SUVs. Its robust 4-ply construction ensures durability across various terrains, while the directional tread design enhances traction and stability. The tire features circumferential tread elements that provide lateral grip, ensuring a balanced driving experience in challenging conditions.

Designed with angled shoulder scallops, the Baja Pro XS effectively guides mud and loose earth into the sidebiter cleats, optimizing performance in off-road scenarios. Additionally, the mud scoops create a void that prevents mud from adhering, maintaining traction in slippery conditions. With a maximum load rating of 3970 pounds and compatibility with wheels ranging from 12.0 to 16.0 inches wide, this tire meets the demands of heavy-duty use.

The Baja Pro XS is DOT approved, ensuring compliance with safety standards for street use. With a tread depth of 27/32 inches and a maximum inflation pressure of 40 PSI, this tire is built to withstand rigorous driving conditions while providing reliable performance. Its black sidewall design adds a rugged aesthetic, making it a practical choice for those who require a tire that can handle diverse driving environments.

Features

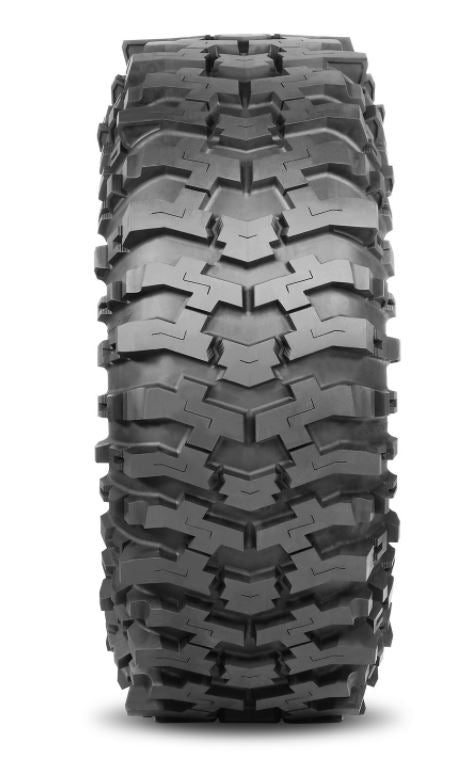

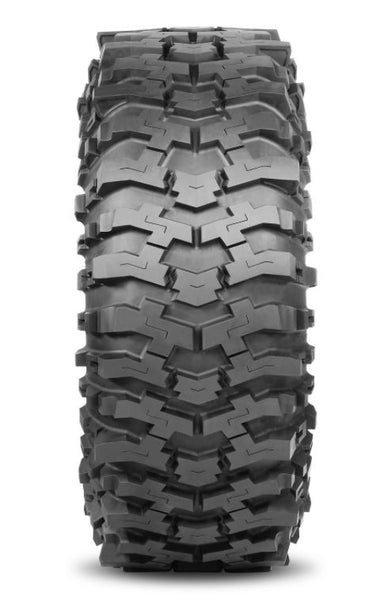

• Directional Tread Pattern For Balanced Forward Bite
• Circumferential Tread Elements For Lateral Grip
• Siping For Smooth Surface Traction And Additional Lug Flex
• Angled Shoulder Scallops To Guide Mud And Loose Earth Into Sidebiter Cleats
• Mud Scoops Provide A Concave Surface And Create A Void To Keep Mud From Adhering

Specifications

• Manufacturer: Mickey Thompson Tires
• Manufacturer Part Number: 250102
• Size Metric: LT-490-90-20
• Tire Type: LT
• Section Width Metric Tire: 490
• Aspect Ratio Metric Tire: 90
• Size Non Metric: LT-19.50-54-20
• Tire Diameter Non Metric Tire: 54
• Section Width Non Metric Tire: 19.5
• Wheel Diameter: 20
• Construction: Bias Ply
• Tire Type Description: Light Truck And SUV
• Tire Segment: All Terrain
• Load Range: C = 6 Ply Rating
• Max Load Rating (Single Rear Wheel Use): 3970
• Speed Rating: Not Applicable
• Size Metric Display Size: LT 490 90 20
• Size Non Metric Display Size: LT 19.50 54 20
• Construction Material: Nylon Ply
• Compound: Not Applicable
• Studs: Not Applicable

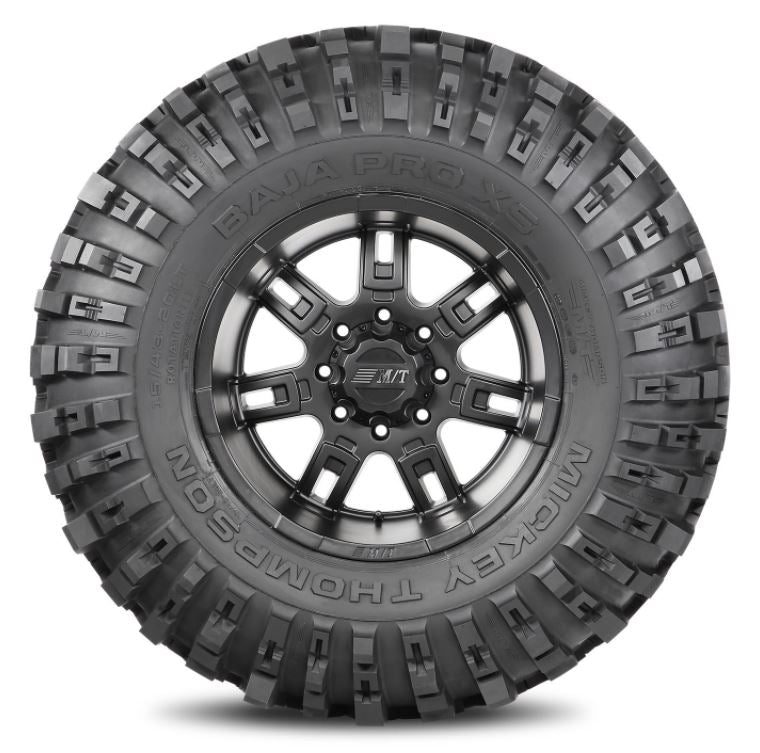

• Sidewall Design: Black Sidewall
• Minimum Rim Width: 12
• Maximum Rim Width: 16
• Service Rating: 128
• Max Load Rating (Dual Rear Wheel Use): Not Applicable
• Sidewall Construction: 4 Ply
• Directional Tread Design: Directional
• DOT Compliant: DOT Approved
• UTQG Tread Wear Rating: Not Applicable
• UTQG Temperature Rating: Not Applicable
• UTQG Traction Rating: Not Applicable
• Overall Section Width: 21.6
• Tread Depth: 27/32
• Max Inflation Pressure: 40 PSI
• Overall Diameter: 53.7
• Circumference: 168
• Runflat: No
• Uses Inner Tube: Tubeless
• Tread Wear Warranty: No Warranty
• Road Hazard Warranty: No Warranty
• Material Warranty: Prorated
• Ride Quality Warranty: No Warranty
• Estimated Install Time (Hours): 0.5

Technical Documents

• Pro_Rated_Credit_Chart.pdf
