High-performance LED light bar with versatile beam patterns and robust design.

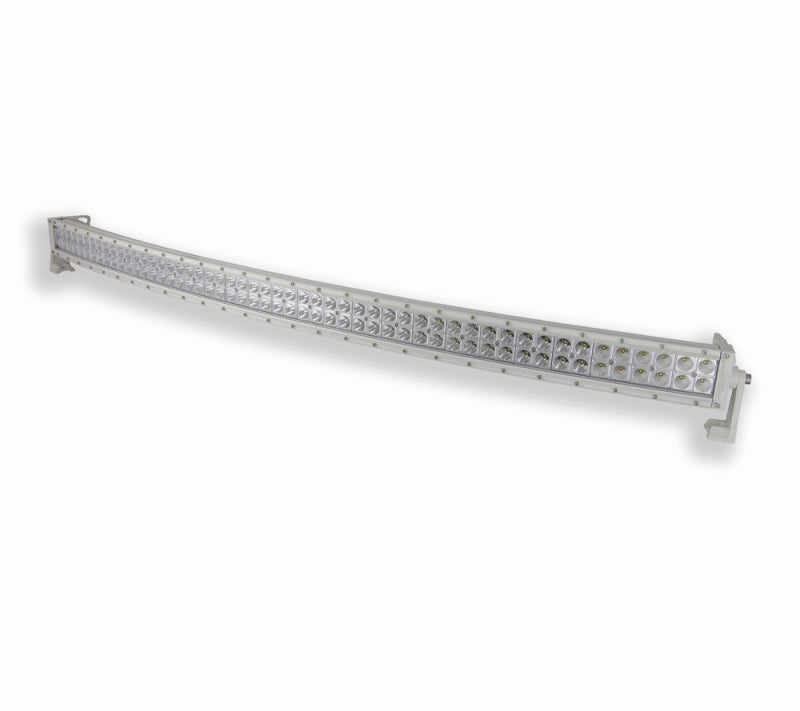

The Metra Light Bar features a 54 inch length and is equipped with 100 CREE LED bulbs, delivering an impressive 24960 raw lumens. This light bar is designed with a combination beam pattern, offering both a 90 degree flood and an 8 degree spot beam, making it suitable for various lighting needs. Constructed with a die-cast aluminum housing and a clear polycarbonate lens, it ensures durability and longevity in diverse environments.
Operating efficiently at 300 watts and 16 amps at 13.8 volts, the Metra Light Bar is built to withstand extreme temperatures ranging from -40 to +60 degrees Celsius. It is rated IP67 for water and dust resistance, providing reliable performance in challenging conditions. The white housing is coated with UV inhibitors to prevent fading and degradation over time.
Installation is straightforward with the included mounting bracket and plug and play wiring harness, allowing for a quick setup. The Metra Light Bar is an excellent choice for those seeking a powerful and versatile lighting solution, combining functionality with a sleek design.
Features
- LUX At 10M: 1050
- Color Temperature: 6000 Kelvin
- Beam Pattern: Flood 90 Degree Or Spot 8 Degree
- Housing Material: Die-Cast Aluminum Housing
- Housing Color: White Coating With UV Inhibitors
- Lens Material: PC
- Electronics: Integrated-Epoxy Encapsulated; Hardware: Stainless 316
- Operating Temperature: -40 Degree Celsius To +60 Degree Celsius; IP Rating: IP67; Protections: Reverse Polarity
- Mounting Bracket: Die-Cast Aluminum
Specifications
- Manufacturer: Metra Electronics
- Manufacturer Part Number: HE-MDRC54
- Bulb Type: LED
- Style: Curved
- Length: 54 Inch
- Beam Type: Combo Beam Flood And Spot
- Number Of Rows: 2
- Light Color: White
- Housing Color: White
- Smart Technology Compatible: Not Smart Technology Compatible
- Beam Angle (Deg): 90 Degree Flood/ 8 Degree Spot
- Lumens: 24960 Lumens
- Wattage: 300 Watt
- Voltage Rating: 13.8 Volt
- Ampere Rating At 12 Volts: 16 Amp
- Bulb Specifications: 100 CREE LED Bulbs
- Lens Material: Polycarbonate
- Housing Material: Aluminum
- Mounting Style: Bracket Mount
- Connection Type: Plug And Play Wiring Harness
- Includes: With Mounting Hardware
- Estimated Install Time (Hours): 1.5
