Metra Light Bar (MPN: HE-MDR20)

High-performance LED light bar with versatile beam patterns and durable design.

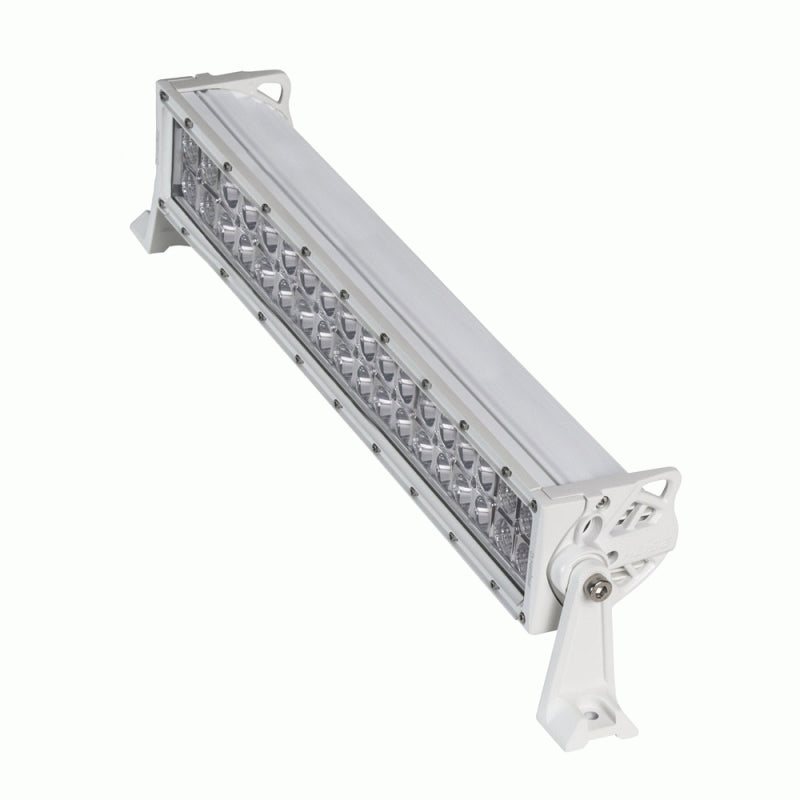

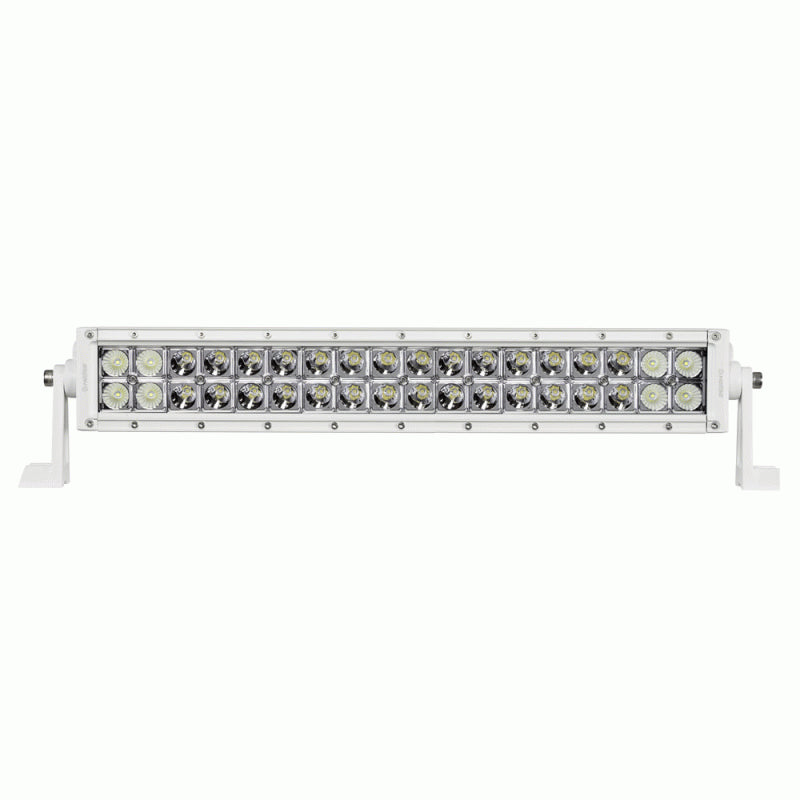

The Metra Light Bar is a robust 20-inch LED lighting solution designed for various applications. With a powerful output of 8640 raw lumens, this light bar features a combination beam pattern that includes a 90-degree flood and an 8-degree spot beam, providing excellent visibility in diverse conditions. Constructed with a clear polycarbonate lens and a white aluminum housing, it ensures durability and resistance to harsh environments.

This light bar operates efficiently within a voltage range of 10 to 30 volts DC and is equipped with integrated epoxy encapsulated electronics for enhanced protection. The unit is rated IP68, making it waterproof and dustproof, suitable for outdoor use. Additionally, the Metra Light Bar includes mounting hardware and is designed for easy installation, making it a practical choice for installers and users alike.

Features

• Color Temperature: 6000 Kelvin
• Beam Pattern: Combo: Flood 90 Degree Spot Beam And 8 Degree Spot Beam
• Electronics: Integrated-Epoxy Encapsulated
• Hardware: 316 Stainless
• Operating Temperature: -40 Degree Celsius To +60 Degrees Celsius
• Protection: Reverse Polarity
• Housing Material: Die-Cast Aluminum
• IP Rating: IP68; Color: White Coating With UV
• Input Voltage: 10 To 30 Volt DC

Specifications

• Manufacturer: Metra Electronics
• Manufacturer Part Number: HE-MDR20
• Bulb Type: LED
• Style: Straight
• Length: 20 Inch
• Beam Type: Combo Beam Flood And Spot
• Number Of Rows: 2
• Light Color: White
• Housing Color: Black
• Beam Angle (Deg): 90 Degree Flood/ 8 Degree Spot
• Lumens: 8640 Lumens
• Wattage: 108 Watt
• Voltage Rating: 10 To 30 Volt
• Lens Material: Polycarbonate
• Housing Material: Aluminum
• Mounting Style: Bracket Mount
• Connection Type: Plug And Play Wiring Harness
• Includes: With Mounting Hardware
• Estimated Install Time (Hours): 1.5
