High-performance LED light bar with versatile beam patterns and durable design.

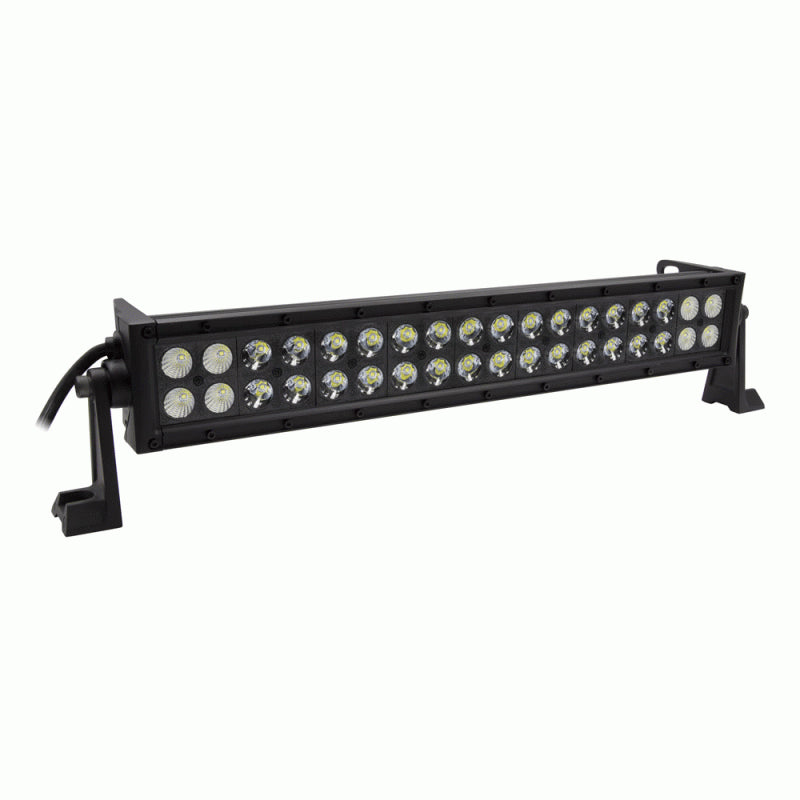

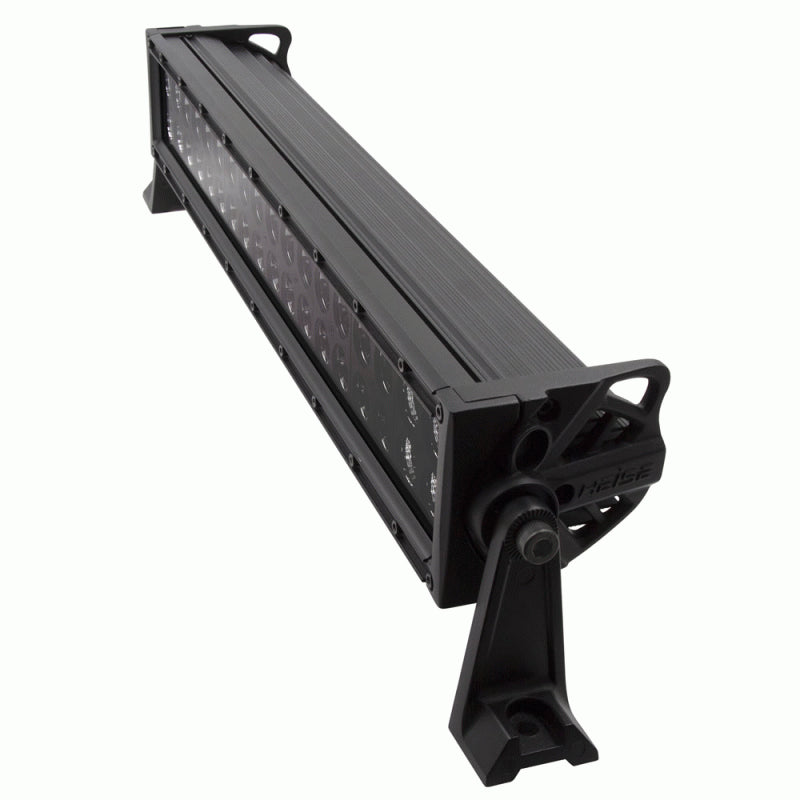

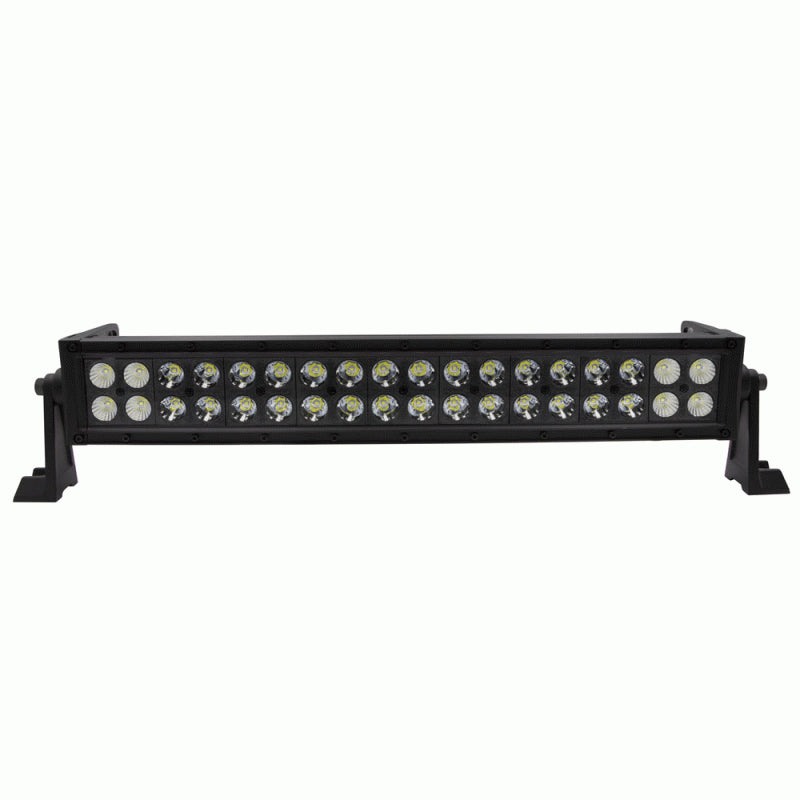

The Metra Light Bar is a robust 20-inch LED lighting solution designed for various applications. Featuring 36 high-output LED bulbs, it delivers an impressive 8640 raw lumens, ensuring excellent visibility in diverse conditions. The light bar combines a 90-degree flood beam with an 8-degree spot beam, providing a versatile lighting experience suitable for both close and long-range illumination.
Constructed with a black aluminum housing and a clear polycarbonate lens, this light bar is built to withstand harsh environments. It operates efficiently within a voltage range of 10 to 30 volts DC and is rated IP67 for water and dust resistance. The integrated epoxy encapsulated electronics enhance durability, while the reverse polarity protection ensures safe operation.
With an operating temperature range of -40 to +60 degrees Celsius, the Metra Light Bar is designed for reliability in extreme conditions. The included mounting hardware allows for easy installation, making it a practical choice for installers and users alike.
Features
- Color Temperature: 6000 Kelvin
- Beam Pattern: Combo: Flood 90 Degree Spot Beam And 8 Degree Spot Beam
- Electronics: Integrated-Epoxy Encapsulated
- Hardware: 316 Stainless
- Operating Temperature: -40 Degree Celsius To +60 Degrees Celsius
- Protection: Reverse Polarity
- Housing Material: Die-Cast Aluminum
- IP Rating: IP67
- Input Voltage: 10 To 30 Volt DC
Specifications
- Manufacturer: Metra Electronics
- Manufacturer Part Number: HE-BDR20
- Bulb Type: LED
- Style: Straight
- Length: 20 Inch
- Beam Type: Combo Beam Flood And Spot
- Number Of Rows: 2
- Light Color: White
- Housing Color: Black
- Beam Angle (Deg): 90 Degree Flood/ 8 Degree Spot
- Lumens: 8640 Lumens
- Wattage: 108 Watt
- Voltage Rating: 10 To 30 Volt
- Bulb Specifications: 36 LED Bulbs
- Lens Material: Polycarbonate
- Housing Material: Aluminum
- Mounting Style: Bracket Mount
- Connection Type: Plug And Play Wiring Harness
- Includes: With Mounting Hardware
- Estimated Install Time (Hours): 1.5
