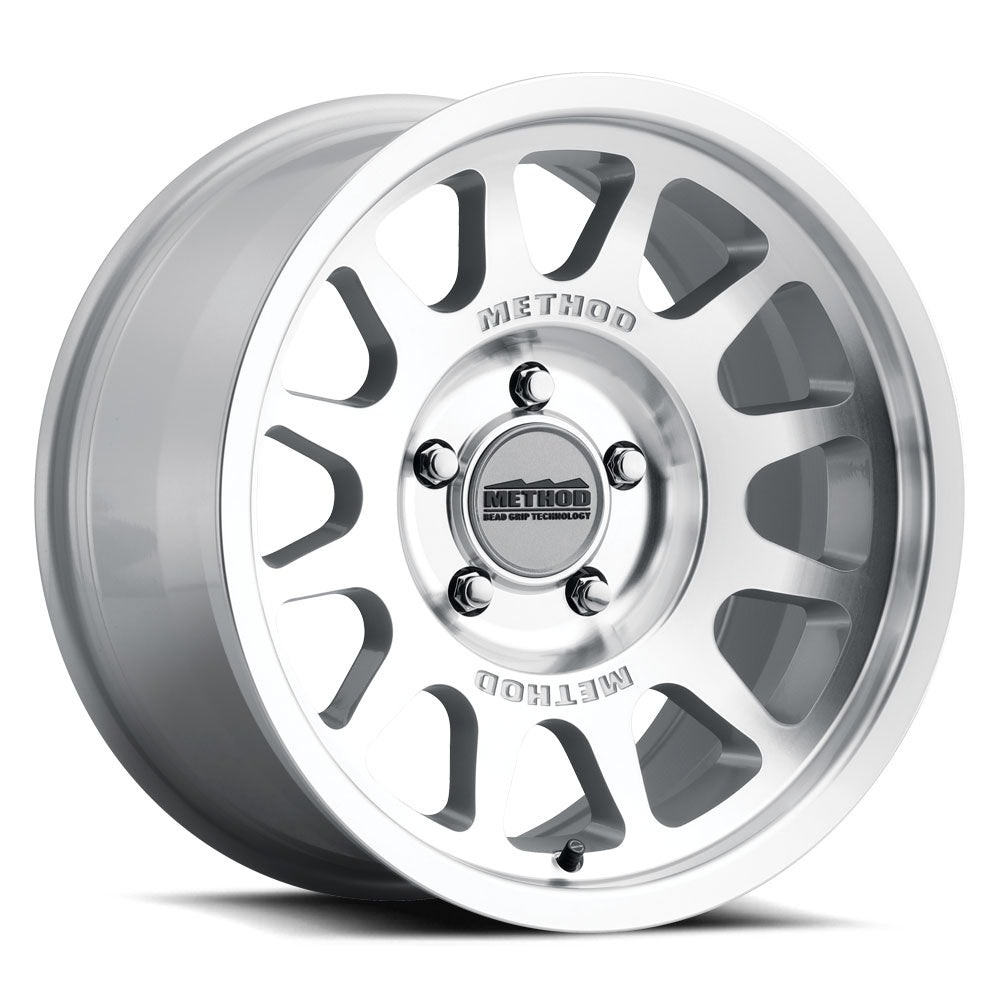

Method Race Wheels MR703 Bead Grip (MPN: MR70378550300)

Durable aluminum wheel designed for high performance and strength.

The Method Race Wheels MR703 Bead Grip is engineered for durability and performance, featuring a 17 inch diameter and 8.5 inch width. Constructed from heat-treated 6061 billet aluminum, this wheel offers a superior alloy that is both stronger and lighter than traditional manufacturing methods. The machined clear coated finish enhances its aesthetic while providing protection against the elements.

With a load capacity of 2650 pounds, the MR703 is designed to handle demanding conditions. It features a 5 x 127 millimeter bolt pattern and a 60 degree conical seat lug for secure fitment. The wheel is compatible with Tire Pressure Monitoring Systems (TPMS), ensuring optimal tire performance and safety.

The 12 window spoke design not only contributes to the wheel's lightweight characteristics but also adds to its visual appeal. The center bore measures 71.50 millimeters, and the wheel includes a Method Race logo center cap, further emphasizing its quality and design. This single wheel is suitable for various applications, making it a versatile choice for off-road enthusiasts.

Features

• Machined Clear Coated Finish
• Constructed From Heat Treated Aluminum
• Compatible With Tire Pressure Monitoring System
• With Method Race Logo Center Cap
• Superior Alloy That Is Both Stronger And Lighter Than Conventional Manufacturing Processes

Specifications

• Manufacturer: Method Race Wheels
• Manufacturer Part Number: MR70378550300
• Bolt Pattern Inch: Not Applicable
• Bolt Pattern Millimeter: Not Applicable
• Diameter: 17
• Width: 8.5
• Offset: 0
• Backspacing: 4.75
• Finish: Machined Clear Coated
• Color: Natural
• Material: Aluminum
• Bolt Pattern Inch: 5x5.00
• Bolt Pattern Inch: Not Applicable
• Bolt Pattern Millimeter: 5x127
• Bolt Pattern Millimeter: Not Applicable
• Lug Nut Seat Type: 60 Degree Conical
• Center Caps Included: No
• Center Bore: 71.50
• Lug Nut Design: Acorn
• Compatible With TPMS (Tire Pressure Monitoring Sys: Yes
• Basic Design: 12 Window Spoke
• With Inserts: No
• Load Capacity: 2650
• Size: 17x8.5
• Max Tire Diameter: 40
• Center Cap Design: Method Race Logo
• Structural Warranty: Lifetime
• Quantity: Single
• With Hub Centric Ring: No
• Estimated Install Time (Hours): 0.5

Compatibility / Fit

• 1959-1964 Buick Electra
• 1991-1996 Buick Roadmaster
• 1988-1992 Cadillac Brougham
• 1970-1974 Cadillac DeVille
• 1980-1990 Chevrolet Caprice
• 1970-1974 Chrysler Imperial
• 1967-1974 GMC C15/C1500 Pickup
• 1987-1987 GMC R1500
• 2020-2025 Jeep Gladiator JT
• 2026-2026 Jeep Wrangler
• 2007-2018 Jeep Wrangler JK
• 2018-2025 Jeep Wrangler JL

Technical Documents

• 703_Sell_Sheet.pdf
