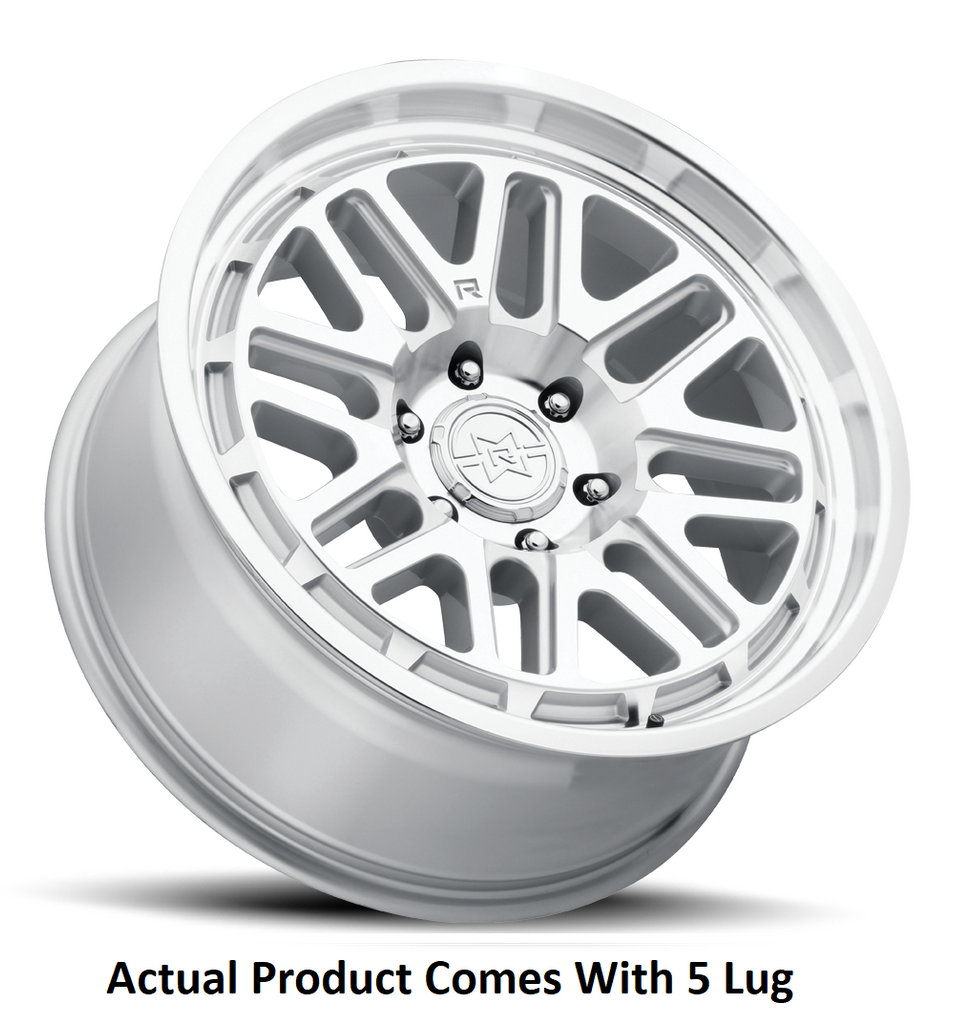

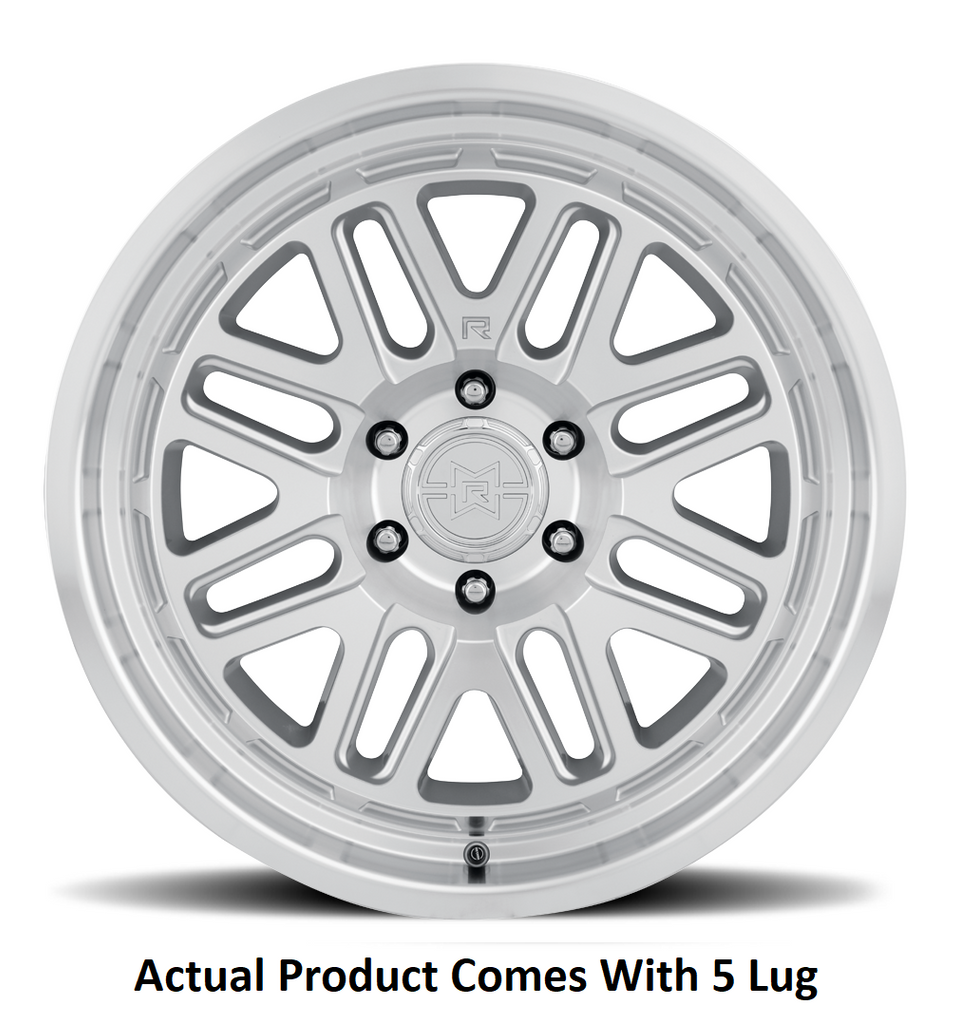

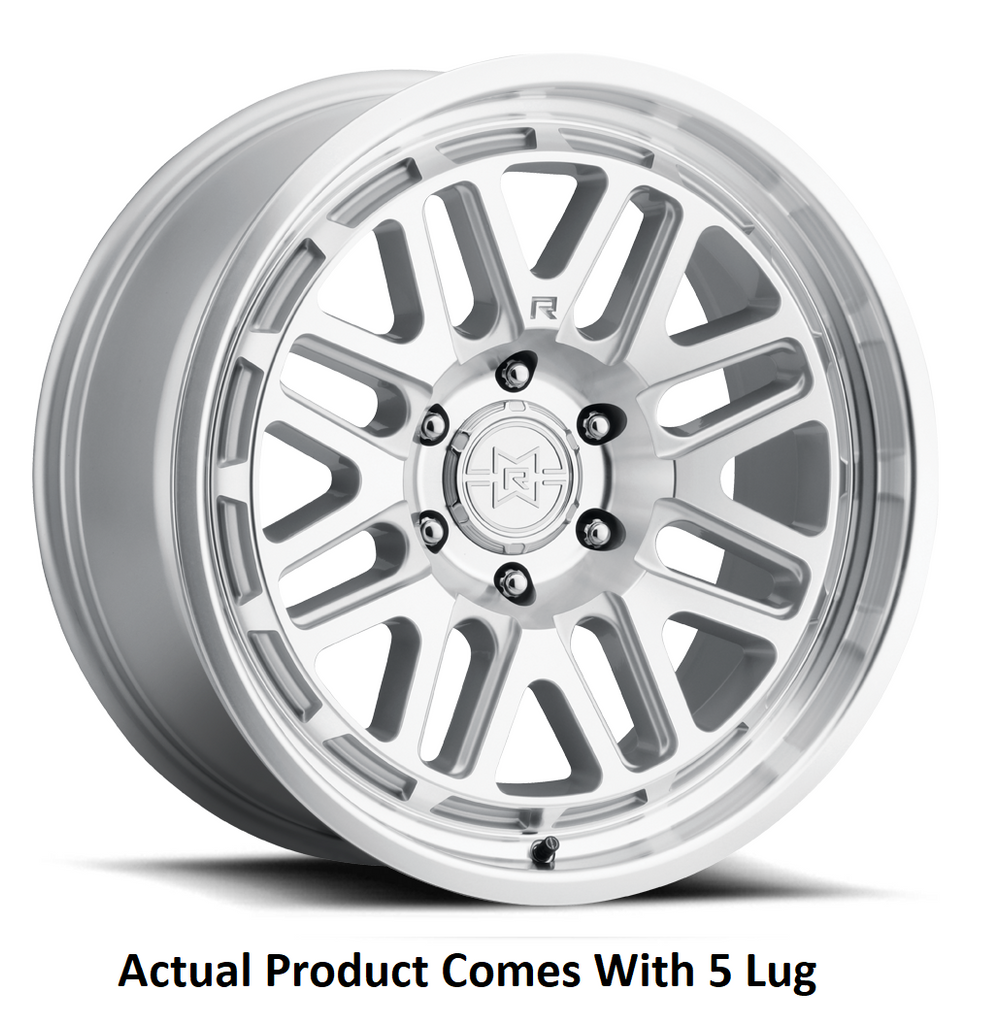

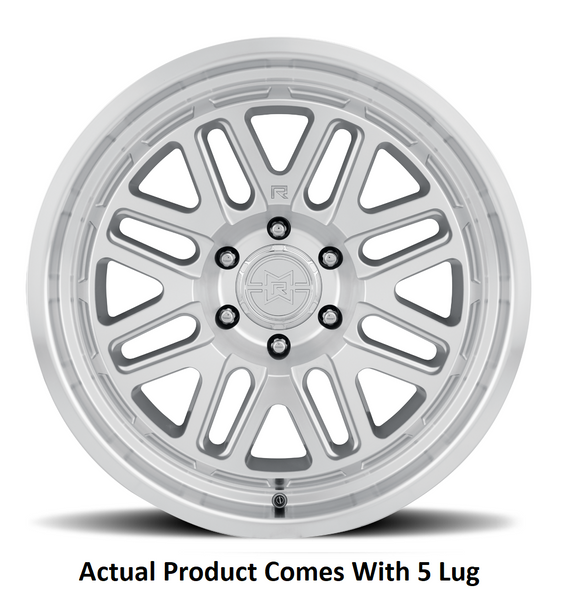

Method Race Wheels 804 Raised Wheel (MPN: MR80421050318N)

High-performance aluminum wheel designed for durability and strength.

The Method Race Wheels 804 Raised Wheel features a robust construction with a diameter of 20 inches and a width of 10 inches, designed to support a load capacity of 2650 pounds. This wheel is engineered with a -18 millimeter offset and 4.76 inches of backspacing, making it suitable for a variety of vehicles. The 5 x 127 millimeter bolt pattern ensures compatibility with numerous applications, while the 60 degree conical seat lug design provides secure fitment.

Constructed from high-quality aluminum, this wheel is machined with a clear coated finish that enhances its durability and aesthetic appeal. The design includes an 8 double spoke configuration, which not only contributes to its visual appeal but also aids in performance. The wheel is compatible with Tire Pressure Monitoring Systems (TPMS), ensuring that tire pressure can be monitored effectively.

Method Race Wheels employs advanced manufacturing techniques, including heat treatment to a T6 standard, resulting in a product that is both lighter and stronger than conventional wheels. The large machined smooth radius in the bead flange facilitates tire mounting and minimizes the risk of tire damage. Additionally, the circular pockets machined into the beadlock flange enhance tire bead grip, preventing rotation under high torque conditions.

This single wheel is designed for those who demand high performance and reliability in their off-road or racing applications. With extensive testing and quality control conducted in-house, Method Race Wheels guarantees a product that meets the highest standards of performance and durability.

Features

• Machined Clear Coated Finish
• Constructed From Aluminum
• Compatible With Tire Pressure Monitoring System
• Large Machined Smooth Radius In The Bead Flange Aids In Outer Bead Tire Mounting And Eliminates Any Possibilities Of Harmful Cuts To The Tire
• Select Method Beadlock Wheels Feature Circular Pockets Machined Into The Beadlock Flange For Added Grip Of The Tire Bead To Eliminate Tire Rotation On Powerful High-Torque Producing Vehicles
• Redundant Sets Of Threaded Beadlock Ring Mounting Holes On Select Method Beadlock Wheels Allow For Continued Wheel Use In The Event Of Thread Stripping Or Elevated Impact Damage
• Heat-Treated To A T6 Standard For Ultimate Tensile Strength
• Both Stronger And Lighter Than Conventional Manufacturing Processes

Specifications

• Manufacturer: Method Race Wheels
• Manufacturer Part Number: MR80421050318N
• Bolt Pattern Inch: Not Applicable
• Bolt Pattern Millimeter: Not Applicable
• Diameter: 20
• Width: 10
• Offset: -18
• Backspacing: 4.76
• Finish: Machined Clear Coated
• Color: Natural
• Material: Aluminum
• Bolt Pattern Inch: 5x5.00
• Bolt Pattern Inch: Not Applicable
• Bolt Pattern Millimeter: 5x127
• Bolt Pattern Millimeter: Not Applicable
• Lug Nut Seat Type: 60 Degree Conical
• Center Caps Included: No
• Center Bore: 71.50
• Lug Nut Design: Acorn
• Compatible With TPMS (Tire Pressure Monitoring Sys: Yes
• Basic Design: 8 Double Spoke
• With Inserts: No
• Load Capacity: 2650
• Size: 20x10
• Max Tire Diameter: 42
• Center Cap Design: Method Race Wheel Logo
• Quantity: Single
• With Hub Centric Ring: No
• Estimated Install Time (Hours): 0.5

Compatibility / Fit

• 1987-1987 GMC R1500
• 2020-2025 Jeep Gladiator JT
• 2007-2018 Jeep Wrangler JK
• 2018-2025 Jeep Wrangler JL

Technical Documents

• 804_Sell_Sheet.pdf
