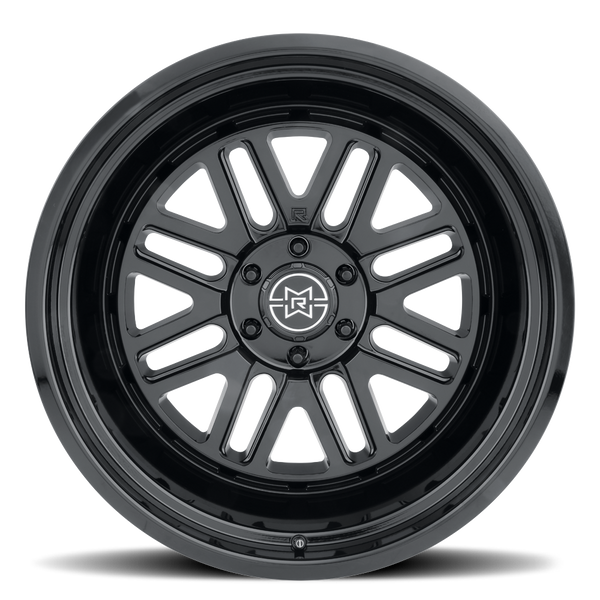

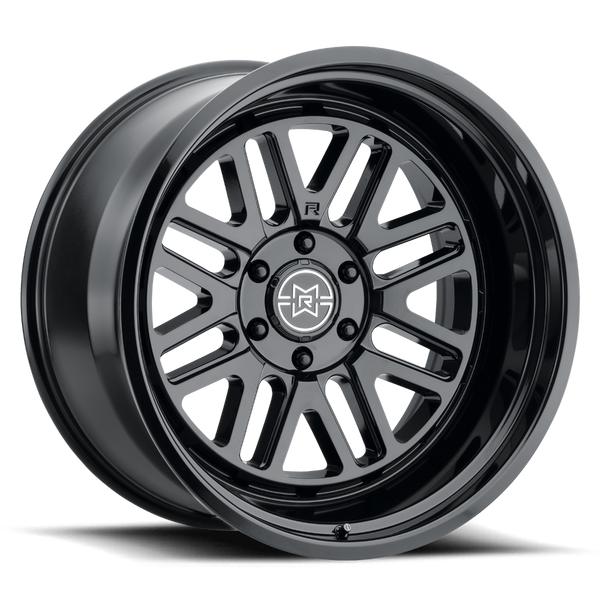

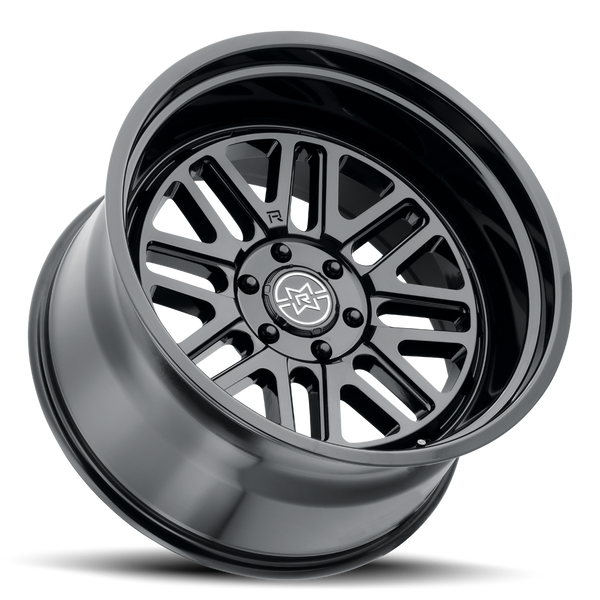

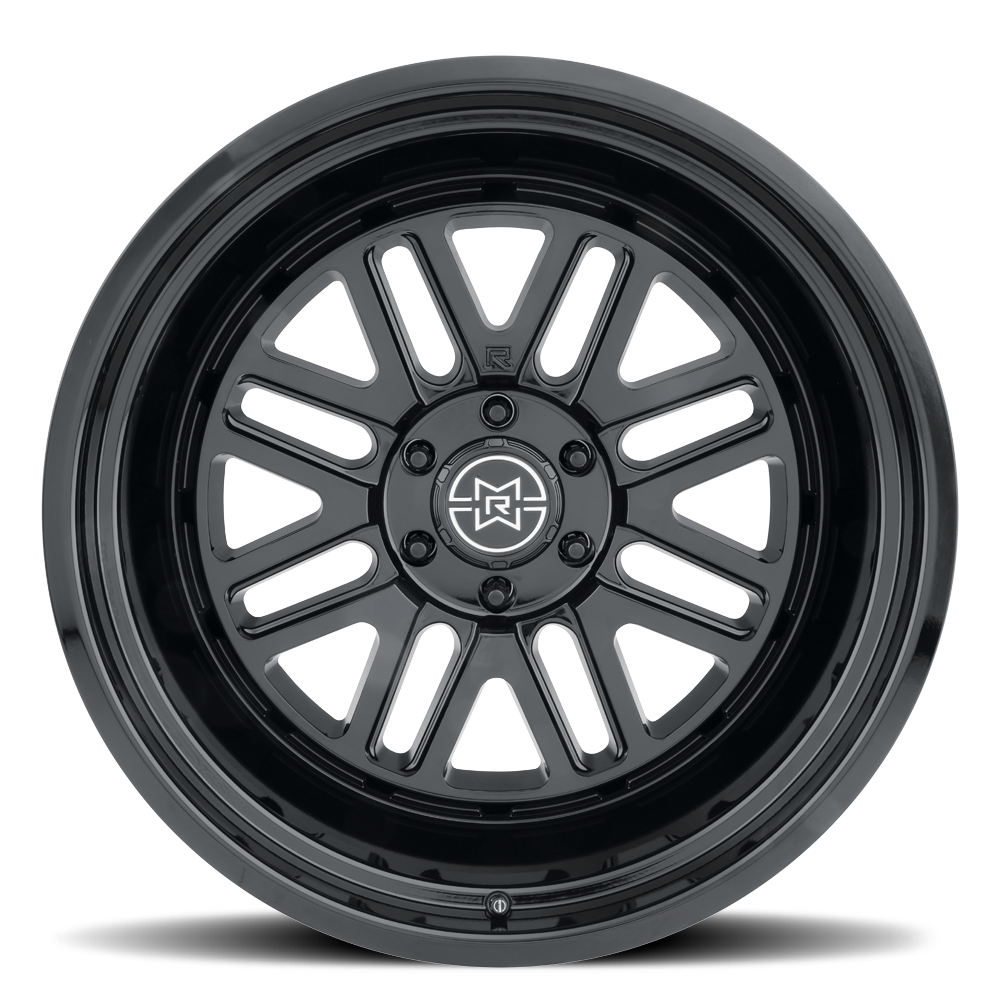

Method Race Wheels 804 Raised 22 Inch Wheel (MPN: MR804312601340N)

High-performance aluminum wheel designed for durability and strength.

The Method Race Wheels 804 Raised is a robust 22 inch diameter wheel designed for high-performance vehicles. Constructed from lightweight aluminum, this wheel features a gloss black finish that enhances its aesthetic appeal while providing durability. With a load capacity of 2650 pounds, it is engineered to withstand the demands of powerful vehicles, making it suitable for both on-road and off-road applications.

This wheel is compatible with Tire Pressure Monitoring Systems (TPMS), ensuring that tire pressure is monitored effectively for optimal performance. The design includes an 8 double spoke configuration and a 60 degree conical seat lug, which contributes to its strength and stability. The wheel's -40 millimeter offset and 4.90 inch backspacing are tailored for enhanced vehicle handling and performance.

Method Race Wheels employs advanced manufacturing techniques, including heat treatment to a T6 standard, which results in a product that is both stronger and lighter than conventional wheels. The large machined smooth radius in the bead flange aids in tire mounting and minimizes the risk of tire damage. Additionally, the redundant sets of threaded beadlock ring mounting holes provide added security against thread stripping and impact damage, ensuring long-term reliability.

Features

• Gloss Black Finish
• Constructed From Aluminum
• Compatible With Tire Pressure Monitoring System
• Large Machined Smooth Radius In The Bead Flange Aids In Outer Bead Tire Mounting And Eliminates Any Possibilities Of Harmful Cuts To The Tire
• Select Method Beadlock Wheels Feature Circular Pockets Machined Into The Beadlock Flange For Added Grip Of The Tire Bead To Eliminate Tire Rotation On Powerful High-Torque Producing Vehicles
• Redundant Sets Of Threaded Beadlock Ring Mounting Holes On Select Method Beadlock Wheels Allow For Continued Wheel Use In The Event Of Thread Stripping Or Elevated Impact Damage
• Heat-Treated To A T6 Standard For Ultimate Tensile Strength
• Both Stronger And Lighter Than Conventional Manufacturing Processes

Specifications

• Manufacturer: Method Race Wheels
• Manufacturer Part Number: MR804312601340N
• Bolt Pattern Inch: Not Applicable
• Bolt Pattern Millimeter: Not Applicable
• Diameter: 22
• Width: 12
• Offset: -40
• Backspacing: 4.90
• Finish: Painted Gloss
• Color: Black
• Material: Aluminum
• Bolt Pattern Inch: 6x5.50
• Bolt Pattern Inch: Not Applicable
• Bolt Pattern Millimeter: 6x139.7
• Bolt Pattern Millimeter: Not Applicable
• Lug Nut Seat Type: 60 Degree Conical
• Center Caps Included: No
• Center Bore: 106.25
• Lug Nut Design: Acorn
• Compatible With TPMS (Tire Pressure Monitoring Sys: Yes
• Basic Design: 8 Double Spoke
• With Inserts: No
• Load Capacity: 2650
• Size: 22x12
• Max Tire Diameter: 40
• Center Cap Design: Method Race Wheel Logo
• Quantity: Single
• With Hub Centric Ring: No
• Estimated Install Time (Hours): 0.5

Compatibility / Fit

• 2000-2018 Chevrolet Silverado 1500
• 2020-2021 Chevrolet Silverado 1500
• 2023-2026 Chevrolet Silverado 1500
• 2019-2019 Chevrolet Silverado 1500 LD- Old Model
• 2022-2022 Chevrolet Silverado 1500 LTD- Old Model
• 2019-2019 Chevrolet Silverado 1500- New Model
• 2022-2022 Chevrolet Silverado 1500- New Model
• 2007-2018 GMC Sierra 1500
• 2020-2021 GMC Sierra 1500
• 2023-2026 GMC Sierra 1500
• 2007-2007 GMC Sierra 1500 Classic
• 2019-2019 GMC Sierra 1500 Limited- Old Model
• 2022-2022 GMC Sierra 1500 Limited- Old Model
• 2019-2019 GMC Sierra 1500- New Model
• 2022-2022 GMC Sierra 1500- New Model
• 2000-2015 GMC Yukon
• 2015-2015 GMC Yukon XL
• 2005-2006 GMC Yukon XL 1500
• 2012-2013 GMC Yukon XL 1500
• 2016-2023 Toyota Tacoma

Technical Documents

• 804_Sell_Sheet.pdf
