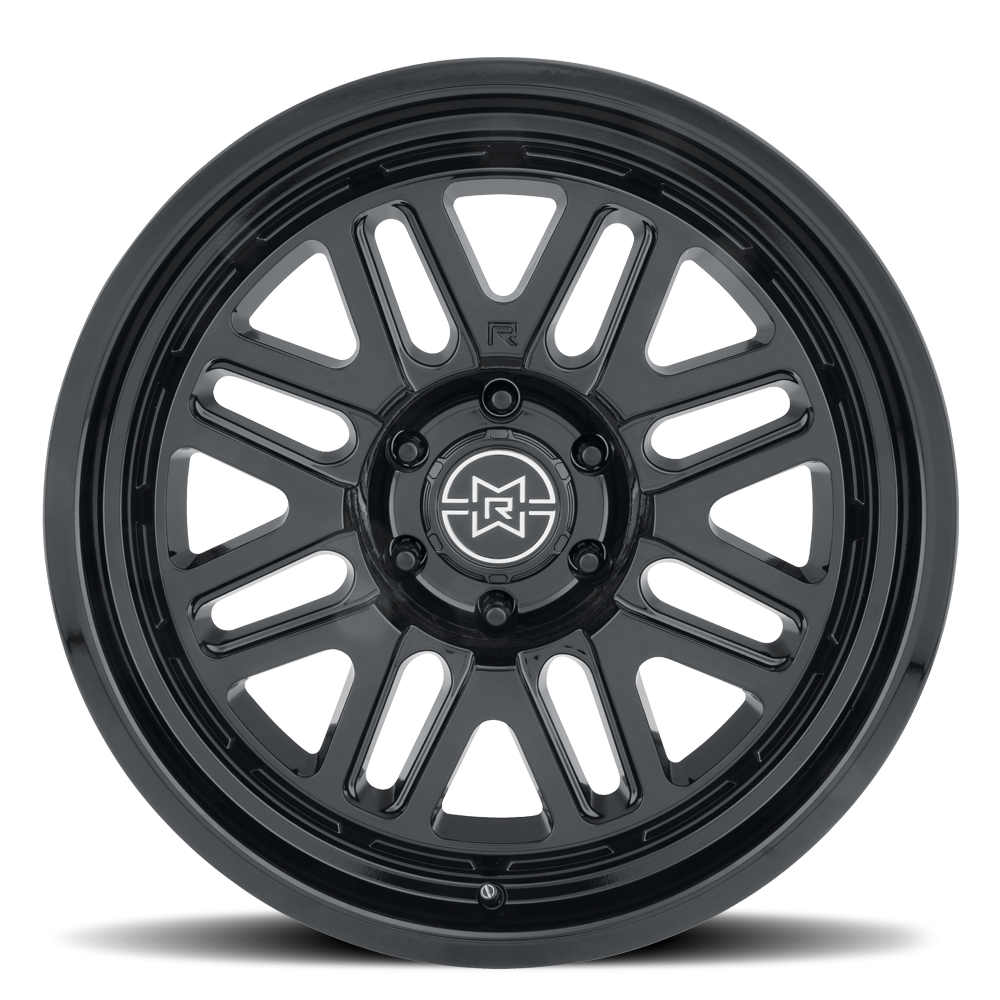

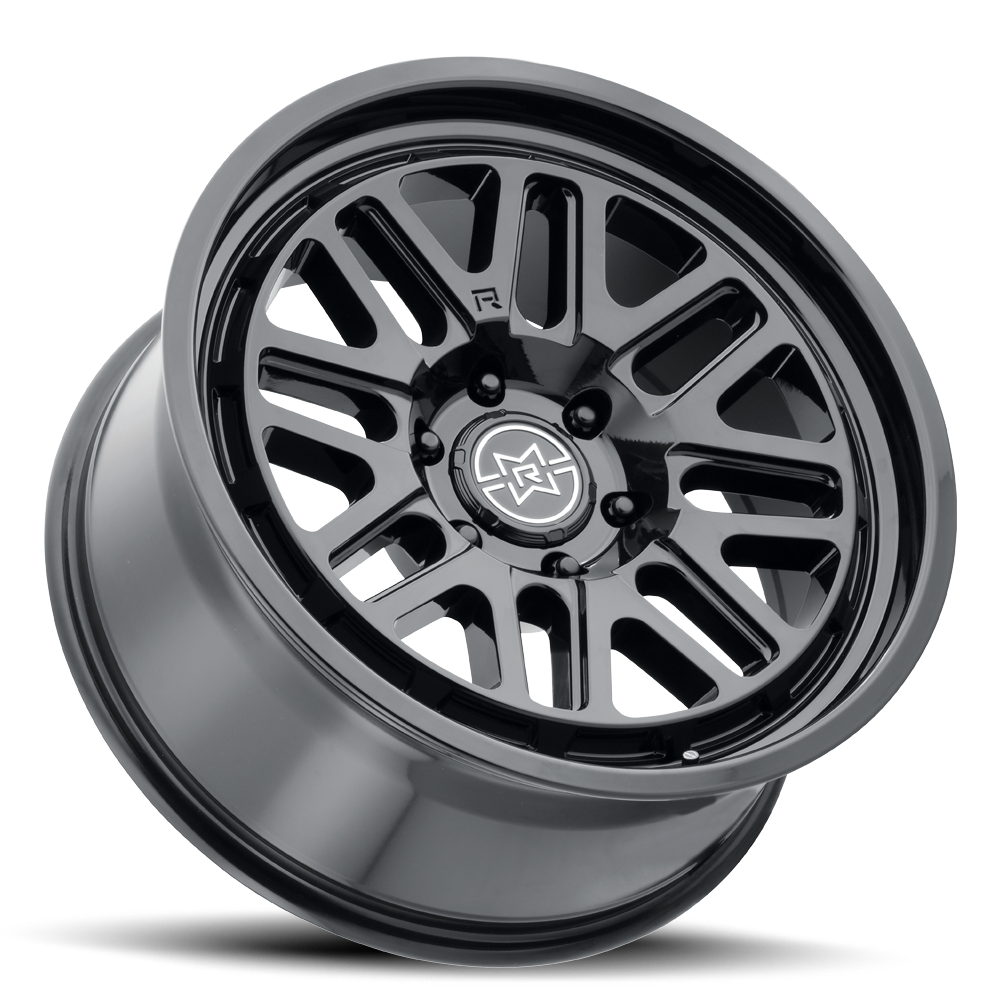

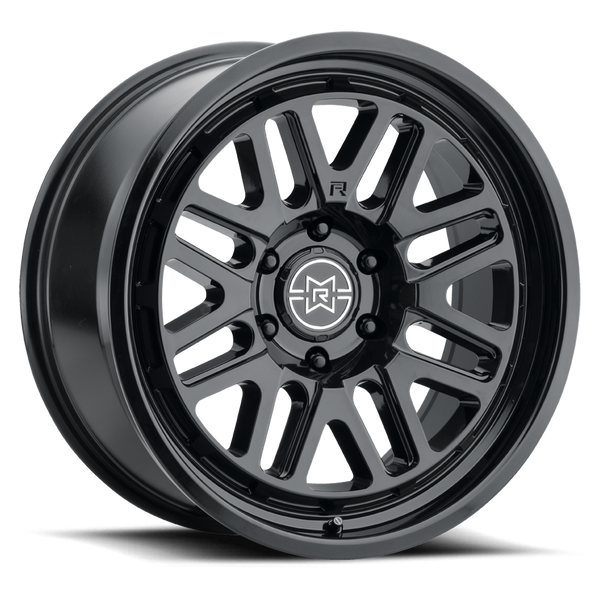

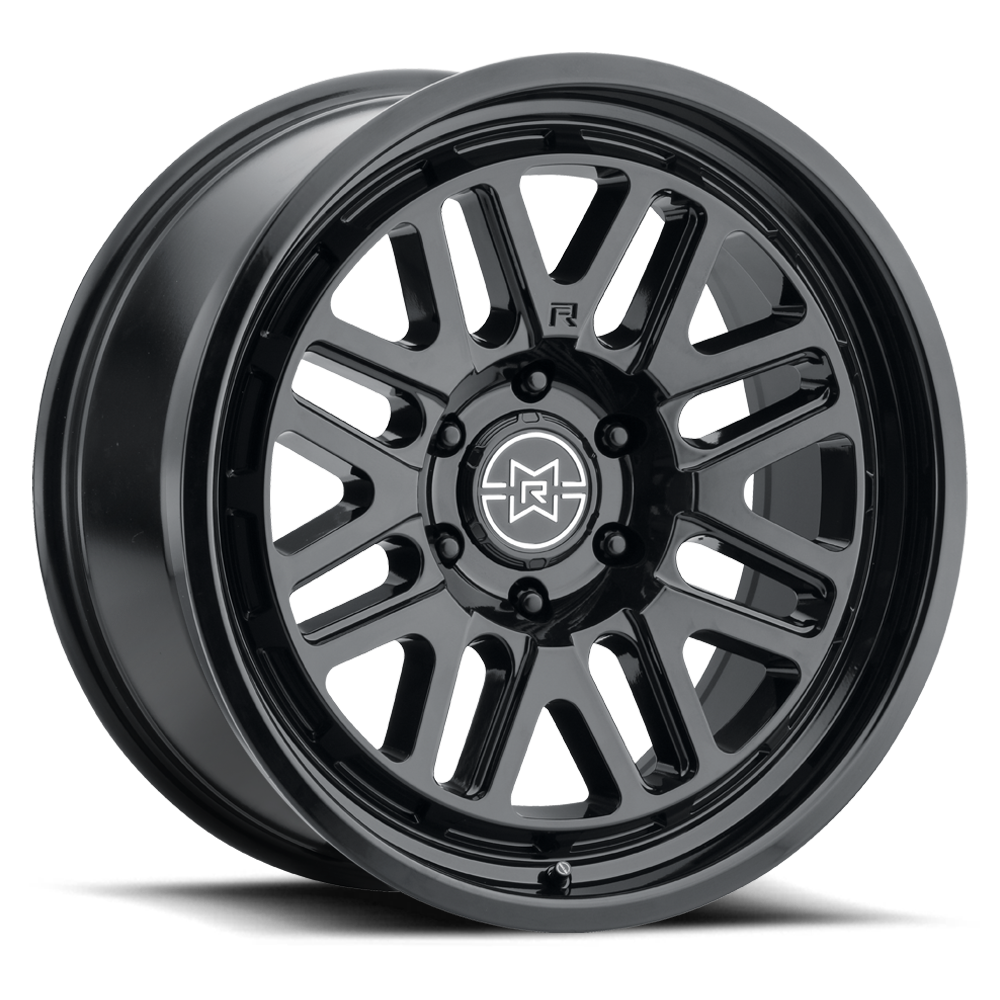

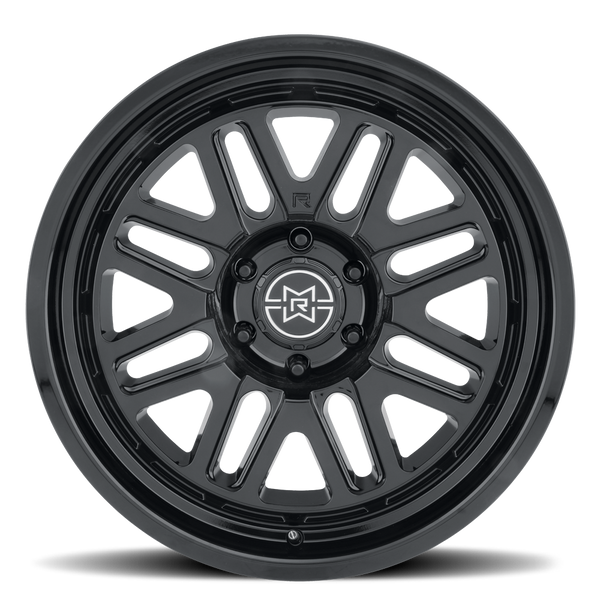

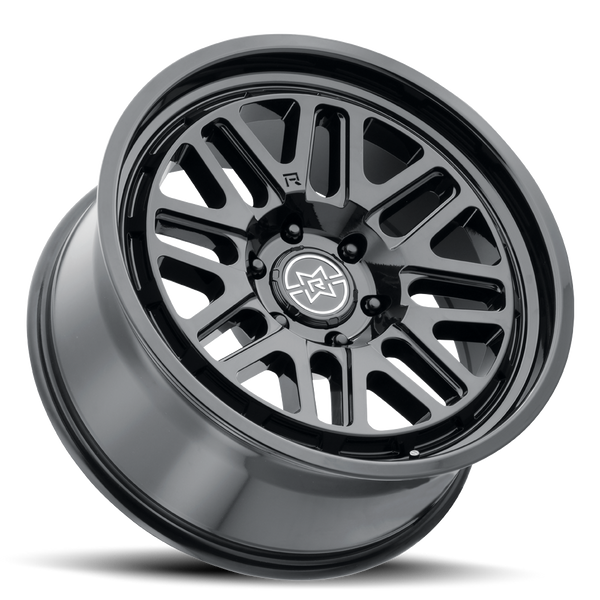

Method Race Wheels 804 Raised 20 Inch Wheel (MPN: MR804290601312)

High-performance aluminum wheel designed for durability and strength.

The Method Race Wheels 804 Raised is a 20 inch diameter wheel that combines strength and lightweight construction, making it suitable for high-torque vehicles. With a width of 9 inches and a 12 millimeter offset, this wheel features a 6 x 139.7 millimeter bolt pattern and a 5.44 inch backspacing, ensuring compatibility with a variety of vehicles. The gloss black finish not only enhances its aesthetic appeal but also provides added protection against the elements.

Constructed from heat-treated 6061 billet aluminum, the Method Race Wheels 804 Raised is engineered to meet T6 standards for ultimate tensile strength. This manufacturing process results in a wheel that is both stronger and lighter than conventional options. The design includes a large machined smooth radius in the bead flange, which aids in tire mounting and minimizes the risk of tire damage.

Additionally, this wheel is compatible with Tire Pressure Monitoring Systems (TPMS) and supports a maximum tire diameter of 40 inches. The 8 double spoke design, along with redundant threaded beadlock ring mounting holes, ensures reliable performance under demanding conditions. Method Race Wheels undergo rigorous testing to guarantee high performance and durability in real-world applications.

Features

• Gloss Black Finish
• Constructed From Aluminum
• Compatible With Tire Pressure Monitoring System
• Large Machined Smooth Radius In The Bead Flange Aids In Outer Bead Tire Mounting And Eliminates Any Possibilities Of Harmful Cuts To The Tire
• Select Method Beadlock Wheels Feature Circular Pockets Machined Into The Beadlock Flange For Added Grip Of The Tire Bead To Eliminate Tire Rotation On Powerful High-Torque Producing Vehicles
• Redundant Sets Of Threaded Beadlock Ring Mounting Holes On Select Method Beadlock Wheels Allow For Continued Wheel Use In The Event Of Thread Stripping Or Elevated Impact Damage
• Heat-Treated To A T6 Standard For Ultimate Tensile Strength
• Both Stronger And Lighter Than Conventional Manufacturing Processes

Specifications

• Manufacturer: Method Race Wheels
• Manufacturer Part Number: MR804290601312
• Bolt Pattern Inch: Not Applicable
• Bolt Pattern Millimeter: Not Applicable
• Diameter: 20
• Width: 9
• Offset: 12
• Backspacing: 5.44
• Finish: Painted Gloss
• Color: Black
• Material: Aluminum
• Bolt Pattern Inch: 6x5.50
• Bolt Pattern Inch: Not Applicable
• Bolt Pattern Millimeter: 6x139.7
• Bolt Pattern Millimeter: Not Applicable
• Lug Nut Seat Type: 60 Degree Conical
• Center Caps Included: No
• Center Bore: 106.25
• Lug Nut Design: Acorn
• Compatible With TPMS (Tire Pressure Monitoring Sys: Yes
• Basic Design: 8 Double Spoke
• With Inserts: No
• Load Capacity: 2650
• Size: 20x9
• Max Tire Diameter: 40
• Center Cap Design: Method Race Wheel Logo
• Quantity: Single
• With Hub Centric Ring: No
• Estimated Install Time (Hours): 0.5

Compatibility / Fit

• 1996-1999 Acura SLX
• 1999-2000 Cadillac Escalade
• 2002-2021 Cadillac Escalade
• 2003-2023 Cadillac Escalade ESV
• 2002-2013 Cadillac Escalade EXT
• 2003-2005 Chevrolet Astro
• 2007-2013 Chevrolet Avalanche
• 2002-2006 Chevrolet Avalanche 1500
• 1987-1988 Chevrolet Blazer
• 2004-2012 Chevrolet Colorado
• 2023-2026 Chevrolet Colorado
• 2003-2014 Chevrolet Express 1500
• 1975-1986 Chevrolet K10
• 1967-1974 Chevrolet K10 Pickup
• 1970-1977 Chevrolet K10 Suburban
• 1979-1986 Chevrolet K10 Suburban
• 1988-1999 Chevrolet K1500
• 1992-1999 Chevrolet K1500 Suburban
• 1975-1986 Chevrolet K5 Blazer
• 1975-1982 Chevrolet LUV
• 1999-2018 Chevrolet Silverado 1500
• 2020-2021 Chevrolet Silverado 1500
• 2023-2026 Chevrolet Silverado 1500
• 2019-2019 Chevrolet Silverado 1500 LD- Old Model
• 2022-2022 Chevrolet Silverado 1500 LTD- Old Model
• 2019-2019 Chevrolet Silverado 1500- New Model
• 2022-2022 Chevrolet Silverado 1500- New Model
• 2015-2015 Chevrolet Suburban
• 2000-2014 Chevrolet Suburban 1500
• 1996-2026 Chevrolet Tahoe
• 1987-1988 Chevrolet V10 Suburban
• 2022-2026 Ford Bronco
• 1999-1999 GMC C1500
• 1993-1993 GMC C1500 Suburban
• 1975-1978 GMC C25
• 1982-1986 GMC C2500
• 1988-1999 GMC C2500
• 2004-2012 GMC Canyon
• 2023-2026 GMC Canyon
• 1976-1991 GMC Jimmy
• 1975-1978 GMC K15
• 1975-1978 GMC K15 Suburban
• 1970-1974 GMC K15/K1500 Pickup
• 1979-1986 GMC K1500
• 1988-1999 GMC K1500
• 1979-1986 GMC K1500 Suburban
• 1992-1999 GMC K1500 Suburban
• 1982-1986 GMC K2500
• 2003-2005 GMC Safari
• 2000-2014 GMC Savana 1500
• 1999-2018 GMC Sierra 1500
• 2020-2021 GMC Sierra 1500
• 2023-2026 GMC Sierra 1500
• 2007-2007 GMC Sierra 1500 Classic
• 2019-2019 GMC Sierra 1500 Limited- Old Model
• 2022-2022 GMC Sierra 1500 Limited- Old Model
• 2019-2019 GMC Sierra 1500- New Model
• 2022-2022 GMC Sierra 1500- New Model
• 1987-1987 GMC V1500
• 1987-1991 GMC V1500 Suburban
• 1987-1987 GMC V2500
• 1992-2026 GMC Yukon
• 2015-2018 GMC Yukon XL
• 2020-2026 GMC Yukon XL
• 2000-2014 GMC Yukon XL 1500
• 2006-2010 Hummer H3
• 2009-2010 Hummer H3T
• 2004-2013 Infiniti QX56
• 2014-2026 Infiniti QX80
• 1994-1994 Isuzu Amigo
• 1984-2002 Isuzu Trooper
• 2022-2025 Jeep Grand Wagoneer
• 2023-2025 Jeep Grand Wagoneer L
• 2022-2025 Jeep Wagoneer
• 2023-2025 Jeep Wagoneer L
• 2010-2023 Lexus GX460
• 2003-2009 Lexus GX470
• 2005-2015 Nissan Armada
• 2017-2026 Nissan Armada
• 1987-2004 Nissan Pathfinder
• 2004-2004 Nissan Pathfinder Armada
• 2004-2015 Nissan Titan
• 2017-2024 Nissan Titan
• 2016-2024 Nissan Titan XD
• 2001-2004 Nissan Xterra
• 2024-2026 Ram 1500
• 2019-2023 Ram 1500- New Model
• 2000-2026 Toyota 4Runner
• 2007-2014 Toyota FJ Cruiser
• 1994-1998 Toyota Land Cruiser
• 2024-2026 Toyota Land Cruiser
• 2001-2007 Toyota Sequoia
• 1995-1999 Toyota Tacoma
• 2001-2026 Toyota Tacoma
• 2000-2006 Toyota Tundra
• 2022-2026 Toyota Tundra

Technical Documents

• 804_Sell_Sheet.pdf
