Method Race Wheels 804 Raised 20 Inch Wheel (MPN: MR804210501318N)
Method Race Wheels 804 Raised 20 Inch Wheel (MPN: MR804210501318N)
Method Race Wheels 804 Raised 20 Inch Wheel (MPN: MR804210501318N)
Method Race Wheels 804 Raised 20 Inch Wheel (MPN: MR804210501318N)

Method Race Wheels 804 Raised 20 Inch Wheel (MPN: MR804210501318N)

  • Sale
  • $296.34
Accepted Credit Cards

High-performance aluminum wheel with advanced engineering for durability and strength.

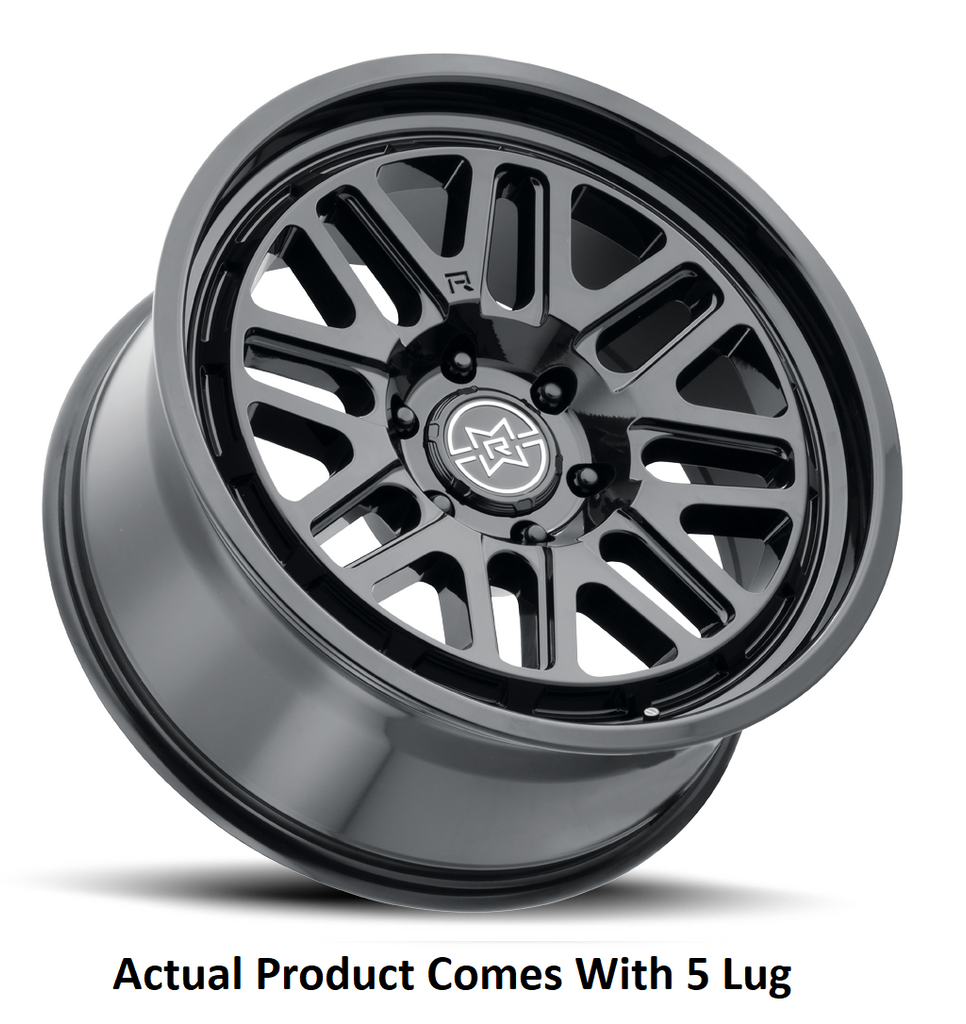

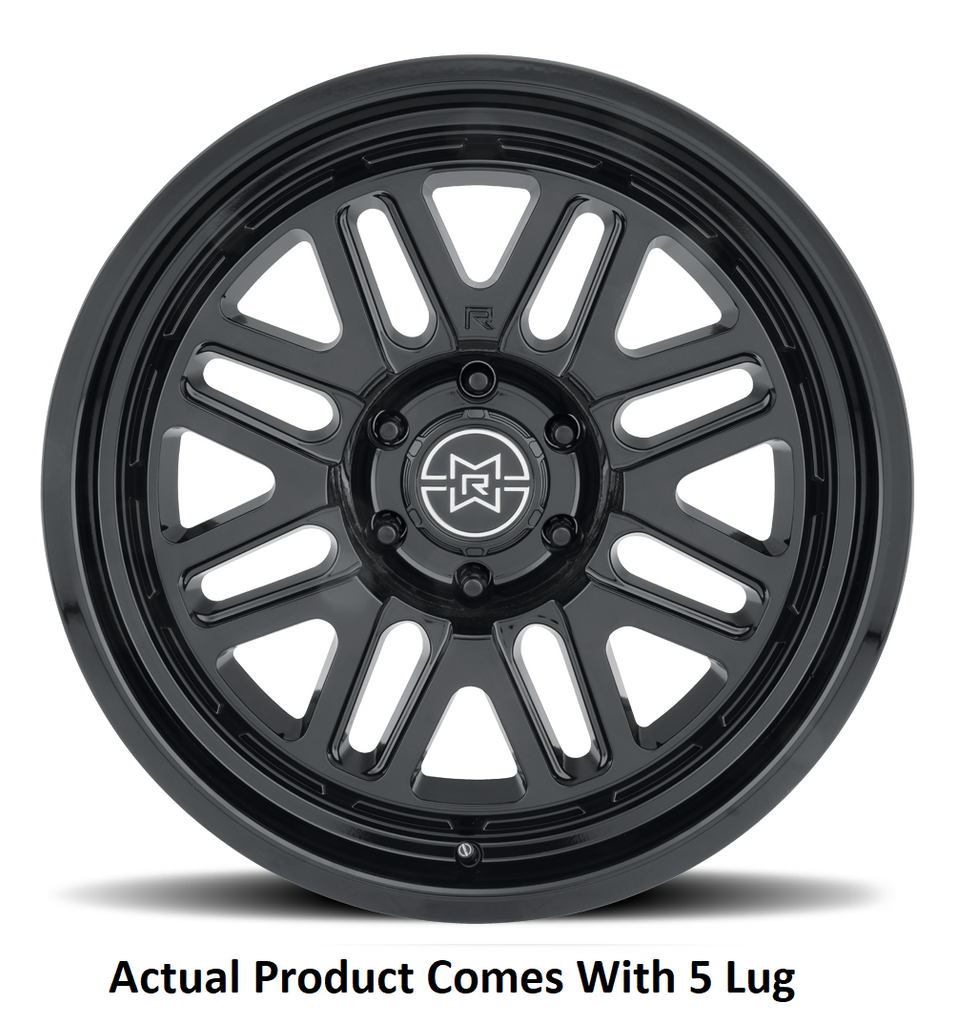

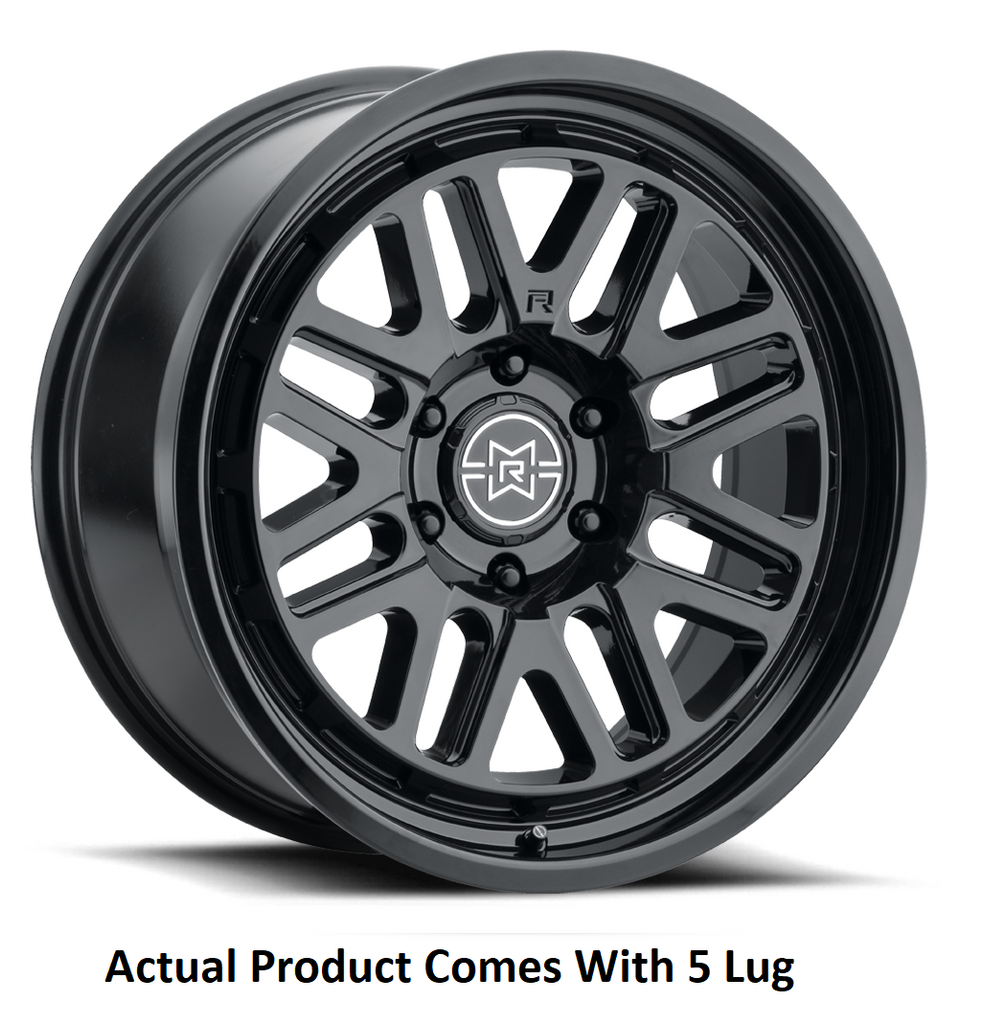

The Method Race Wheels 804 Raised is a 20 inch diameter wheel designed for high-performance applications. Constructed from lightweight aluminum, this wheel features a gloss black finish that enhances its aesthetic appeal while providing durability. With a load capacity of 2650 pounds, it is engineered to withstand the demands of powerful vehicles. The wheel is compatible with Tire Pressure Monitoring Systems, ensuring optimal performance and safety during use.

This wheel incorporates advanced manufacturing techniques, including heat treatment to a T6 standard, which enhances its tensile strength. The design includes a large machined smooth radius in the bead flange that aids in tire mounting and minimizes the risk of tire damage. Additionally, the circular pockets machined into the beadlock flange provide added grip, preventing tire rotation under high torque conditions.

Method Race Wheels emphasizes quality through rigorous testing and in-house engineering, ensuring that each product meets high-performance standards. The redundant sets of threaded beadlock ring mounting holes allow for continued use even in the event of thread stripping or impact damage, making this wheel a reliable choice for off-road and racing enthusiasts.

Features

  • Gloss Black Finish
  • Constructed From Aluminum
  • Compatible With Tire Pressure Monitoring System
  • Large Machined Smooth Radius In The Bead Flange Aids In Outer Bead Tire Mounting And Eliminates Any Possibilities Of Harmful Cuts To The Tire
  • Select Method Beadlock Wheels Feature Circular Pockets Machined Into The Beadlock Flange For Added Grip Of The Tire Bead To Eliminate Tire Rotation On Powerful High-Torque Producing Vehicles
  • Redundant Sets Of Threaded Beadlock Ring Mounting Holes On Select Method Beadlock Wheels Allow For Continued Wheel Use In The Event Of Thread Stripping Or Elevated Impact Damage
  • Heat-Treated To A T6 Standard For Ultimate Tensile Strength
  • Both Stronger And Lighter Than Conventional Manufacturing Processes

Specifications

  • Manufacturer: Method Race Wheels
  • Manufacturer Part Number: MR804210501318N
  • Bolt Pattern Inch: Not Applicable
  • Bolt Pattern Millimeter: Not Applicable
  • Diameter: 20
  • Width: 10
  • Offset: -18
  • Backspacing: 4.76
  • Finish: Painted Gloss
  • Color: Black
  • Material: Aluminum
  • Bolt Pattern Inch: 5x5.00
  • Bolt Pattern Inch: Not Applicable
  • Bolt Pattern Millimeter: 5x127
  • Bolt Pattern Millimeter: Not Applicable
  • Lug Nut Seat Type: 60 Degree Conical
  • Center Caps Included: No
  • Center Bore: 71.50
  • Lug Nut Design: Acorn
  • Compatible With TPMS (Tire Pressure Monitoring Sys: Yes
  • Basic Design: 8 Double Spoke
  • With Inserts: No
  • Load Capacity: 2650
  • Size: 20x10
  • Max Tire Diameter: 42
  • Center Cap Design: Method Race Wheel Logo
  • Quantity: Single
  • With Hub Centric Ring: No
  • Estimated Install Time (Hours): 0.5

Compatibility / Fit

  • 1987-1987 GMC R1500
  • 2020-2025 Jeep Gladiator JT
  • 2007-2018 Jeep Wrangler JK
  • 2018-2025 Jeep Wrangler JL
