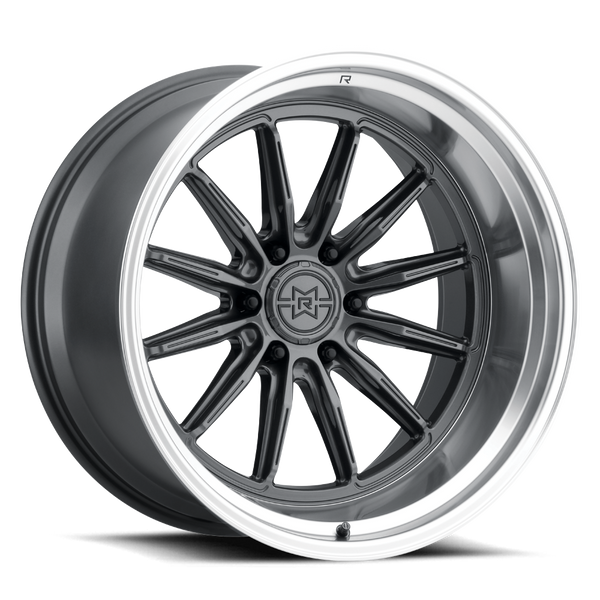

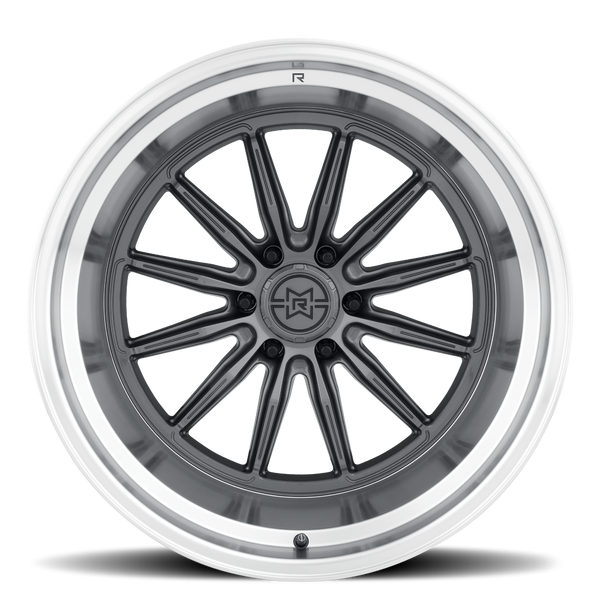

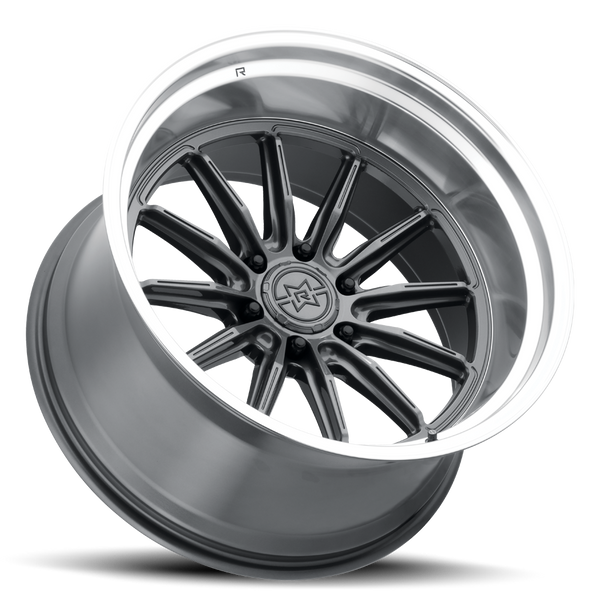

Method Race Wheels 803 Raised 22 Inch Wheel (MPN: MR80331260840N)

High-performance aluminum wheel with advanced engineering for durability and strength.

The Method Race Wheels 803 Raised is a 22 inch diameter wheel designed for high-performance applications. Constructed from lightweight aluminum, this wheel features a gloss titanium finish that enhances its aesthetic appeal while providing durability. With a load capacity of 2650 pounds, it is engineered to withstand the demands of powerful vehicles, making it suitable for both on-road and off-road use.

This wheel is compatible with Tire Pressure Monitoring Systems (TPMS) and features a 6 split spoke design that not only adds to its visual appeal but also contributes to its structural integrity. The wheel's design includes a large machined smooth radius in the bead flange, which aids in tire mounting and minimizes the risk of tire damage. Additionally, the heat-treated construction meets T6 standards, ensuring superior tensile strength compared to conventional manufacturing processes.

Method Race Wheels employs rigorous testing protocols, both in lab settings and real-world racing environments, to ensure that each wheel meets high-performance standards. The redundant sets of threaded beadlock ring mounting holes provide added security, allowing for continued use even in the event of thread stripping or impact damage. This wheel is an excellent choice for those seeking a combination of style, strength, and functionality.

Features

• Gloss Titanium Finish
• Constructed From Aluminum
• Compatible With Tire Pressure Monitoring System
• Large Machined Smooth Radius In The Bead Flange Aids In Outer Bead Tire Mounting And Eliminates Any Possibilities Of Harmful Cuts To The Tire
• Select Method Beadlock Wheels Feature Circular Pockets Machined Into The Beadlock Flange For Added Grip Of The Tire Bead To Eliminate Tire Rotation On Powerful High-Torque Producing Vehicles
• Redundant Sets Of Threaded Beadlock Ring Mounting Holes On Select Method Beadlock Wheels Allow For Continued Wheel Use In The Event Of Thread Stripping Or Elevated Impact Damage
• Heat-Treated To A T6 Standard For Ultimate Tensile Strength
• Both Stronger And Lighter Than Conventional Manufacturing Processes

Specifications

• Manufacturer: Method Race Wheels
• Manufacturer Part Number: MR80331260840N
• Bolt Pattern Inch: Not Applicable
• Bolt Pattern Millimeter: Not Applicable
• Diameter: 22
• Width: 12
• Offset: -40
• Backspacing: 4.88
• Finish: Painted Gloss
• Color: Titanium
• Material: Aluminum
• Bolt Pattern Inch: 6x5.50
• Bolt Pattern Inch: Not Applicable
• Bolt Pattern Millimeter: 6x139.7
• Bolt Pattern Millimeter: Not Applicable
• Lug Nut Seat Type: 60 Degree Conical
• Center Caps Included: No
• Center Bore: 106.25
• Lug Nut Design: Acorn
• Compatible With TPMS (Tire Pressure Monitoring Sys: Yes
• Basic Design: 6 Split Spoke
• With Inserts: No
• Load Capacity: 2650
• Size: 22x12
• Max Tire Diameter: 40
• Center Cap Design: Method Race Wheel Logo
• Quantity: Single
• With Hub Centric Ring: No
• Estimated Install Time (Hours): 0.5

Compatibility / Fit

• 2000-2018 Chevrolet Silverado 1500
• 2020-2021 Chevrolet Silverado 1500
• 2023-2026 Chevrolet Silverado 1500
• 2019-2019 Chevrolet Silverado 1500 LD- Old Model
• 2022-2022 Chevrolet Silverado 1500 LTD- Old Model
• 2019-2019 Chevrolet Silverado 1500- New Model
• 2022-2022 Chevrolet Silverado 1500- New Model
• 2007-2018 GMC Sierra 1500
• 2020-2021 GMC Sierra 1500
• 2023-2026 GMC Sierra 1500
• 2007-2007 GMC Sierra 1500 Classic
• 2019-2019 GMC Sierra 1500 Limited- Old Model
• 2022-2022 GMC Sierra 1500 Limited- Old Model
• 2019-2019 GMC Sierra 1500- New Model
• 2022-2022 GMC Sierra 1500- New Model
• 2000-2015 GMC Yukon
• 2015-2015 GMC Yukon XL
• 2005-2006 GMC Yukon XL 1500
• 2012-2013 GMC Yukon XL 1500
• 2016-2023 Toyota Tacoma

Technical Documents

• 803_Sell_Sheet.pdf
