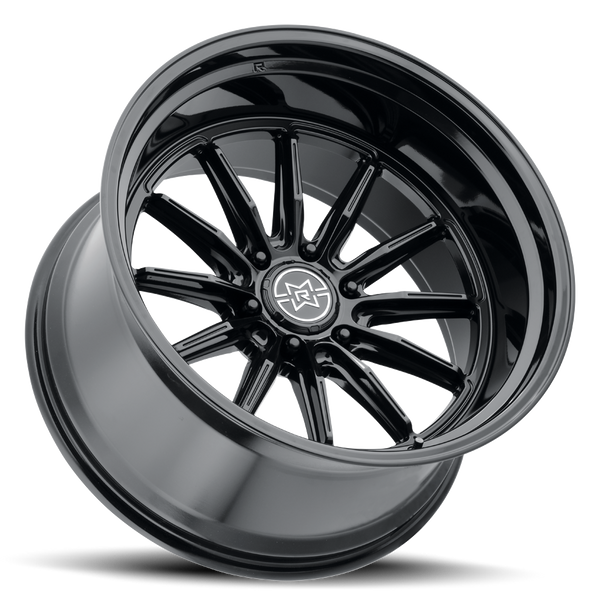

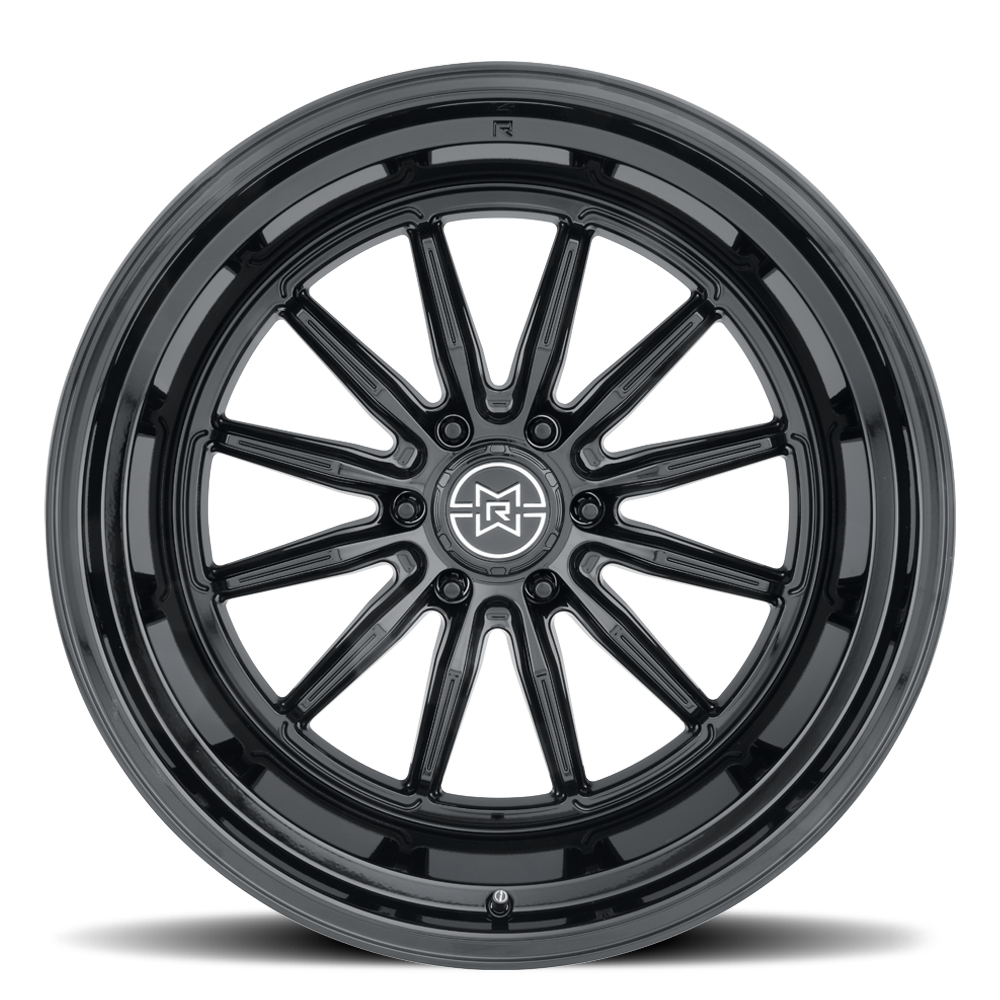

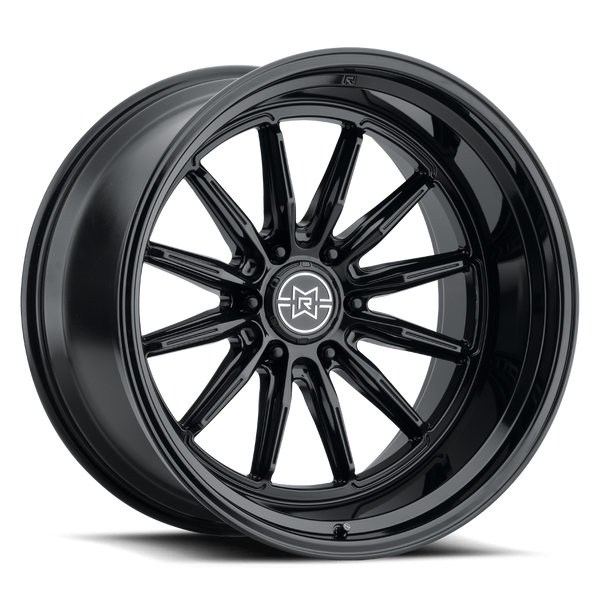

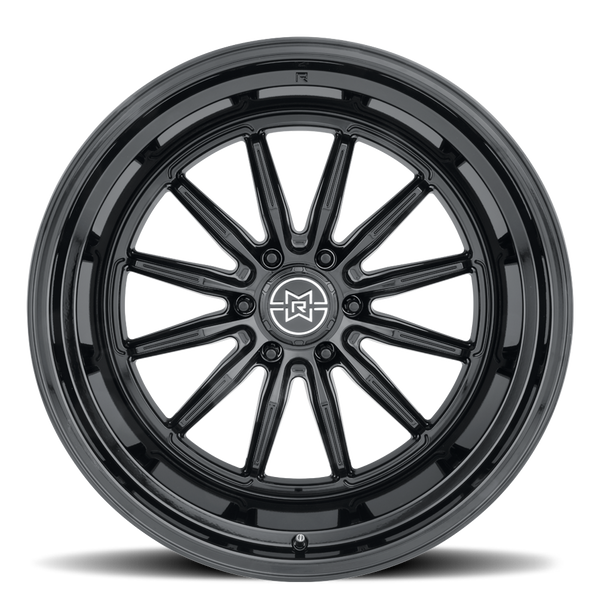

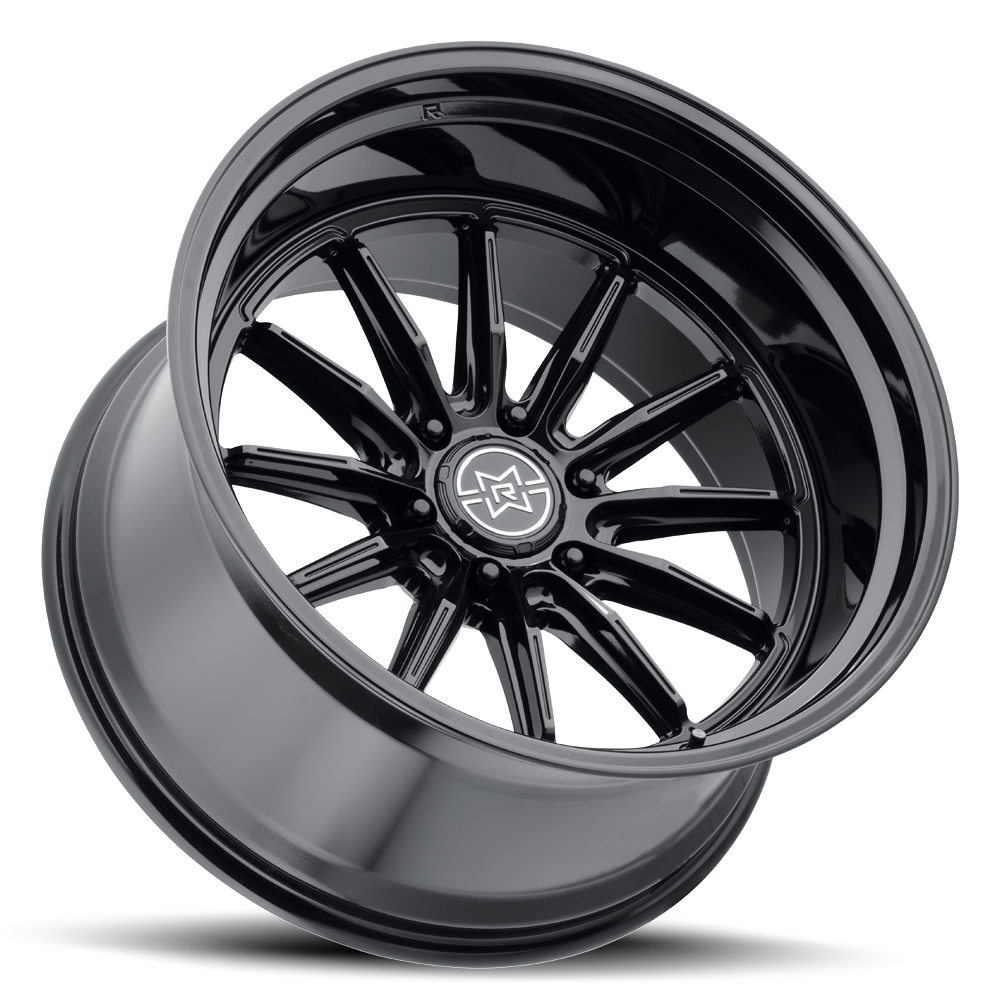

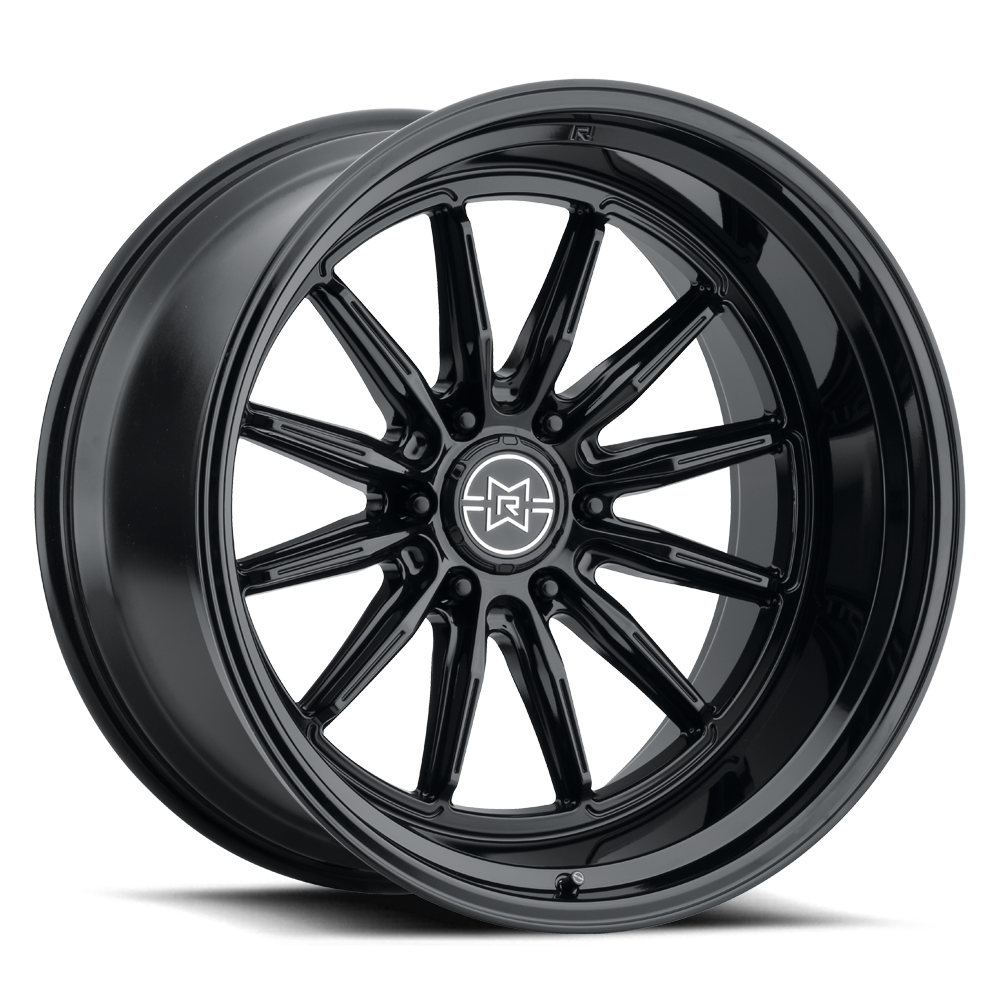

Method Race Wheels 803 Raised 22 Inch Wheel (MPN: MR803312601340N)

High-performance aluminum wheel designed for durability and strength.

The Method Race Wheels 803 Raised is a robust 22 inch diameter wheel designed for high-performance vehicles. Constructed from lightweight aluminum, this wheel features a gloss black finish that enhances its aesthetic appeal while providing durability. With a load capacity of 2650 pounds, it is engineered to withstand the demands of powerful vehicles, making it suitable for both on-road and off-road applications.

This wheel is designed with a 6 x 139.7 millimeter bolt pattern and a -40 millimeter offset, ensuring compatibility with a wide range of vehicles. The 4.88 inch backspacing and 60 degree conical seat lug design contribute to a secure fit and optimal performance. Additionally, the 106.25 millimeter center bore allows for easy installation and alignment.

The Method Race Wheels 803 Raised is compatible with Tire Pressure Monitoring Systems (TPMS), providing real-time tire pressure data for enhanced safety. Its innovative design includes a large machined smooth radius in the bead flange, which aids in tire mounting and minimizes the risk of tire damage. The wheel also features circular pockets machined into the beadlock flange for improved tire bead grip, preventing rotation under high torque conditions.

Engineered in the USA, Method Race Wheels undergo rigorous testing to ensure quality and performance. The heat-treated construction meets T6 standards for ultimate tensile strength, making this wheel both stronger and lighter than conventional options. This combination of features makes the Method Race Wheels 803 Raised a reliable choice for enthusiasts seeking performance and durability.

Features

• Gloss Black Finish
• Constructed From Aluminum
• Compatible With Tire Pressure Monitoring System
• Large Machined Smooth Radius In The Bead Flange Aids In Outer Bead Tire Mounting And Eliminates Any Possibilities Of Harmful Cuts To The Tire
• Select Method Beadlock Wheels Feature Circular Pockets Machined Into The Beadlock Flange For Added Grip Of The Tire Bead To Eliminate Tire Rotation On Powerful High-Torque Producing Vehicles
• Redundant Sets Of Threaded Beadlock Ring Mounting Holes On Select Method Beadlock Wheels Allow For Continued Wheel Use In The Event Of Thread Stripping Or Elevated Impact Damage
• Heat-Treated To A T6 Standard For Ultimate Tensile Strength
• Both Stronger And Lighter Than Conventional Manufacturing Processes

Specifications

• Manufacturer: Method Race Wheels
• Manufacturer Part Number: MR803312601340N
• Bolt Pattern Inch: Not Applicable
• Bolt Pattern Millimeter: Not Applicable
• Diameter: 22
• Width: 12
• Offset: -40
• Backspacing: 4.88
• Finish: Painted Gloss
• Color: Black
• Material: Aluminum
• Bolt Pattern Inch: 6x5.50
• Bolt Pattern Inch: Not Applicable
• Bolt Pattern Millimeter: 6x139.7
• Bolt Pattern Millimeter: Not Applicable
• Lug Nut Seat Type: 60 Degree Conical
• Center Caps Included: No
• Center Bore: 106.25
• Lug Nut Design: Acorn
• Compatible With TPMS (Tire Pressure Monitoring Sys: Yes
• Basic Design: 6 Split Spoke
• With Inserts: No
• Load Capacity: 2650
• Size: 22x12
• Max Tire Diameter: 40
• Center Cap Design: Method Race Wheel Logo
• Quantity: Single
• With Hub Centric Ring: No
• Estimated Install Time (Hours): 0.5

Technical Documents

• 803_Sell_Sheet.pdf
