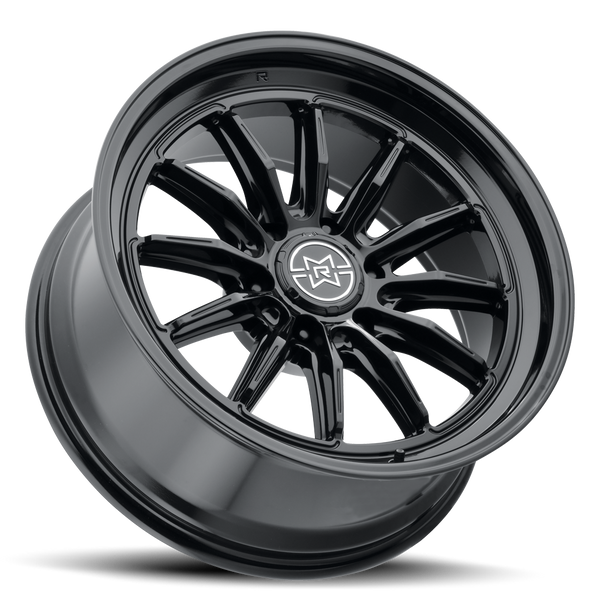

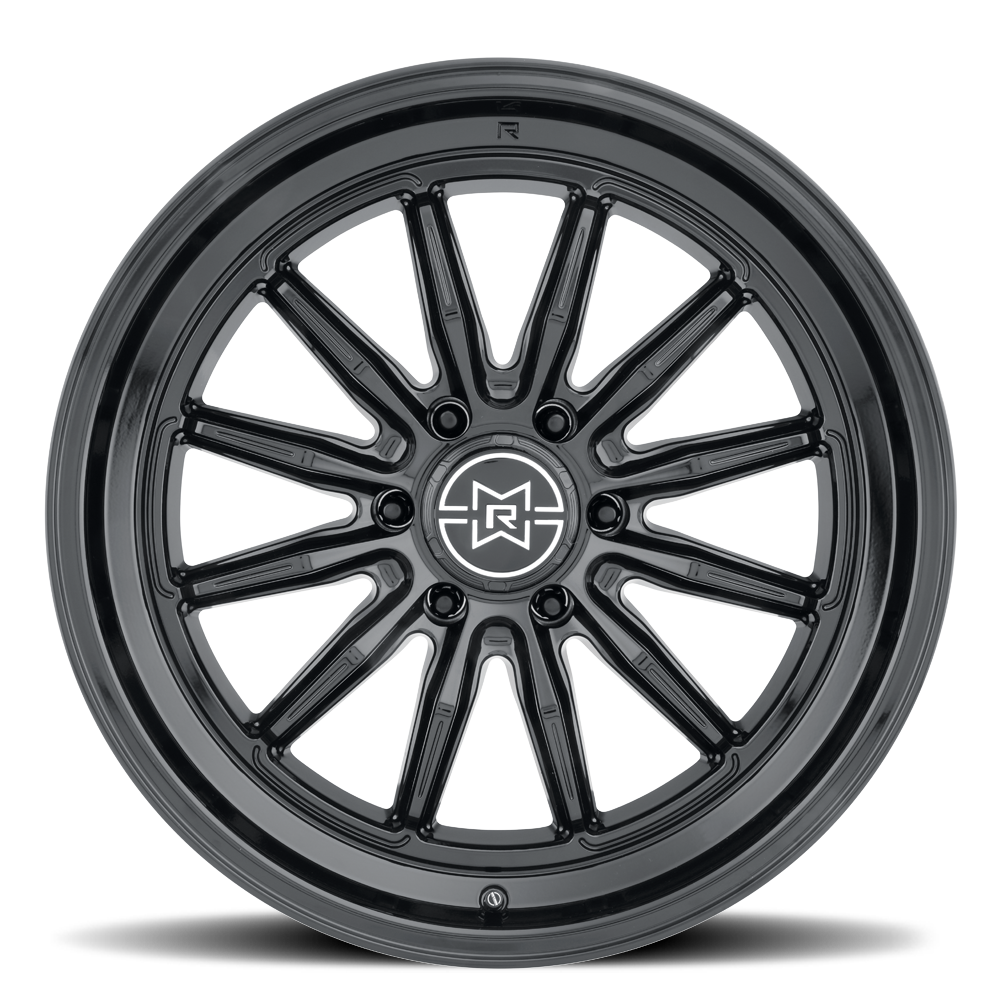

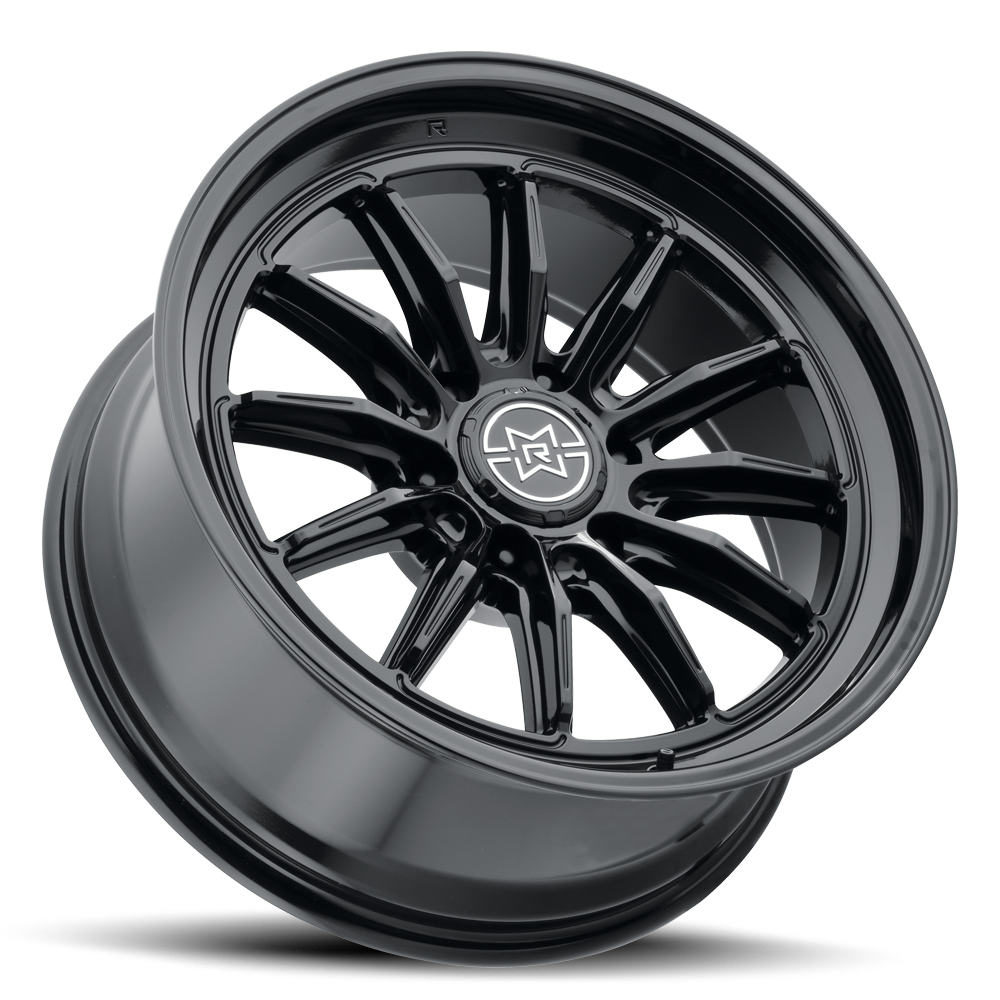

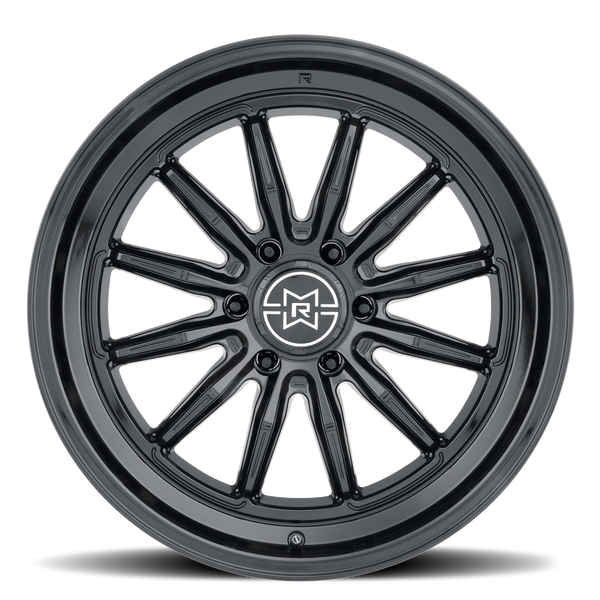

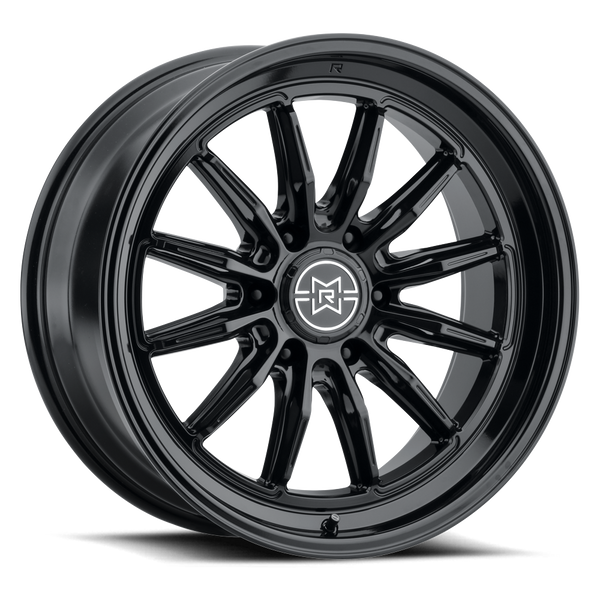

Method Race Wheels 803 Raised 20 Inch Wheel (MPN: MR803290161312)
Method Race Wheels 803 Raised 20 Inch Wheel (MPN: MR803290161312)
Method Race Wheels 803 Raised 20 Inch Wheel (MPN: MR803290161312)
Method Race Wheels 803 Raised 20 Inch Wheel (MPN: MR803290161312)

Method Race Wheels 803 Raised 20 Inch Wheel (MPN: MR803290161312)

  • Sale
  • $316.05
Accepted Credit Cards

High-performance aluminum wheel with advanced engineering for durability and strength.

The Method Race Wheels 803 Raised is a 20 inch diameter wheel designed for high-performance applications. Constructed from lightweight aluminum, this wheel features a gloss black finish that enhances its aesthetic appeal while providing durability. With a load capacity of 2650 pounds, it is engineered to withstand the demands of powerful vehicles, making it suitable for both on-road and off-road use.

This wheel is compatible with Tire Pressure Monitoring Systems (TPMS), ensuring that tire pressure is monitored effectively for optimal performance. The design includes a 6 split spoke configuration and a 60 degree conical seat lug, which contributes to its robust construction. The large machined smooth radius in the bead flange aids in tire mounting and minimizes the risk of tire damage during installation.

Method Race Wheels employs advanced manufacturing techniques, including heat treatment to a T6 standard, which enhances the tensile strength of the wheel. The redundant sets of threaded beadlock ring mounting holes provide additional security, allowing for continued use even in the event of thread stripping or impact damage. This wheel has been rigorously tested in both lab and real-world conditions to ensure reliability and performance.

Features

  • Gloss Black Finish
  • Constructed From Aluminum
  • Compatible With Tire Pressure Monitoring System
  • Large Machined Smooth Radius In The Bead Flange Aids In Outer Bead Tire Mounting And Eliminates Any Possibilities Of Harmful Cuts To The Tire
  • Select Method Beadlock Wheels Feature Circular Pockets Machined Into The Beadlock Flange For Added Grip Of The Tire Bead To Eliminate Tire Rotation On Powerful High-Torque Producing Vehicles
  • Redundant Sets Of Threaded Beadlock Ring Mounting Holes On Select Method Beadlock Wheels Allow For Continued Wheel Use In The Event Of Thread Stripping Or Elevated Impact Damage
  • Heat-Treated To A T6 Standard For Ultimate Tensile Strength
  • Both Stronger And Lighter Than Conventional Manufacturing Processes

Specifications

  • Manufacturer: Method Race Wheels
  • Manufacturer Part Number: MR803290161312
  • Bolt Pattern Inch: Not Applicable
  • Bolt Pattern Millimeter: Not Applicable
  • Diameter: 20
  • Width: 9
  • Offset: 12
  • Backspacing: 5.44
  • Finish: Painted Gloss
  • Color: Black
  • Material: Aluminum
  • Bolt Pattern Inch: 6x5.31
  • Bolt Pattern Inch: Not Applicable
  • Bolt Pattern Millimeter: 6x135
  • Bolt Pattern Millimeter: Not Applicable
  • Lug Nut Seat Type: 60 Degree Conical
  • Center Caps Included: No
  • Center Bore: 87.00
  • Lug Nut Design: Acorn
  • Compatible With TPMS (Tire Pressure Monitoring Sys: Yes
  • Basic Design: 6 Split Spoke
  • With Inserts: No
  • Load Capacity: 2650
  • Size: 20x9
  • Max Tire Diameter: 40
  • Center Cap Design: Method Race Wheel Logo
  • Quantity: Single
  • With Hub Centric Ring: No
  • Estimated Install Time (Hours): 0.5

Compatibility / Fit

  • 2004-2019 Ford F-150

Technical Documents

Shipping & Returns

  • This product ships within the continental USA only.
  • This product typically ships within 1 to 3 business days.
  • Returns are accepted within 30 days for items in like-new condition. For complete details, please see our return policy.
