High-performance aluminum wheel designed for durability and strength.

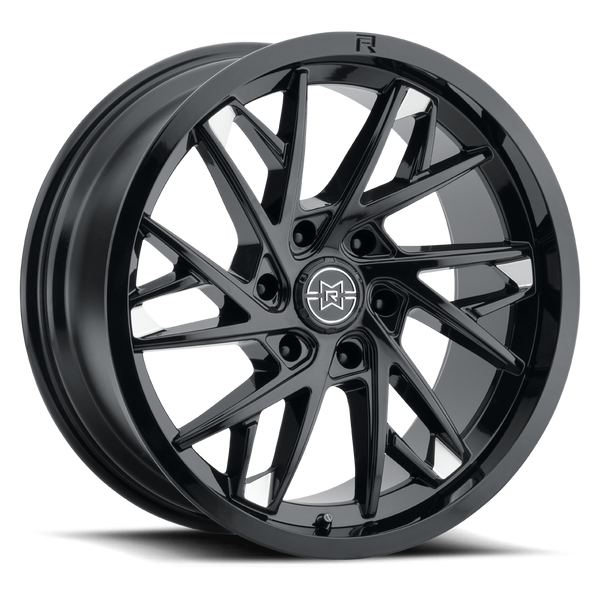

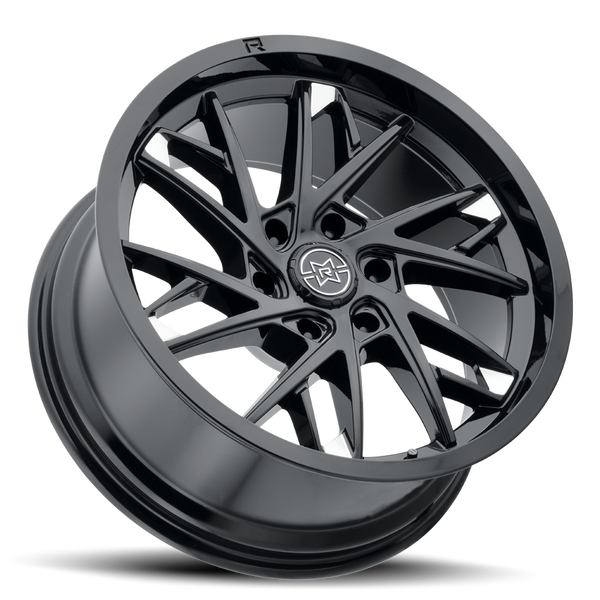

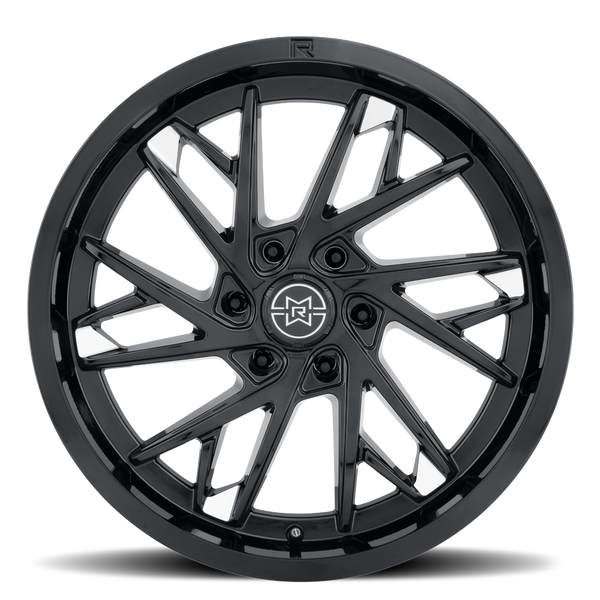

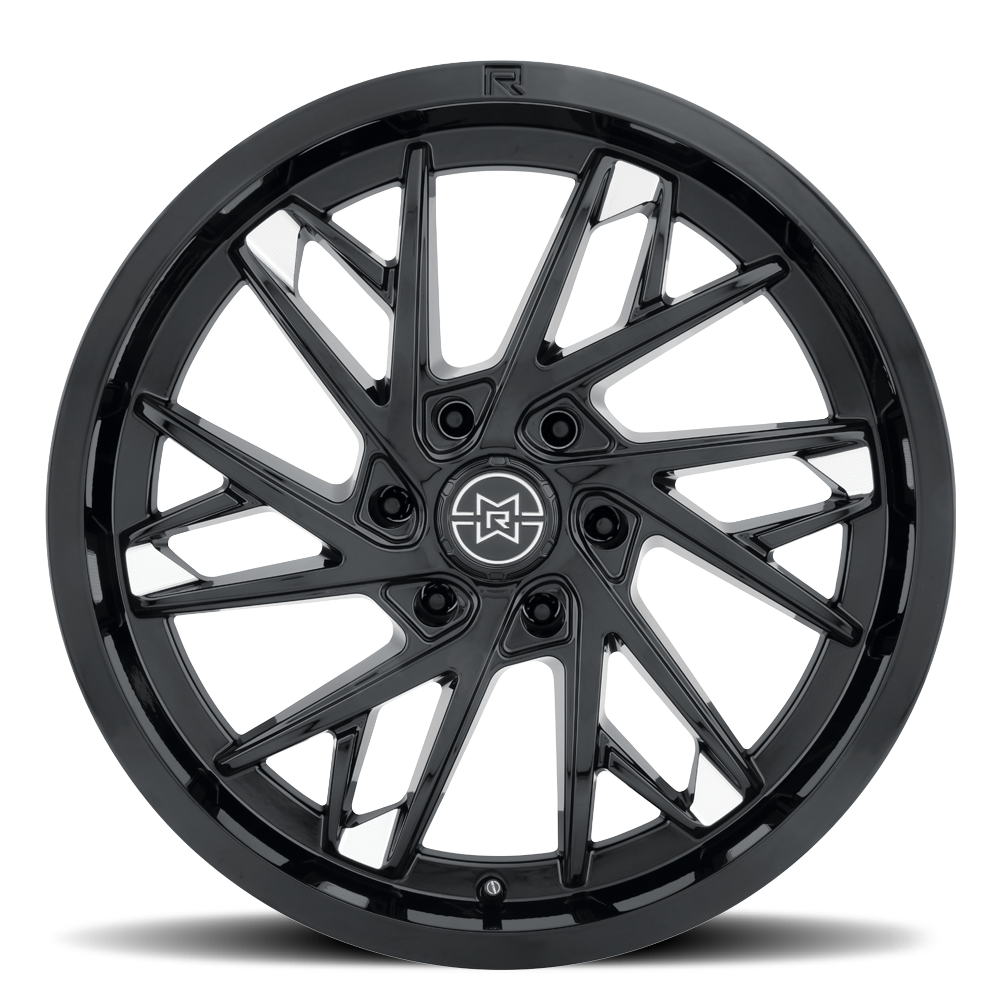

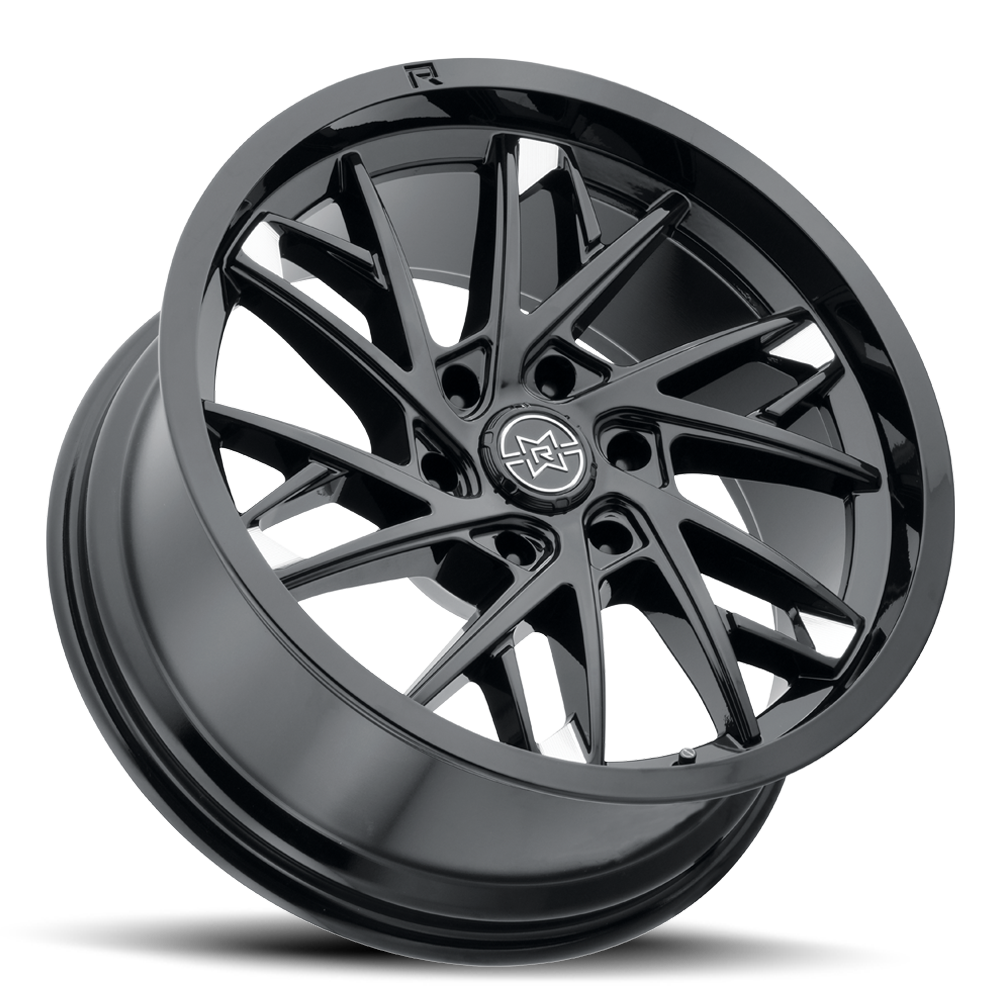

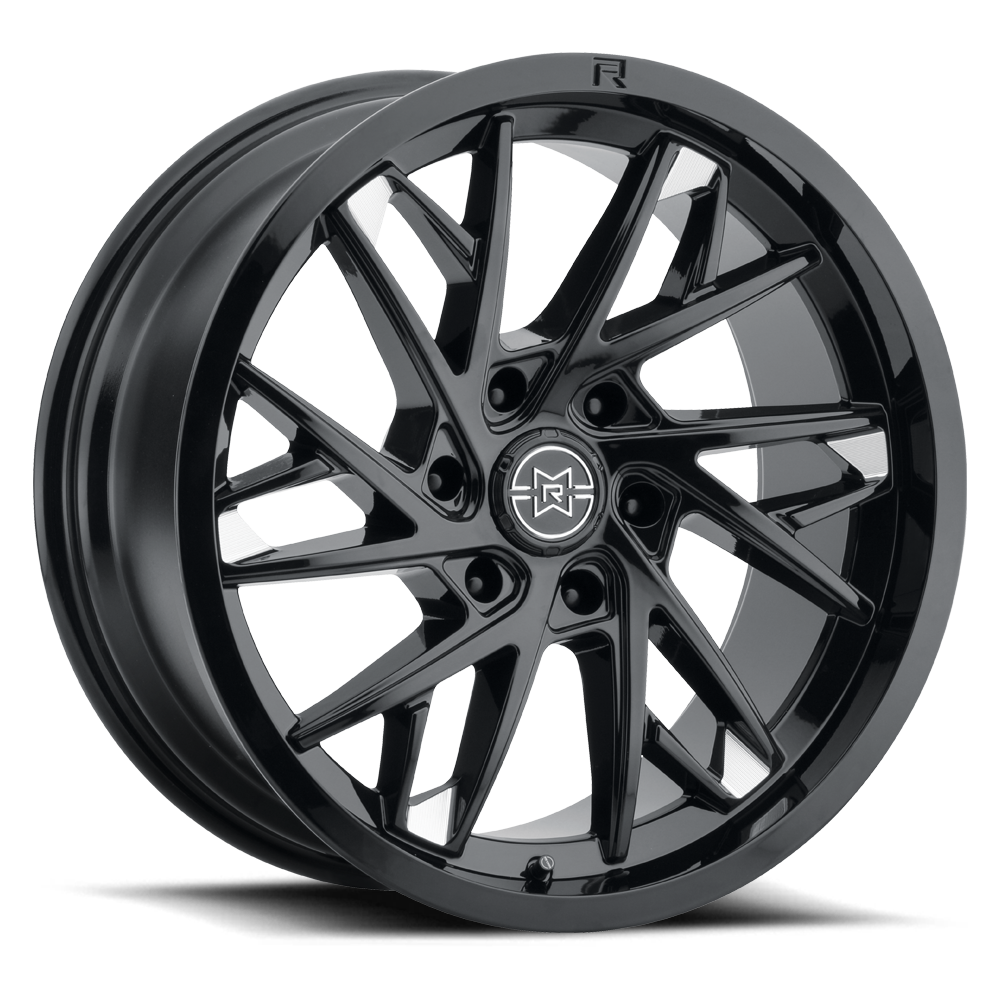

The Method Race Wheels 801 Raised is a 20 inch diameter wheel with a 9 inch width, engineered for high-performance applications. Constructed from lightweight aluminum, this wheel features a gloss black milled finish that enhances its aesthetic appeal while providing durability. With a load capacity of 2650 pounds, it is designed to withstand the demands of powerful vehicles, making it suitable for both on-road and off-road use.
This wheel is compatible with Tire Pressure Monitoring Systems (TPMS) and features a 6 x 135 millimeter bolt pattern, ensuring a secure fit for a variety of vehicles. The design includes a 60 degree conical seat lug and a center bore of 87.00 millimeters, which contributes to its robust construction. The 6 split spoke design not only adds to the visual appeal but also aids in performance by reducing weight without compromising strength.
Method Race Wheels employs advanced manufacturing techniques, including heat treatment to a T6 standard, which enhances the tensile strength of the wheel. The large machined smooth radius in the bead flange facilitates tire mounting and minimizes the risk of tire damage. Additionally, the redundant sets of threaded beadlock ring mounting holes provide added security and longevity, making this wheel a reliable choice for high-torque applications.
Features
- Gloss Black Milled Finish
- Constructed From Aluminum
- Compatible With Tire Pressure Monitoring System
- Large Machined Smooth Radius In The Bead Flange Aids In Outer Bead Tire Mounting And Eliminates Any Possibilities Of Harmful Cuts To The Tire
- Select Method Beadlock Wheels Feature Circular Pockets Machined Into The Beadlock Flange For Added Grip Of The Tire Bead To Eliminate Tire Rotation On Powerful High-Torque Producing Vehicles
- Redundant Sets Of Threaded Beadlock Ring Mounting Holes On Select Method Beadlock Wheels Allow For Continued Wheel Use In The Event Of Thread Stripping Or Elevated Impact Damage
- Heat-Treated To A T6 Standard For Ultimate Tensile Strength
- Both Stronger And Lighter Than Conventional Manufacturing Processes
Specifications
- Manufacturer: Method Race Wheels
- Manufacturer Part Number: MR80129016500
- Bolt Pattern Inch: Not Applicable
- Bolt Pattern Millimeter: Not Applicable
- Diameter: 20
- Width: 9
- Offset: 0
- Backspacing: 4.95
- Finish: Painted Gloss Milled
- Color: Black Natural
- Material: Aluminum
- Bolt Pattern Inch: 6x5.31
- Bolt Pattern Inch: Not Applicable
- Bolt Pattern Millimeter: 6x135
- Bolt Pattern Millimeter: Not Applicable
- Lug Nut Seat Type: 60 Degree Conical
- Center Caps Included: No
- Center Bore: 87.00
- Lug Nut Design: Acorn
- Compatible With TPMS (Tire Pressure Monitoring Sys: Yes
- Basic Design: 6 Split Spoke
- With Inserts: No
- Load Capacity: 2650
- Size: 20x9
- Max Tire Diameter: 40
- Center Cap Design: Method Race Wheel Logo
- Quantity: Single
- With Hub Centric Ring: No
- Estimated Install Time (Hours): 0.5
Compatibility / Fit
- 2004-2019 Ford F-150
