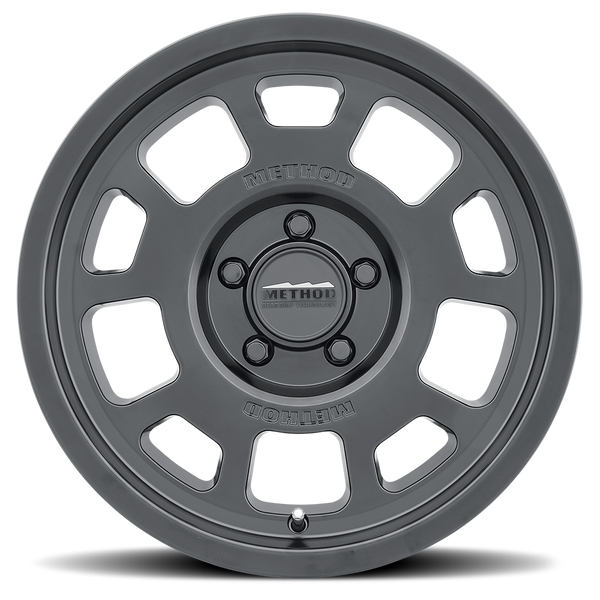

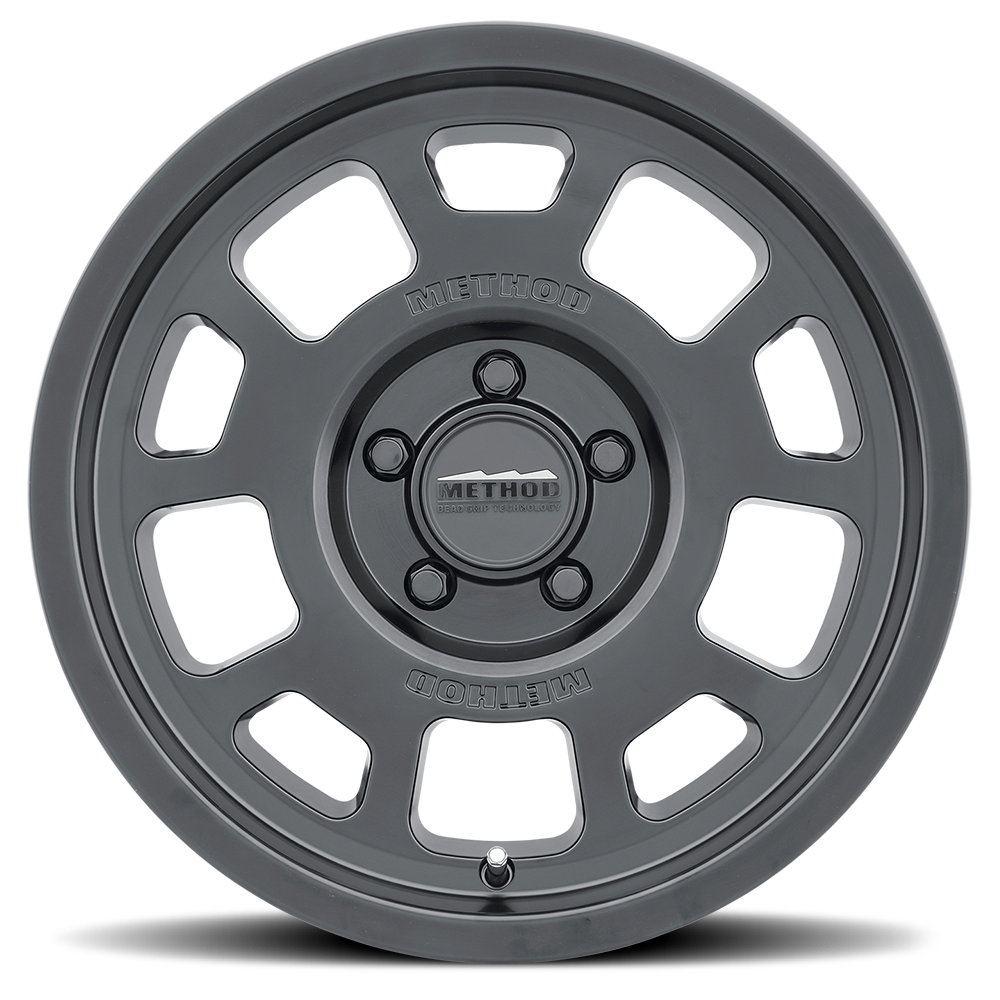

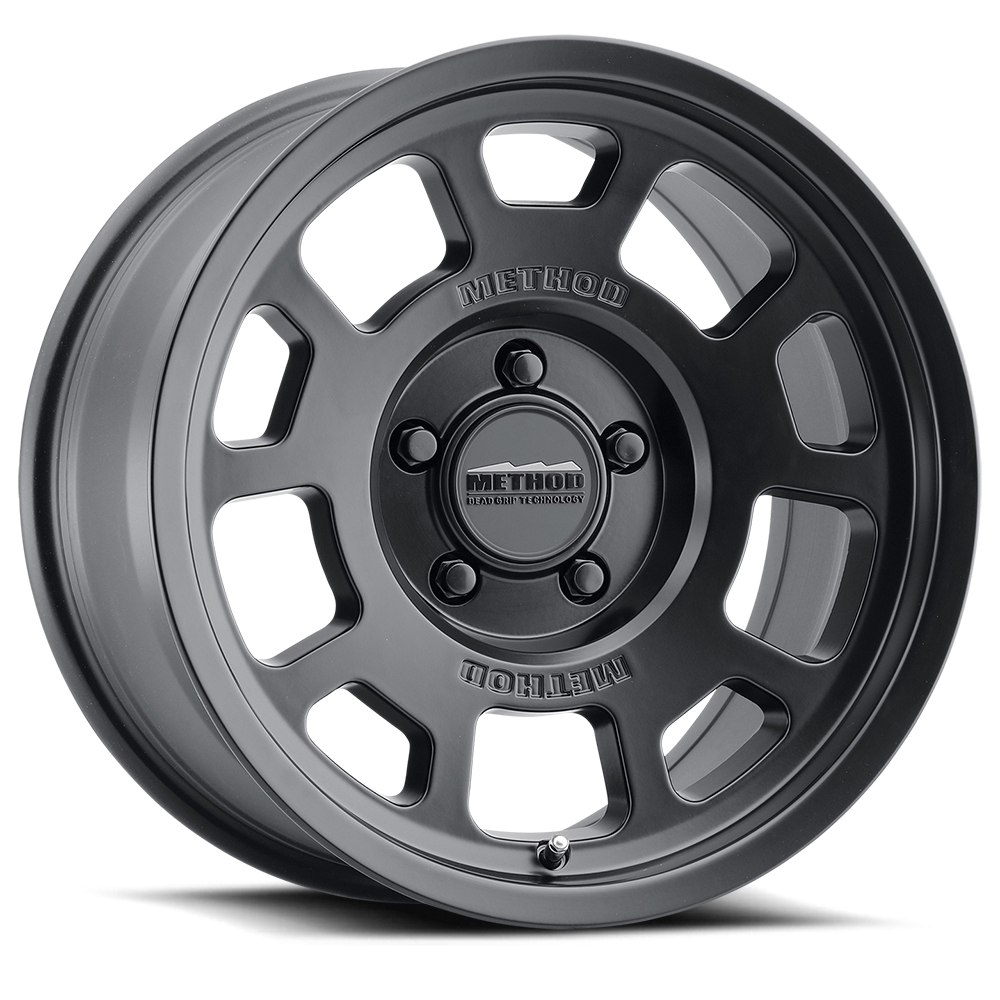

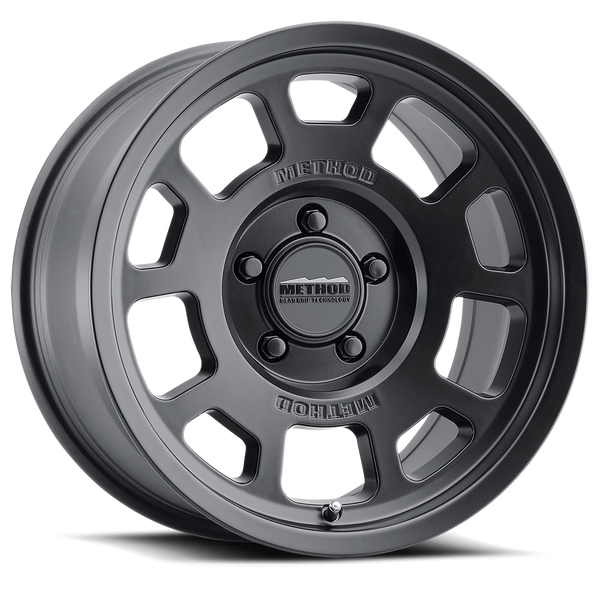

Method Race Wheels 705 Trail Series (MPN: MR70578550500)

High performance 17 inch wheels for off road and street applications.

The Method Race Wheels 705 Trail Series features a robust design tailored for both race and street applications. With a diameter of 17 inches and a width of 8.5 inches, these wheels are engineered to support a maximum tire diameter of 40 inches, making them suitable for various off-road vehicles. The one-piece cast aluminum construction ensures durability while maintaining a lightweight profile, and the matte black finish provides a sleek aesthetic.

Designed with a 5 x 127 millimeter bolt pattern and a 0 millimeter offset, these wheels offer compatibility with a wide range of vehicles. The 60 degree conical seat lug nut design enhances fitment and stability, while the 71.50 millimeter center bore accommodates various hub sizes. Additionally, the wheels are compatible with Tire Pressure Monitoring Systems (TPMS), ensuring optimal performance and safety.

The Method Bead Grip Technology logo center cap adds a distinctive touch, while the wheels boast a load capacity of 2650 pounds, making them reliable for demanding conditions. With a structural warranty for life and a two-year finish warranty, the Method Race Wheels 705 Trail Series is a solid choice for enthusiasts seeking quality and performance.

Features

• Matte Black Finish
• 1 Piece Cast Aluminum Construction
• Compatible With TPMS (Tire Pressure Monitoring System)
• With Method Bead Grip Technology Logo Center Cap

Specifications

• Manufacturer: Method Race Wheels
• Manufacturer Part Number: MR70578550500
• Bolt Pattern Inch: Not Applicable
• Bolt Pattern Millimeter: Not Applicable
• Diameter: 17
• Width: 8.5
• Offset: 0
• Backspacing: 4.75
• Finish: Painted Matte
• Color: Black
• Material: Aluminum
• Bolt Pattern Inch: 5x5.00
• Bolt Pattern Inch: Not Applicable
• Bolt Pattern Millimeter: 5x127
• Bolt Pattern Millimeter: Not Applicable
• Lug Nut Seat Type: 60 Degree Conical
• Center Caps Included: Yes
• Center Bore: 71.50
• Lug Nut Design: Acorn
• Compatible With TPMS (Tire Pressure Monitoring Sys: Yes
• With Inserts: No
• Load Capacity: 2650
• Size: 17x8.5
• Max Tire Diameter: 40
• Center Cap Design: Method Bead Grip Technology Logo
• Finish Warranty: 2 Years
• Structural Warranty: Lifetime
• Quantity: Single
• Construction: One Piece Cast
• With Hub Centric Ring: No
• Estimated Install Time (Hours): 0.5

Compatibility / Fit

• 1959-1964 Buick Electra
• 1991-1996 Buick Roadmaster
• 1988-1992 Cadillac Brougham
• 1970-1974 Cadillac DeVille
• 1980-1990 Chevrolet Caprice
• 1970-1974 Chrysler Imperial
• 1967-1974 GMC C15/C1500 Pickup
• 1987-1987 GMC R1500
• 2020-2025 Jeep Gladiator JT
• 2026-2026 Jeep Wrangler
• 2007-2018 Jeep Wrangler JK
• 2018-2025 Jeep Wrangler JL

Technical Documents

• Method-Warranty-Web-2021.pdf

Product Videos
