High performance 17 inch wheels for off road and street applications.

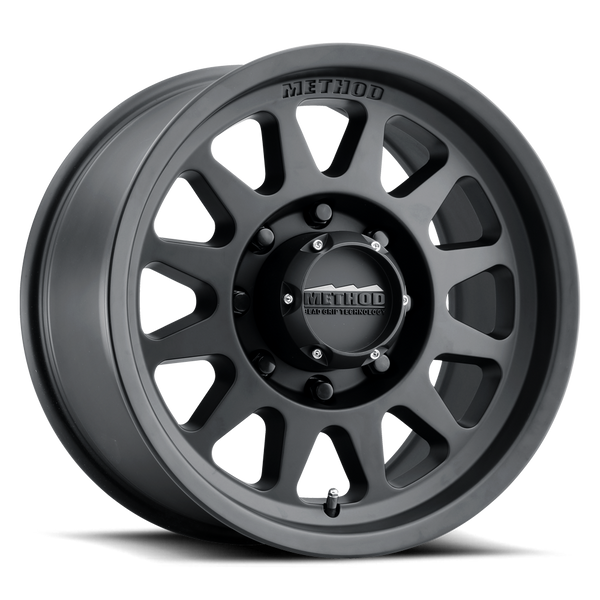

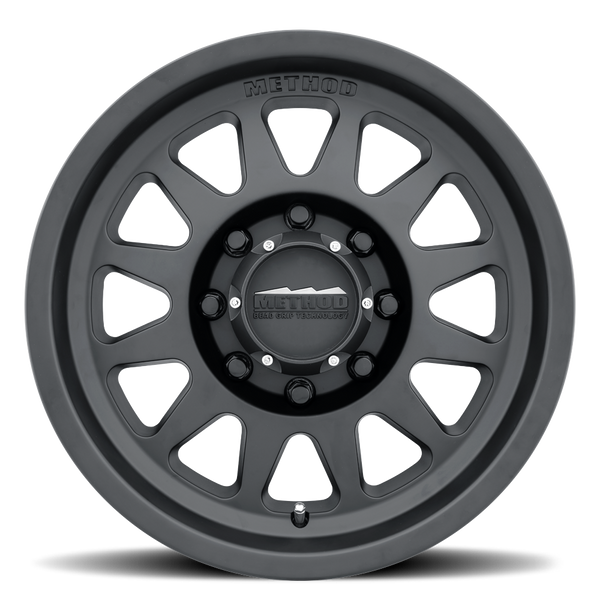

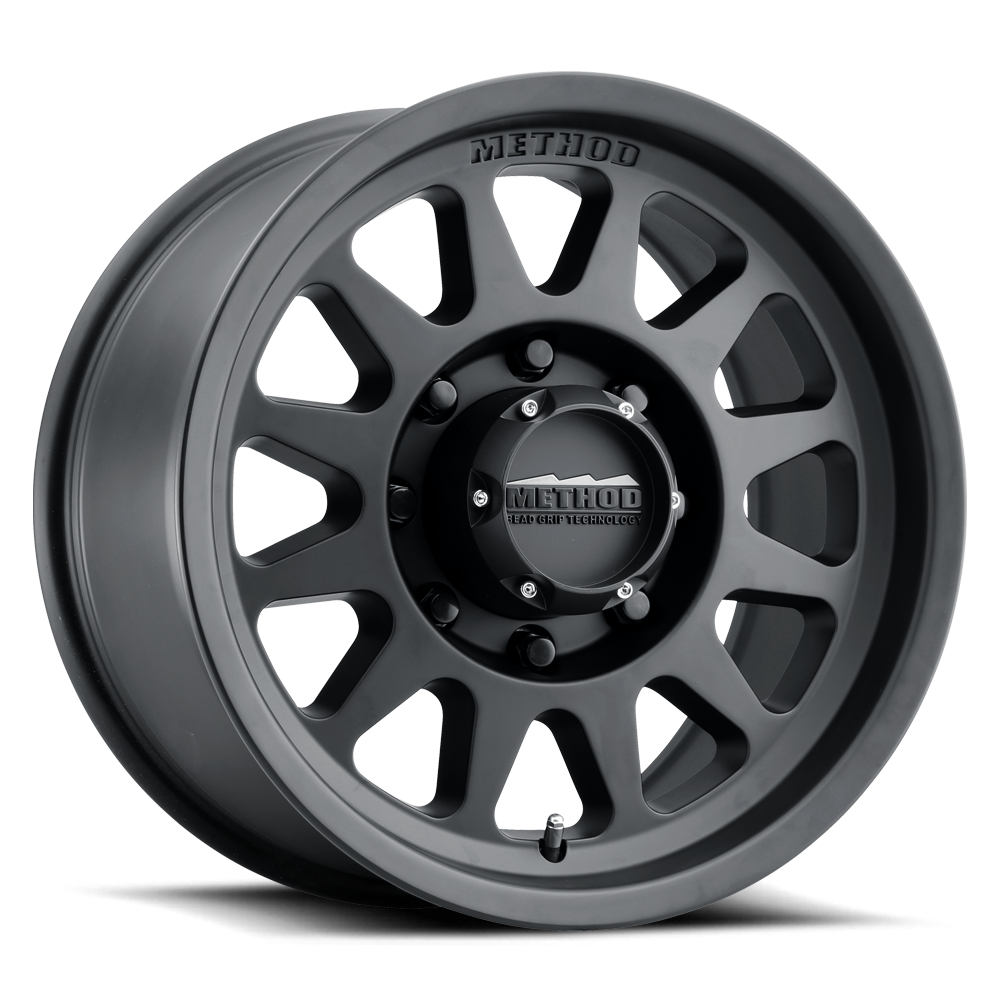

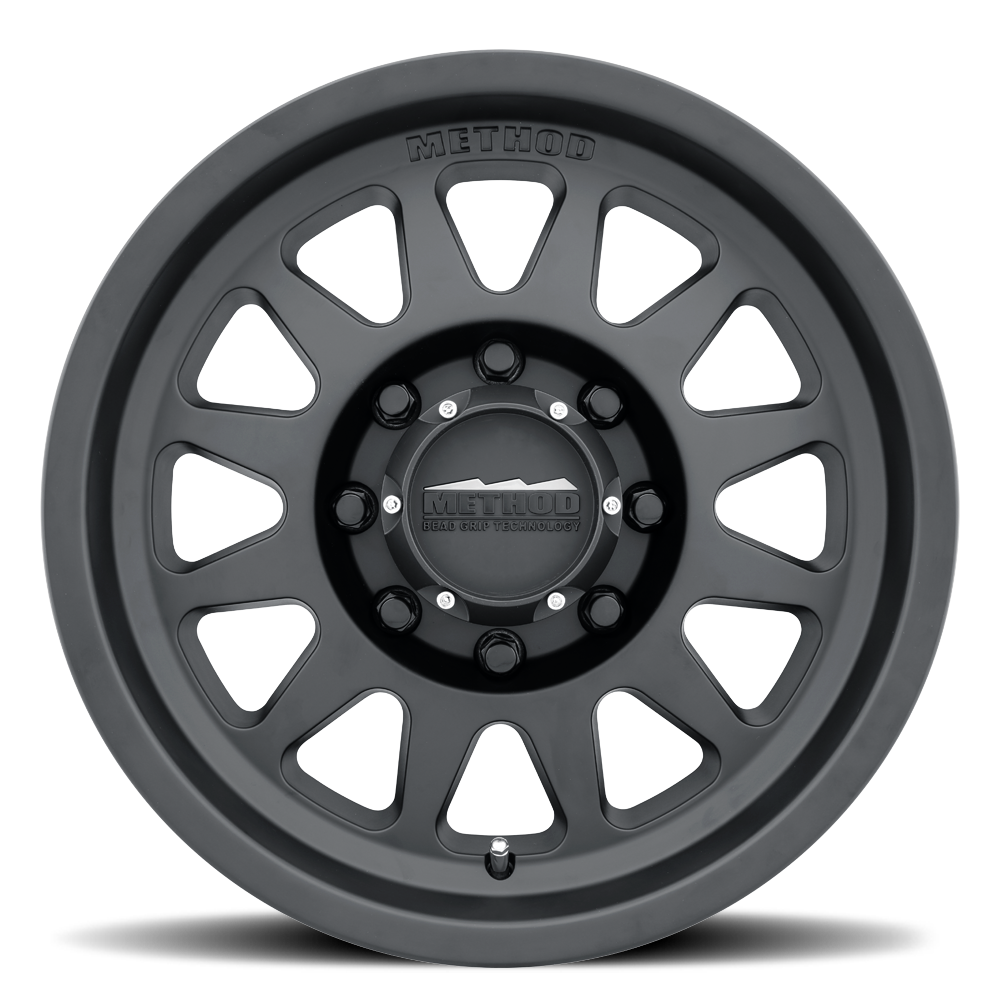

Method Race Wheels 704 HD Trail Series offers a robust design tailored for both race and street applications. With a diameter of 17 inches and a width of 9 inches, these wheels are engineered from one-piece cast aluminum, ensuring durability and strength. The matte black finish not only enhances aesthetic appeal but also provides resistance against wear and tear.
Featuring a bolt pattern of 8 x 170 millimeters and a load capacity of 4500 pounds, these wheels are compatible with Tire Pressure Monitoring Systems (TPMS) and support a maximum tire diameter of 40 inches. The innovative Method Bead Grip Technology engages the tire bead for improved grip at lower tire pressures, making these wheels suitable for various off-road conditions.
The design includes a 60-degree conical seat lug and a center bore of 130.81 millimeters, ensuring a secure fitment. Additionally, the reinforced inner lip and aggressive safety hump on the bead seats further enhance performance and safety. Method Race Wheels is dedicated to delivering high-quality products that meet the demands of both competitive and recreational driving.
Features
- 1 Piece Cast Aluminum Construction
- Compatible With TPMS (Tire Pressure Monitoring System)
- With Method Bead Grip Technology Logo Center Cap
- Hub Centric Fitments For Common Applications
- Reinforced Inner Lip Taken From MRW Race Wheel Design
- Patented Bead Grip Technology Engages Tire Bead For Increased Grip At Low Tire Pressures
- Aggressive Safety Hump On Bead Seats Further Prevents De-Beading
Specifications
- Manufacturer: Method Race Wheels
- Manufacturer Part Number: MR70479087518H
- Bolt Pattern Inch: Not Applicable
- Bolt Pattern Millimeter: Not Applicable
- Diameter: 17
- Width: 9
- Offset: 18
- Backspacing: 5.75
- Finish: Painted Matte
- Color: Black
- Material: Aluminum
- Bolt Pattern Inch: 8x6.69
- Bolt Pattern Inch: Not Applicable
- Bolt Pattern Millimeter: 8x170
- Bolt Pattern Millimeter: Not Applicable
- Lug Nut Seat Type: 60 Degree Conical
- Center Caps Included: Yes
- Center Bore: 130.81
- Lug Nut Design: Acorn
- Compatible With TPMS (Tire Pressure Monitoring Sys: Yes
- Basic Design: 12 Spoke
- With Inserts: No
- Load Capacity: 4500
- Size: 17x9
- Max Tire Diameter: 40
- Center Cap Design: Method Bead Grip Technology Logo
- Finish Warranty: 2 Years
- Structural Warranty: Lifetime
- Quantity: Single
- Construction: One Piece Cast
- With Hub Centric Ring: No
- Estimated Install Time (Hours): 0.5
Compatibility / Fit
- 2000-2005 Ford Excursion
- 1999-2026 Ford F-250 Super Duty
- 2006-2026 Ford F-350 Super Duty
