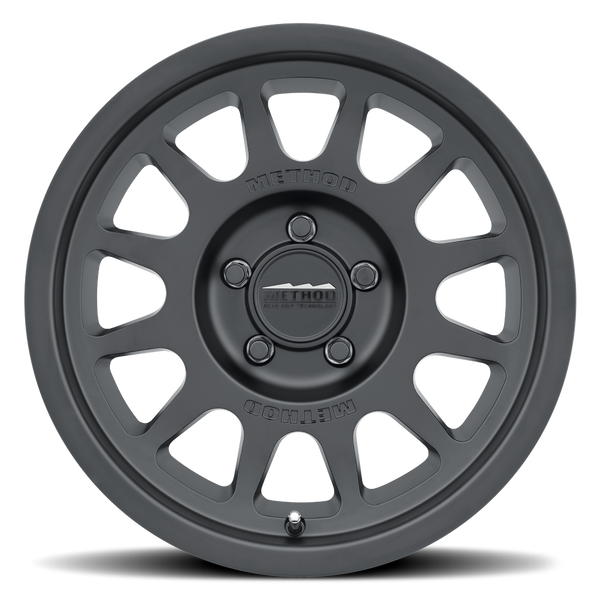

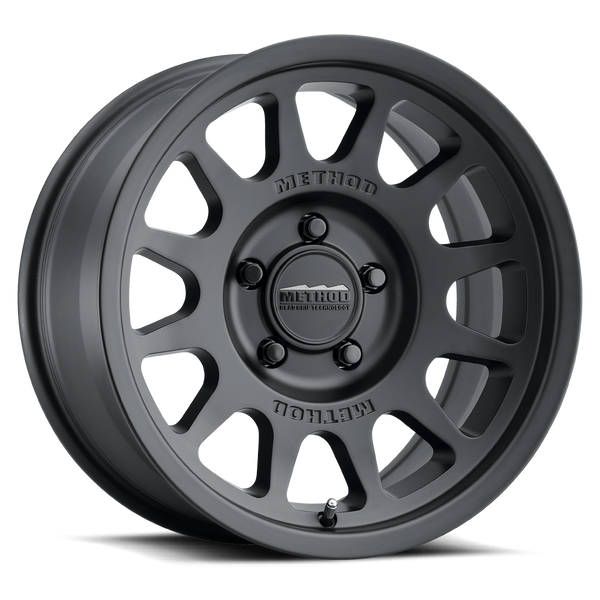

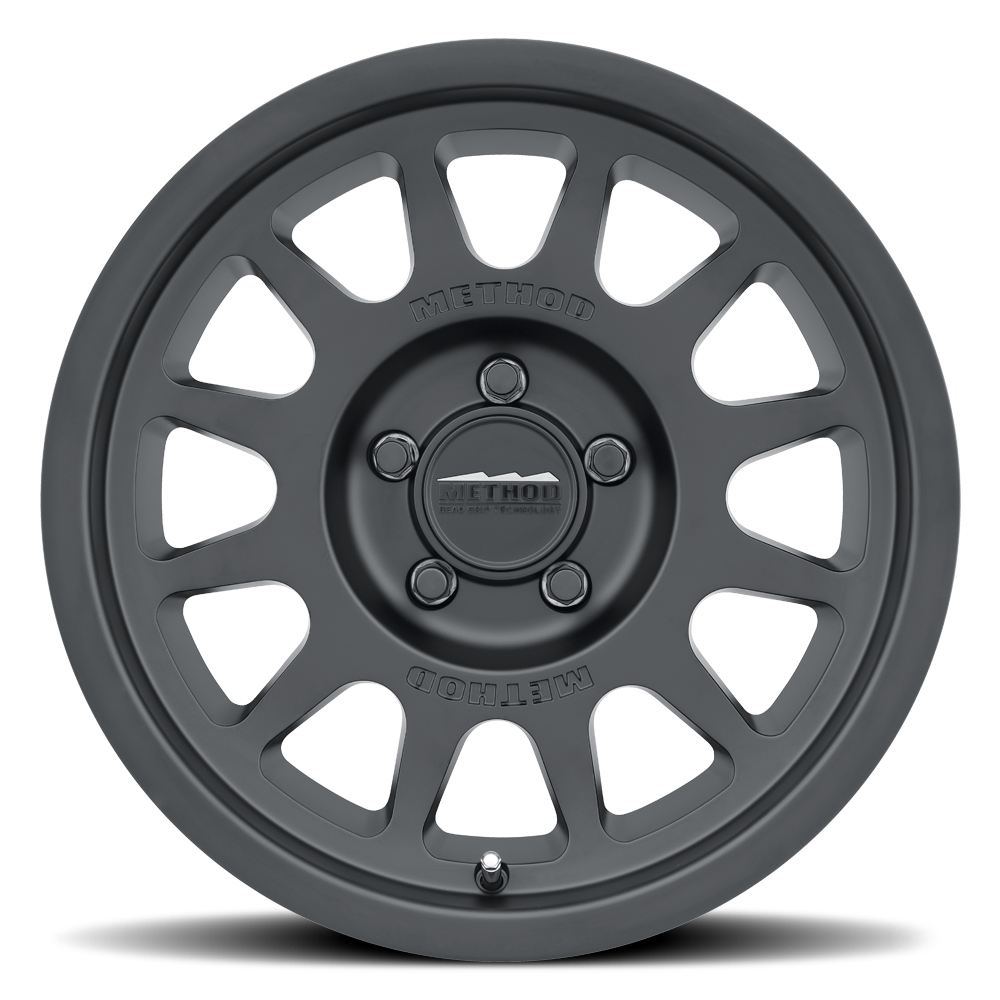

Method Race Wheels 703 Trail Series (MPN: MR70379050512N)

High performance 17 inch wheels for off road and street applications.

The Method Race Wheels 703 Trail Series features a robust design tailored for both race and street applications. With a diameter of 17 inches and a width of 9 inches, these wheels are engineered to support a maximum tire diameter of 40 inches, making them suitable for various off-road vehicles. The wheels are constructed from a single piece of cast aluminum, ensuring durability and a load capacity of 2650 pounds, which is essential for demanding terrains.

The matte black finish not only enhances the aesthetic appeal but also provides a protective layer against the elements. The wheels are designed with a 5 x 127 millimeter bolt pattern and a -12 millimeter offset, allowing for compatibility with a wide range of vehicles. Additionally, the 60 degree conical seat lug nut design ensures a secure fit, while the 71.50 millimeter center bore accommodates various hub sizes.

Method Race Wheels incorporates advanced features such as compatibility with Tire Pressure Monitoring Systems (TPMS) and the Method Bead Grip Technology logo center cap, which adds a distinctive touch. The wheels are rigorously tested to meet high performance standards, making them a reliable choice for enthusiasts seeking quality and performance in their wheel selection.

Features

• Matte Black Finish
• 1 Piece Cast Aluminum Construction
• Compatible With TPMS (Tire Pressure Monitoring System)
• With Method Bead Grip Technology Logo Center Cap

Specifications

• Manufacturer: Method Race Wheels
• Manufacturer Part Number: MR70379050512N
• Bolt Pattern Inch: Not Applicable
• Bolt Pattern Millimeter: Not Applicable
• Diameter: 17
• Width: 9
• Offset: -12
• Backspacing: 4.80
• Finish: Painted Matte
• Color: Black
• Material: Aluminum
• Bolt Pattern Inch: 5x5.00
• Bolt Pattern Inch: Not Applicable
• Bolt Pattern Millimeter: 5x127
• Bolt Pattern Millimeter: Not Applicable
• Lug Nut Seat Type: 60 Degree Conical
• Center Caps Included: Yes
• Center Bore: 71.50
• Lug Nut Design: Acorn
• Compatible With TPMS (Tire Pressure Monitoring Sys: Yes
• Basic Design: 12 Spoke
• With Inserts: No
• Load Capacity: 2650
• Size: 17x9
• Max Tire Diameter: 40
• Center Cap Design: Method Bead Grip Technology Logo
• Finish Warranty: 2 Years
• Structural Warranty: Lifetime
• Quantity: Single
• Construction: One Piece Cast
• With Hub Centric Ring: No
• Estimated Install Time (Hours): 0.5

Compatibility / Fit

• 1959-1964 Buick Electra
• 1988-1992 Cadillac Brougham
• 1970-1974 Cadillac DeVille
• 1980-1990 Chevrolet Caprice
• 1967-1974 GMC C15/C1500 Pickup
• 1987-1987 GMC R1500
• 2020-2025 Jeep Gladiator JT
• 2007-2018 Jeep Wrangler JK
• 2018-2025 Jeep Wrangler JL
