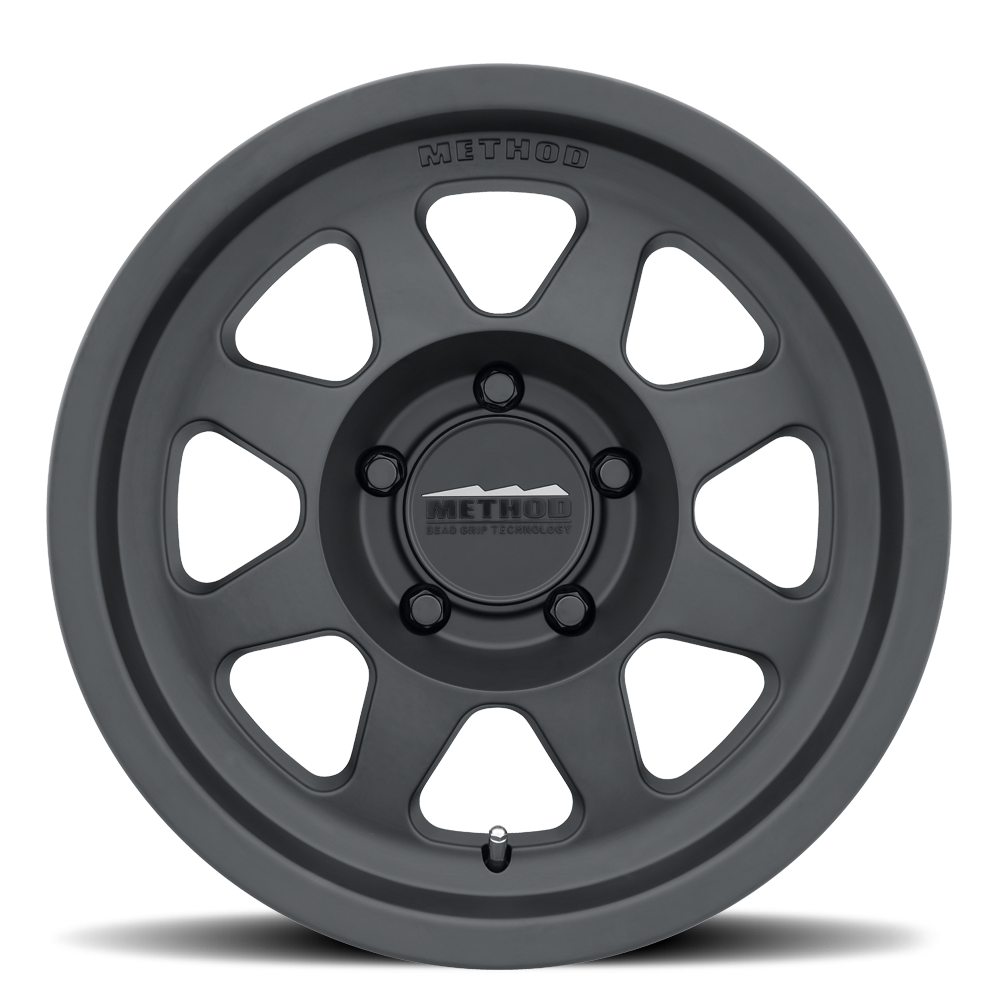

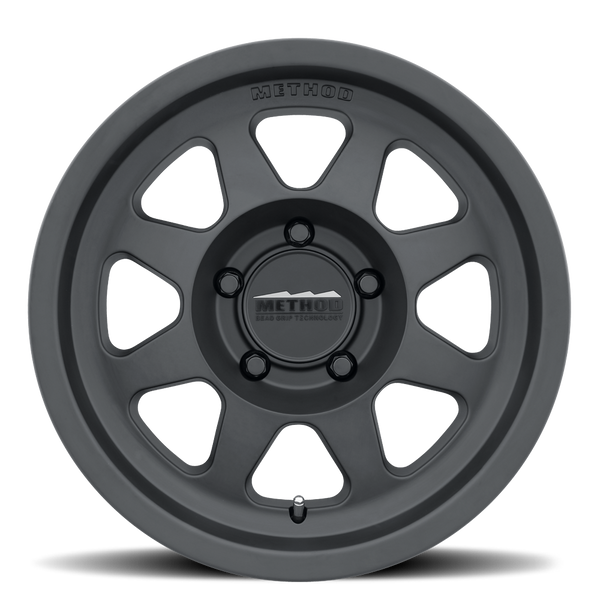

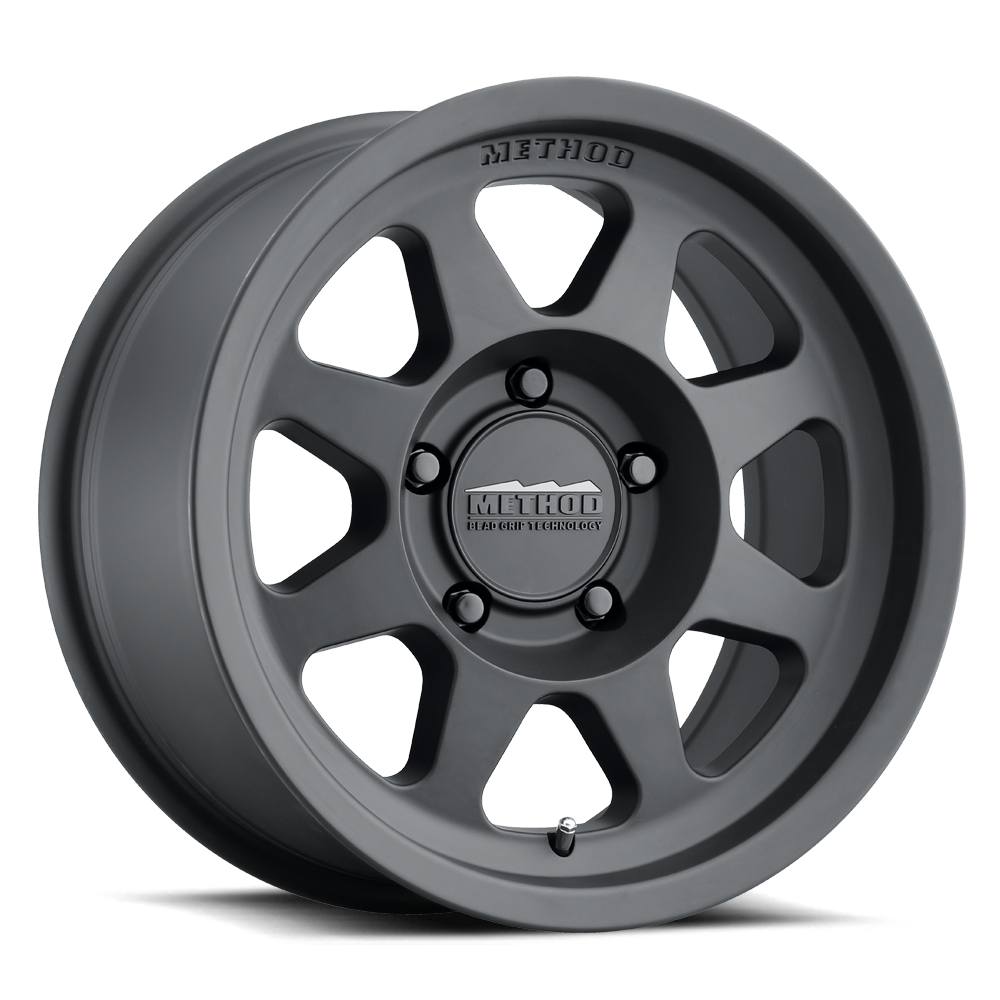

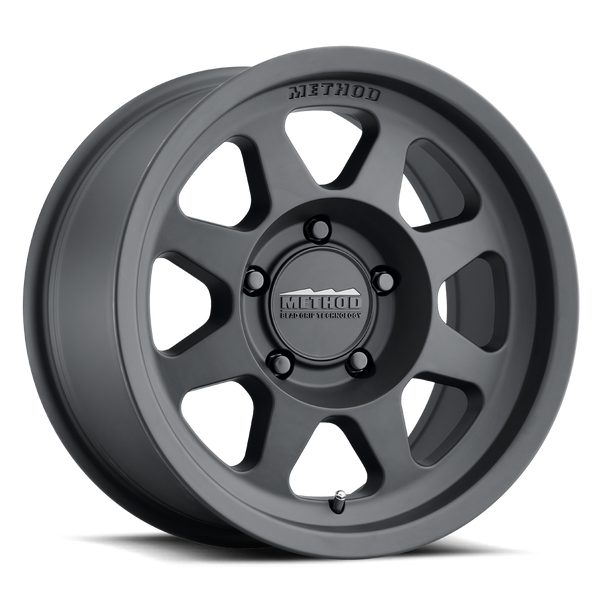

Method Race Wheels 701 Trail Series Wheel (MPN: MR70178550500)

High performance 17 inch wheel with advanced design features.

The Method Race Wheels 701 Trail Series Wheel is engineered for both race and street applications, providing a robust solution for off-road enthusiasts. With a diameter of 17 inches and a width of 8.5 inches, this wheel is designed to accommodate a maximum tire diameter of 40 inches, ensuring compatibility with a variety of vehicles. The wheel features a matte black finish and is constructed from a single piece of cast aluminum, offering durability and a sleek aesthetic.

This wheel boasts a 5 x 127 millimeter bolt pattern and a 0 millimeter offset, making it suitable for a range of applications. The 60 degree conical seat lug design ensures secure fitment, while the 71.50 millimeter center bore allows for proper alignment on compatible vehicles. With a load capacity of 2650 pounds, this wheel is built to withstand the demands of off-road driving.

Additionally, the Method Race Wheels 701 Trail Series Wheel is compatible with Tire Pressure Monitoring Systems (TPMS), enhancing safety and performance. The inclusion of the Method Bead Grip Technology logo center cap adds a distinctive touch to the overall design. This wheel is backed by a lifetime structural warranty and a 2-year finish warranty, reflecting the manufacturer's commitment to quality and performance.

Features

• Matte Black Finish
• 1 Piece Cast Aluminum Construction
• Compatible With TPMS (Tire Pressure Monitoring System)
• With Method Bead Grip Technology Logo Center Cap

Specifications

• Manufacturer: Method Race Wheels
• Manufacturer Part Number: MR70178550500
• Bolt Pattern Inch: Not Applicable
• Bolt Pattern Millimeter: Not Applicable
• Diameter: 17
• Width: 8.5
• Offset: 0
• Backspacing: 4.75
• Finish: Painted Matte
• Color: Black
• Material: Aluminum
• Bolt Pattern Inch: 5x5.00
• Bolt Pattern Inch: Not Applicable
• Bolt Pattern Millimeter: 5x127
• Bolt Pattern Millimeter: Not Applicable
• Lug Nut Seat Type: 60 Degree Conical
• Center Caps Included: Yes
• Center Bore: 71.50
• Lug Nut Design: Acorn
• Compatible With TPMS (Tire Pressure Monitoring Sys: Yes
• Basic Design: 8 Spoke
• With Inserts: No
• Load Capacity: 2650
• Size: 17x8.5
• Max Tire Diameter: 40
• Center Cap Design: Method Bead Grip Technology Logo
• Finish Warranty: 2 Years
• Structural Warranty: Lifetime
• Quantity: Single
• Construction: One Piece Cast
• With Hub Centric Ring: No
• Estimated Install Time (Hours): 0.5

Compatibility / Fit

• 1959-1964 Buick Electra
• 1991-1996 Buick Roadmaster
• 1988-1992 Cadillac Brougham
• 1970-1974 Cadillac DeVille
• 1980-1990 Chevrolet Caprice
• 1970-1974 Chrysler Imperial
• 1967-1974 GMC C15/C1500 Pickup
• 1987-1987 GMC R1500
• 2020-2025 Jeep Gladiator JT
• 2026-2026 Jeep Wrangler
• 2007-2018 Jeep Wrangler JK
• 2018-2025 Jeep Wrangler JL
