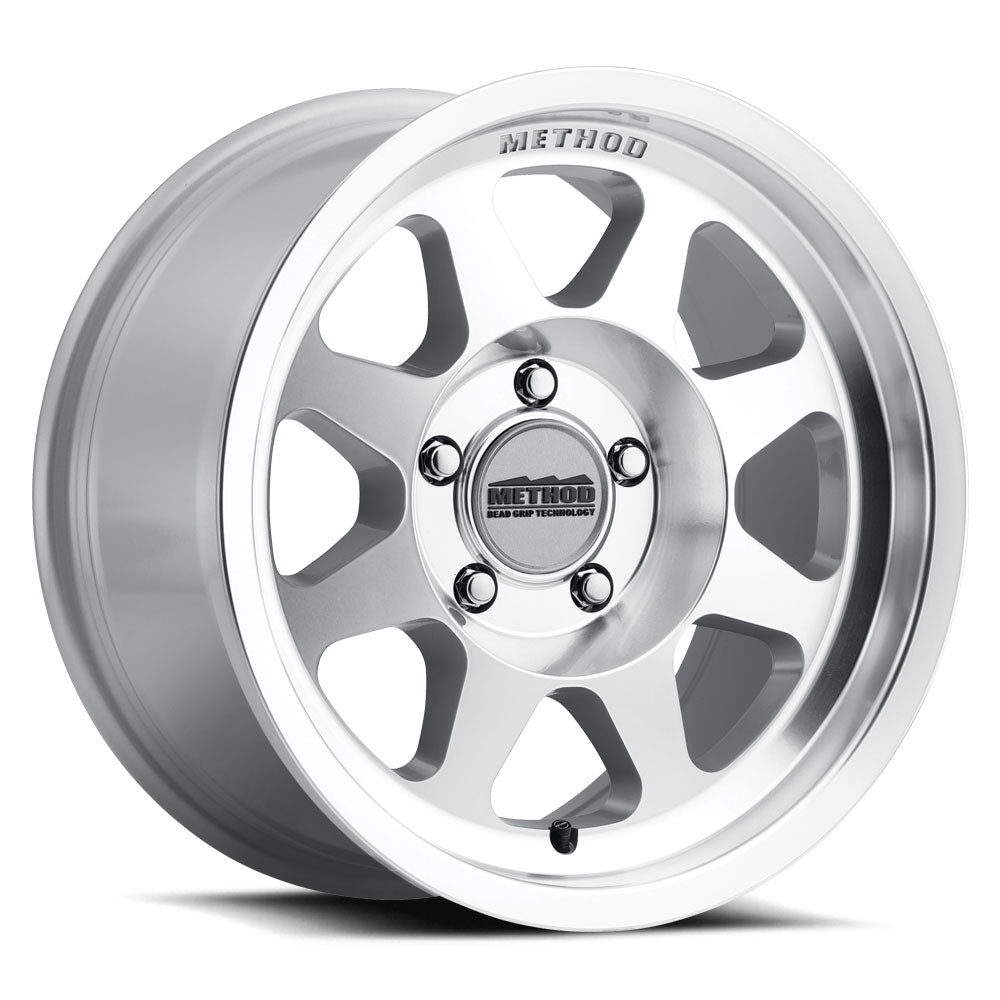

Method Race Wheels 701 Trail Series Wheel (MPN: MR70178550300)

High performance 17 inch wheel designed for off road and street applications.

The Method Race Wheels 701 Trail Series Wheel is engineered for both race and street applications, providing a robust solution for off-road enthusiasts. With a diameter of 17 inches and a width of 8.5 inches, this wheel features a 5 x 127 millimeter bolt pattern and a 0 millimeter offset, ensuring compatibility with a variety of vehicles. Constructed from solid A356 aluminum with T6 heat treatment, it offers a load capacity of 2650 pounds, making it suitable for demanding conditions.

This wheel is designed with an 8 spoke configuration and includes a machined clear coat finish for enhanced durability and aesthetics. The 60 degree conical seat lug nut design and 71.50 millimeter center bore facilitate secure installation. Additionally, the wheel is compatible with Tire Pressure Monitoring Systems (TPMS), providing real-time tire pressure data for improved safety and performance.

The Method Bead Grip Technology logo center cap adds a distinctive touch while reinforcing the wheel's structural integrity. With a maximum tire diameter of 40 inches, this wheel is versatile enough for various off-road and street applications. Method Race Wheels is committed to quality, ensuring that each product undergoes rigorous testing and engineering to meet high performance standards.

Features

• Machined Clear Coated
• 1 Piece Cast Aluminum Construction
• Compatible With Tire Pressure Monitoring System
• With Method Bead Grip Technology Logo Center Cap
• Solid A356 Aluminum With T6 Heat Treatment Construction
• Reinforced Inner Lip Taken From MRW Race Wheel Increases Strength
• Snap-In Center Cap With Embossed METHOD Bead Grip Logo
• Push-Through Center Cap With Embossed METHOD Bead Grip Logo For 8 Lug Applications

Specifications

• Manufacturer: Method Race Wheels
• Manufacturer Part Number: MR70178550300
• Bolt Pattern Inch: Not Applicable
• Bolt Pattern Millimeter: Not Applicable
• Diameter: 17
• Width: 8.5
• Offset: 0
• Backspacing: 4.75
• Finish: Machined Clear Coated
• Color: Natural
• Material: Aluminum
• Bolt Pattern Inch: 5x5.00
• Bolt Pattern Inch: Not Applicable
• Bolt Pattern Millimeter: 5x127
• Bolt Pattern Millimeter: Not Applicable
• Lug Nut Seat Type: 60 Degree Conical
• Center Caps Included: Yes
• Center Bore: 71.50
• Lug Nut Design: Acorn
• Compatible With TPMS (Tire Pressure Monitoring Sys: Yes
• Basic Design: 8 Spoke
• With Inserts: No
• Load Capacity: 2650
• Size: 17x8.5
• Max Tire Diameter: 40
• Center Cap Design: Method Bead Grip Technology Logo
• Finish Warranty: 2 Years
• Structural Warranty: Lifetime
• Quantity: Single
• Construction: One Piece Cast
• With Hub Centric Ring: Yes
• Estimated Install Time (Hours): 0.5

Compatibility / Fit

• 1959-1964 Buick Electra
• 1991-1996 Buick Roadmaster
• 1988-1992 Cadillac Brougham
• 1970-1974 Cadillac DeVille
• 1980-1990 Chevrolet Caprice
• 1970-1974 Chrysler Imperial
• 1967-1974 GMC C15/C1500 Pickup
• 1987-1987 GMC R1500
• 2020-2025 Jeep Gladiator JT
• 2026-2026 Jeep Wrangler
• 2007-2018 Jeep Wrangler JK
• 2018-2025 Jeep Wrangler JL

Technical Documents

• 701_Sell_Sheet.pdf
