High-performance 20 inch wheels designed for trucks and SUVs.

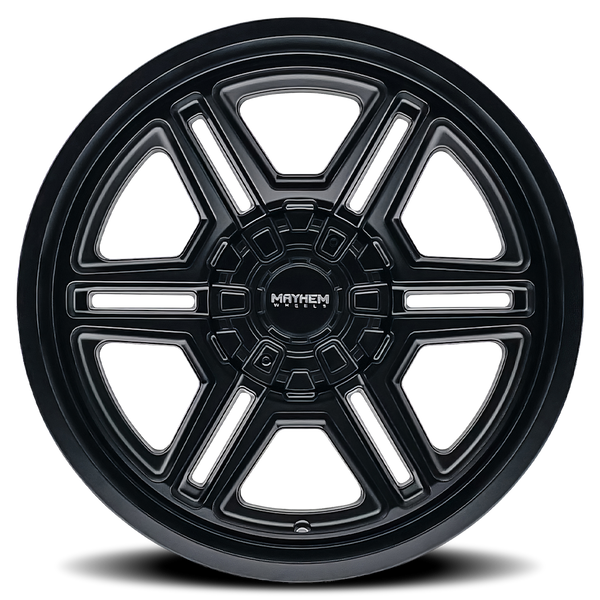

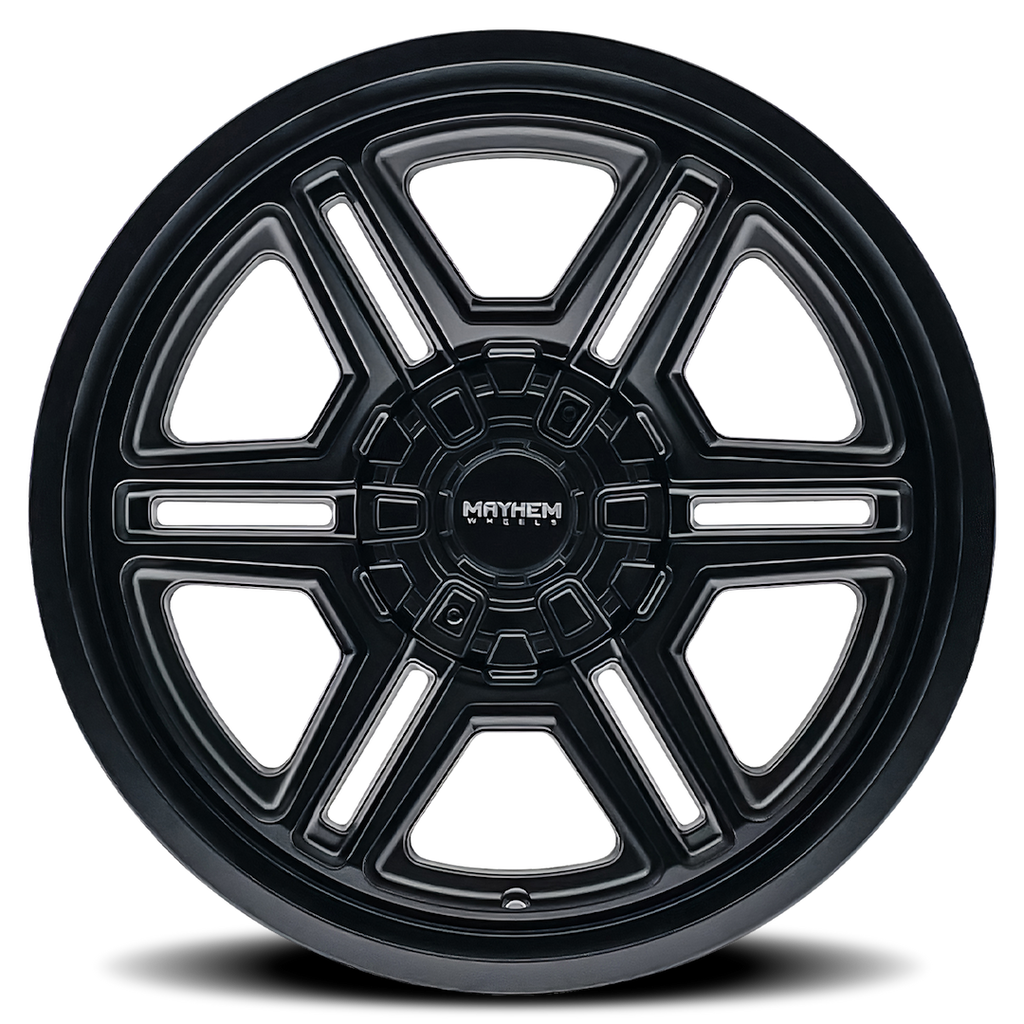

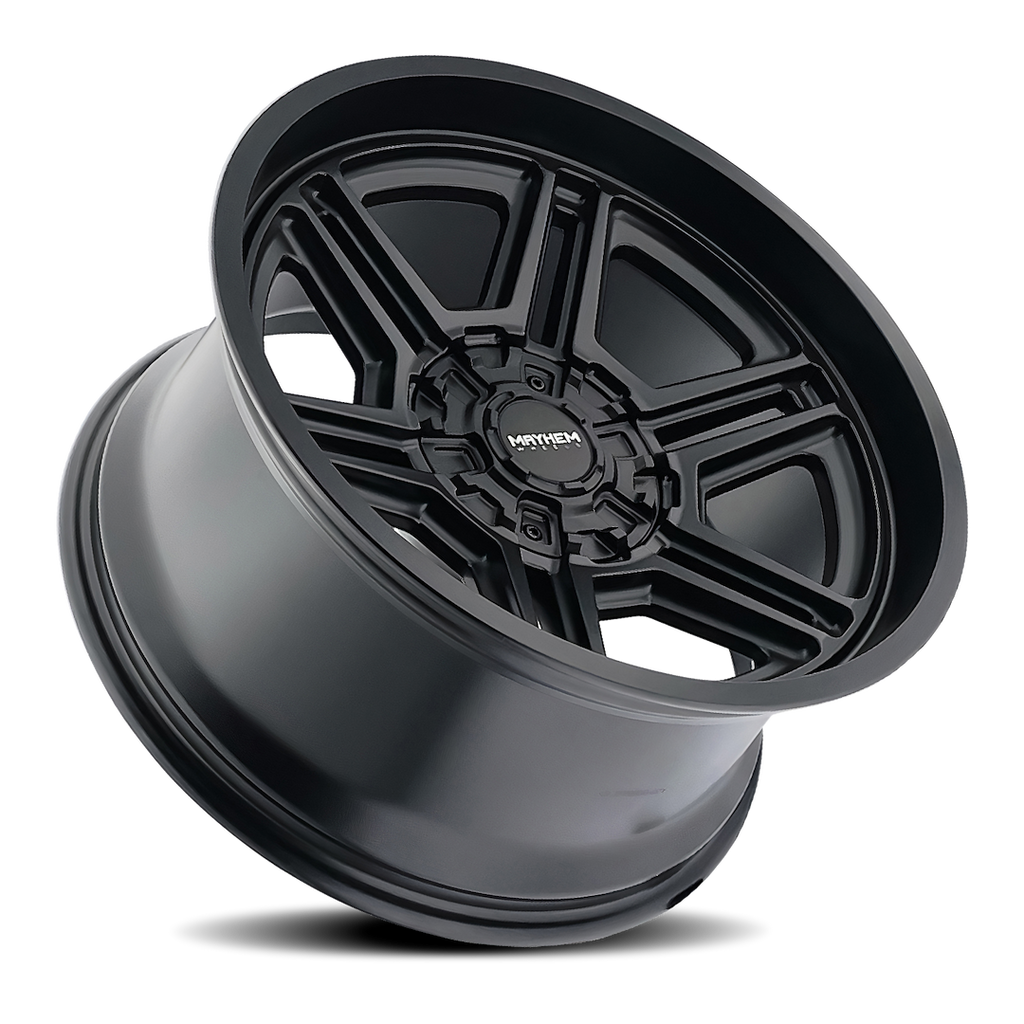

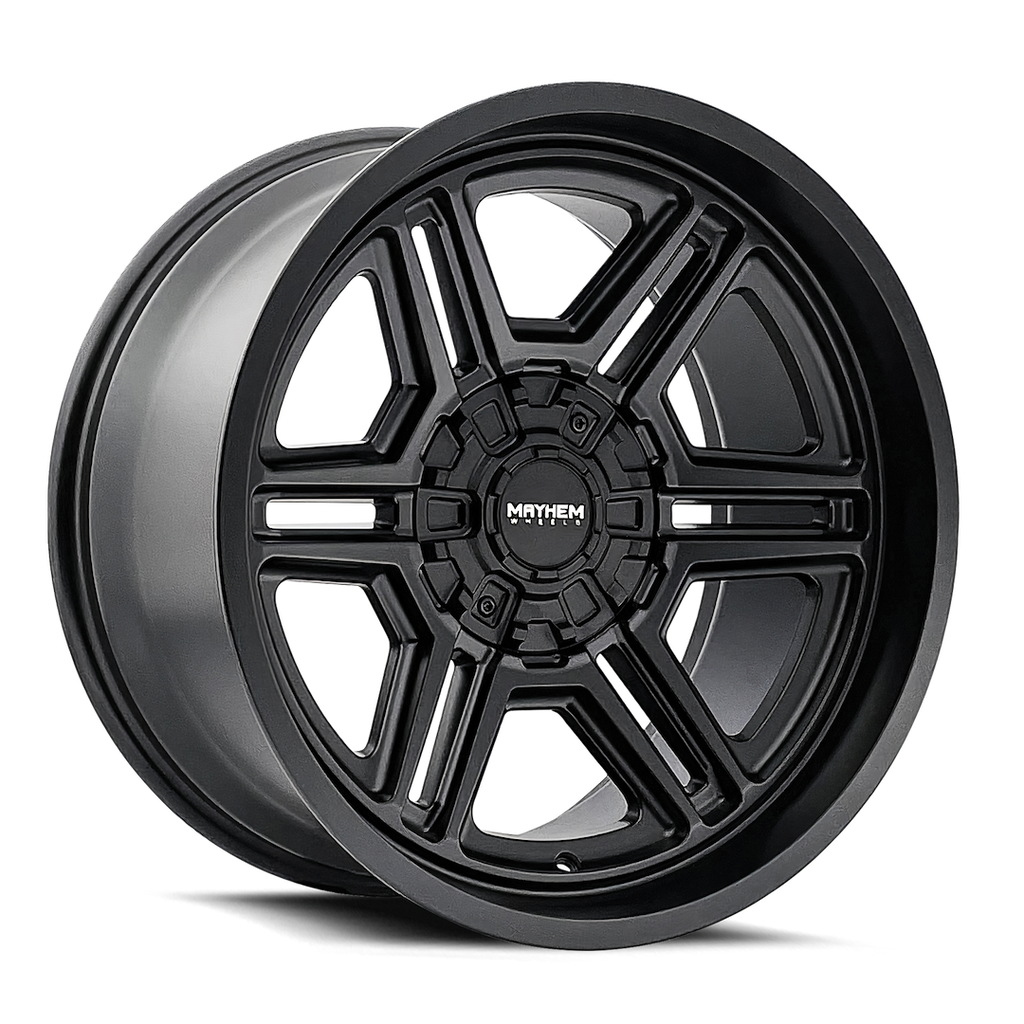

The Mayhem Wheels Hermosa 8117 features a robust 20 inch diameter and 12 inch width, designed to enhance the performance and aesthetics of trucks, SUVs, CUVs, and Jeeps. Constructed from a single piece of cast aluminum, these wheels offer a matte black finish that combines durability with a sleek appearance. With a load capacity of 2500 pounds, they are engineered to support heavy-duty applications while maintaining structural integrity.
The Hermosa 8117 is compatible with Tire Pressure Monitoring Systems (TPMS), ensuring that tire pressure is monitored effectively for optimal performance. The wheel's design includes a 6 split spoke pattern and a 60 degree conical seat lug, providing both style and functionality. Additionally, the 106.00 millimeter center bore and various bolt patterns make these wheels versatile for a range of vehicle fitments.
With a -44 millimeter offset and 4.77 inch backspacing, the Hermosa 8117 is designed to provide an aggressive stance while maintaining proper alignment and handling characteristics. The included Mayhem logo center cap adds a distinctive touch, making these wheels a standout choice for those looking to customize their vehicle.
Features
- 1 Piece Cast Aluminum Construction
- Matte Black Finish
- Compatible With Tire Pressure Monitoring System
- With Mayhem Logo Center Cap
Specifications
- Manufacturer: Mayhem Wheels
- Manufacturer Part Number: 8117-2237MB
- Bolt Pattern Inch: Not Applicable
- Bolt Pattern Millimeter: Not Applicable
- Diameter: 20
- Width: 12
- Offset: -44
- Backspacing: 4.77
- Finish: Painted
- Color: Black
- Material: Aluminum
- Bolt Pattern Inch: 6x5.31
- Bolt Pattern Inch: 6x139.7
- Bolt Pattern Millimeter: 6x135
- Bolt Pattern Millimeter: 6x5.50
- Lug Nut Seat Type: 60 Degree Conical
- Center Caps Included: Yes
- Center Bore: 106.00
- Lug Nut Design: Acorn
- Compatible With TPMS (Tire Pressure Monitoring Sys: Yes
- Basic Design: 6 Split Spoke
- With Inserts: No
- Load Capacity: 2500
- Size: 20x12
- Max Tire Diameter: 42
- Center Cap Design: Mayhem Logo
- Finish Warranty: Limited 1 Year
- Structural Warranty: Lifetime
- Quantity: Single
- Construction: One Piece Cast
- With Hub Centric Ring: No
- Estimated Install Time (Hours): 0.5
Compatibility / Fit
- 2004-2026 Ford F-150
Shipping & Returns
- This product ships within the continental USA only.
- This product typically ships within 1 to 3 business days.
- Returns are accepted within 30 days for items in like-new condition. For complete details, please see our return policy.
