Durable cast aluminum wheel with striking design and high load capacity.

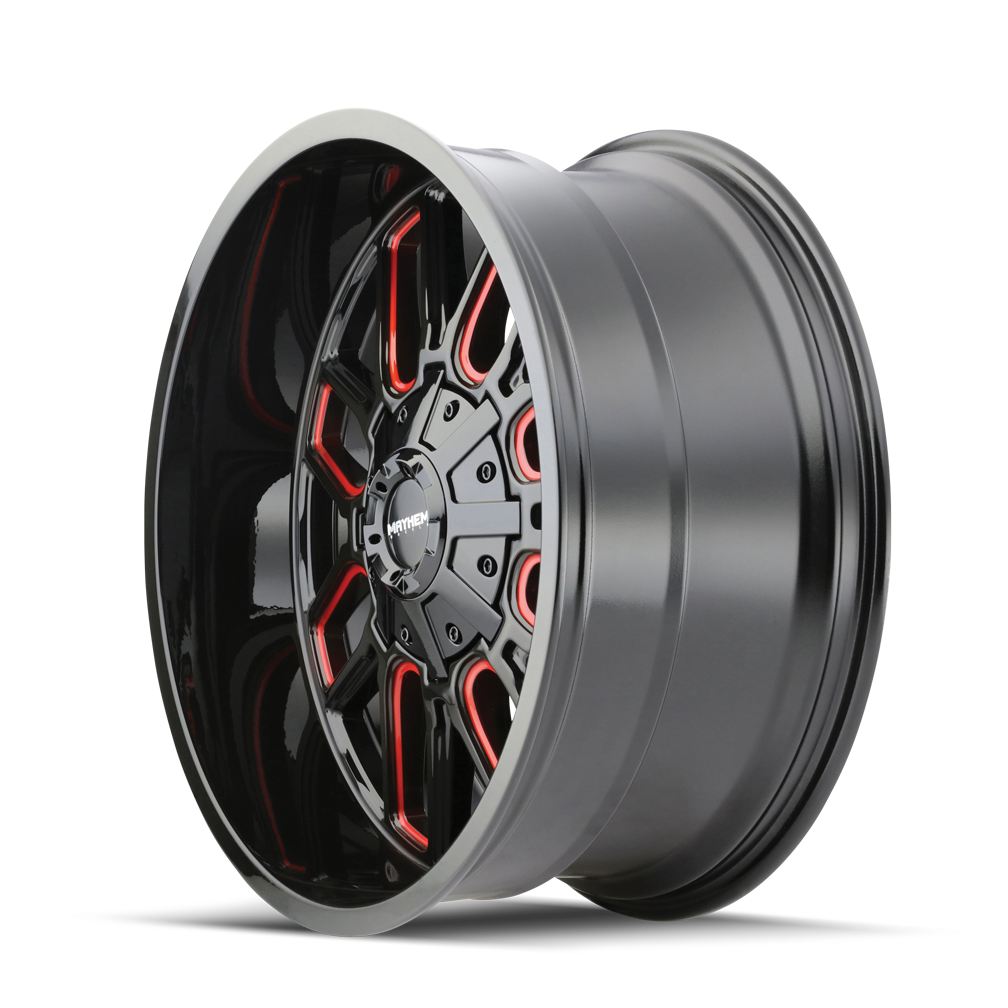

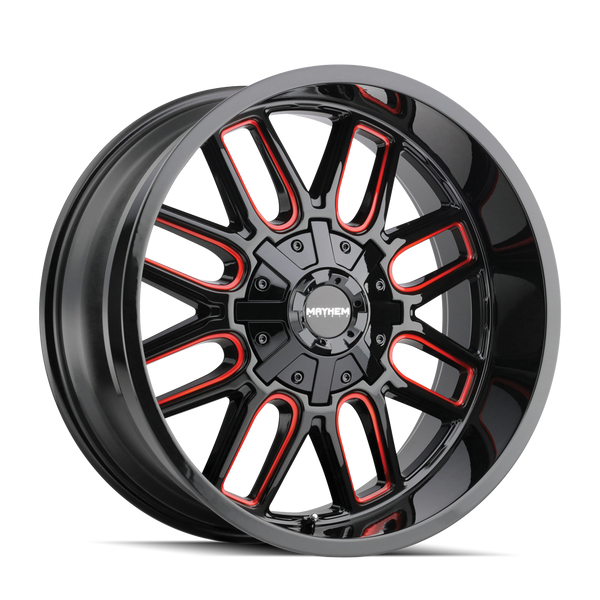

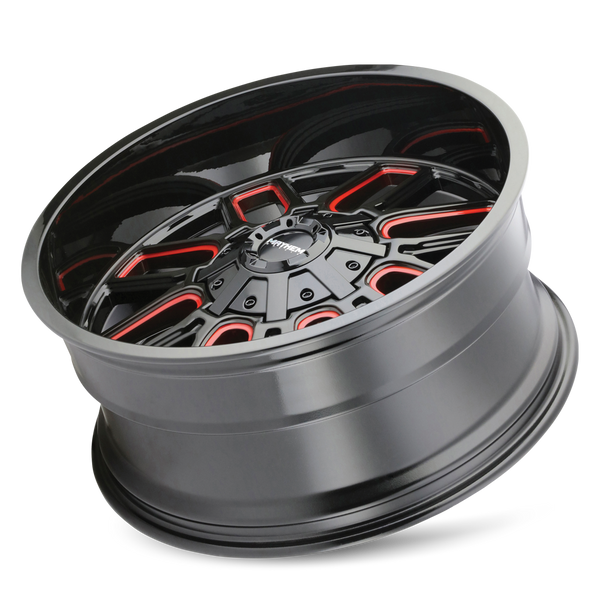

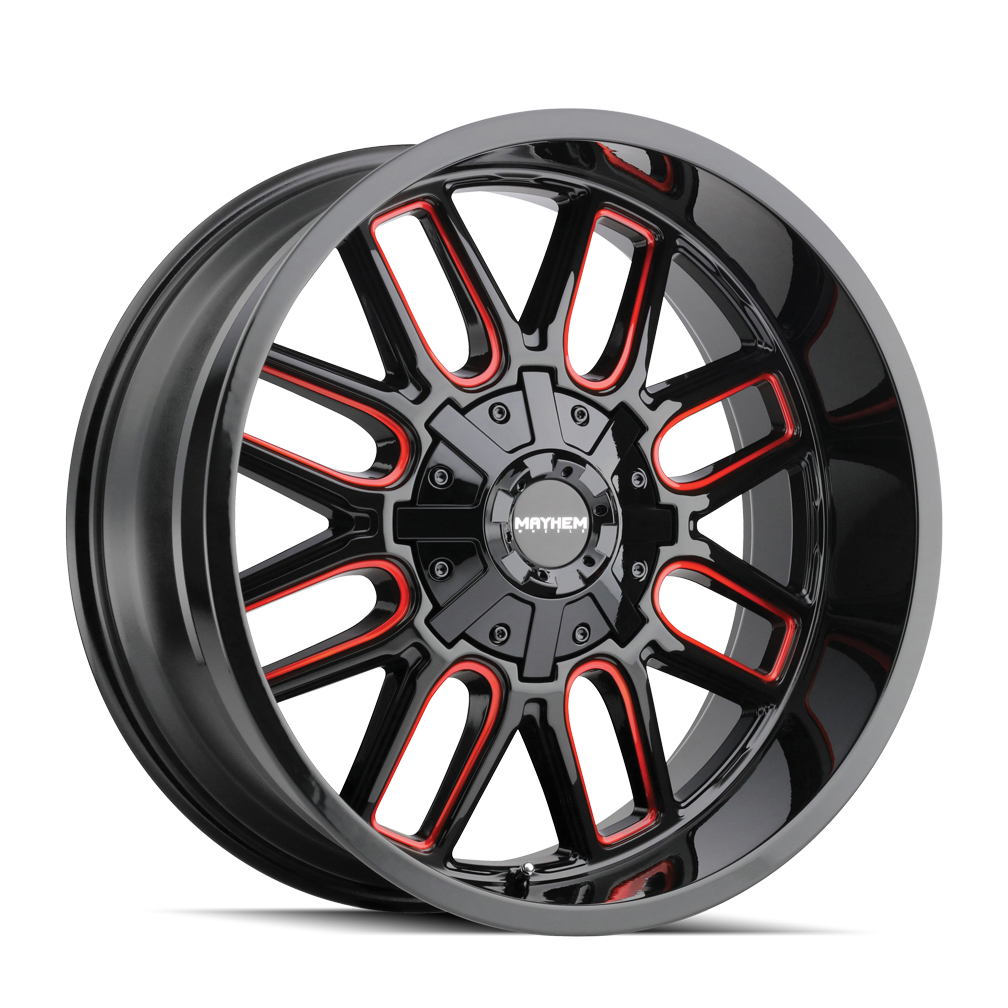

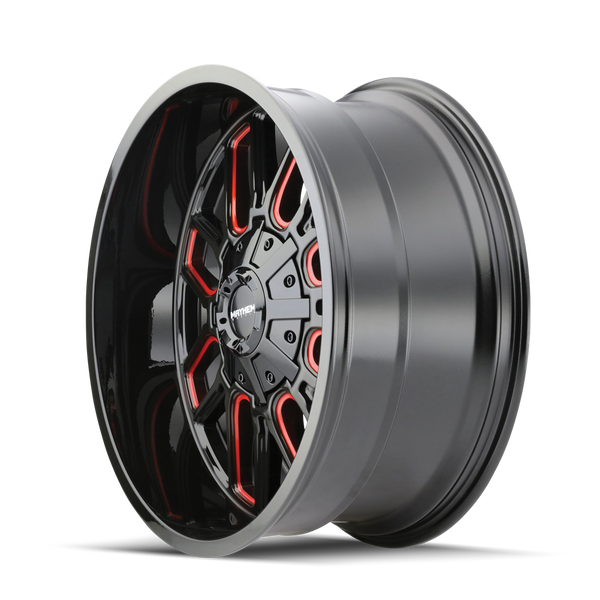

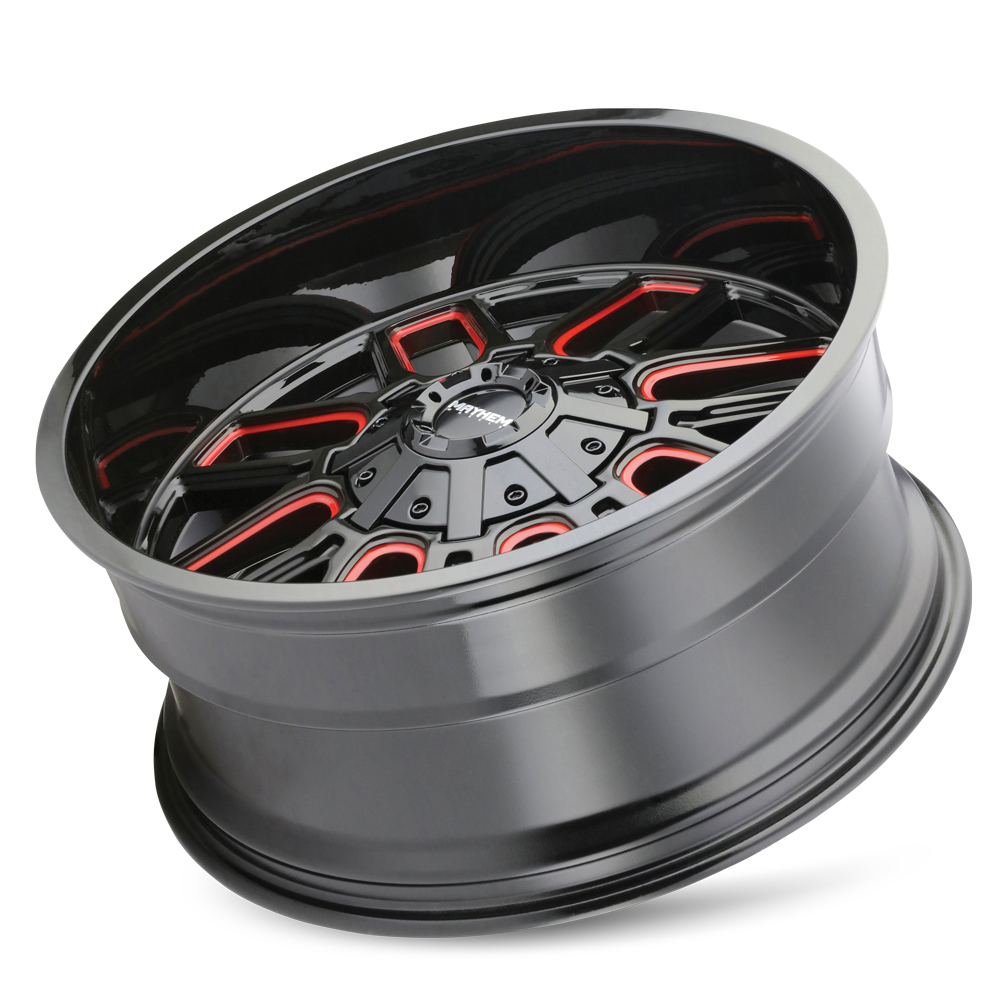

Mayhem Wheels presents a 22 inch diameter wheel designed for trucks, SUVs, CUVs, and Jeeps. This wheel features a robust one piece cast aluminum construction, ensuring durability and strength for demanding applications. The gloss black finish with milled prism red accents provides a distinctive aesthetic that enhances the overall look of your vehicle. With a load capacity of 3640 pounds, this wheel is engineered to support larger tires and withstand heavy usage.
The wheel is compatible with Tire Pressure Monitoring Systems (TPMS), allowing for easy monitoring of tire health. It features an 8 x 170 millimeter bolt pattern and a -19 millimeter offset, making it suitable for a variety of fitments. The 60 degree conical seat lug nut design ensures a secure fit, while the 125.20 millimeter center bore accommodates a wide range of vehicles. This wheel is designed to support a maximum tire diameter of 37 inches, providing versatility for off-road and on-road applications.
Features
- 1 Piece Cast Aluminum Construction
- Gloss Black With Milled Prism Red Accents Finish
- Compatible With Tire Pressure Monitoring System
- With Mayhem Logo Center Cap
Specifications
- Manufacturer: Mayhem Wheels
- Manufacturer Part Number: 8107-22170BTR
- Bolt Pattern Inch: Not Applicable
- Bolt Pattern Millimeter: Not Applicable
- Diameter: 22
- Width: 10
- Offset: -19
- Backspacing: 4.75
- Finish: Painted Gloss With Milled Prism Painted Accents
- Color: Black With Natural Prism Red Accents
- Material: Aluminum
- Bolt Pattern Inch: 8x6.69
- Bolt Pattern Inch: Not Applicable
- Bolt Pattern Millimeter: 8x170
- Bolt Pattern Millimeter: Not Applicable
- Lug Nut Seat Type: 60 Degree Conical
- Center Caps Included: Yes
- Center Bore: 125.20
- Lug Nut Design: Acorn
- Compatible With TPMS (Tire Pressure Monitoring Sys: Yes
- Basic Design: 8 Double Spoke
- With Inserts: No
- Load Capacity: 3640
- Size: 22x10
- Max Tire Diameter: 37
- Center Cap Design: Mayhem Logo
- Finish Warranty: Limited 1 Year
- Structural Warranty: Lifetime
- Quantity: Single
- Construction: One Piece Cast
- With Hub Centric Ring: No
- Estimated Install Time (Hours): 0.5
Compatibility / Fit
- 1999-2026 Ford F-250 Super Duty
- 2009-2026 Ford F-350 Super Duty
