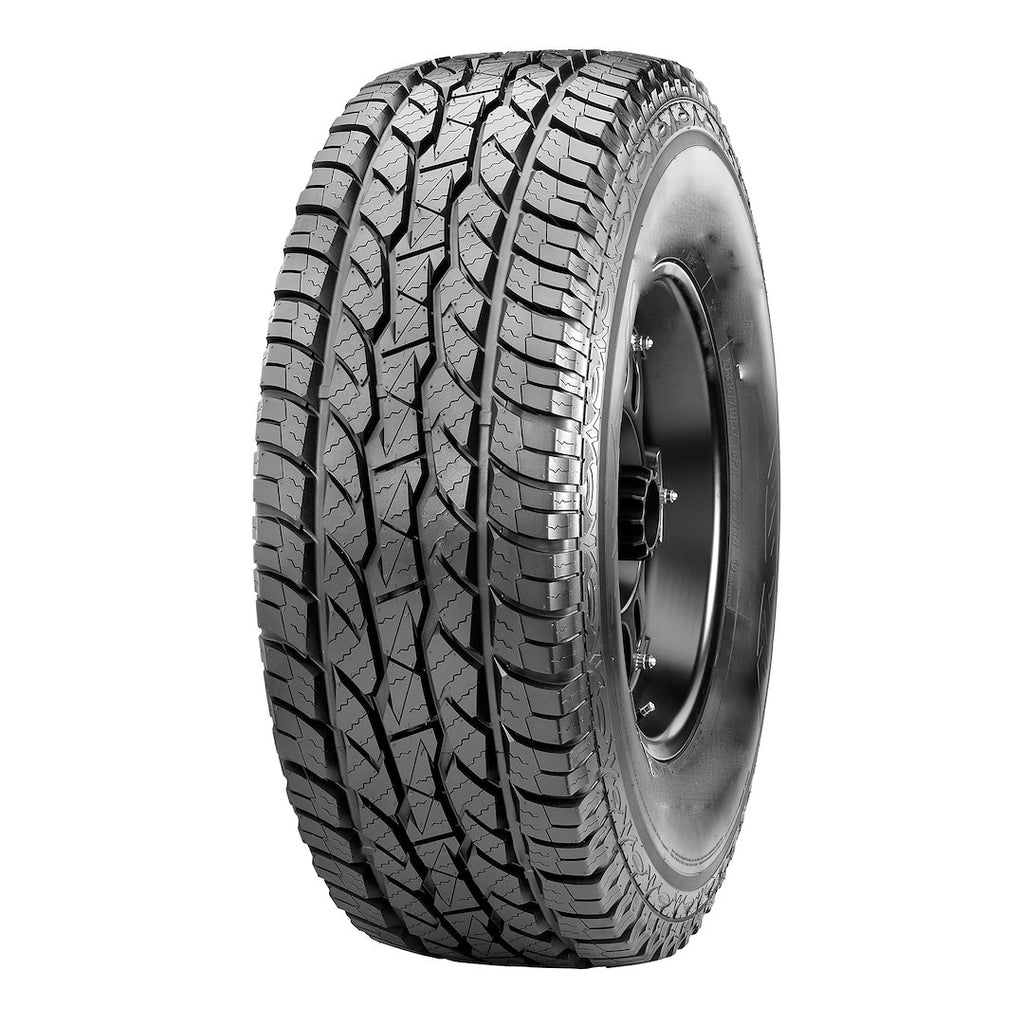

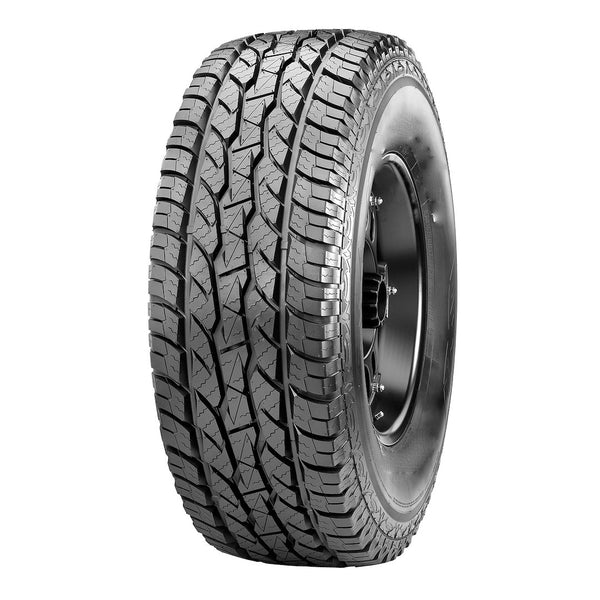

Maxxis Tire AT-771 Bravo All Terrain Tire (MPN: TL37202200)

Engineered for balanced on-road and off-road performance with advanced traction features.

The Maxxis Tire AT-771 Bravo is designed for light trucks and SUVs, providing exceptional all-terrain capabilities. This tire features a unique tread pattern that enhances traction on various surfaces while minimizing road noise through multi-pitch technology. The robust construction includes a stiff yet conformable carcass, ensuring stability and handling both on and off the road.

With a load range of E and a service rating of 120/117R, the AT-771 Bravo supports heavy loads while maintaining a maximum speed of 106 MPH. Its staggered shoulder lug design creates a biting edge for improved off-road traction, while the 3D tread blocks help reduce irregular wear and enhance overall stability. The four U-shaped circumferential grooves provide excellent hydroplaning resistance, making this tire a reliable choice for diverse driving conditions.

The tire is tubeless and compatible with wheels ranging from 6.0 to 7.5 inches wide, featuring a tread depth of 16/32 inches and a maximum inflation pressure of 80 PSI. The outlined white letter sidewall design adds a distinctive look, making the AT-771 Bravo not only functional but also visually appealing. This tire is DOT approved, ensuring compliance with safety standards for street use.

Features

• All-Season, All-Terrain Tire Designed For Excellent Off-Road Performance While Retaining On-Road Refinement
• Multi-Pitch Tread Pattern Design Minimizes Pattern And Road Noise While Maintaining Excellent Off-Road Performance
• Staggered Shoulder Lug Design Creates A Biting Edge For Extra Off-Road Traction
• 3D Tread Blocks Provide Additional Stiffness To Minimize Irregular Wear And Increase Overall Stability
• Four Unique U-Shaped Circumferential Grooves Offer Excellent Hydroplaning Resistance While Minimizing Rock Retention
• Jointless Spiral-Wound Cap Ply Maximizes Ride Refinement And Durability
• Overall Construction Designed To Improve Off-Road Stability And Handling

Specifications

• Manufacturer: Maxxis Tire
• Manufacturer Part Number: TL37202200
• Size Metric: LT-235-80-17
• Tire Type: LT
• Section Width Metric Tire: 235
• Aspect Ratio Metric Tire: 80
• Size Non Metric: LT-32-9-17
• Tire Diameter Non Metric Tire: 32
• Section Width Non Metric Tire: 9
• Wheel Diameter: 17
• Construction: Radial
• Tire Type Description: Light Truck And SUV
• Tire Segment: All Terrain
• Load Range: E = 10 Ply Rating
• Max Load Rating (Single Rear Wheel Use): 3085
• Speed Rating: R
• Size Metric Display Size: LT 235 80 17
• Size Non Metric Display Size: LT 32 9 17
• Construction Material: Polyester Belted
• Compound: Not Applicable
• Studs: Not Applicable
• Sidewall Design: Outlined White Letter
• Minimum Rim Width: 6
• Maximum Rim Width: 7.5
• Service Rating: 120/ 117R
• Max Load Rating (Dual Rear Wheel Use): 2835
• Speed Rating MPH: 106-MPH
• Directional Tread Design: Non Directional
• DOT Compliant: DOT Approved
• Overall Section Width: 9.30
• Tread Depth: 16/32
• Max Inflation Pressure: 80 PSI
• Overall Diameter: 31.8
• Runflat: No
• Uses Inner Tube: Tubeless
• Tread Wear Warranty: No Warranty
• Road Hazard Warranty: No Warranty
• Material Warranty: 50% Of Tread Wear
• Ride Quality Warranty: No Warranty
• Estimated Install Time (Hours): 0.5

Compatibility / Fit

• 1987-1988 Chevrolet R20 Suburban
• 1988-1988 Chevrolet V20 Suburban
• 2003-2010 Dodge Ram 3500
• 1977-1988 Ford E-350 Econoline Club Wagon
• 1987-1987 Ford F-250
• 1989-1996 Ford F-250
• 2011-2015 GMC Sierra 3500 HD
• 2011-2013 Ram 3500
• 2019-2025 Ram 3500
