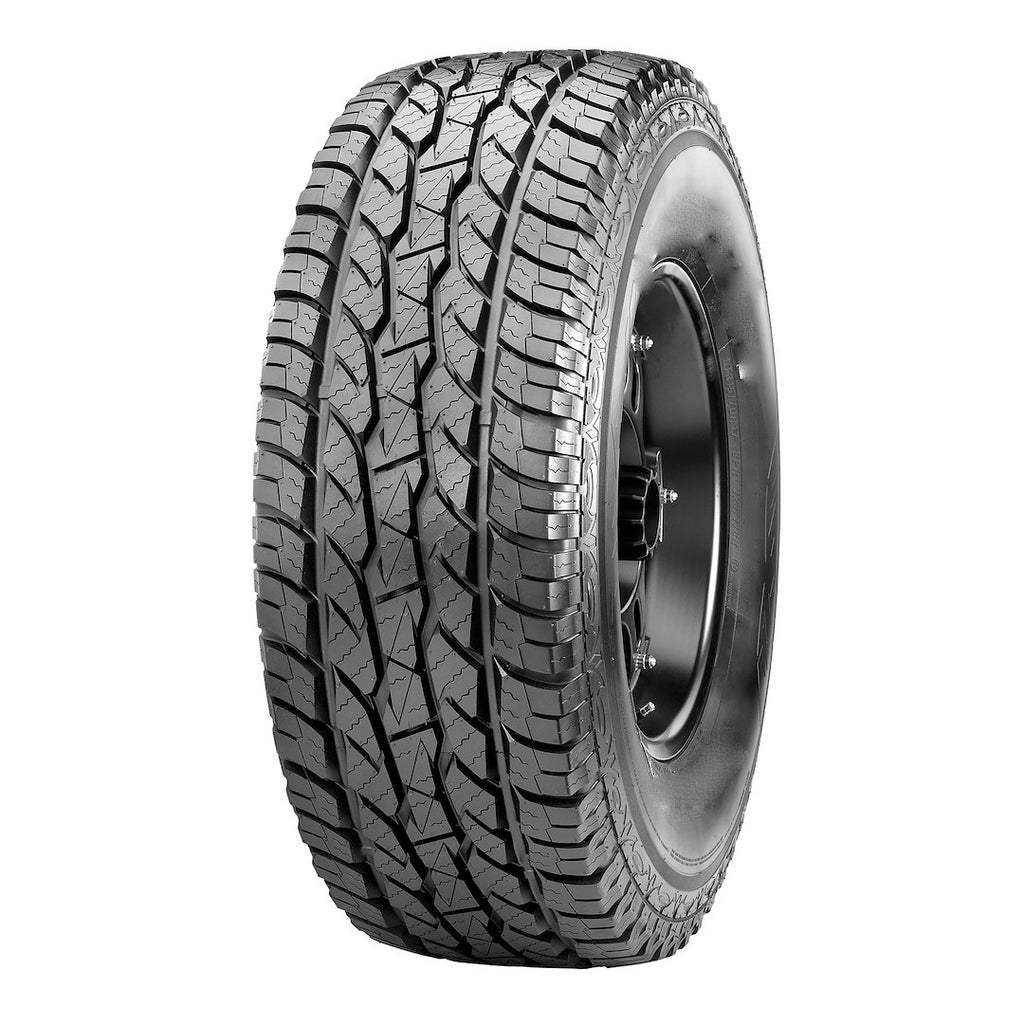

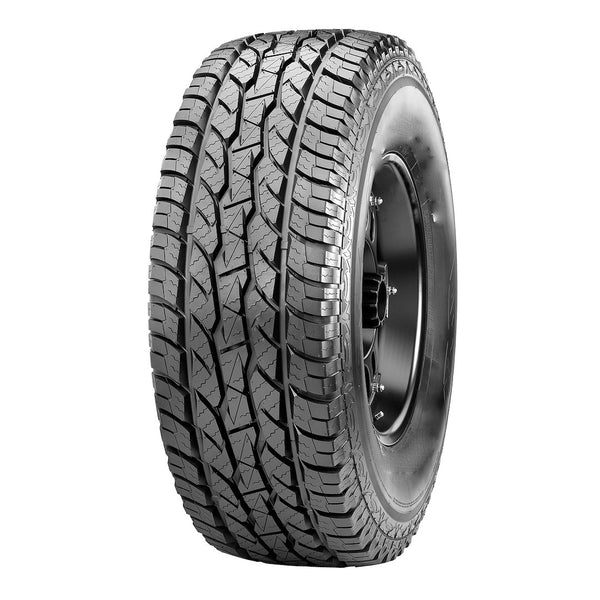

Maxxis Tire AT-771 Bravo All Terrain Tire (MPN: TL30179000)

Engineered for balanced on-road and off-road performance with advanced traction features.

The Maxxis Tire AT-771 Bravo is designed as an all-terrain tire suitable for light trucks and SUVs, providing a robust solution for both on-road and off-road driving conditions. Its unique tread pattern and sidewall lug design enhance traction across various terrains while minimizing road noise through multi-pitch noise reduction technology. The tire's construction features a stiff yet conformable carcass, which improves stability and handling, ensuring a refined ride on smoother surfaces.

This tire is built to withstand the demands of off-road driving, with a staggered shoulder lug design that creates a biting edge for enhanced traction. The 3D tread blocks contribute to overall stability and reduce irregular wear, while the four U-shaped circumferential grooves offer excellent hydroplaning resistance and minimize rock retention. The jointless spiral-wound cap ply further maximizes ride refinement and durability, making the AT-771 a reliable choice for diverse driving environments.

With a load range of E and a service rating of 120/116S, the AT-771 Bravo can support significant weight, making it suitable for heavy-duty applications. The tire is tubeless and DOT approved, ensuring compliance with safety standards. Its maximum inflation pressure of 80 PSI and a tread depth of 15/32 inches provide additional assurance of performance longevity and reliability.

Features

• All-Season, All-Terrain Tire Designed For Excellent Off-Road Performance While Retaining On-Road Refinement
• Multi-Pitch Tread Pattern Design Minimizes Pattern And Road Noise While Maintaining Excellent Off-Road Performance
• Staggered Shoulder Lug Design Creates A Biting Edge For Extra Off-Road Traction
• 3D Tread Blocks Provide Additional Stiffness To Minimize Irregular Wear And Increase Overall Stability
• Four Unique U-Shaped Circumferential Grooves Offer Excellent Hydroplaning Resistance While Minimizing Rock Retention
• Jointless Spiral-Wound Cap Ply Maximizes Ride Refinement And Durability
• Overall Construction Designed To Improve Off-Road Stability And Handling

Specifications

• Manufacturer: Maxxis Tire
• Manufacturer Part Number: TL30179000
• Size Metric: LT-235-85-16
• Tire Type: LT
• Section Width Metric Tire: 235
• Aspect Ratio Metric Tire: 85
• Size Non Metric: LT-32-9-16
• Tire Diameter Non Metric Tire: 32
• Section Width Non Metric Tire: 9
• Wheel Diameter: 16
• Construction: Radial
• Tire Type Description: Light Truck And SUV
• Tire Segment: All Terrain
• Load Range: E = 10 Ply Rating
• Max Load Rating (Single Rear Wheel Use): 3085
• Speed Rating: S
• Size Metric Display Size: LT 235 85 16
• Size Non Metric Display Size: LT 32 9 16
• Construction Material: Polyester Belted
• Compound: Not Applicable
• Studs: Not Applicable
• Sidewall Design: Outlined White Letter
• Minimum Rim Width: 6
• Maximum Rim Width: 7.5
• Service Rating: 120/ 116S
• Max Load Rating (Dual Rear Wheel Use): 2755
• Speed Rating MPH: 112-MPH
• Directional Tread Design: Non Directional
• DOT Compliant: DOT Approved
• Overall Section Width: 9.30
• Tread Depth: 16/32
• Max Inflation Pressure: 80 PSI
• Overall Diameter: 31.8
• Runflat: No
• Uses Inner Tube: Tubeless
• Tread Wear Warranty: No Warranty
• Road Hazard Warranty: No Warranty
• Material Warranty: 50% Of Tread Wear
• Ride Quality Warranty: No Warranty
• Estimated Install Time (Hours): 0.5

Compatibility / Fit

• 1982-1986 Chevrolet C20
• 1982-1986 Chevrolet C20 Suburban
• 1982-1982 Chevrolet C30
• 1982-1982 Chevrolet K20 Suburban
• 1982-1982 Chevrolet K30
• 1987-1988 Chevrolet R20 Suburban
• 1989-1989 Chevrolet R2500
• 1988-1988 Chevrolet R30
• 1987-1987 Chevrolet V20
• 1987-1988 Chevrolet V20 Suburban
• 1987-1987 Chevrolet V30
• 1990-1993 Dodge D350
• 2000-2002 Dodge Ram 3500
• 1977-1988 Ford E-350 Econoline Club Wagon
• 1987-1996 Ford F-250
• 1979-1981 GMC C2500 Suburban
• 1981-1986 GMC C3500
• 1975-1978 GMC K25 Suburban
• 1982-1986 GMC K2500
• 1977-1978 GMC K35
• 1985-1986 GMC K3500
• 1987-1987 GMC P3500
• 1987-1989 GMC R2500
• 1987-1988 GMC R3500
• 1996-1999 GMC Savana 2500
• 2001-2001 GMC Sierra 3500
• 2003-2003 GMC Sierra 3500
• 1987-1987 GMC V3500
• 1990-1991 GMC V3500
