Efficient chain handling with independent capstan for versatile anchoring solutions.

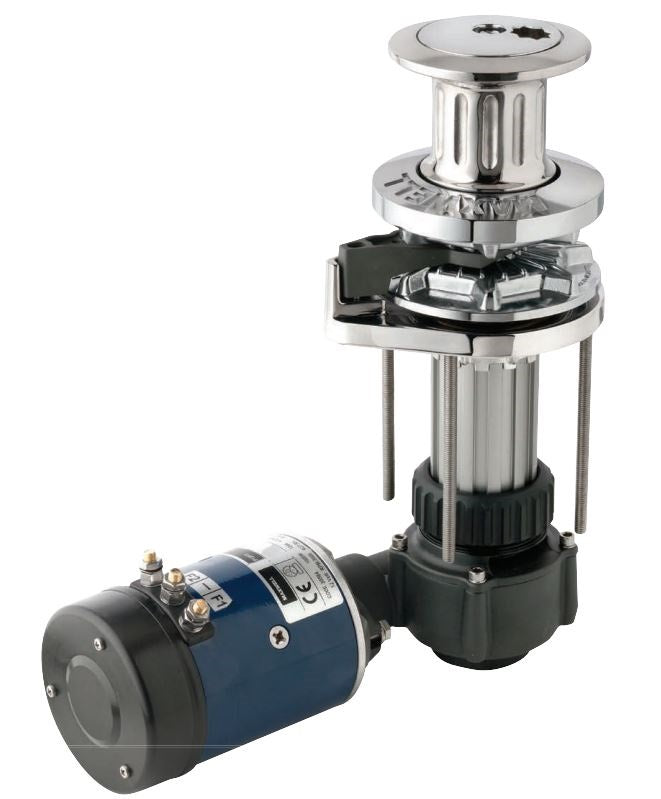

The Maxwell VW1500 Series Vertical Windlass is engineered for the automatic handling of chain-only anchor rodes, featuring an independent capstan that facilitates the retrieval of secondary ropes or chains. This design enhances docking procedures and provides flexibility in anchoring applications. Constructed from marine-grade 316 stainless steel and chromed bronze, the windlass ensures long-term durability and resistance to harsh marine environments.
With a maximum pull of 1870 pounds and a working load limit of 3300 pounds, the VW1500 Series delivers reliable performance. It boasts a maximum line speed of 59 feet per minute, making it efficient for various anchoring tasks. The modular design simplifies through-deck installation, while the anodized aluminum gearbox and spacer contribute to its robust construction.
The windlass features a cone-type brake and clutch mechanism that allows for manual 'free fall' anchoring, providing smooth and progressive engagement for safe operator control. Additionally, the heavy-duty dual direction Cima motor is specifically designed for marine winches, ensuring dependable operation. The unit can be easily disassembled for servicing, making maintenance straightforward.
Features
- Permits Use Of Traditional Shackle And Thimble Rope And Chain Connection
- Allows Alternative Mounting Horizontally On A Fore And Aft Bulkhead Inside Chain Locker For Below Deck Installation
- High-Quality Finish On Above Deck Components, Manufactured From Marine Grade Stainless Steel And Chromed Bronze, For Long Term Durability
- Cone Type Brake And Clutch Mechanism Permits Manual ‘Free Fall’ Anchoring: Cone Clutches, Unlike Dog Clutches, Provide Smooth Progressive Engagement Ensuring Safe Operator Control
- Simplified Through Deck Installation By Modular Design
- Anodized Aluminum Gearbox And Spacer
- Heavy Duty, Dual Direction Cima Motor, Designed For Marine Winches
- Easily Disassembled For Servicing
Specifications
- Manufacturer: Maxwell
- Manufacturer Part Number: VW150024V105
- Mount Type: Vertical
- Maximum Pull: 1870 Pound
- Working Load Limit: 3300 Pound
- Maximum Line Speed: 59 Feet Per Minute Line
- Chain/ Rope Size: 1/4 To 3/8 Inch Chain
- Material: 316 Stainless Steel
- Voltage Rating: 24 Volt DC
- Motor Power: 1200 Watt
