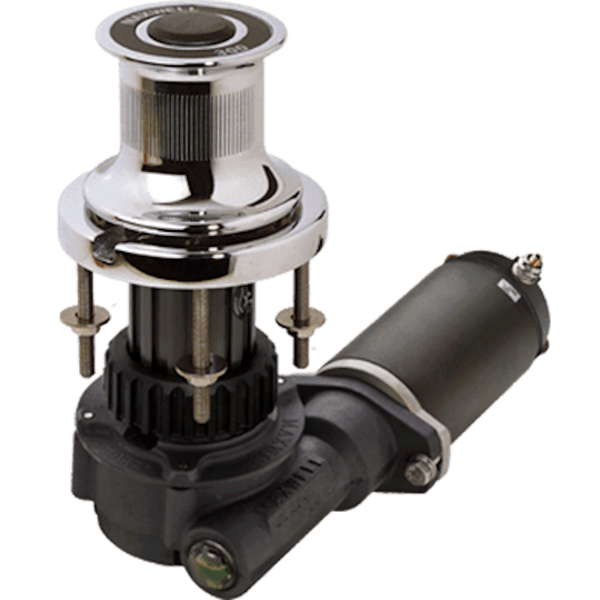

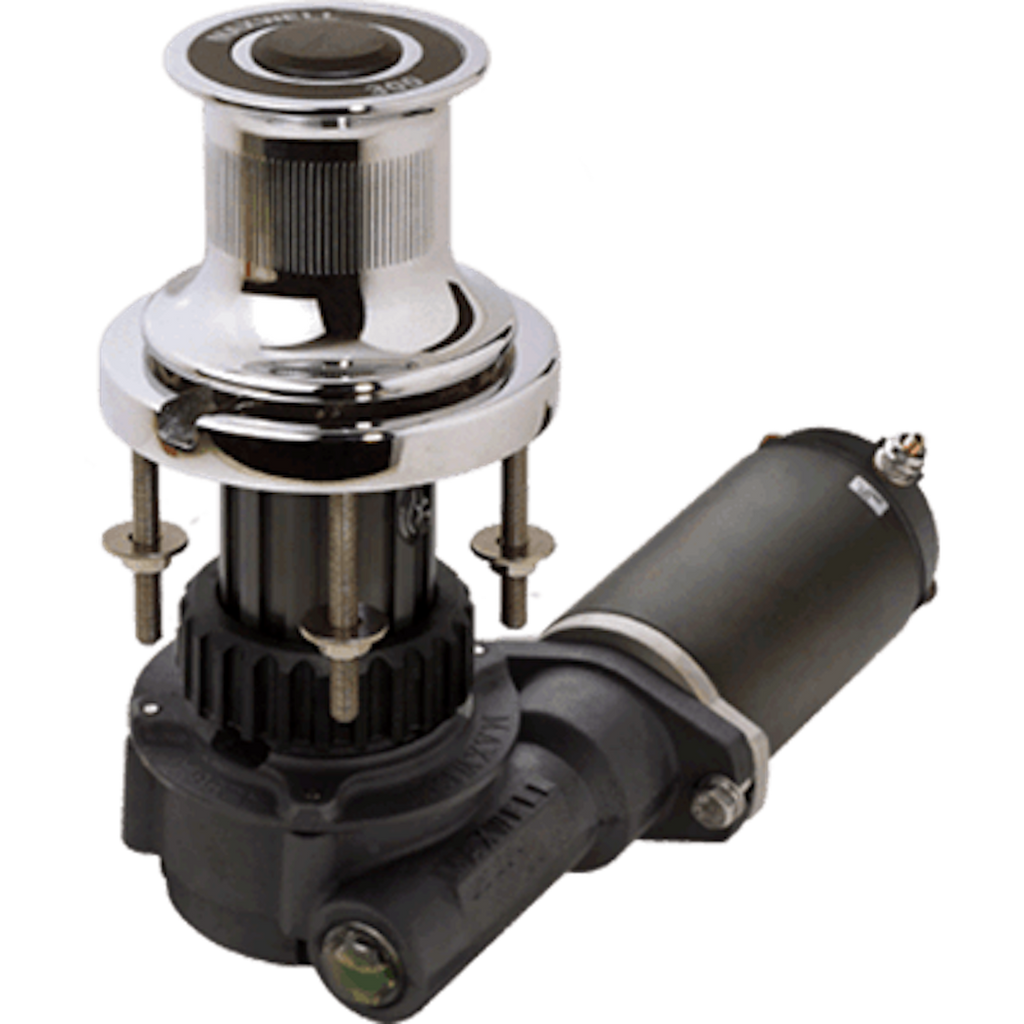

Maxwell VC Series Capstan (MPN: VC50012V)

Efficient vertical capstan for reliable rope hauling and anchor recovery.

The Maxwell VC Series Capstan is engineered for effective anchor recovery and rope hauling on various marine vessels. With a maximum capacity of 500 pounds and a pulling speed of 60 feet per minute, this capstan is suitable for both smaller powerboats and larger craft. Its vertical design allows for versatile applications, including use as a docking capstan or for auxiliary line hauling.

Constructed with high-quality materials, the capstan features a durable chrome finish over marine-grade bronze, ensuring longevity and resistance to corrosion. The independent MAX-grip snag-free warping drum allows for functional rope hauling from any direction, enhancing operational efficiency. The modular design simplifies through-deck installation, while the precise alignment of the gearbox to the top works ensures reliable performance.

The compact and reliable gearbox is made from corrosion-resistant materials, and the anodised aluminium components contribute to the overall durability of the unit. Designed for easy servicing, the capstan can be disassembled without difficulty, making maintenance straightforward. With a 12 VDC, 600-watt motor, the VC Series Capstan is a robust solution for marine applications.

Features

• Vertical design suits smaller powerboats or sailboats and can be utilised for anchor rodes, as a docking capstan on larger craft, or auxiliary line hauling.
• High quality finish on above deck components, hard wearing chrome over marine-grade bronze
• Functional rope hauling from any direction using independent MAX-grip snag-free warping drum.
• Simplified through deck installation by modular design and precise alignment of gearbox to the top works utilising marine-grade stainless steel bolts.
• Alternative gearbox/motor positions accommodate virtually all installation situations.
• Compact, reliable gearbox, made of corrosion resistant materials.
• Anodised aluminium gearbox and spacer on 300, 500 and 1000 models.
• Heavy duty, dual direction motors, designed for marine winches.
• Easily disassembled for servicing.

Specifications

• Manufacturer: Maxwell
• Manufacturer Part Number: VC50012V
• Mount Type: Vertical, below deck motor
• Maximum Pull: 500 Pound
• Maximum Line Speed: Rope only, 60'/min.
• Size: Above Deck: 4.2''; Below Deck: 6.9''; Motor offset: 9.6''; Wt: 22 lbs.; Max deck thickness: 2''
• Chain/ Rope Size: Rope only, variable size
• Voltage Rating: 12 VDC
• Motor Power: 600 Watt
