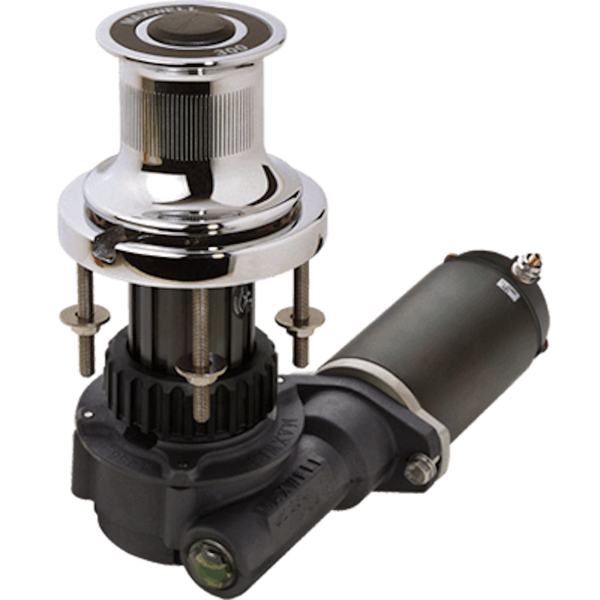

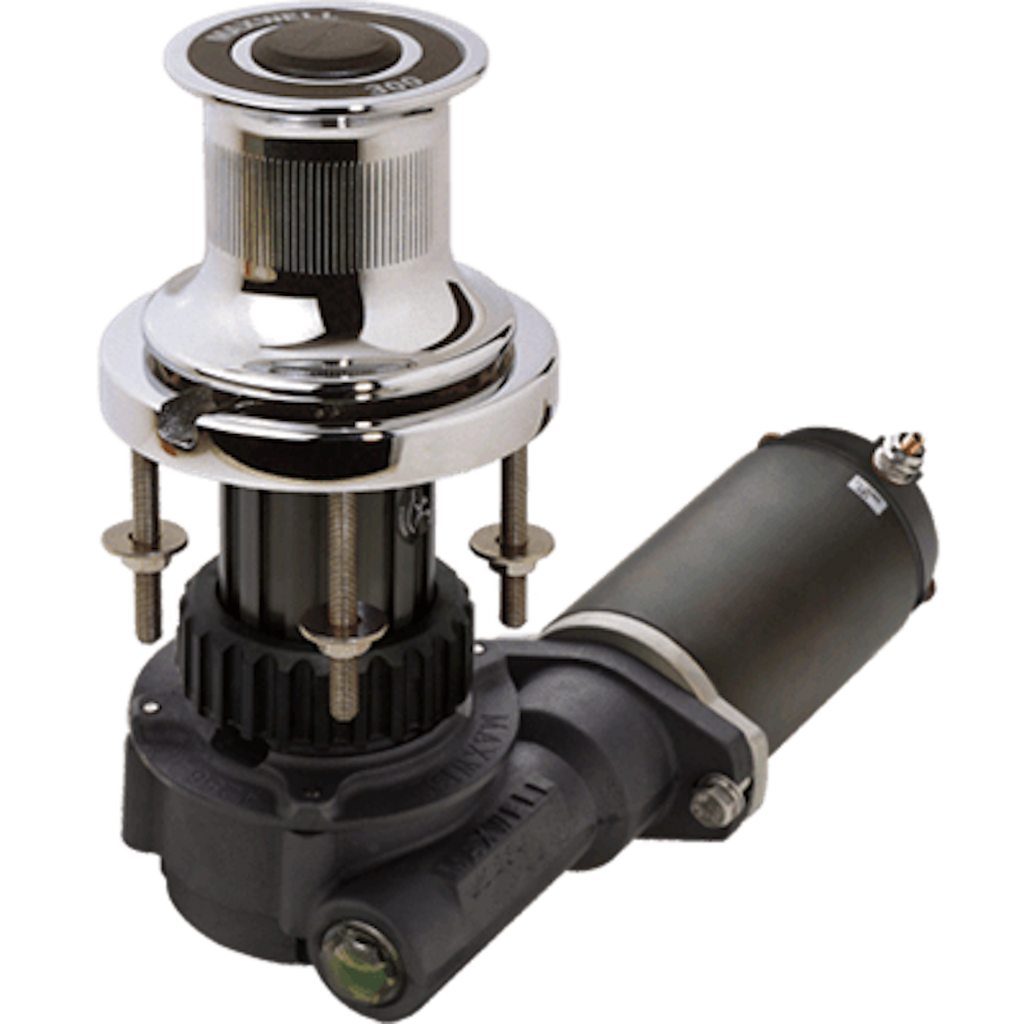

Maxwell VC Series Capstan (MPN: VC1000)

Efficient vertical capstan for reliable rope hauling and anchor recovery.

The Maxwell VC Series Capstan is engineered for effective anchor recovery and rope hauling on various marine vessels. This vertical capstan features a below-deck motor, making it suitable for smaller powerboats and sailboats, while also serving as a docking capstan for larger crafts. With a maximum capacity of 1000 pounds and a line speed of 65 feet per minute, it provides robust performance for demanding marine applications.

Constructed with high-quality materials, the capstan includes a hard-wearing chrome finish over marine-grade bronze components, ensuring durability in harsh marine environments. Its modular design allows for simplified installation through the deck, accommodating decks up to 4 inches thick. The independent MAX-grip warping drum enables functional rope hauling from any direction, enhancing versatility during operation.

The compact and reliable gearbox is made from corrosion-resistant materials, ensuring longevity and ease of maintenance. The dual direction motors are specifically designed for marine winches, providing dependable power for various tasks. The VC Series Capstan is an essential tool for efficient marine operations, combining strength, reliability, and ease of use.

Features

• Vertical design suits smaller powerboats or sailboats and can be utilised for anchor rodes, as a docking capstan on larger craft, or auxiliary line hauling.
• High quality finish on above deck components, hard wearing chrome over marine-grade bronze
• Functional rope hauling from any direction using independent MAX-grip snag-free warping drum.
• Simplified through deck installation by modular design and precise alignment of gearbox to the top works utilising marine-grade stainless steel bolts.
• Alternative gearbox/motor positions accommodate virtually all installation situations.
• Compact, reliable gearbox, made of corrosion resistant materials.
• Anodised aluminium gearbox and spacer on 300, 500 and 1000 models.
• Heavy duty, dual direction motors, designed for marine winches.
• Easily disassembled for servicing.

Specifications

• Manufacturer: Maxwell
• Manufacturer Part Number: VC1000
• Mount Type: Vertical, below deck motor
• Maximum Pull: 1000 Pound
• Maximum Line Speed: Rope only, 65'/min.
• Size: Above Deck: 4.3''; Below Deck:10''; Motor offset: 10.75''; Wt: 40 lbs.; Max deck thickness: 4''
• Chain/ Rope Size: Rope only, variable size
• Voltage Rating: 12 VDC
• Motor Power: 1000 Watt
