High-performance windlass with advanced engineering for reliable operation.

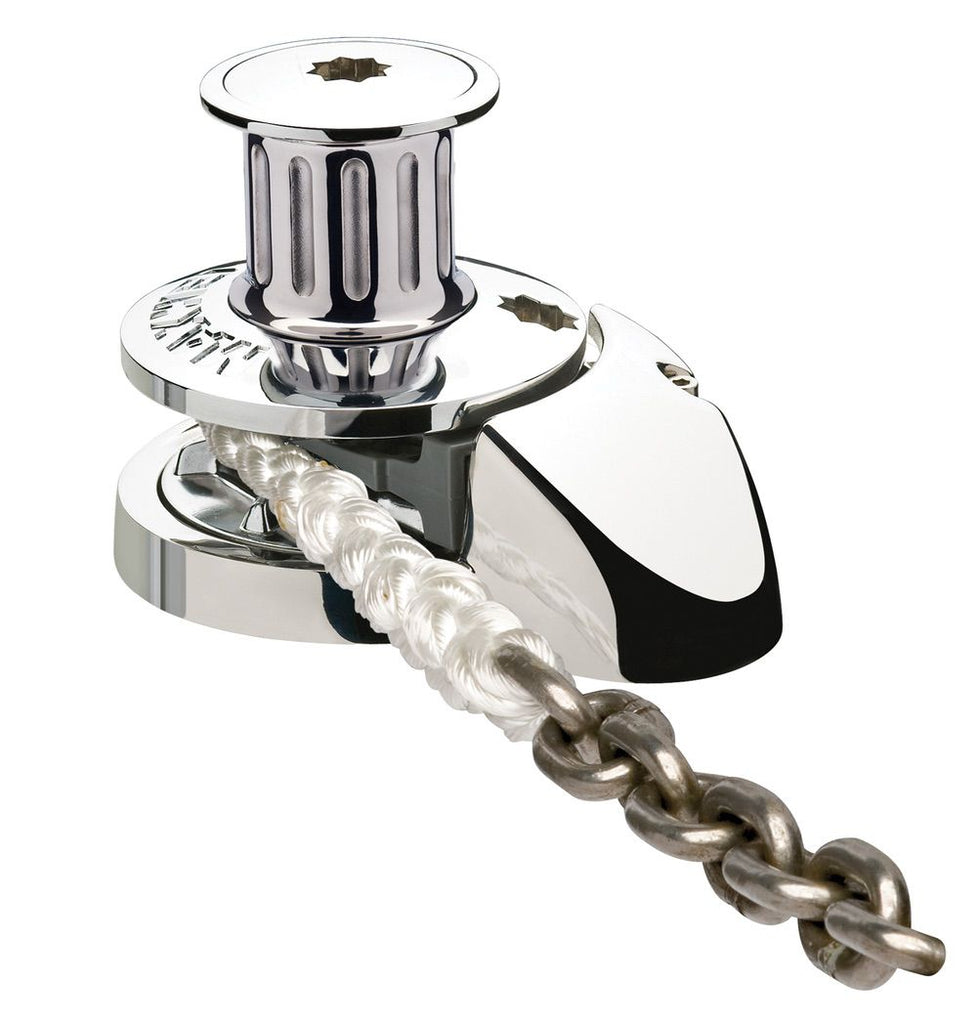

The Maxwell RC8 Series Vertical Windlass is engineered for optimal performance and longevity, making it a reliable choice for marine applications. With a maximum pull of 1320 pounds and a working load limit of 2640 pounds, this windlass is designed to handle demanding tasks efficiently. It features a unique Wave Design rope/chain gypsy that accommodates various chain pitch differences, ensuring compatibility with both imperial and metric chain sizes.
Constructed from 316 stainless steel, the RC8 windlass is built to withstand harsh marine environments. It operates on a 12 Volt DC system and is powered by a 1000 Watt motor, providing a maximum line speed of 105 feet per minute for chain and 92 feet per minute for rope. The windlass includes a manual override and free fall capability, allowing for easy operation in emergencies.
Maintenance is simplified with a gearbox that can be removed by hand without tools, and full disassembly of the top works can be achieved using only the provided handle and an Allen key. The sealed oil bath and marine-grade hard anodized alloy gearbox ensure maximum output and durability. Additionally, the unique spacer tube design allows for installation through various deck thicknesses, making it versatile for different setups.
Features
- Gearbox Can Be Removed By Hand And Without Tools For Easy Maintenance And Inspection
- Full Disassembly Capability Of The Top Works Utilizing Only The Handle Provided And An Allen Key
- Manual Override And ‘Free Fall’, Using The Emergency Crank And Clutch Handle Provided
- Sealed Oil Bath And Marine-Grade Hard Anodized, Alloy Gearbox Provides Maximum Output Via A Precision Worm And Worm Wheel
- Every Maxwell RC8 Automatic Rope/Chain Windlass Comes With Top Works, Motor/Gear Box And Dual Direction Solenoid
- Unique Spacer Tube Design Allows For Installation Through Virtually Any Deck Thickness, And The Multiple Mounting Positions
Specifications
- Manufacturer: Maxwell
- Manufacturer Part Number: RC88CAP12V
- Mount Type: Vertical
- Maximum Pull: 1320 Pound
- Working Load Limit: 2640 Pound
- Maximum Line Speed: 105 Feet Per Minute Chain/ 92 Feet Per Minute Rope
- Size: 16-1/4 Inch Width
- Chain/ Rope Size: 5/16 Inch Chain And 9/16 To 5/8 Inch Rope
- Material: 316 Stainless Steel
- Voltage Rating: 12 Volt DC
- Motor Power: 1000 Watt
