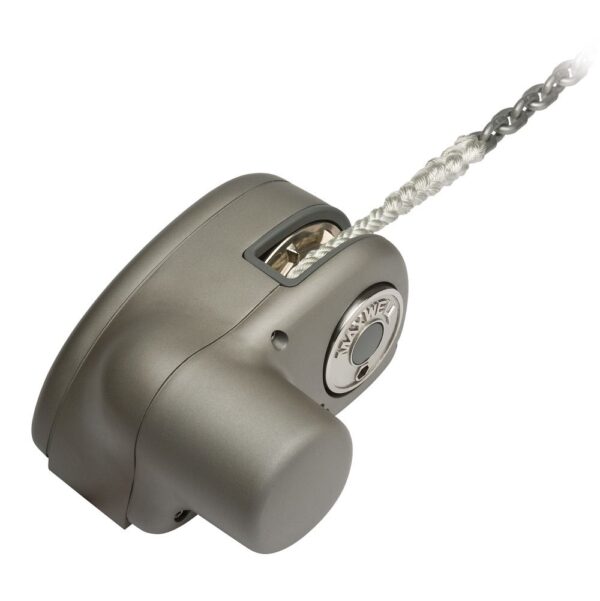

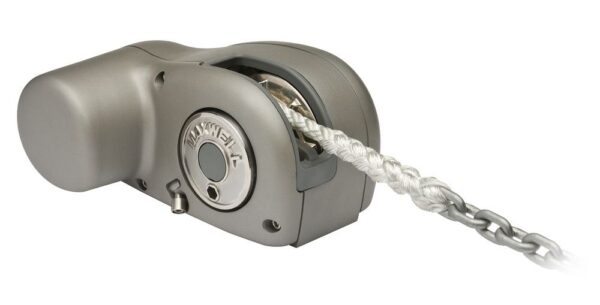

Maxwell HRCFF Series Horizontal Windlass (MPN: HRCFF812V)

Efficient anchoring with advanced free-fall technology for marine use.

The Maxwell HRCFF Series Horizontal Windlass is engineered for optimal performance in marine environments, featuring a maximum pull capacity of 900 pounds and a working load limit of 1540 pounds. This windlass operates at a maximum line speed of 108 feet per minute, making it suitable for rapid anchoring needs, particularly favored by fishermen. Its compact design, measuring 10-1/8 inches in width and 8-3/8 inches in depth, allows for easy installation and maintenance while encapsulating the motor and drive in a watertight case for enhanced durability.

Incorporating Maxwell's Automatic Free-Fall Technology, the windlass allows for seamless control from the helm, enabling users to deploy the anchor with precision. The innovative pressure arm system ensures a smooth transition from rope to chain, while the integrated composite nylon hawse pipe facilitates snag-free operation. The die cast marine-grade alloy case is hard anodized, providing superior protection against harsh marine conditions.

Designed for ease of use, the HRCFF windlass features a simple bolt-down installation process and a high-efficiency spur gearbox with a robust non-backwind mechanism. In the event of a power failure, an emergency free-fall function can be activated using the supplied lever, ensuring reliable operation at all times. This windlass has been rigorously tested in challenging marine climates, proving its reliability and functionality since its introduction in 2011.

Features

• Now Incorporating Maxwell’s Automatic Free-Fall Technology: Simply Activate The Windlass ‘Free Fall’ Lever, Operate Your Down Control
• Aesthetically Pleasing Above Deck Design, Encapsulating The Motor And Drive In A Watertight Case, Saving Space Below Deck And Allowing Simple Routine Maintenance
• Die Cast, Marine-Grade, Alloy Case Is Hard Anodized For Unsurpassed Marine Protection
• Simple ‘bolt Down’ Installation Ensures Effortless And Rapid On-Deck Installation And Set Up
• Trouble Free Rode Transition From Rope To Chain, By Means Of An Innovative, Proven And Patented Pressure Arm System, Within A Safe Enclosed Design
• Integrated Composite Nylon, Through Deck Hawse Pipe For Ease Of Installation And Smooth, Snag-Free Operation
• High Efficiency Spur Gearbox Incorporating A Robust Non-Backwind Mechanism
• High Speed, Jam-Free Retrieval Of Rope And Chain Controlled From A Remote Panel Mounted Up/Down Switch
• Emergency ‘free Fall’ Function In The Event Of Onboard Power Failure: Activated By The Supplied, Emergency ‘Free Fall’ Lever

Specifications

• Manufacturer: Maxwell
• Manufacturer Part Number: HRCFF812V
• Mount Type: Horizontal
• Maximum Pull: 900 Pound
• Working Load Limit: 1540 Pound
• Maximum Line Speed: 108 Feet Per Minute
• Size: 10-1/8 Inch Width X 8-3/8 Inch Depth
• Chain/ Rope Size: 5/16 Inch Chain And 9/16 Inch Rope
• Material: Die Cast Marine Grade Alloy Case
• Voltage Rating: 12 Volt
• Motor Power: 600 Watt
