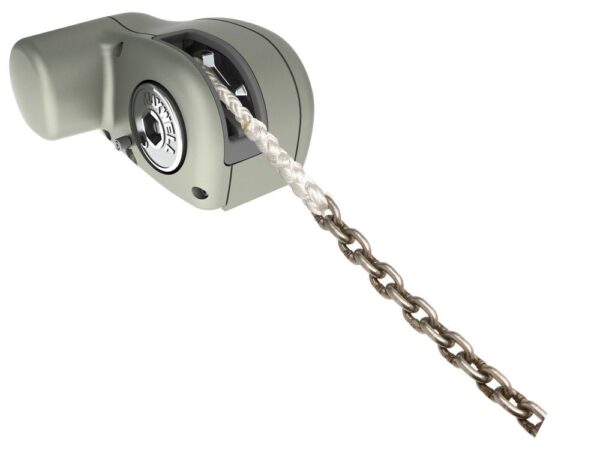

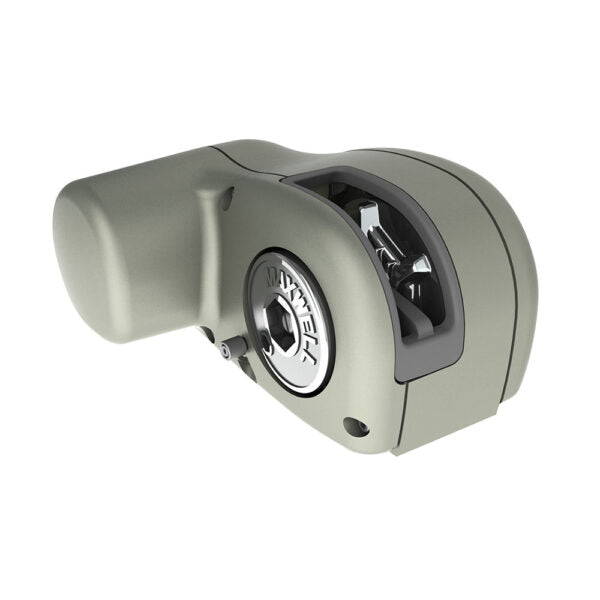

Maxwell HRCFF Series Horizontal Windlass (MPN: HRCFF612V)

Efficient anchoring with advanced free-fall technology for marine use.

The Maxwell HRCFF Series Horizontal Windlass is engineered for optimal performance in marine environments, featuring a maximum pull of 900 pounds and a working load limit of 1540 pounds. This windlass operates at a maximum line speed of 108 feet per minute, making it suitable for rapid anchoring needs, particularly favored by fishermen. Its compact design, measuring 10-1/8 inches in width and 8-3/8 inches in depth, allows for easy installation and maintenance while encapsulating the motor and drive in a watertight case for enhanced durability.

Incorporating Maxwell's Automatic Free-Fall Technology, the HRCFF allows for seamless control from the helm, enabling users to deploy the anchor with precision. The windlass can be switched between free-fall and non-free-fall modes, providing flexibility based on user preference. The die cast marine-grade alloy case is hard anodized for superior protection against harsh marine conditions, ensuring longevity and reliability.

Installation is straightforward with a simple bolt-down process, and the innovative pressure arm system facilitates a trouble-free transition from rope to chain. The high-efficiency spur gearbox includes a robust non-backwind mechanism, ensuring jam-free retrieval of both rope and chain. In the event of a power failure, an emergency free-fall function is readily available, enhancing safety and operational reliability.

Features

• Now Incorporating Maxwell’s Automatic Free-Fall Technology: Simply Activate The Windlass ‘Free Fall’ Lever, Operate Your Down Control
• Aesthetically Pleasing Above Deck Design, Encapsulating The Motor And Drive In A Watertight Case, Saving Space Below Deck And Allowing Simple Routine Maintenance
• Die Cast, Marine-Grade, Alloy Case Is Hard Anodized For Unsurpassed Marine Protection
• Simple ‘bolt Down’ Installation Ensures Effortless And Rapid On-Deck Installation And Set Up

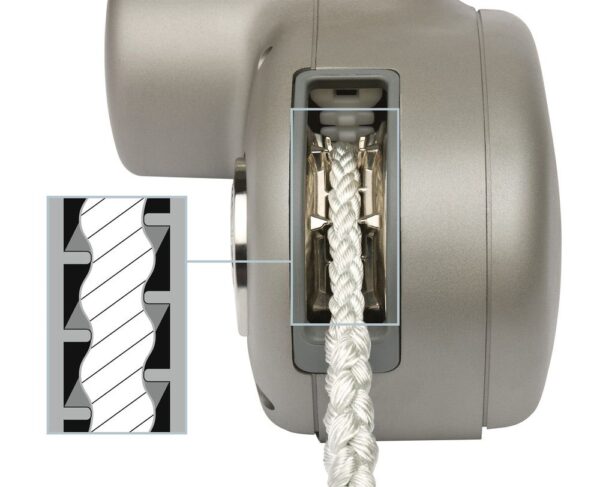

• Trouble Free Rode Transition From Rope To Chain, By Means Of An Innovative, Proven And Patented Pressure Arm System, Within A Safe Enclosed Design
• Integrated Composite Nylon, Through Deck Hawse Pipe For Ease Of Installation And Smooth, Snag-Free Operation
• High Efficiency Spur Gearbox Incorporating A Robust Non-Backwind Mechanism
• High Speed, Jam-Free Retrieval Of Rope And Chain Controlled From A Remote Panel Mounted Up/Down Switch
• Emergency ‘free Fall’ Function In The Event Of Onboard Power Failure: Activated By The Supplied, Emergency ‘Free Fall’ Lever

Specifications

• Manufacturer: Maxwell
• Manufacturer Part Number: HRCFF612V
• Mount Type: Horizontal
• Maximum Pull: 900 Pound
• Working Load Limit: 1540 Pound
• Maximum Line Speed: 108 Feet Per Minute
• Size: 10-1/8 Inch Width X 8-3/8 Inch Depth
• Chain/ Rope Size: 6 Millimeter Chain And 12 Millimeter
• Material: Die Cast Marine Grade Alloy Case
• Voltage Rating: 12 Volt
• Motor Power: 600 Watt
