Advanced 24 Volt Charger for Efficient Battery Management

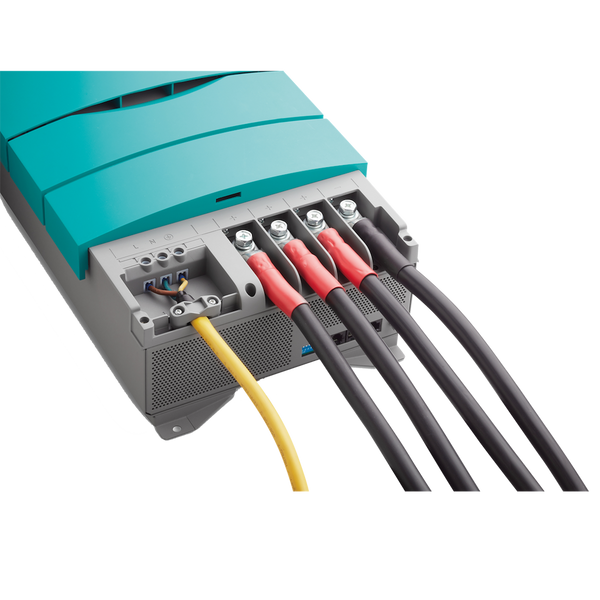

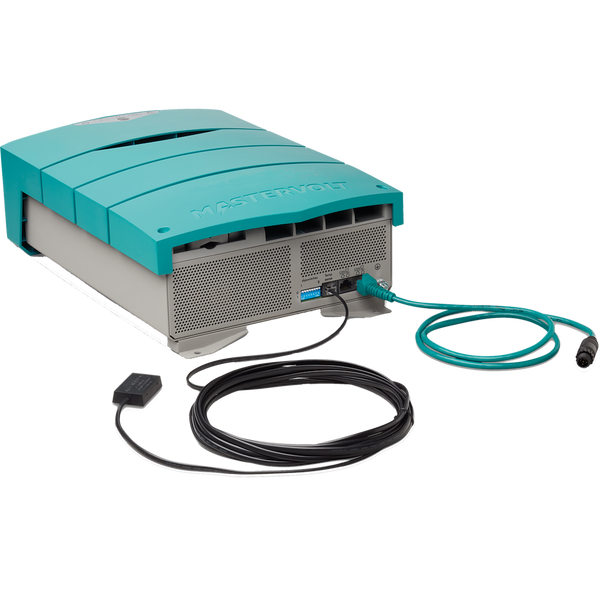

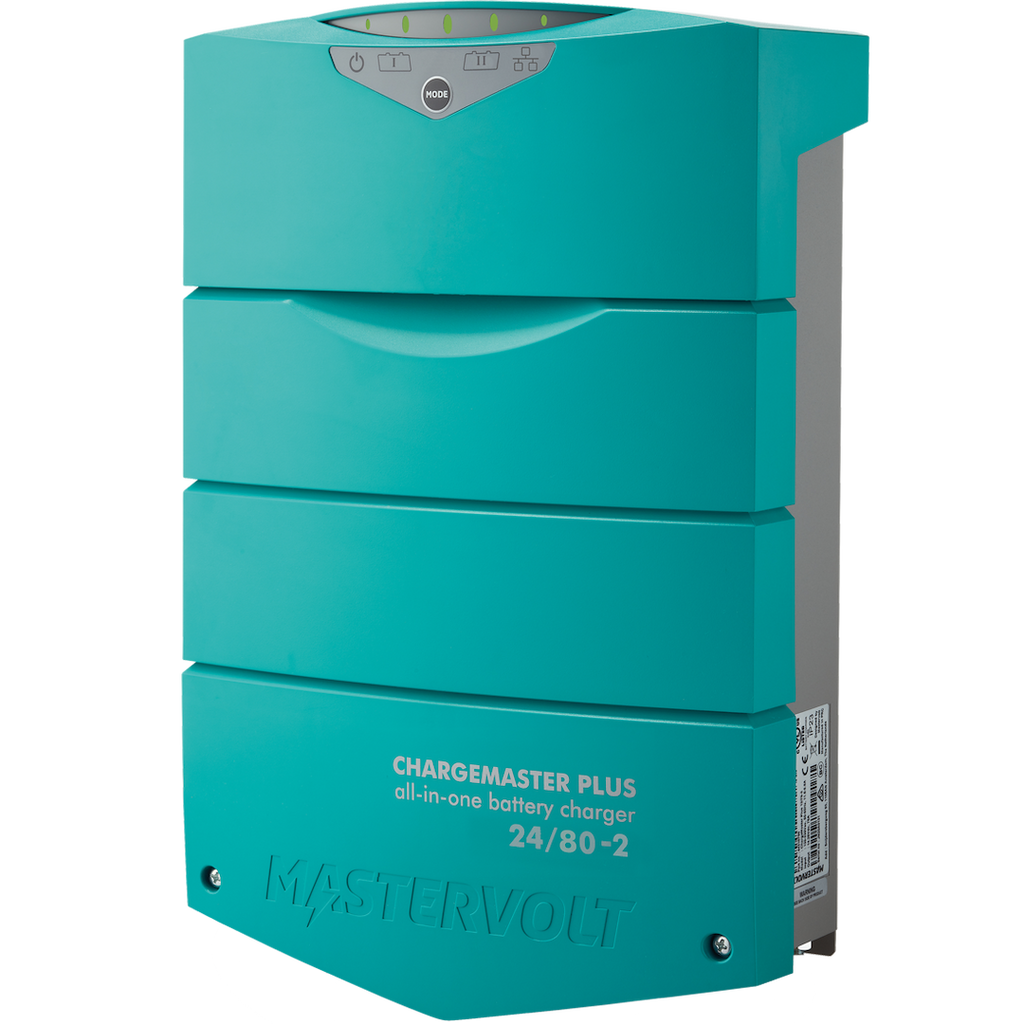

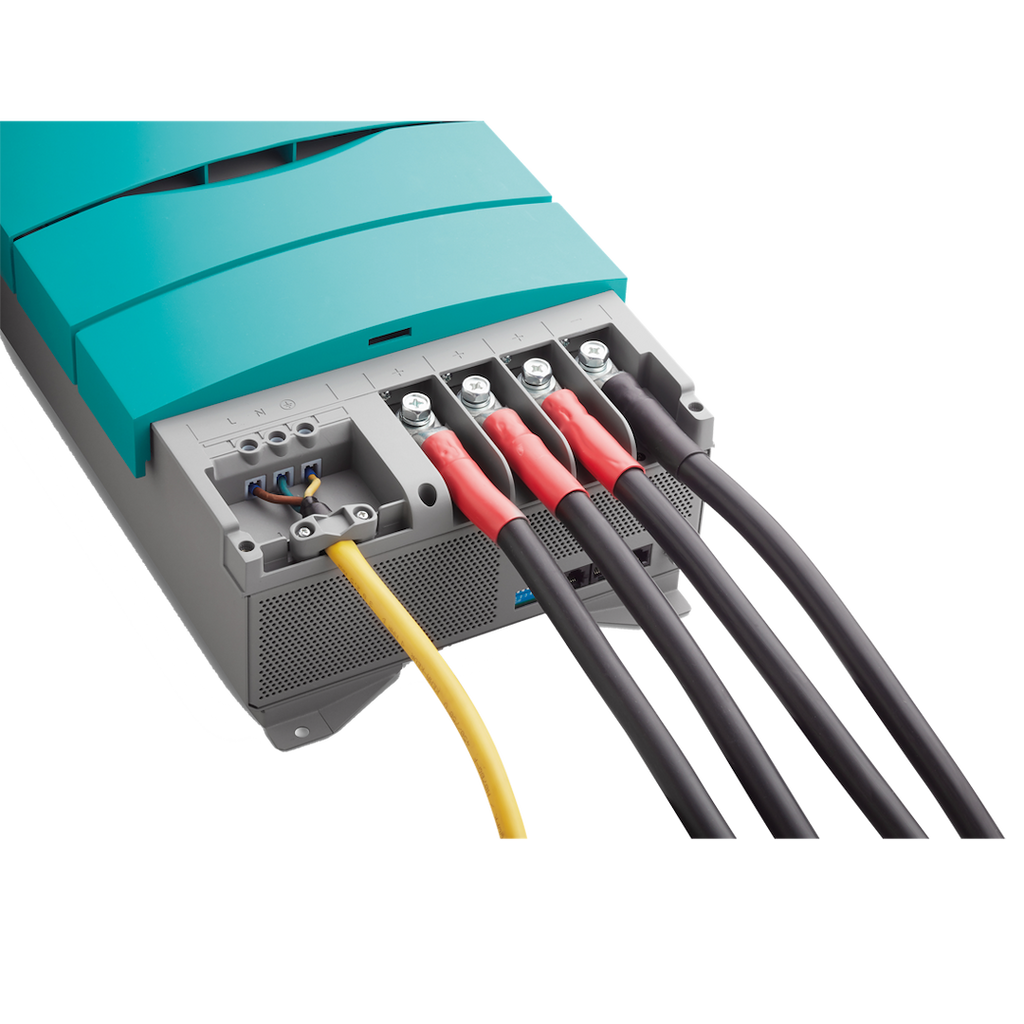

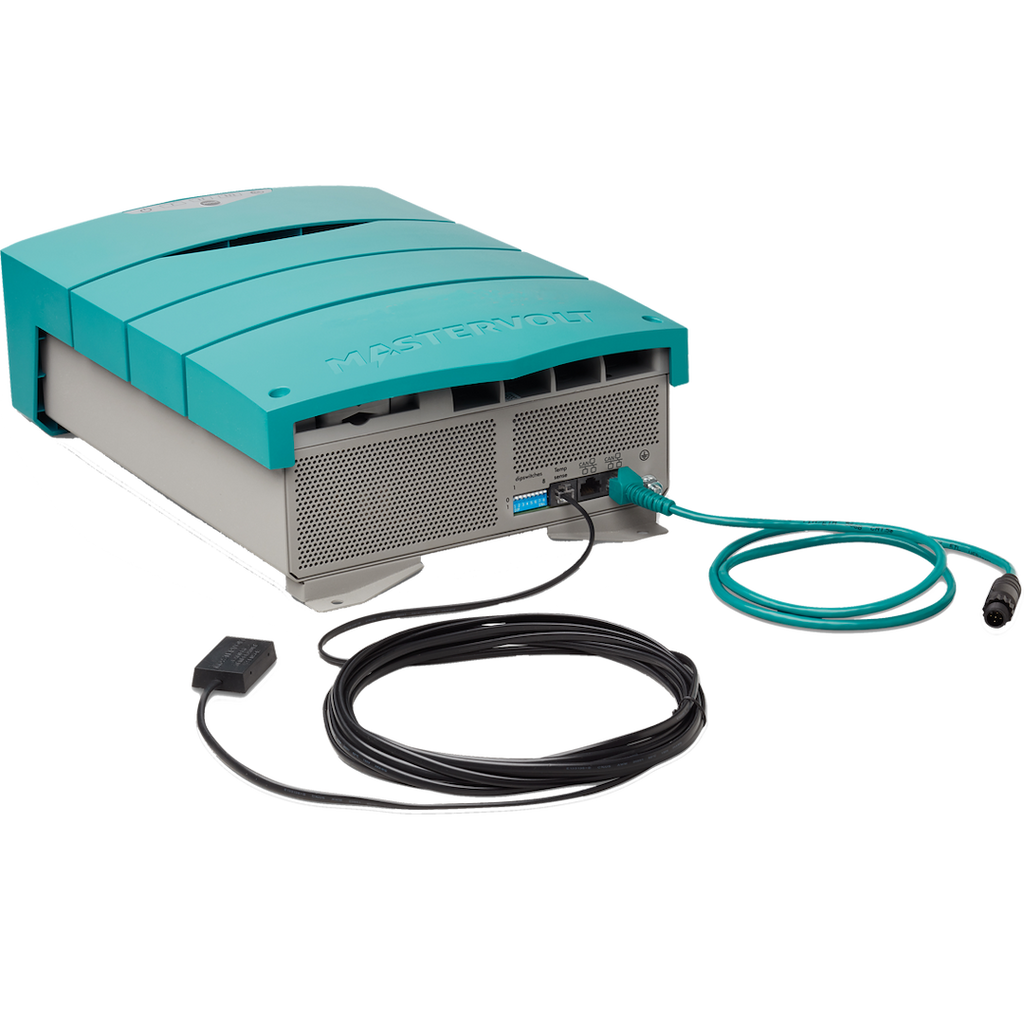

The MasterVolt ChargeMaster Plus is a sophisticated battery charger designed for 24 volt batteries, featuring a robust 80 amp output. This 2-bank charger integrates multiple functionalities, replacing auxiliary chargers and battery isolators, thus simplifying system complexity and reducing costs. It is engineered to charge various battery chemistries including Lithium Ion, Gel, and AGM, making it versatile for different applications.
With its innovative 3-step charging method, the ChargeMaster Plus ensures fast and safe charging, while its Revival mode can automatically revive fully depleted batteries. The charger is capable of handling worldwide AC voltages and frequencies, making it suitable for use in diverse environments. Its compact design and ergonomic connections facilitate quick installation, while the integrated VSR eliminates the need for additional components.
The ChargeMaster Plus is compatible with communication standards such as MasterBus, NMEA, and CZone, allowing it to work seamlessly with other marine and mobile systems. It also features an LED display that clearly indicates the charge phase of all outputs, enhancing user experience. This charger is compliant with various international standards, ensuring reliability and safety in harsh conditions.
Features
- Multicharger with two outputs, one in/output, DC-DC converter, current limiter and VSR.
- Combine Lithium Ion, Gel or AGM, and large or small battery banks on a single battery charger.
- Extended specifications: offers 20 % more output at 14.4 V and 80 % charging power at 60 deg. C.
- Safe Charge: quickly recognize the State of Charge for extended battery life.
- Very wide operating range of 80-275 V AC, 35-70 Hz.
- Compact, easy to connect and quick to install.
- MasterBus, NMEA, and Czone compatible
Specifications
- Manufacturer: Mastervolt
- Manufacturer Part Number: 44320805
- Count Of Batteries Charged: 2
- Battery Type: AGM/ Flooded Lead-Acid/ Gel/ Lithium-Ion Batteries
- Charging Current: 80 Amp
- Output Voltage: 24 Volt
- Input Voltage: 80 To 275 Volt
- Number Of Stages: 3 Stage
- Universality: Fully Universal
- Length (IN): 15.1 Inch
- Width (IN): 9.8 Inch
- Height (IN): 5 Inch
