Advanced 3-Bank Charger for Versatile Battery Management

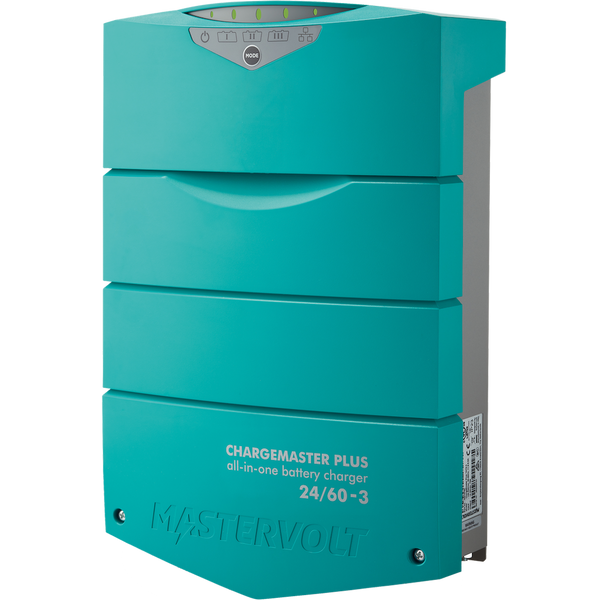

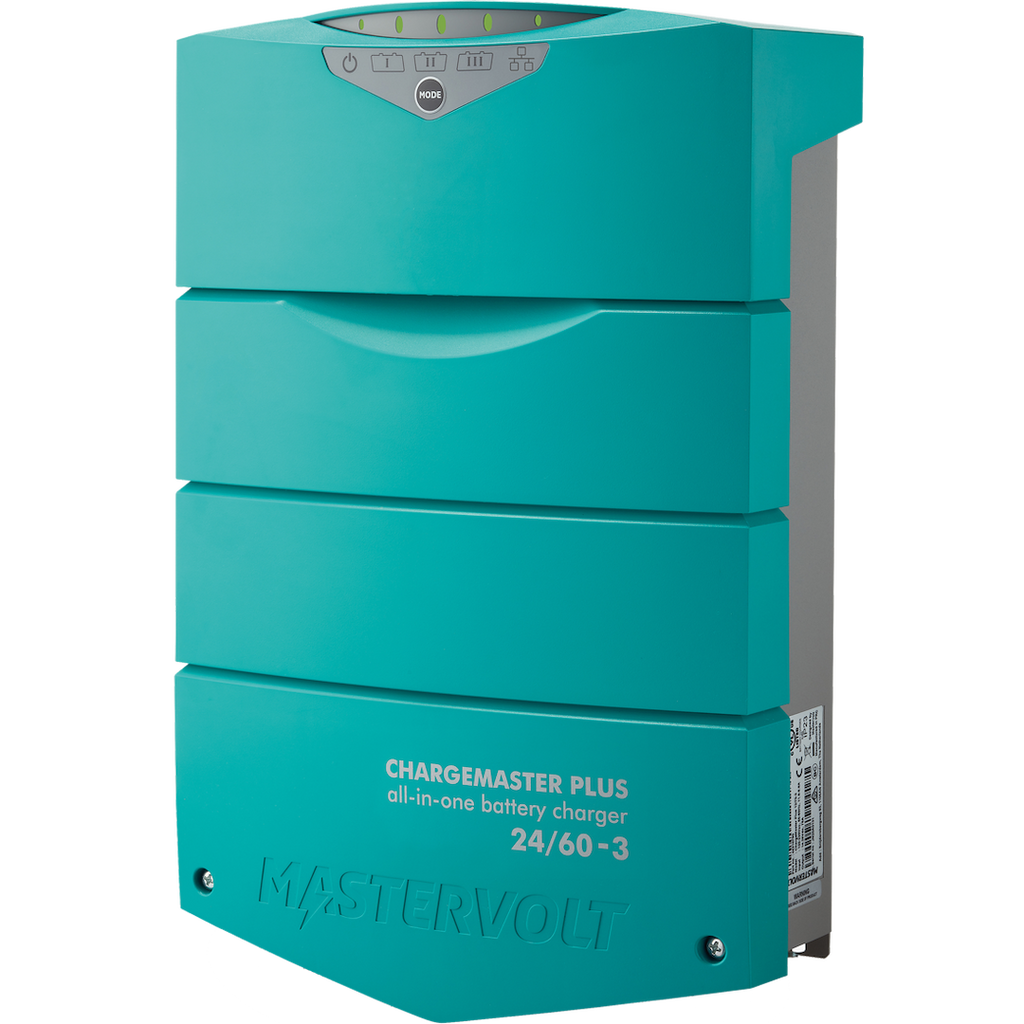

The MasterVolt ChargeMaster Plus is a sophisticated battery charger designed for 24 Volt batteries, capable of charging three batteries simultaneously. This automotive-grade charger operates on a wide input voltage range of 80 to 275 Volts and is compatible with various battery types including AGM, flooded lead-acid, gel, and lithium-ion. Its robust design ensures reliable performance in harsh environments, making it suitable for marine and mobile applications.
Equipped with a 60 Amp charging current, the ChargeMaster Plus utilizes a 3-step charging method that enhances battery life and efficiency. Unique features such as Revival mode and Priority Charge allow for the automatic revival of fully depleted batteries and the redirection of power to the lowest battery, respectively. The charger also supports communication with MasterBus, NMEA, and CZone systems, facilitating integration with other onboard equipment.
The compact dimensions of 15.1 inches in height, 9.8 inches in width, and 5 inches in depth make installation straightforward, while the LED display provides clear visibility of the charging status. With compliance to multiple international standards, the ChargeMaster Plus is engineered to meet the demands of modern battery management, ensuring safe and effective charging for a variety of applications.
Features
- Multicharger with two outputs, one in/output, DC-DC converter, current limiter and VSR.
- Combine Lithium Ion, Gel or AGM, and large or small battery banks on a single battery charger.
- Charges multiple batteries while being underway.
- Extended specifications: offers 20 % more output at 14.4 V and 80 % charging power at 60 deg. C.
- Safe Charge: quickly recognize the State of Charge for extended battery life.
- Very wide operating range of 80-275 V AC, 35-70 Hz.
- Compact, easy to connect and quick to install.
- MasterBus, NMEA, and Czone compatible
Specifications
- Manufacturer: Mastervolt
- Manufacturer Part Number: 44320605
- Count Of Batteries Charged: 3
- Battery Type: AGM/ Flooded Lead-Acid/ Gel/ Lithium-Ion Batteries
- Charging Current: 60 Amp
- Output Voltage: 24 Volt
- Input Voltage: 80 To 275 Volt
- Number Of Stages: 3 Stage
- Universality: Fully Universal
- Length (IN): 15.1 Inch
- Width (IN): 9.8 Inch
- Height (IN): 5 Inch
