Advanced 3-Bank Charger for Versatile Battery Management
The MasterVolt ChargeMaster Plus is a sophisticated battery charger designed for 24 Volt batteries, capable of charging up to three batteries simultaneously. This charger integrates multiple functionalities, replacing auxiliary chargers and battery isolators, thereby simplifying system complexity and reducing costs. With a robust 40 Amp charging current and a 3-step fully automatic charging process, it ensures fast and safe charging for various battery chemistries including AGM, Gel, and Lithium-Ion.
Equipped with a wide input voltage range of 80 to 275 Volt and compatibility with global AC voltages and frequencies, the ChargeMaster Plus is engineered to perform reliably in harsh environments. Its innovative features include a revival mode for fully depleted batteries and a priority charge function that directs power to the lowest battery for expedited charging. The charger also supports communication standards such as MasterBus, NMEA, and CZone, allowing seamless integration with other marine and mobile systems.

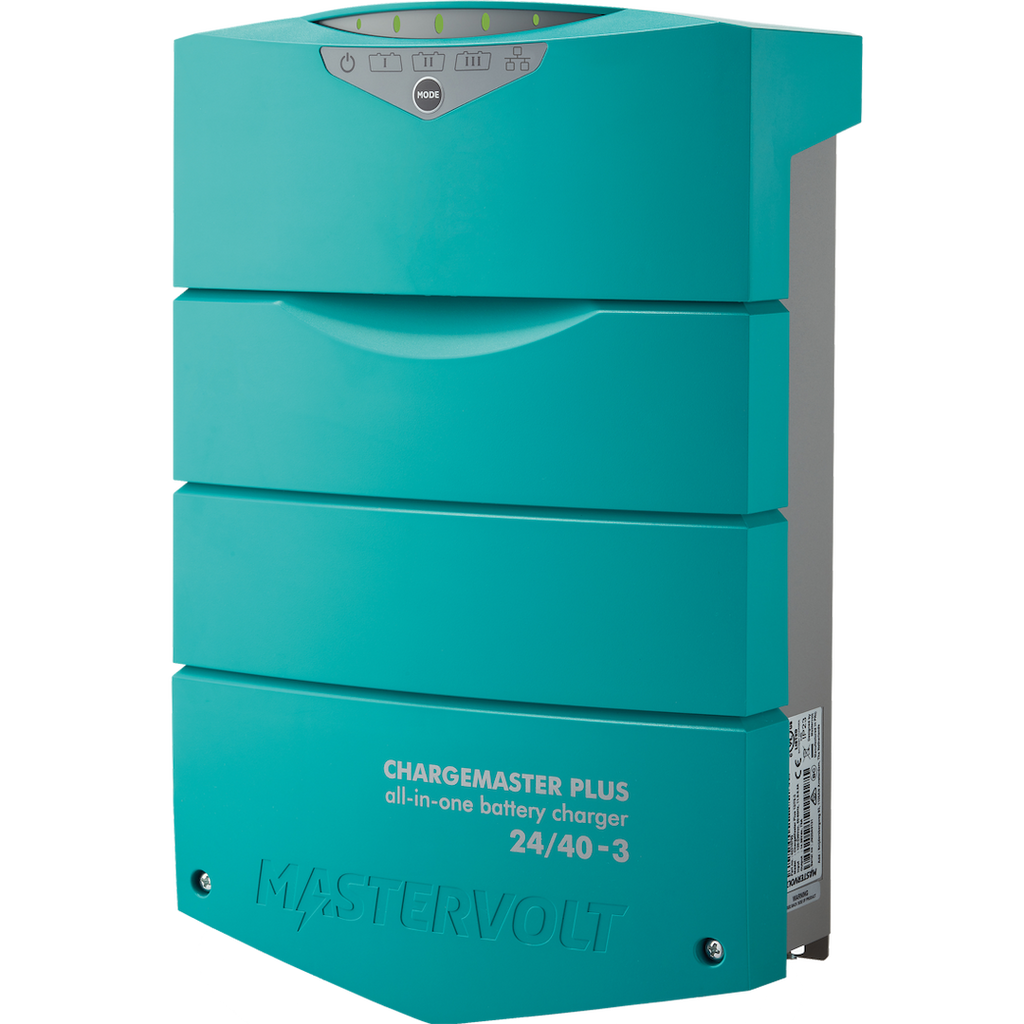

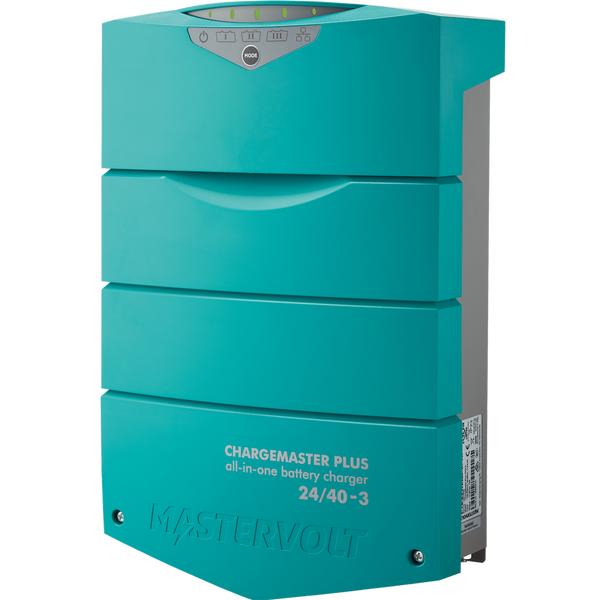

The ChargeMaster Plus is designed for ease of use, featuring an LED display that clearly indicates the charge phase of each output. Its compact dimensions and ergonomic connections facilitate quick installation, making it suitable for both marine and automotive applications. With compliance to various international standards, this charger is a dependable solution for maintaining battery health and performance.
Features
- Multicharger with two outputs, one in/output, DC-DC converter, current limiter and VSR.
- Combine Lithium Ion, Gel or AGM, and large or small battery banks on a single battery charger.
- Charges multiple batteries while being underway.
- Extended specifications: offers 20 % more output at 14.4 V and 80 % charging power at 60 deg. C.
- Safe Charge: quickly recognize the State of Charge for extended battery life.
- Very wide operating range of 80-275 V AC, 35-70 Hz.

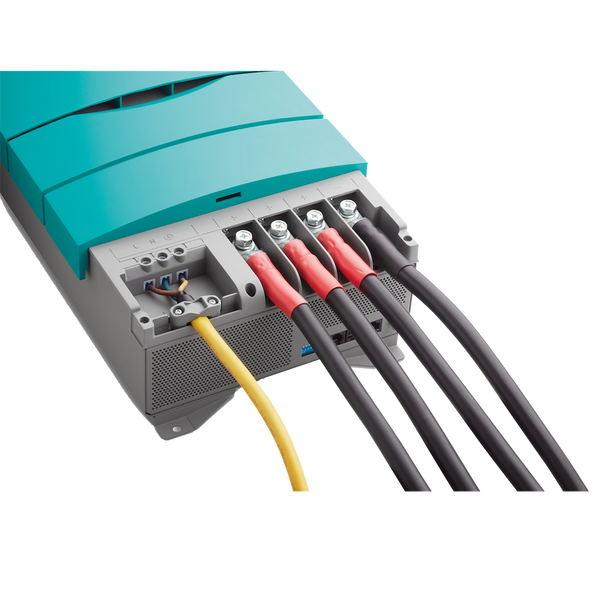

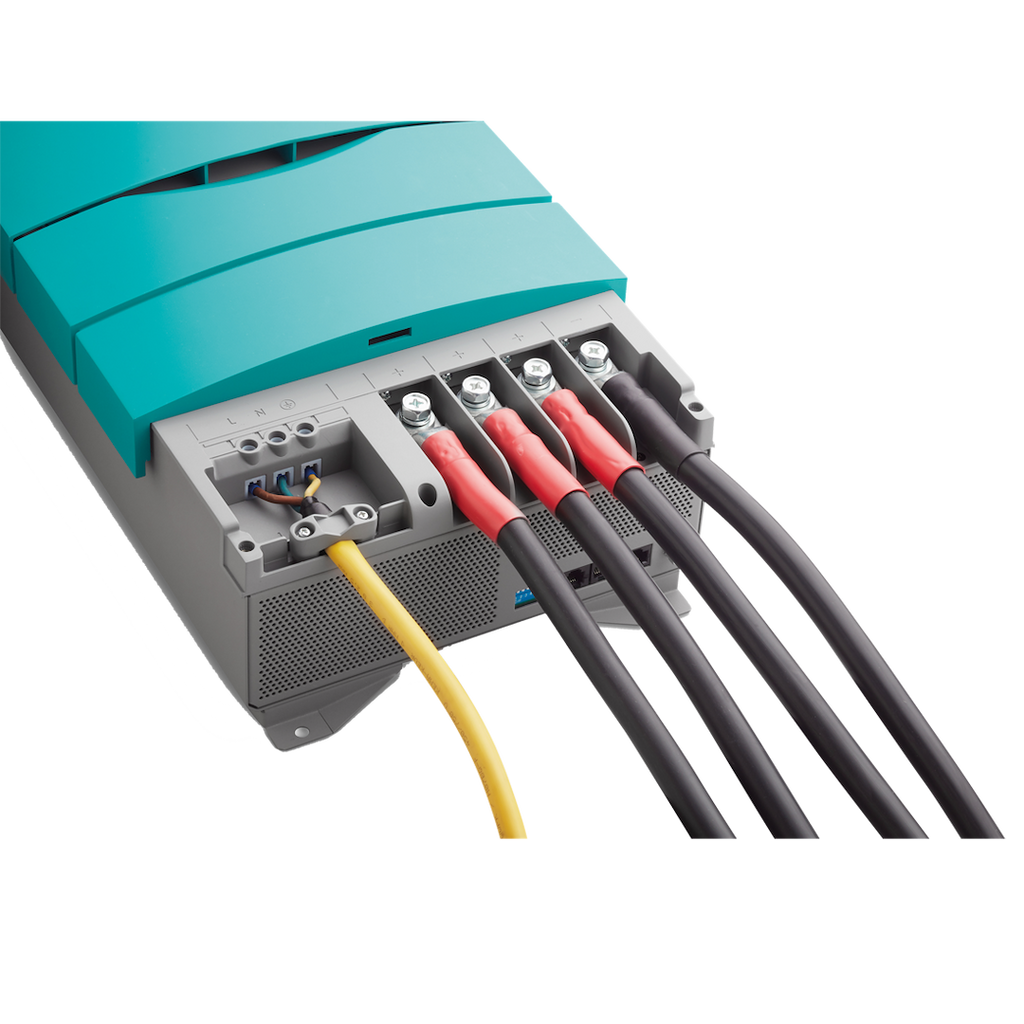

- Compact, easy to connect and quick to install.
- MasterBus, NMEA, and Czone compatible
Specifications
- Manufacturer: Mastervolt
- Manufacturer Part Number: 44320405
- Count Of Batteries Charged: 3
- Battery Type: AGM/ Flooded Lead-Acid/ Gel/ Lithium-Ion Batteries
- Charging Current: 40 Amp
- Output Voltage: 24 Volt
- Input Voltage: 80 To 275 Volt
- Number Of Stages: 3 Stage
- Universality: Fully Universal
- Length (IN): 15.1 Inch
- Width (IN): 9.8 Inch
- Height (IN): 5 Inch
