Advanced three-bank charger for versatile battery management.

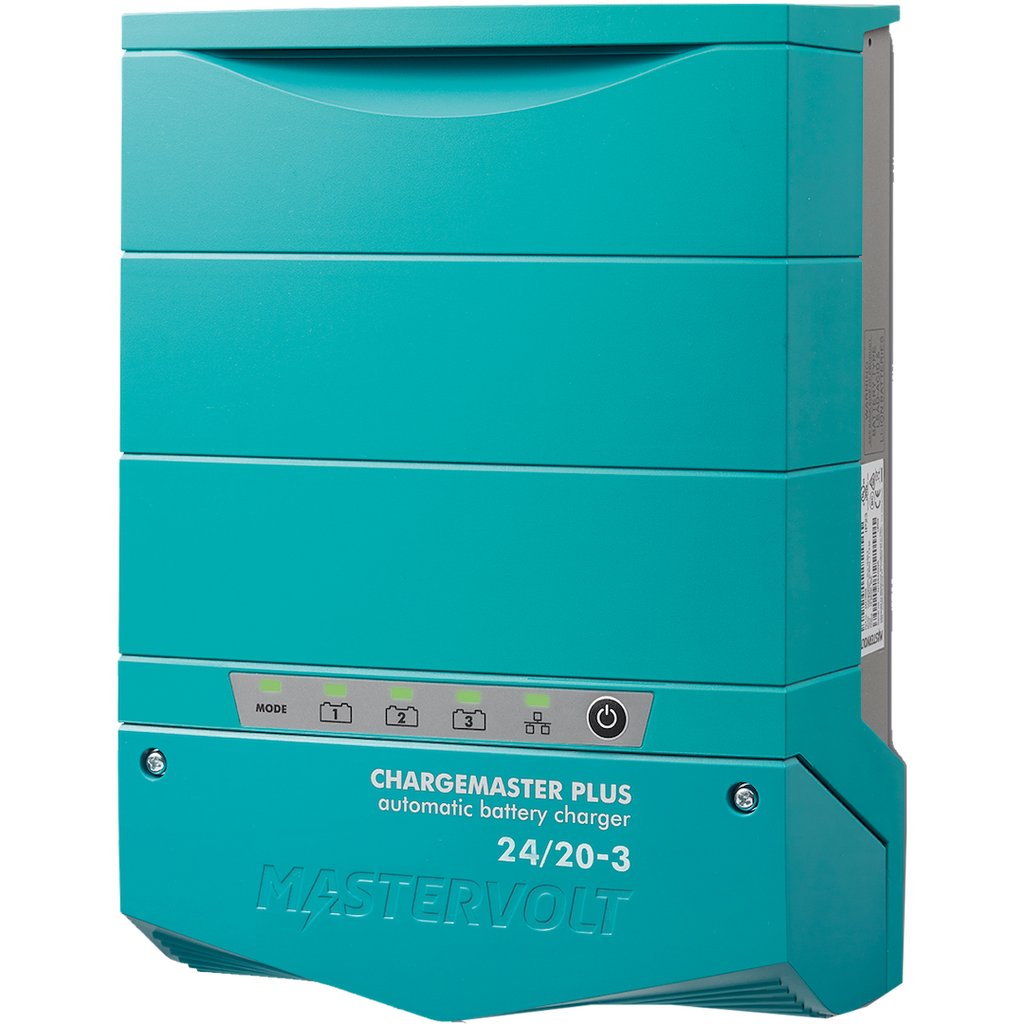

The MasterVolt ChargeMaster Plus 24/20-3 CZone Battery Charger is designed to efficiently charge multiple battery types including AGM, flooded lead-acid, gel, and lithium-ion. With a robust output of 24 VDC and 20 amps, this charger can manage three batteries simultaneously, making it suitable for various applications in marine and mobile environments. Its advanced architecture allows for a fast and safe charging process through a 3-step+ method, ensuring optimal performance and longevity of the batteries.
This charger features a unique Revival mode that can automatically revive fully depleted batteries, while the Priority Charge function directs power to the battery with the lowest charge for quicker replenishment. The Smart Input capability allows for charging all three batteries from a single alternator, enhancing convenience during operation. The ChargeMaster Plus is built to withstand harsh conditions, handling worldwide AC voltages and frequencies, and is compliant with multiple safety standards including CE, E-mark, and UL.
Installation is simplified with robust connections and an integrated VSR that eliminates the need for additional components. The user-friendly display provides clear information on the charge phase of each output, making it easy to monitor battery status. Additionally, the charger is compatible with communication standards such as MasterBus, NMEA, and CZone, allowing for seamless integration with other onboard systems. This versatility makes the ChargeMaster Plus an essential component for modern battery management.
Features
- Multicharger with two outputs, one in/output, DC-DC converter, current limiter and VSR.
- Combine Lithium Ion, Gel or AGM, and large or small battery banks on a single battery charger.
- Charges multiple batteries while being underway.
- Extended specifications: offers 20 % more output at 14.4 V and 80 % charging power at 60 deg. C.
- Safe Charge: quickly recognize the State of Charge for extended battery life.
- Very wide operating range of 80-275 V AC, 35-70 Hz.
- Compact, easy to connect and quick to install.
- MasterBus, NMEA, and Czone compatible
Specifications
- Manufacturer: Mastervolt
- Manufacturer Part Number: 44320205
- Count Of Batteries Charged: 3
- Battery Type: AGM/ Flooded Lead-Acid/ Gel/ Lithium-Ion Batteries
- Charging Current: 20 Amp
- Output Voltage: 24 Volt
- Input Voltage: 80 To 275 Volt
- Universality: Fully Universal
- Length (IN): 11-1/2 Inch
- Width (IN): 8.3 Inch
- Height (IN): 4.1 Inch
