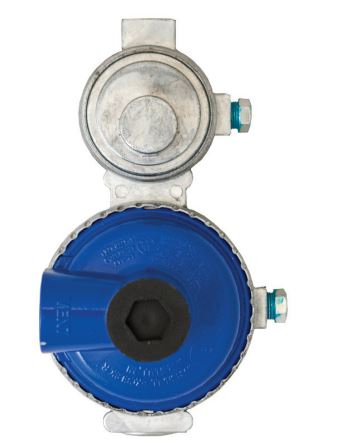

Marshall Excelsior Propane Regulator (MPN: MEGR-298LP)

Efficient two-stage regulation for low BTU applications

The Marshall Excelsior Propane Regulator is designed for low BTU applications requiring reliable two-stage regulation. This model is particularly suitable for RVs, manufactured homes, and cabins, accommodating either a single appliance or multiple low BTU appliances while allowing for a wide range of output pressure adjustments. Constructed from durable die-cast zinc, this regulator features a 1/4 inch FNPT inlet and a 3/8 inch FNPT outlet, ensuring compatibility with various setups.

This regulator includes high and low 1/8 inch NPT pressure tap ports, an integral drip lip vent, and an optional 90-degree vent location, enhancing its versatility in installation. It meets UL, RVIA, and NFPA requirements, ensuring safety and compliance for users. With a maximum output of 175,000 BTU, it is engineered to provide consistent performance in low-pressure applications, making it a reliable choice for various propane-powered systems.

Features

• Specifically Intended For Applications With Low BTU Demands But Still Require Two Stage Regulation
• Ideally Suited For RV, Manufactured Homes, Cabins Or Other Applications With One Appliance Or Low BTU Multiple Appliance Applications While Still Permitting Maximum Range Of Output Pressure Adjustment
• High And Low 1/8 Inch NPT Pressure Tap Ports, An Integral Drip Lip Vent And Optional 90 Degree Vent Location
• Meet UL, RVIA And NFPA Requirements

Specifications

• Manufacturer: Marshall Excelsior
• Manufacturer Part Number: MEGR-298LP
• Pressure: Low Pressure
• RV Approved: Yes
• Inlet Connection: 1/4 Inch Female Threads
• Outlet Connection: 3/8 Inch Female Threads
• Installation Type: Horizontal
• Outlet Pressure: 11 Inch WC
• Number Of Stages: 2
• BTU Level: 175,000 BTU
• Material: Die-Cast Zinc
• With Shut Off Valve: No
• With Hose: No
